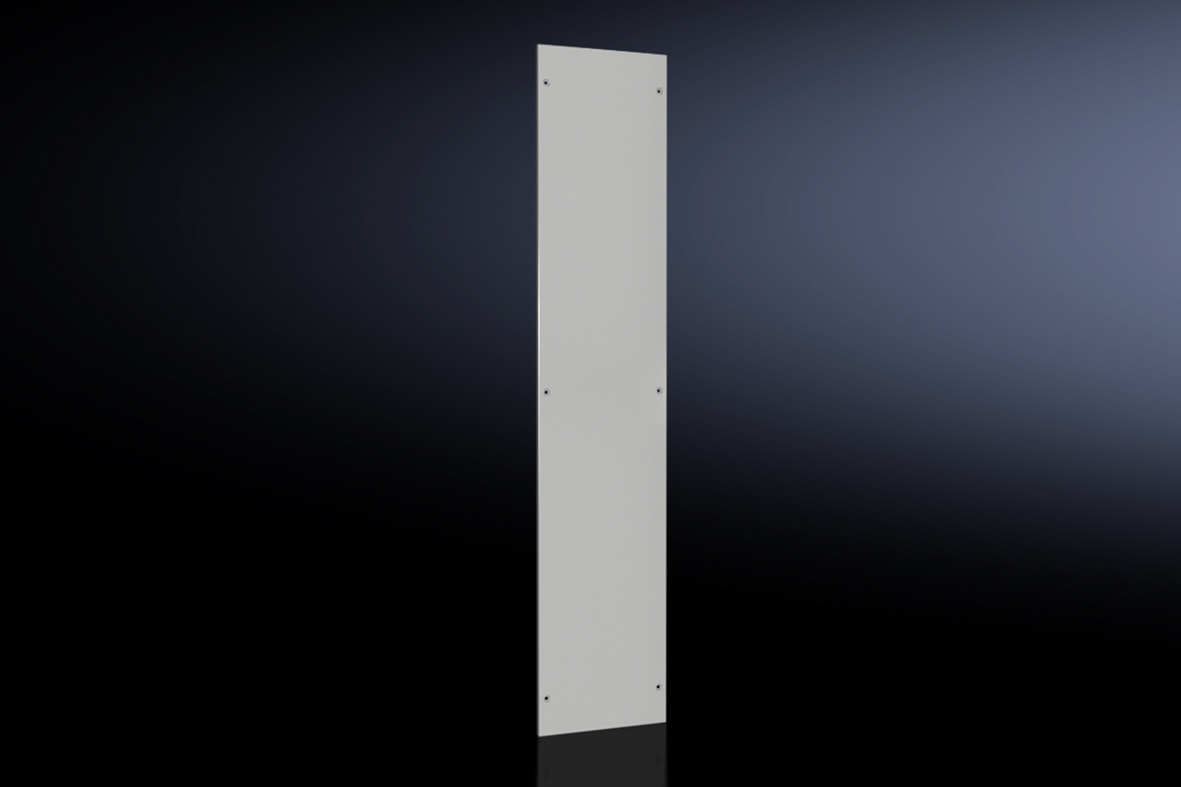

Rittal 8184245 side panels VX screwable H×D 1800×400 mm 2 pcs

Your rating:
Average rating
product review for Rittal 8184245 side panels VX screwable H×D 1800×400 mm 2 pcs
( 4.5 / 5 ) 15 ratings
Rittal 8184245
This image may differ from the desired article.
Rittal 8184245Rittal 8184245Rittal 8184245
114,61 EUR
( 136,39 EUR incl. VAT )
≈ £95.93  |  ≈ $125.96
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8184245 side panels VX screwable H×D 1800×400 mm 2 pcs
Datasheet:file_download Download
Lieske Part No.:1440647
Mfg Part No: 8184245
UPC/EAN: 4028177827752
Weight:17.8 kg
Type:VX 8184.245

Product information for Rittal 8184245:

The Rittal VX 8184.245 is a screwable side panel for enclosures of the VX system, designed for enclosures with a height of 1,800 mm and a depth of 400 mm. The component is made of sheet steel with a thickness of 1.5 mm and is designed for use in industrial environments where a robust and reliable construction is required. The surface is dip-primed and externally powder-coated, ensuring high corrosion resistance and a uniform colour finish in RAL 7035. The side panel is part of a modular enclosure system and serves as lateral covering to protect the enclosure's contents from mechanical stress and environmental influences.

Applications
The side panel is suitable for use in industrial plants, such as machine building, manufacturing technology, or automation technology. It is used in VX-type enclosures with a height of 1,800 mm and a depth of 400 mm. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for indoor and outdoor use, provided environmental conditions comply with standard requirements. The type rating according to UL 50E (Type 1 and Type 12) confirms suitability for dry indoor areas as well as environments with light splashing water or dirt.

Functions and Equipment in Detail
The side panel enables time-saving installation through clip-on side panel holders, ensuring quick and secure attachment to enclosure bodies. The flat part holders are equipped with internal contact elements, enabling automatic equipotential bonding and enhanced EMC protection (Electromagnetic Compatibility). A hanging aid facilitates precise positioning in height and depth, allowing installation to be carried out accurately without additional tools. Single-person installation is possible due to structural features such as integrated holders and easily accessible fastening points. The earthing bolt features a large, paint-free contact surface, ensuring optimal electrical connection and reliable earthing contact.

Technology Explained Simply
The sheet steel material with a thickness of 1.5 mm provides sufficient mechanical stability to protect the side panel against mechanical loads such as impact or pressure. The dip priming and external powder coating in RAL 7035 ensure high corrosion resistance and long service life, even under industrial conditions. The protection rating IP 55 means the side panel is dust-tight and protected against splashing water, making it suitable for use in environments with increased humidity or light splashing water. The type rating according to UL 50E (Type 1 and Type 12) confirms suitability for dry indoor areas as well as environments with light splashing water or dirt, enabling use in various industrial applications.

Compatibility and Accessories
The side panel is specifically designed for enclosures of the VX system with a height of 1,800 mm and a depth of 400 mm. Compatible accessories include screwable hinges for the side panel and a VX internal locking mechanism for the side panel, enabling additional security and a secure closure. These components can be used additionally to enhance the functionality and safety of the enclosure.

Installation and Mounting
Mounting is carried out by screwing onto the designated holders of the enclosure. The clip-on side panel holders allow for quick and secure fastening, with the hanging aid facilitating precise positioning in height and depth. Single-person installation is possible, as the design ensures no additional tools or multiple people are required.

Operational Advantages
The side panel offers high mechanical stability and corrosion resistance, extending the service life of the enclosure. Integrated features such as automatic equipotential bonding and EMC protection increase the safety and reliability of installed electrical components. Easy installation and single-person mounting reduce labour effort and installation time. The earthing bolts with large, paint-free contact surfaces ensure reliable earthing contact, which is crucial for the safety and functionality of the enclosure. The protection rating IP 55 and UL type rating approval expand the range of applications in various industrial environments.

The packaging unit includes 2 pieces of the side panel, sufficient for mounting both sides of an enclosure. The net weight is 15.8 kg per packaging unit, with a gross weight of 17.8 kg. Product identification is via manufacturer number 8184245 and type VX 8184.245. The PCF values (Cradle-to-Gate) amount to 54.58 kg CO2 eq per packaging unit, with class B indicating that the value was approximately calculated based on product weight and self-declared.

The side panel is designed for use in VX system enclosures with a height of 1,800 mm and a depth of 400 mm. Compatibility with the mentioned accessories such as hinges and internal locking mechanisms enables flexible and secure installation. Technical features such as material, surface, colour, protection rating, and type rating are optimised for industrial use and ensure high reliability and longevity.

The product description is based on information provided by the manufacturer Rittal and available technical data sheets. The stated advantages and functions are directly derived from manufacturer specifications and correspond to the technical properties of the product.

The side panel is a component for VX system enclosures and serves as lateral covering. Installation is carried out by screwing onto designated holders. Integrated features such as automatic equipotential bonding, EMC protection, single-person installation, and earthing bolts with large contact surfaces increase safety and reliability. The protection rating IP 55 and UL type rating approval expand application possibilities. The packaging unit includes 2 pieces, and fastening materials are included in the delivery scope. Product identification is via manufacturer number 8184245 and type VX 8184.245. The PCF values amount to 54.58 kg CO2 eq per packaging unit, with class B indicating that the value was approximately calculated based on product weight and self-declared.

The information regarding material, surface, colour, protection rating, type rating, delivery scope, compatibility, installation, and advantages is directly derived from manufacturer specifications and corresponds to the technical properties of the product.

The side panel is designed for use in VX system enclosures with a height of 1,800 mm and a depth of 400 mm. Installation is carried out by screwing onto designated holders. Integrated features such as automatic equipotential bonding, EMC protection, single-person installation, and earthing bolts with large contact surfaces increase safety and reliability. The protection rating IP 55 and UL type rating approval expand application possibilities. The packaging unit includes 2 pieces, and fastening materials are included in the delivery scope. Product identification is via manufacturer number 8184245 and type VX 8184.245. The PCF values amount to 54.58 kg CO2 eq per packaging unit, with class B indicating that the value was approximately calculated based on product weight and self-declared.

The information regarding material, surface, colour, protection rating, type rating, delivery scope, compatibility, installation, and advantages is directly derived from manufacturer specifications and corresponds to the technical properties of the product.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forHousing type: VX, height: = 1,800 mm, depth: = 400 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)54.58 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8184245, EAN: 4028177827752

Questions & answers

What is the delivery time of Rittal 8184245 side panels VX screwable H×D 1800×400 mm 2 pcs?

The article Rittal 8184245 side panels VX screwable H×D 1800×400 mm 2 pcs is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8184245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8184245 side panels VX screwable H×D 1800×400 mm 2 pcs always at the best possible price. We can give you a discount of 2% on Rittal 8184245 side panels VX screwable H×D 1800×400 mm 2 pcs if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
