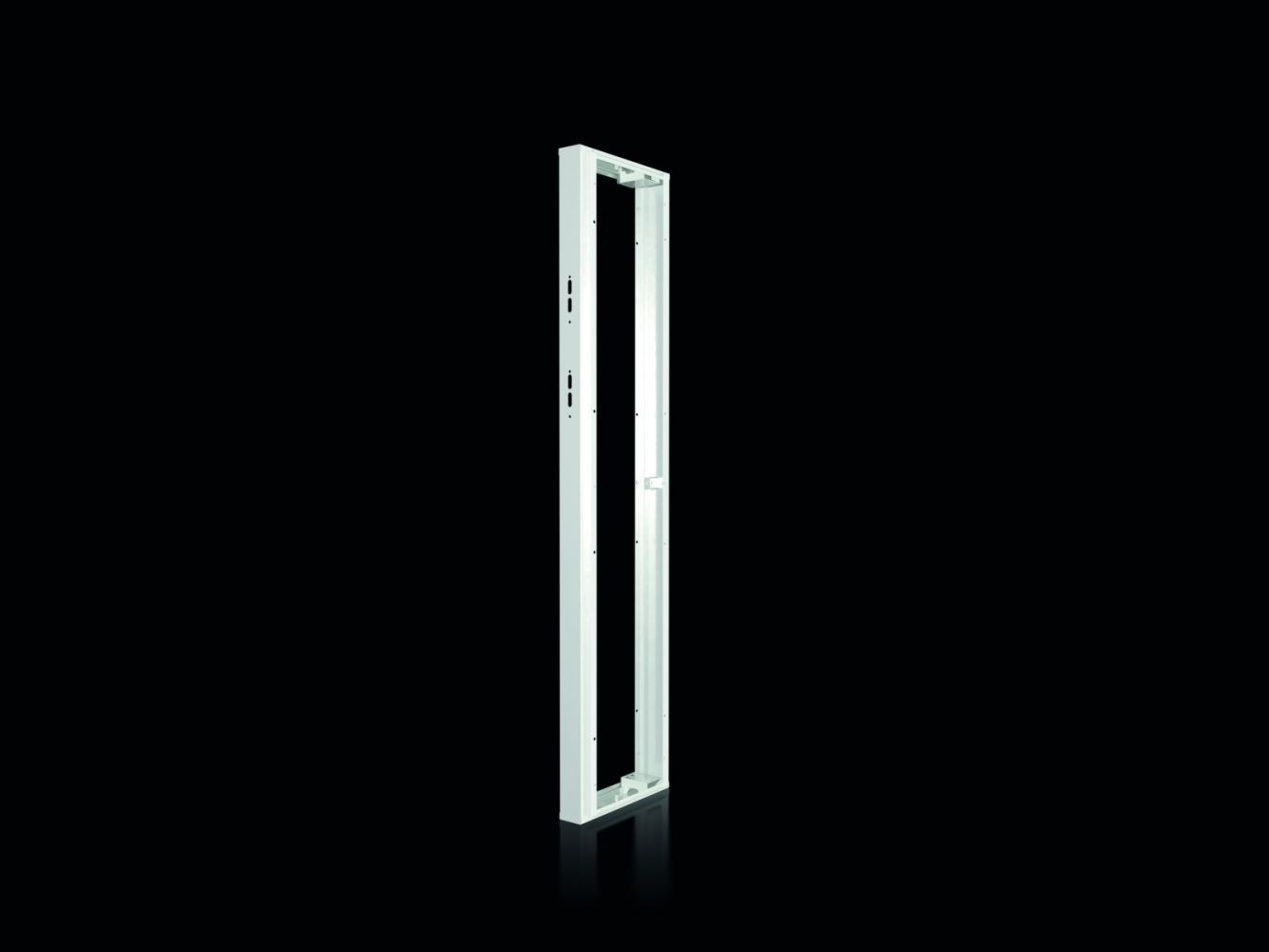

Rittal 8951020 VX disconnector hood, height: 1800x400 mm

Your rating:
Average rating
product review for Rittal 8951020 VX disconnector hood, height: 1800x400 mm
( 4.4 / 5 ) 29 ratings
Rittal 8951020
This image may differ from the desired article.
Rittal 8951020Rittal 8951020
351,44 EUR
( 418,21 EUR incl. VAT )
≈ £294.16  |  ≈ $386.23
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 8951020 VX disconnector hood, height: 1800x400 mm
Datasheet:file_download Download
Lieske Part No.:1440189
Mfg Part No: 8951020
UPC/EAN: 4028177921078
Weight:15.9 kg
Type:VX 8951.020

Product information for Rittal 8951020:

The Rittal VX 8951.020 disconnect switch hood is a component specifically designed for integration into single-door enclosures of the VX series, enabling the conversion of a standard enclosure into a disconnect switch enclosure. The product is made of sheet steel with a wall thickness of 1.5 mm and is powder-coated in the colour RAL 7035. Dimensions are 103 mm width, 1,800 mm height, and 400 mm depth. The hood is intended for mounting on a single-door enclosure with a door tube frame and can be installed either on the left or right side of the enclosure, increasing flexibility in planning baying combinations.

Applications
The disconnect switch hood is used to ensure safety interlocking of enclosures and enclosure combinations in accordance with UL regulations. It is designed for use with operating levers (handles) of main switches from various manufacturers, including Allen Bradley, Square D, General Electric, Eaton, and Siemens. The hood is specifically designed for integration with switches such as Allen Bradley 1494 F-M1/P1/S1, Square D 9422 A1, General Electric TDA Type 1 and 2, Eaton NZM2(3)-XSH-12-...-NA, as well as Siemens operating mechanisms with Bowden cable and depth-variable mechanisms. Compliance with UL 508 A requirements is ensured by the integrated main door interlock.

Functions and Equipment in Detail
The hood features two cutouts on the front side, intended for mounting operating levers at different heights. This allows for adaptable installation with various switch types. The integrated main door interlock ensures that the enclosure door can only be opened when the disconnect switch is in the OFF position, enhancing safety during maintenance work. The delivery includes the main door interlock, a cover plate, and the required mounting materials.

Technology Explained Simply
The disconnect switch hood is designed to maintain the full mounting area of the enclosure, enabling efficient use of available space. In combination with an integrable mounting plate insert, the mounting area of the main enclosure can be increased by up to 14%. The protection rating IP 55 (according to EN 60 529) is achieved in conjunction with VX series enclosures, providing protection against dust and splashing water. The corresponding NEMA protection rating is NEMA 12, also in conjunction with VX enclosures. The type rating according to UL 50E includes Type 1 and Type 12, confirming suitability for indoor use and environments with light contamination.

Compatibility and Accessories
The hood is specifically developed for use with enclosures of the VX series. Compatible accessories include door interlocks for baying combinations, mounting plate inserts for TS, and screwable side panels VX with a height of 1,800 mm and depth of 400 mm. These components can be used to extend functionality and adapt to specific requirements.

Mounting and Installation
Mounting is performed on a single-door enclosure with a door tube frame. The hood can be installed on the left or right side of the enclosure, allowing for flexible arrangement in baying combinations. Fixing is done using the included mounting materials. The integrated main door interlock must be connected to the operating mechanism of the main switch to ensure the safety function.

Operational Advantages
The disconnect switch hood enables safe and standard-compliant conversion of a standard enclosure into a disconnect switch enclosure. Compliance with UL 508 A standards and the integrated safety interlock enhance operational safety. The expansion of the mounting area by up to 14% through the mounting plate insert provides additional space for components. Compatibility with various switch manufacturers and flexible mounting positions increase adaptability to different applications.

General
MaterialSheet steel, 1.5 mm
Surface protectionPowder-coated
ColourRAL 7035
Scope of deliveryIncluding main door lock, cover plate and mounting material.
Width103 mm
Height1.800 mm
Depth400 mm
NoteMounting of hood only on single-door cabinet with door frame
Type rating according to UL 50EType 1, Type 12
Degree of protection IP according to EN 60 529IP 55 in conjunction with VX series cabinets
NEMA degree of protectionNEMA 12 (in combination with VX series cabinets)


Product data sheet
