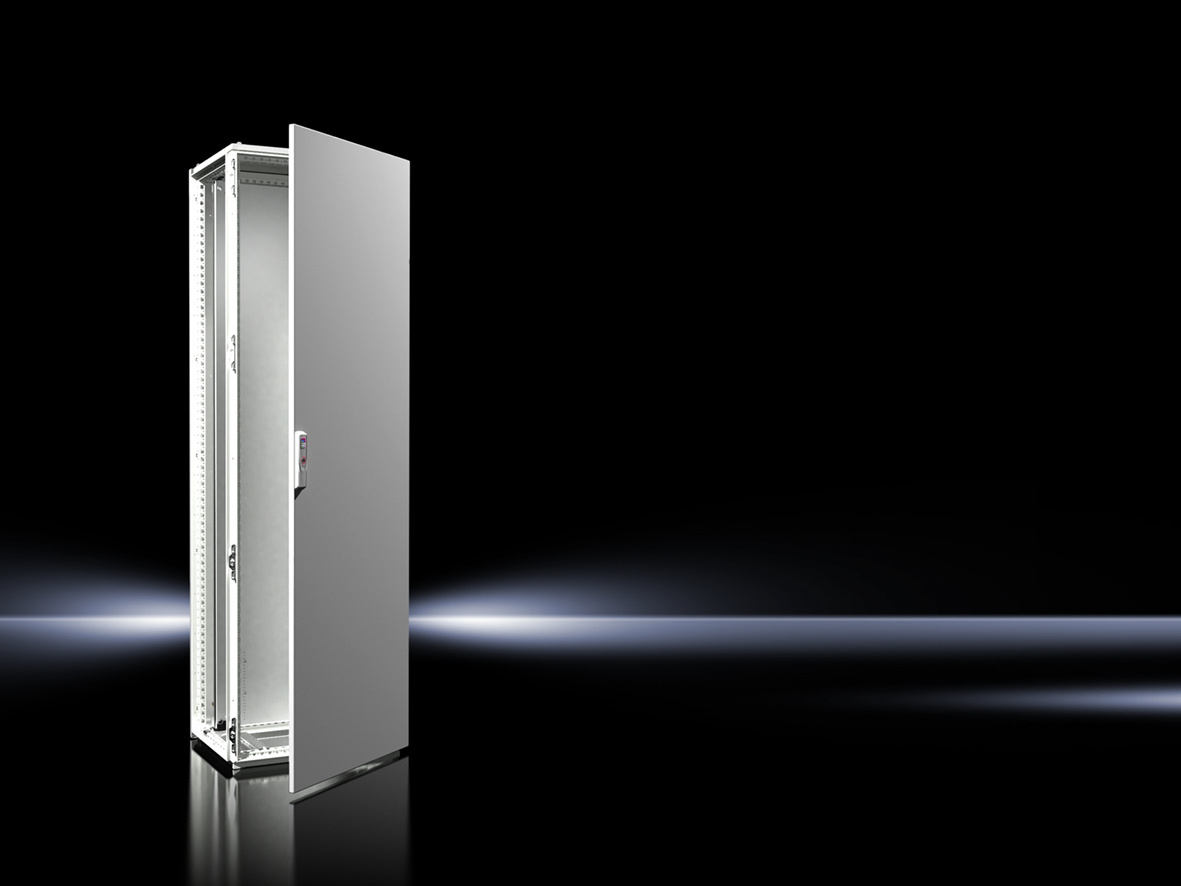

Rittal 8684000 VX bayed enclosure system, 1-door, W x H x D: 600x1800x400 mm
|
512,17 EUR 512,68 EUR |
|
|
( 609,48 EUR incl. VAT ) ≈ £428.69 | ≈ $562.87 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1442127 |
| Mfg Part No: | 8684000 |
| UPC/EAN: | 4028177813793 |
| Weight: | 86.9 kg |
| Type: | VX 8684.000 |
Product information for Rittal 8684000:
Applications
This enclosure system is suitable for use in industrial environments where high mechanical load capacity and protection against dust and splashing water are required. It is commonly used in manufacturing industries, automation systems, power supply technology, or process control. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, making the enclosure suitable for outdoor areas or damp indoor spaces. The NEMA classification includes NEMA 1 and NEMA 12, confirming suitability for dry indoor environments as well as environments with light dirt and splashing water. The type rating according to UL 50E includes Type 1 and Type 12, demonstrating compliance with North American safety standards. The IK code IK10 indicates high mechanical strength against mechanical impacts such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure system is supplied with an enclosure frame, a front door, a roof plate, a rear panel, divided base plates, and a mounting plate. The door is standard right-hinged but can be toollessly reconfigured to left-hinged. The door features a PU foam seal ensuring a tight closure and is equipped with a 3 mm double-barrel lock, enabling a four-point locking mechanism. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm, allowing for easy installation on the floor. The mounting plate is C-flanged on the sides and is depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. It features a mounting grid to simplify component positioning.
Technology Explained Simply
The construction of the enclosure system is based on a robust sheet steel frame with a wall thickness of 1.5 mm for the enclosure frame, roof, rear panel, and base plates. The door is made of 2.0 mm thick sheet steel, and the mounting plate is made of 3.0 mm thick sheet steel. The surface of the enclosure frame is dip-primed, while the door, roof, and rear panel are additionally powder-coated externally using a textured lacquer. The mounting plate and base plates are galvanized to prevent corrosion. The color of the enclosure system is RAL 7035, a gray-beige gray commonly used in industrial environments. Electrical conductivity between the frame, rear panel, roof, and base plates ensures automatic equipotential bonding according to DIN 62 208, which is important for safety in electrical installations. The base plates are divided into three parts, removable and replaceable, enabling easy maintenance and cleaning.
Compatibility and Accessories
The enclosure system is compatible with various accessories that enable use in different application scenarios. These include levelling feet M12 with an adjustment height of 18–43 mm, transport eyes for freight shipping, dust protection strips, cable entry ferrules in various diameters (e.g. 13 mm, 21 mm), and plug-through ferrules. Additionally, mounting plate spacers, TS mounting brackets for external mounting levels, circuit diagram pockets in various depths (e.g. D600 mm, D90 mm), and system chassis in various dimensions (e.g. 18 x 64 mm, 23 x 64 mm) are available. For mounting monitors or TFT displays, an SM TFT/monitor holder with VESA connection MIS-D, M is available.
Mounting and Installation
Mounting of the enclosure system is performed using the integrated mounting grid and reusable mounting rails. The mounting plate is depth-adjustable, allowing flexible adaptation to the specific installation. The base plates are removable, enabling easy installation on the floor. The enclosure construction is designed for a load capacity of up to 15,000 N, ensuring high mechanical stability. Baying on all sides enables flexible integration into existing enclosure installations. Mounting is done via integrated blind rivet nuts M6, which allow protection-rated fastening of fittings to the profile. Profile edges are rounded, and horizontal profiles feature an additional groove above the PU foam seal to ensure optimal sealing.
Operational Advantages
The enclosure system offers high mechanical strength, reliable protection rating, and flexible mounting. The integrated mounting plate with depth-adjustable glides and mounting rails enables quick and precise installation of components. Electrical conductivity between components ensures safe equipotential bonding. The use of sheet steel with a robust surface coating ensures long service life and resistance to corrosion. Baying capability and modular construction enable scalable use in various application scenarios. The toolless reconfiguration of the door hinge direction and the extension of the door opening to 180° increase flexibility during installation and maintenance. Integrated QR codes on the roof, door, mounting plate, rear panel, and nameplate enable unique identification and labeling of the enclosure system.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 600 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 254.06 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
