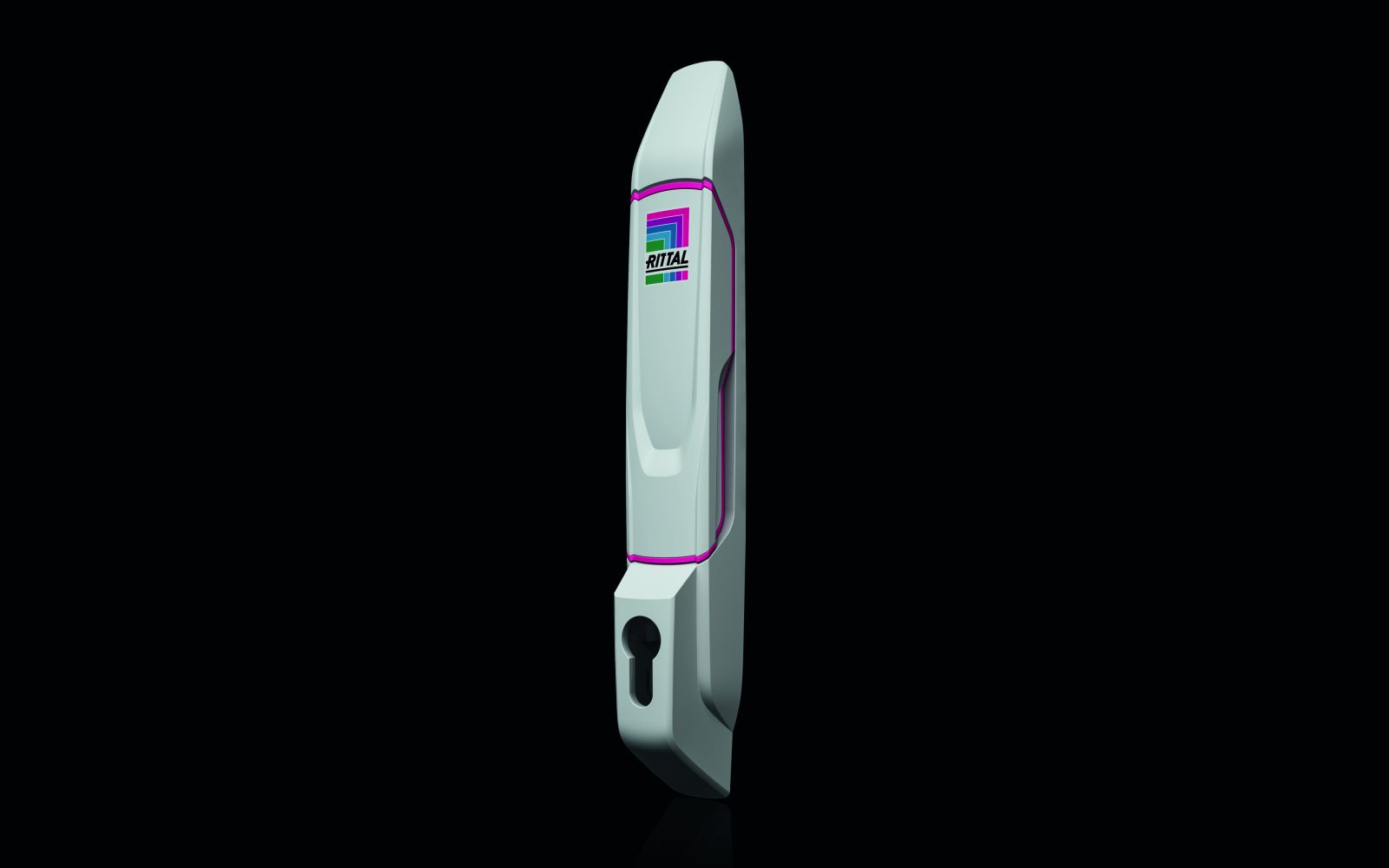

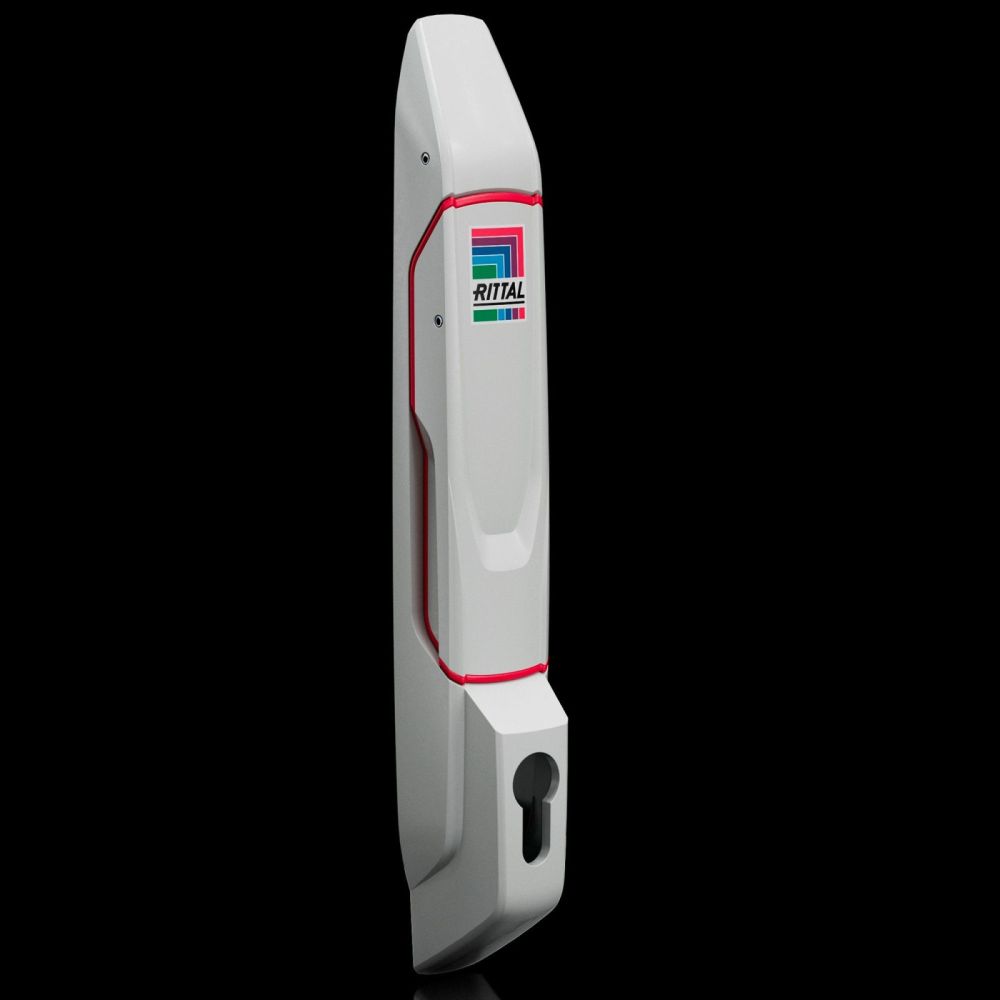

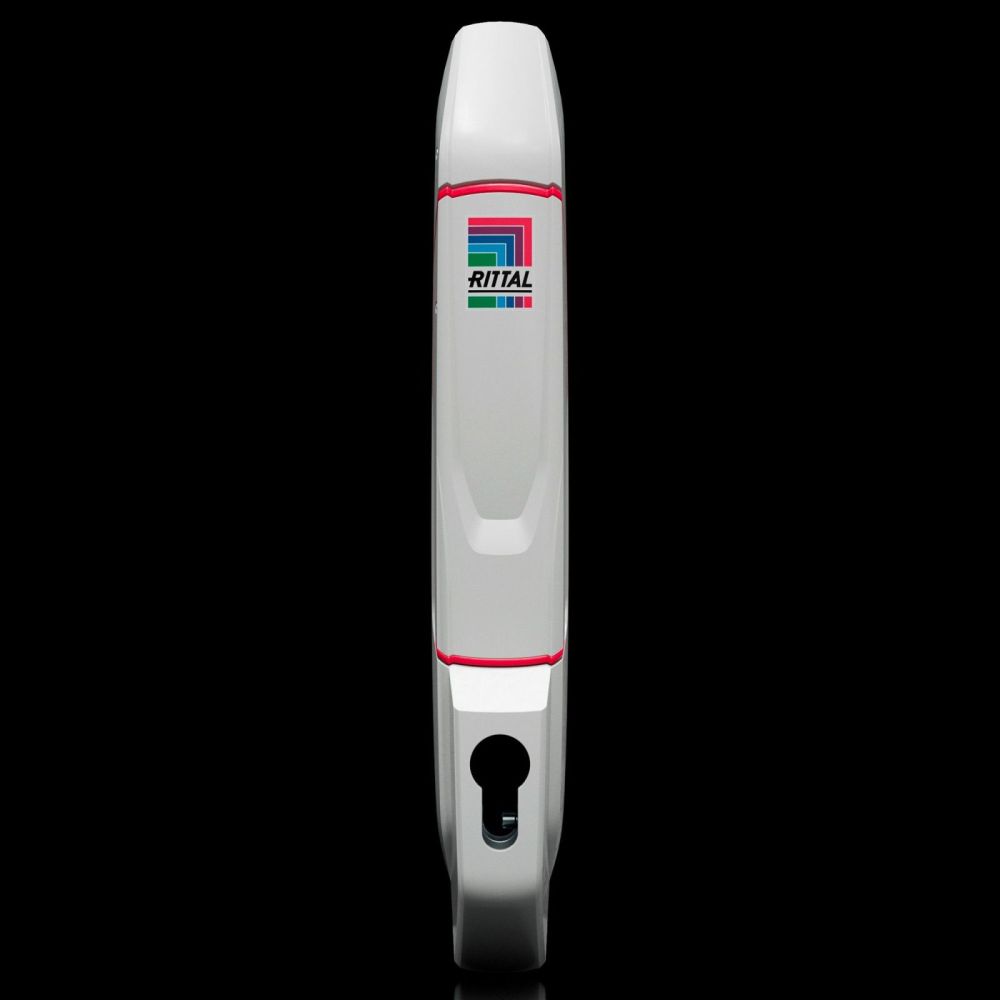

Rittal 8618250 VX comfort handle, for half cylinder
|
38,72 EUR 38,74 EUR |
|
|
( 46,08 EUR incl. VAT ) ≈ £32.41 | ≈ $42.55 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440905 |
| Mfg Part No: | 8618250 |
| UPC/EAN: | 4028177921788 |
| Weight: | 0.686 kg |
| Type: | VX 8618.250 |
Product information for Rittal 8618250:
Applications
This handle is intended for use in industrial environments, particularly in enclosures of the VX and VX IT series. It is suitable for applications requiring secure and space-saving door opening. The construction is suitable for use in indoor and outdoor environments, with the exact environmental requirements determined by the respective enclosure design. Use in combination with profile half-cylinders or safety and push-button lock inserts allows flexible adaptation to different security requirements.
Functions and Equipment in Detail
The handle is designed for installation of profile half-cylinders with a total length of 40 mm or 45 mm (according to DIN 18 252). Alternatively, it can also be combined with safety and push-button lock inserts of 40 mm length. This design allows adaptation to various locking types, with the exact selection depending on specific requirements for access security and operability. The material choice of zinc die-cast ensures high mechanical stability and durability under industrial conditions.

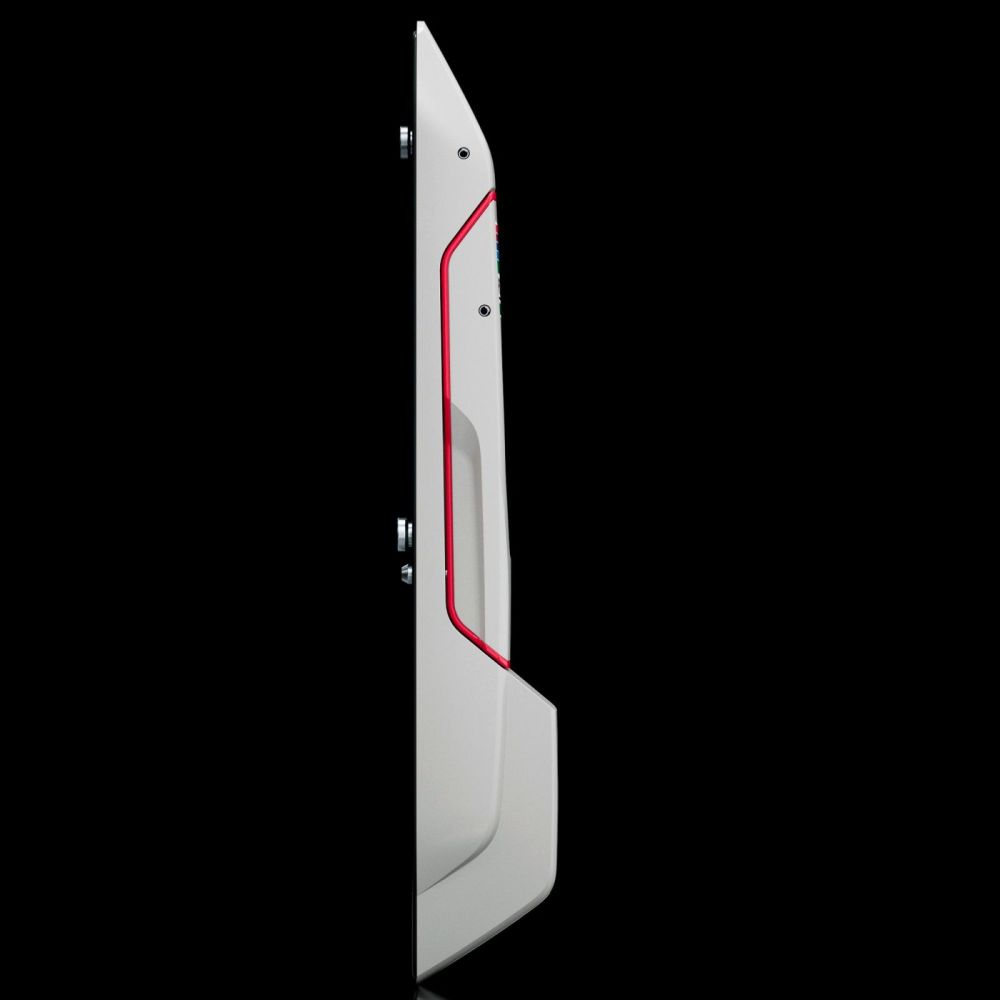

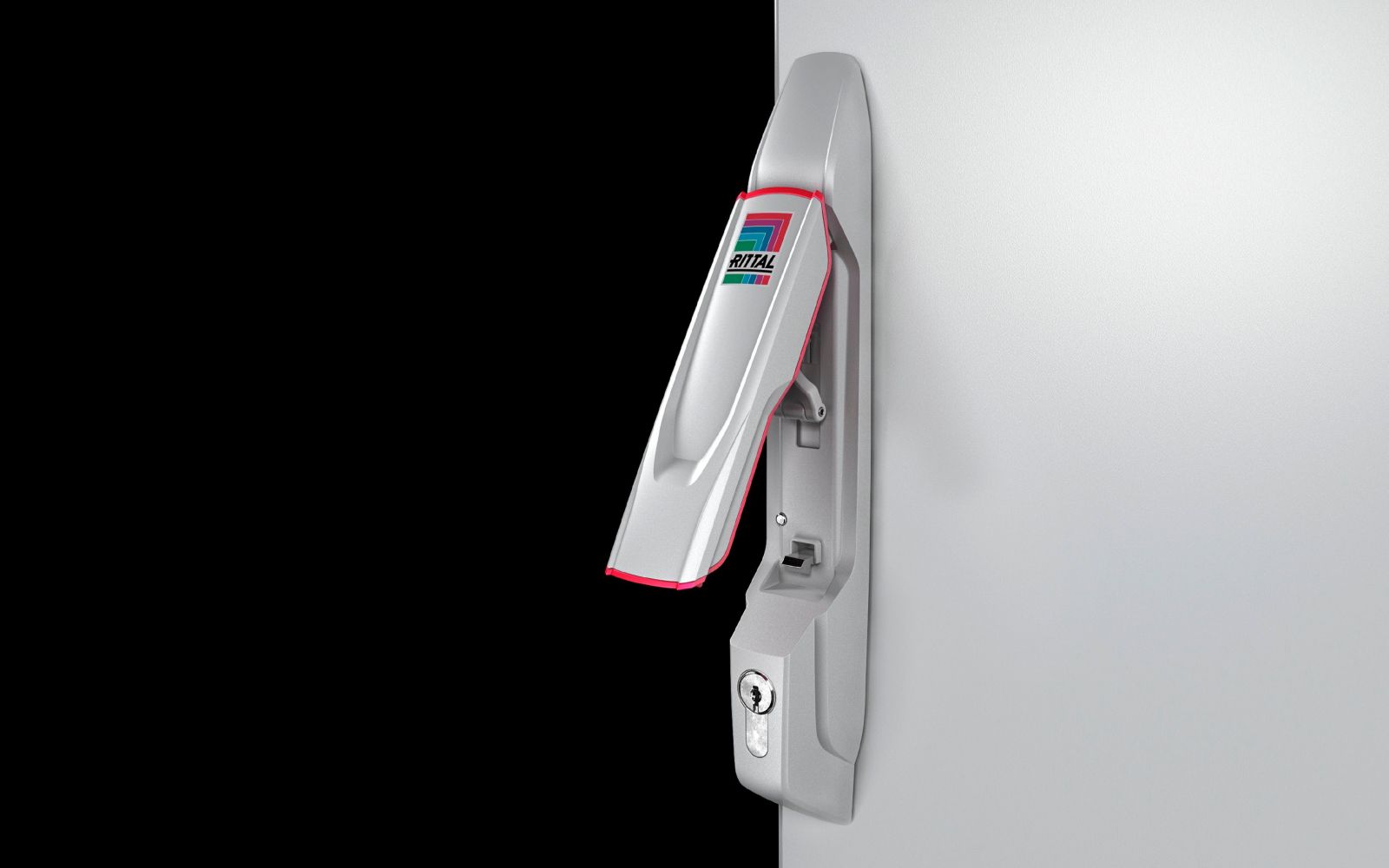

Technology Explained Simply
The folding mechanism of the handle means that it lies flat against the door surface when not in use. This minimises space requirements at the door edge, which is particularly advantageous in tight enclosure configurations. The snap-in mounting system allows for quick and secure fastening without additional fastening elements. The colour RAL 7035 corresponds to a grey-beige standard tone that integrates well into industrial environments. The zinc die-cast material provides sufficient strength and corrosion resistance for use in industrial facilities.
Compatibility and Accessories
The handle is specifically designed for enclosures of types VX and VX IT. It is compatible with profile half-cylinders of lengths 40 mm and 45 mm (according to DIN 18 252) as well as with safety and push-button lock inserts of 40 mm length. As accessories, various profile half-cylinder handle systems and lock inserts such as SZ 2467000 Ergoform-S safety or safety and push-button lock insert 2468000 are available. These components can be combined according to requirements for access security and operating comfort.

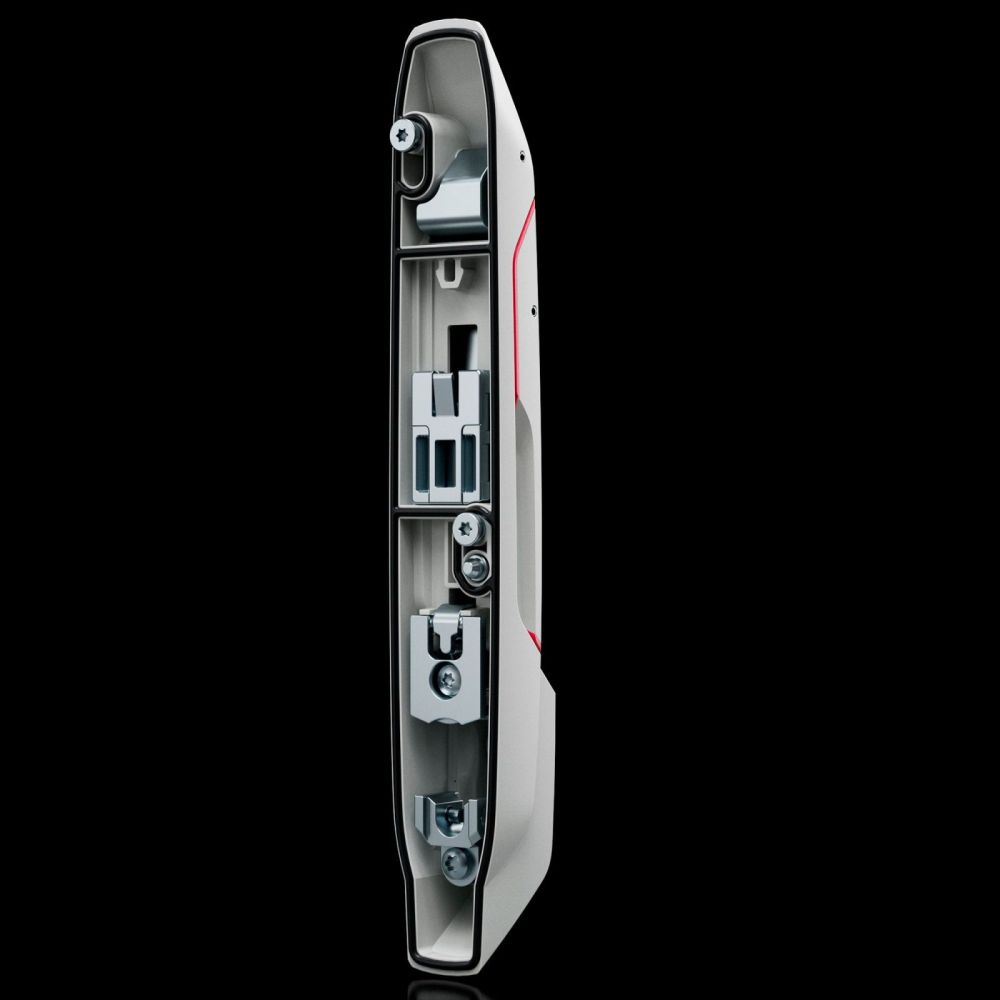

Installation and Mounting
Installation is performed via a snap-in system that enables quick and secure fastening to the enclosure door. No additional fastening elements or tools are required. Installation is carried out directly at the designated mounting position on the door, with exact positioning determined by the handle and door construction. The folding mechanism ensures that the handle lies flat after opening the door and does not occupy additional space within the enclosure area.
Operational Advantages
The handle provides a space-saving solution for access to enclosures, as it does not require any swing clearance. The simple installation via the snap-in system reduces installation effort. The use of zinc die-cast ensures high mechanical stability and durability. Compatibility with various locking types allows flexible adaptation to different security requirements. The colour RAL 7035 integrates well into industrial environments and supports a uniform design of enclosures.
Type rating according to UL 50E
The handle meets the requirements of Type ratings Type 1, Type 3, Type 3R, Type 4 and Type 12 according to UL 50E, confirming its suitability for various environmental conditions in industrial facilities. These approvals include protection against dust, splashing water and other environmental influences, with the exact application depending on the respective enclosure design. Certification by UL + C-UL (listed) as well as UL + C-UL - FTTA confirms compliance with international safety standards.
Material and Colour
The zinc die-cast material provides sufficient strength and corrosion resistance for use in industrial environments. The colour RAL 7035 is a grey-beige standard tone that integrates well into industrial facilities. The surface is smooth and easy to clean, facilitating maintenance. The material selection ensures a long service life under normal operating conditions.
| General | |
| Model | For profile half-cylinder |
| Material | zinc die-cast |
| Colour | RAL 7035 |
| Note on part number | Prepared for installation of profile half-cylinders 40 or 45 mm total length (according to DIN 18 252) |
| Lock | Locking mechanism: Prepared for installation of profile half-cylinders 40 or 45 mm total length (according to DIN 18 252) or security and push-button inserts with a length of 40 mm |
| Suitable for housing type | VX, VX IT |
| Type rating according to UL 50E | Type 1, Type 3, Type 3R, Type 4, Type 12 |
Questions & answers
What is the delivery time of Rittal 8618250 VX comfort handle, for half cylinder?
The article Rittal 8618250 VX comfort handle, for half cylinder is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618250 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8618250 VX comfort handle, for half cylinder always at the best possible price. We can give you a discount of 2% on Rittal 8618250 VX comfort handle, for half cylinder if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
