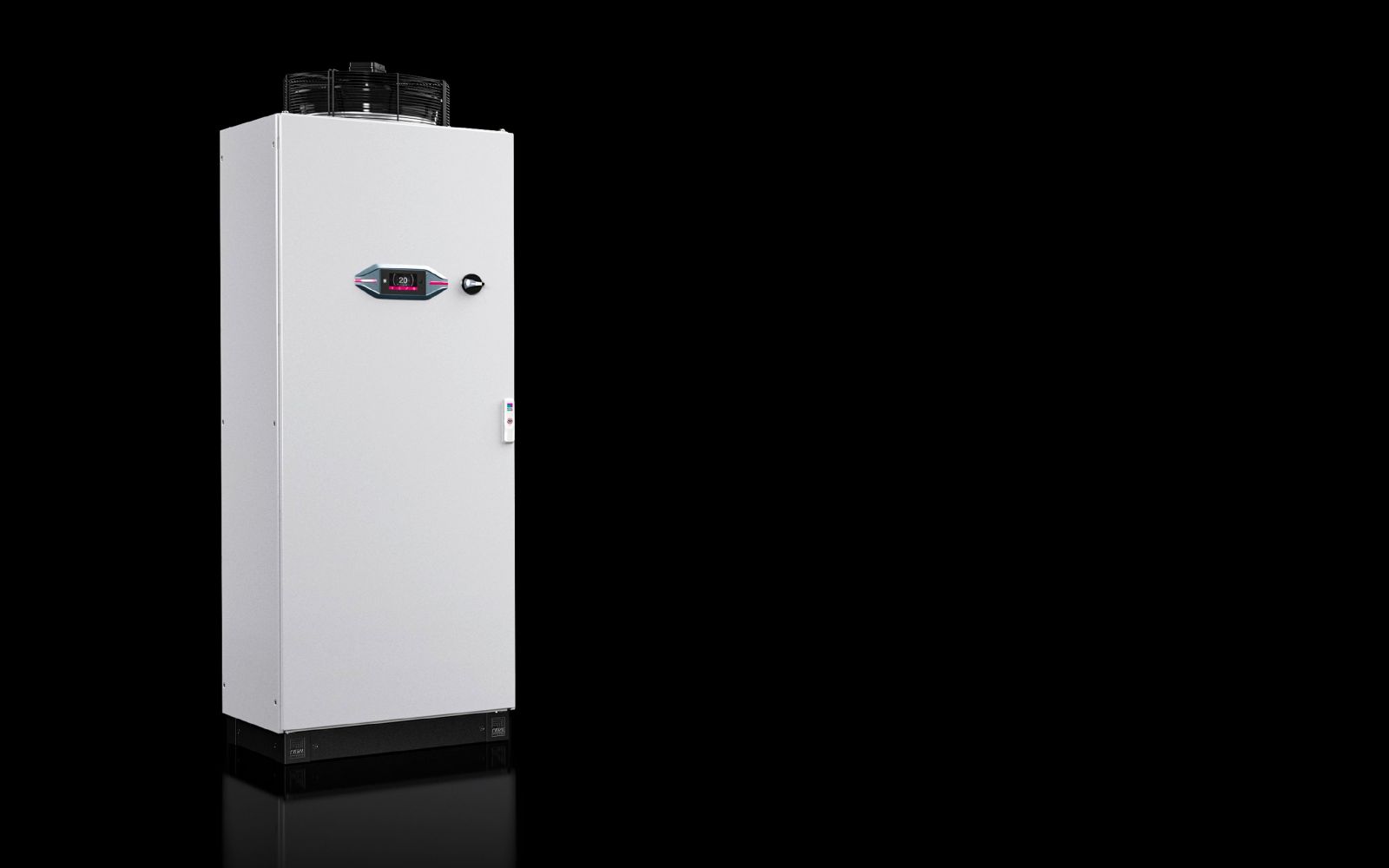

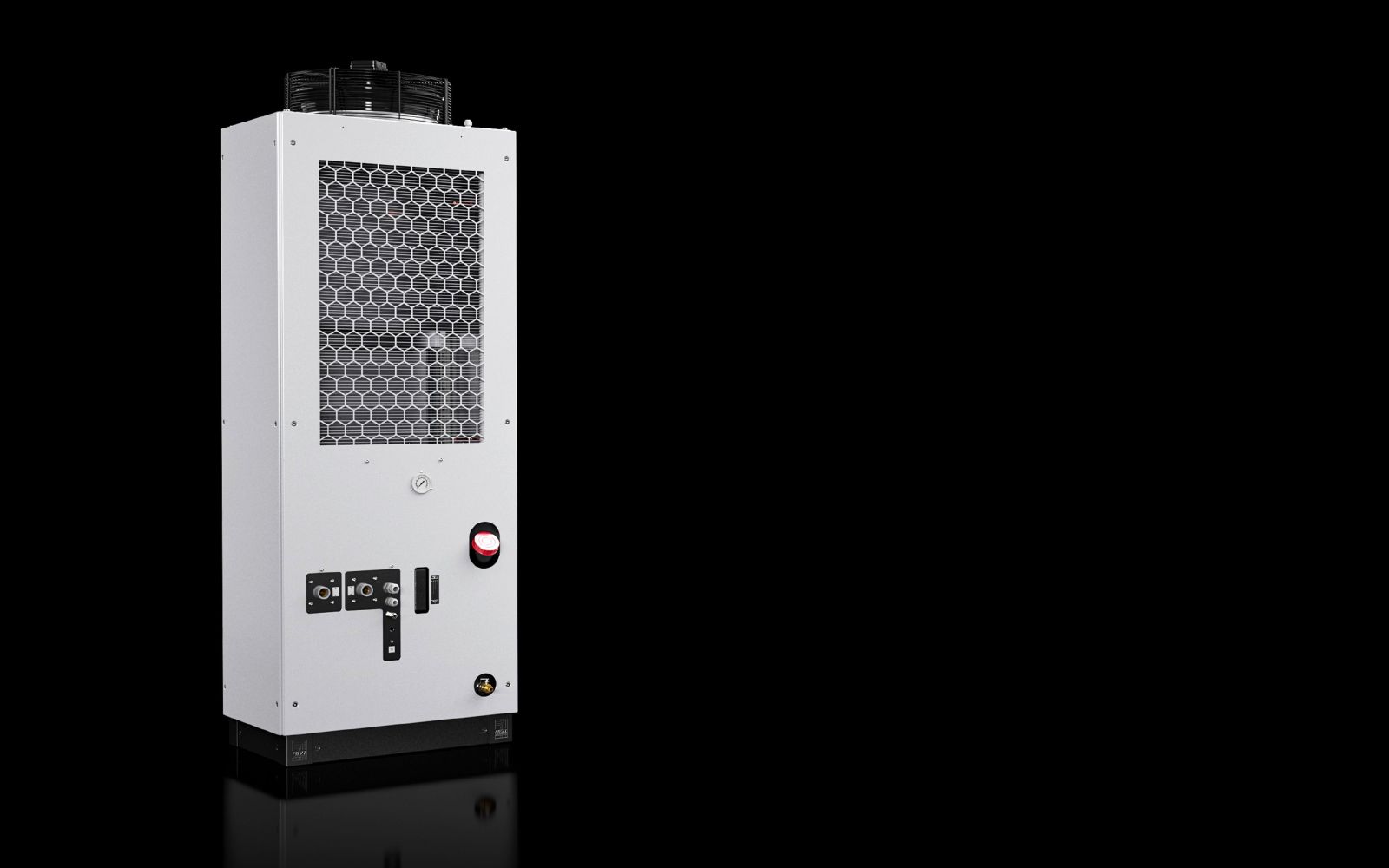

Rittal 3335960 TopTherm chiller in VX25 enclosure, 19.4 kW

Your rating:
Average rating
product review for Rittal 3335960 TopTherm chiller in VX25 enclosure, 19.4 kW
( 5 / 5 ) 1 ratings
Rittal 3335960
This image may differ from the desired article.
Rittal 3335960Rittal 3335960
-8% 10.695,00 EUR 11.582,96 EUR
( 12.727,05 EUR incl. VAT )
≈ £8,951.72  |  ≈ $11,753.81
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3335960 TopTherm chiller in VX25 enclosure, 19.4 kW
Datasheet:file_download Download
Lieske Part No.:667338
Mfg Part No: 3335960
UPC/EAN: 4028177953482
Weight:298.5 kg
Type:SK 3335960

Product information for Rittal 3335960:

The Rittal SK 3335960 is an industrial chiller type of the TopTherm series, integrated into a VX25 enclosure. It is designed for climate control of enclosures and electronic systems, maintaining the internal temperature at a stable level. The unit is delivered as a compact, ready-to-connect system, suitable for use in industrial environments where reliable cooling of electronic components is required. It is supplied with side panels and door, enabling direct mounting and commissioning.

Applications

The SK 3335960 is designed for use in enclosures and industrial control systems, particularly in environments with high thermal loads. It is suitable for systems requiring continuous cooling capacity of 19.4 kW (at 50 Hz) or 21.2 kW (at 60 Hz). The cooling capacity is determined under standard conditions Tw18 / Tu35 according to DIN EN 14511, which is relevant for industrial applications with high ambient temperatures. The unit is designed for operating temperatures between 10 °C and 43 °C, making it usable even in climatically demanding regions.

Functions and Equipment in Detail

The device features an e-Controller, factory-set to a temperature of +18 °C. The temperature hysteresis is ±1 K, enabling precise control of the internal temperature. Cooling is achieved via a refrigeration circuit using refrigerant R-513A, which has a lower environmental impact (GWP: 631, CO₂ equivalent: 1.83 t). The refrigerant quantity is 2.9 kg. Integrated remote monitoring enables continuous status monitoring of the device, allowing maintenance needs to be identified early.

Technology Explained Simply

The cooling capacity is generated by a compressor driven by an electrical input power of 9.58 kW (50 Hz) or 11.9 kW (60 Hz). The coefficient of performance (EER) is 2.5 at 50 Hz, indicating efficient energy conversion. The air flow rate is 6,000 m³/h (50 Hz) or 7,200 m³/h (60 Hz), ensuring sufficient air circulation within the enclosure. The cooling medium pump has a power consumption of 1.35 kW (50 Hz) or 1.93 kW (60 Hz) and generates a pump pressure of 2.3 bar (50 Hz) or 3.6 bar (60 Hz). The cooling medium flow rate is 55 l/min (50 Hz) or 60 l/min (60 Hz). A plastic PP tank with a volume of 75 l provides storage for the cooling medium.

Compatibility and Accessories

The device is equipped with water connections R 2,5 cm ( 1 inch ) IG, enabling connection to existing cooling circuits. It is designed for operating voltages of 400 V, 3~, 50 Hz and 460 V, 3~, 60 Hz. Compatible accessories include plinth corner pieces with trim panels, lock inserts, safety and pressure button inserts, double swivel castors, adjustable cross-braces, and comfort handles. These components support mounting, transportation, and safety of the enclosure.

Mounting and Installation

The unit is delivered as a ready-to-connect system, enabling quick installation. Dimensions are 808 mm (width) × 2,238 mm (height) × 608 mm (depth). The protection rating IP 44 (electrical) according to EN 60 529 protects electrical components from solid objects and splashing water. Mounting is performed into the VX25 enclosure, which already includes side panels and door. The unit has an operating weight of 380 kg.

Advantages in Operation

The SK 3335960 offers high serviceability through integrated safety functions and remote monitoring. The minimal footprint and compact design enable efficient space utilization. The used Microchannel technology reduces the amount of refrigerant and contributes to reducing the CO₂ footprint. The sound pressure level is 75.6 dB(A), which is acceptable for industrial applications. The operating temperature of the cooling medium is between 10 °C and 25 °C, enabling flexible integration into existing cooling circuits.

General
Materialsteel sheet
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit with side walls and door
Degree of protection IP according to EN 60 529IP 44 (electrical)
Total cooling capacity according to DIN EN 14511 Tw18 / Tu35Cooling capacity Tw18 Tu35/50 Hz: 19.4 kW, cooling capacity Tw18 Tu35/60 Hz: 21.2 kW
Air performance (free blowing)At 50 Hz: 6,000 m³/h, At 60 Hz: 7,200 m³/h
Rated operating voltage400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz
Width808 mm
Height2.238 mm
Depth608 mm
NoteRegular tightness testing is not legally required.
Sound pressure level75,6 dB(A)
Temperature controle- controller (factory setting +18 °C)
Operating temperature range10 °C...43 °C
Operating temperature range of cooling medium10 °C...25 °C
Temperature hysteresis± 1 K
Refrigerant/cooling mediumRefrigerant: R-513A, quantity: 2.9 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 1.83 t
Pump pressureAt 50 Hz: 2.3 bar, At 60 Hz: 3.6 bar
Power consumption coolant pump 50/60 Hz1,35 / 1,93 kW
Flow rate (coolant medium)At 50 Hz: 55 l/min, At 60 Hz: 60 l/min
Rated power PelAt 50 Hz: 9.58 kW, At 60 Hz: 11.9 kW
Rated current max.At 50 Hz: 19.1 A, At 60 Hz: 19.45 A
Cooling performance factor (EER) 50 Hz Tw18 / Tu35 DIN EN 145112,5
Water connectionsR 1" IG
Number of refrigeration circuits1
TankMaterial: plastic PP, volume: 75 l
Operating weight380 kg


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3335960, EAN: 4028177953482

Questions & answers

What is the delivery time of Rittal 3335960 TopTherm chiller in VX25 enclosure, 19.4 kW?

The article Rittal 3335960 TopTherm chiller in VX25 enclosure, 19.4 kW is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3335960 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3335960 TopTherm chiller in VX25 enclosure, 19.4 kW always at the best possible price. We can give you a discount of 2% on Rittal 3335960 TopTherm chiller in VX25 enclosure, 19.4 kW if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
