Rittal 9666916 VX installation distributor (ISV), W x H x D: 850x2000x600 mm

Your rating:
Average rating
product review for Rittal 9666916 VX installation distributor (ISV), W x H x D: 850x2000x600 mm
( 4.5 / 5 ) 25 ratings

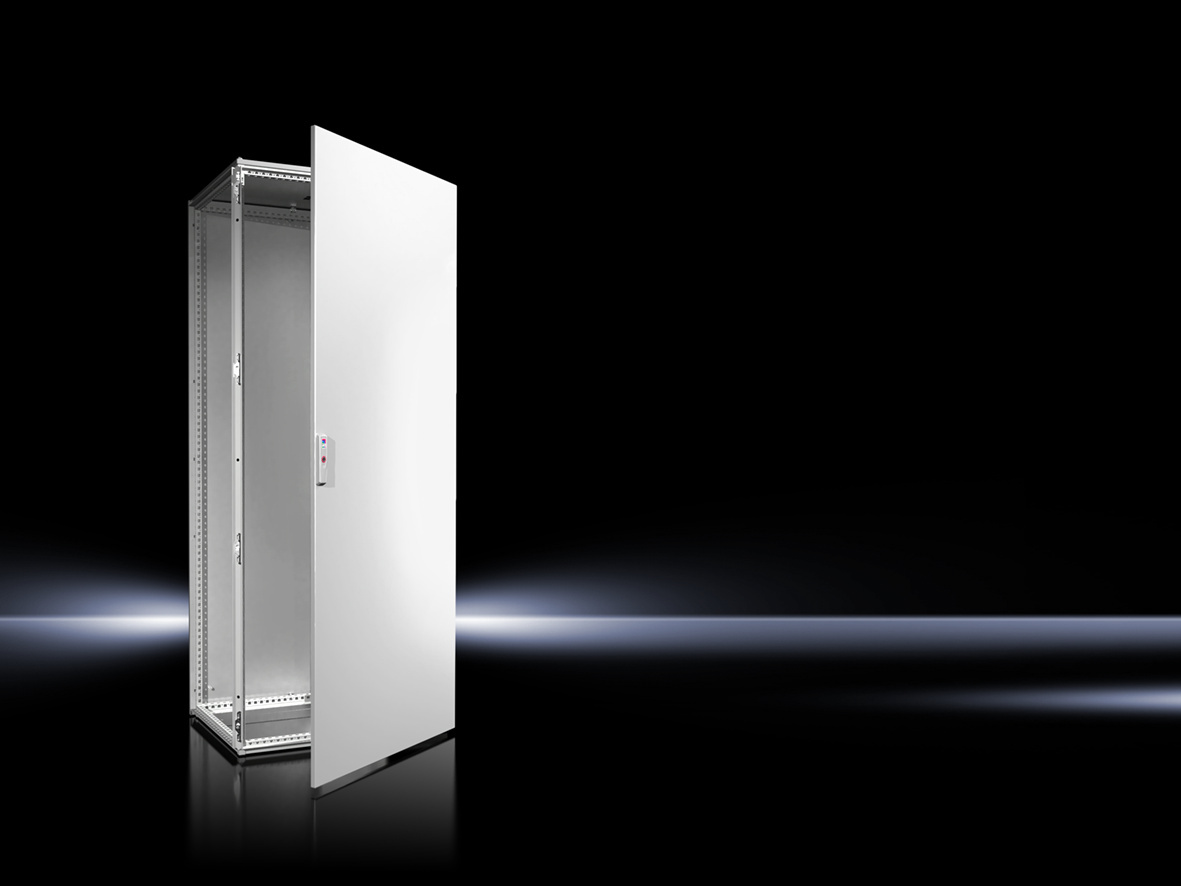

Rittal 9666916
This image may differ from the desired article.
Rittal 9666916Rittal 9666916Rittal 9666916Rittal 9666916Rittal 9666916Rittal 9666916Rittal 9666916
563,50 EUR 570,40 EUR
( 670,56 EUR incl. VAT )
≈ £471.65  |  ≈ $619.29
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9666916 VX installation distributor (ISV), W x H x D: 850x2000x600 mm
Datasheet:file_download Download
Lieske Part No.:1440187
Mfg Part No: 9666916
UPC/EAN: 4028177929722
Weight:91.6 kg
Type:VX 9666.916

Product information for Rittal 9666916:

The Rittal VX 9666.916 is an installation distributor (ISV) made of sheet steel, designed for use in industrial and technical installations. With dimensions width 850 mm, height 2,000 mm and depth 600 mm, it provides sufficient space for mounting distributors, switching devices and other electrical components. The enclosure is single-door and serves as a base for integrating ISV expansion modules. The surface of the enclosure frame is dip-primed, while door, roof, rear panel and base sheets are coated with a powder-coated, structured finish in RAL 7035. The base sheets are galvanized, providing additional corrosion protection.

Applications

The ISV is designed for indoor use where a high degree of protection against dust and splashing water is required. The protection rating IP 55 according to IEC 60 529 and NEMA class 12 make it suitable for environments with increased contamination risk, such as production halls, workshops or manufacturing technology. The test basis IEC 61 439-1/-2 ensures the electrical safety and reliability of the device.

Functions and Equipment in Detail

The enclosure is supplied with an enclosure frame, door, base sheets, rear panel, roof plate and a 3 mm double-barrel lock. The door is standard right-hinged, but can be changed to left-hinged. The construction allows for flexible mounting and adaptation to different requirements. The use of VX base enclosures is intended for 600 mm wide installation distributors.

Technology Explained Simply

The protection rating IP 55 means that the enclosure is dust-tight and protected against splashing water from any direction. This makes the distributor suitable for areas where occasional cleaning with water takes place. The NEMA 12 classification corresponds to a similar protection level and is commonly used in North American installations. The powder-coated surface in RAL 7035 provides a robust, long-lasting coating that withstands mechanical stress and environmental influences.

Compatibility and Accessories

The ISV is part of the VX25 baying system and can be expanded with various accessories. These include, for example, cable entry flanges in various designs, mounting profiles for TS/SE, plinth corner pieces and trim panels, as well as baying connectors and brackets. For securing locks, various comfort handles are available, including models for lock inserts, half cylinders, safety inserts and padlocks. Additionally, mounting kits for VX modules are available, facilitating the installation of devices.

Mounting and Installation

Mounting is done via the pre-fabricated enclosure frame. The door can be mounted on the left or right side according to requirements. The base sheets and roof plate are included in the delivery scope. The use of baying brackets and blocks enables the secure connection of multiple enclosures into a system.

Advantages in Operation

The Rittal VX 9666.916 offers a robust, long-lasting construction with high protection rating. The powder-coated surface in RAL 7035 ensures a uniform, weather-resistant appearance. The modular design allows flexible adaptation to different requirements. The use of standard components from the VX system ensures easy integration into existing installations. The test basis IEC 61 439-1/-2 ensures electrical safety and reliability of the device in operation. The PCF values (Cradle-to-Gate) amount to 288.3 kg CO2 eq per packaging unit, with category B indicating an approximate calculation based on product weight.

General
Materialsteel sheet
Surface protectionCabinet frame: dip-primed, door(s), roof, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized
ColourRAL 7035
Scope of deliveryCabinet frame, door(s), right-hinged door, reversible to left, base plates, rear panel, roof sheet, lock: 3 mm double bar
Number of doors1
NoteFor 600 mm wide installation distribution boards VX base cabinets; for a base height of 200 mm, 2 units of base corner pieces, 100 mm, and base covers, 100 mm, are required
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 12
Test basisIEC 61 439-1/-2
Width850 mm
Height2.000 mm
Depth600 mm
PCF/VE (Cradle-to-Gate)288.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9666916, EAN: 4028177929722

Questions & answers

What is the delivery time of Rittal 9666916 VX installation distributor (ISV), W x H x D: 850x2000x600 mm?

The article Rittal 9666916 VX installation distributor (ISV), W x H x D: 850x2000x600 mm is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9666916 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9666916 VX installation distributor (ISV), W x H x D: 850x2000x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 9666916 VX installation distributor (ISV), W x H x D: 850x2000x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
