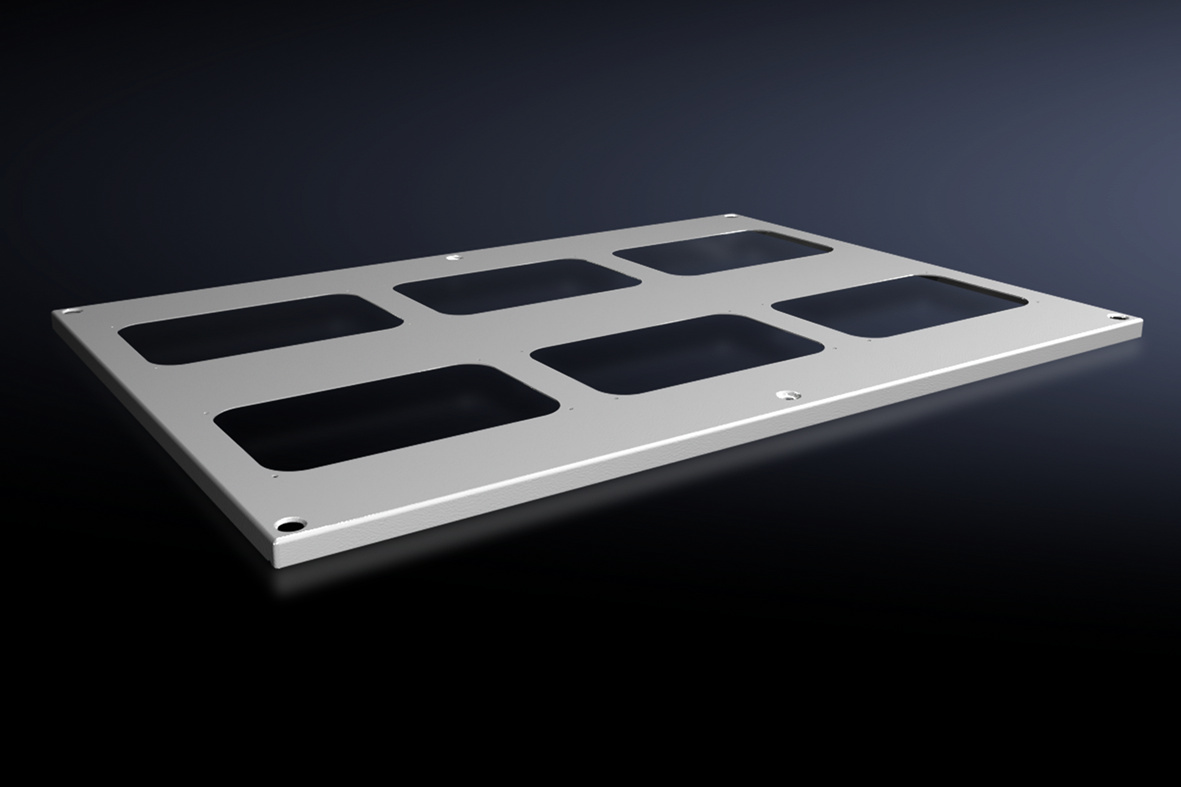

Rittal 9681596 SV roof plate for VX, width: 850 mm, depth: 600 mm, for cable entry

Your rating:
Average rating
product review for Rittal 9681596 SV roof plate for VX, width: 850 mm, depth: 600 mm, for cable entry
( 4.5 / 5 ) 6 ratings
Rittal 9681596
This image may differ from the desired article.
Rittal 9681596Rittal 9681596Rittal 9681596
-12% 65,90 EUR 75,02 EUR
( 78,42 EUR incl. VAT )
≈ £55.16  |  ≈ $72.42
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9681596 SV roof plate for VX, width: 850 mm, depth: 600 mm, for cable entry
Datasheet:file_download Download
Lieske Part No.:1597402
Mfg Part No: 9681596
UPC/EAN: 4028177926585
Weight:5.4 kg
Type:SV 9681596

Product information for Rittal 9681596:

The Rittal SV 9681596 is a roof plate for enclosures of the VX series, specifically designed for dimensions of 850 mm width and 600 mm depth. It serves as a replacement roof for enclosures originally delivered without a roof plate, or as a substitute for the standard roof plate in other enclosure models. The product is made of sheet steel with a thickness of 1.5 mm and features a surface coating of textured paint in the colour RAL 7035, ensuring a robust and uniform finish suitable for industrial environments.

Applications

The roof plate is designed for use in industrial enclosures, particularly in systems requiring secure and structured cable routing above the enclosure roof. It is commonly used in electrical and automation technology, where stable mounting of cable entry flanges is necessary. The dimensions fit precisely to enclosures with a width of 850 mm and a depth of 600 mm, enabling direct installation without additional modifications.

Features and Equipment in Detail

The roof plate is equipped with six pre-drilled openings intended for mounting cable entry flanges. These allow for orderly and secure cable routing into the enclosure. The delivery includes the roof plate and the required mounting hardware needed for installation on the enclosure structure. The use of sheet steel with a thickness of 1.5 mm ensures high mechanical stability and durability.

Technology Explained Simply

The use of textured paint as a surface coating provides good protection against corrosion and mechanical stress. The colour RAL 7035 is a grey, neutral tone commonly used in industrial environments to enable uniform visual design. Sheet steel with a thickness of 1.5 mm is standard for enclosures, as it provides sufficient strength to withstand operational loads.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with a width of 850 mm and a depth of 600 mm. It is compatible with cable entry flanges that can be mounted into the pre-drilled openings. Suitable accessories include transport lugs for VX, TS, SE (4 pieces), which can be used advantageously during freight shipping to securely transport the roof plate.

Installation and Mounting

Installation is carried out by securing the roof plate to the enclosure structure using the mounting hardware included in the delivery. The six pre-drilled openings allow for direct mounting of cable entry flanges, ensuring structured and secure cable routing.

Operational Advantages

The roof plate provides a stable and durable solution for cable routing above the enclosure roof. The pre-drilled openings for cable entry flanges simplify installation and ensure orderly cable management. The use of sheet steel with textured paint ensures high mechanical strength and corrosion protection, extending the product’s service life. Compatibility with VX series enclosures and easy installation make the roof plate a practical solution for industrial applications.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Number of required cable entry flanges6
Suitable forWidth: = 850 mm, Depth: = 600 mm
PCF/VE (Cradle-to-Gate)20.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9681596, EAN: 4028177926585

Questions & answers

What is the delivery time of Rittal 9681596 SV roof plate for VX, width: 850 mm, depth: 600 mm, for cable entry?

The article Rittal 9681596 SV roof plate for VX, width: 850 mm, depth: 600 mm, for cable entry is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681596 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681596 SV roof plate for VX, width: 850 mm, depth: 600 mm, for cable entry always at the best possible price. We can give you a discount of 2% on Rittal 9681596 SV roof plate for VX, width: 850 mm, depth: 600 mm, for cable entry if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




This product is recommended as accessory for

Rittal 9666916 VX installation distributor (ISV), W x H x D: 850x2000x600 mm Rittal LogoRittal 9666916 VX installation distributor (ISV), W x H x D: 850x2000x600 mm The Rittal VX 9666.916 is an installation distributor (ISV) made of sheet steel, designed for use in industrial and technical installations. With dimensions width 850 mm, height 2,000 mm and depth 600 ...

Lieske Part No.: 1440187
Mfg Part No: 9666916
Type: VX 9666.916
563,50 EUR 570,40 EUR
Rittal 9666916 plus VAT
≈ £471.65  |  ≈ $619.29
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline

Fitting accessory for Rittal 9681596 SV roof plate for VX, width: 850 mm, depth: 600 mm, for cable entry

Rittal 4568000 Transport eyes for VX, TS, SE 4 pcs (freight shipping) Rittal LogoRittal 4568000 Transport eyes for VX, TS, SE 4 pcs (freight shipping) For crane transportation of enclosures, where not already included in the supply.
Material: Sheet steel
Surface finish: Zinc-plated C 15 E
Supply includes: 4 eyebolts M12
4 serrated lock washers A 12.

Lieske Part No.: 528790
Mfg Part No: 4568000
Type: SZ 4568000
15,22 EUR
Rittal 4568000 plus VAT
≈ £12.74  |  ≈ $16.73
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
