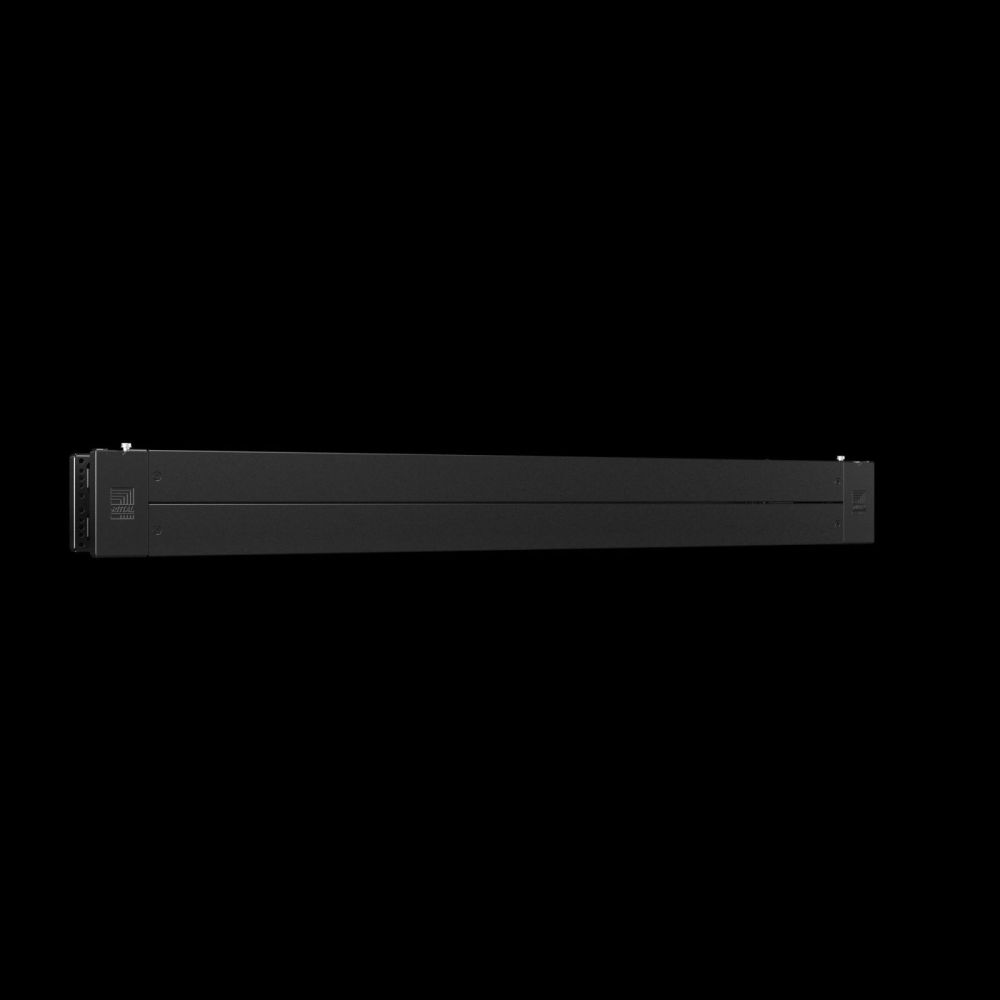

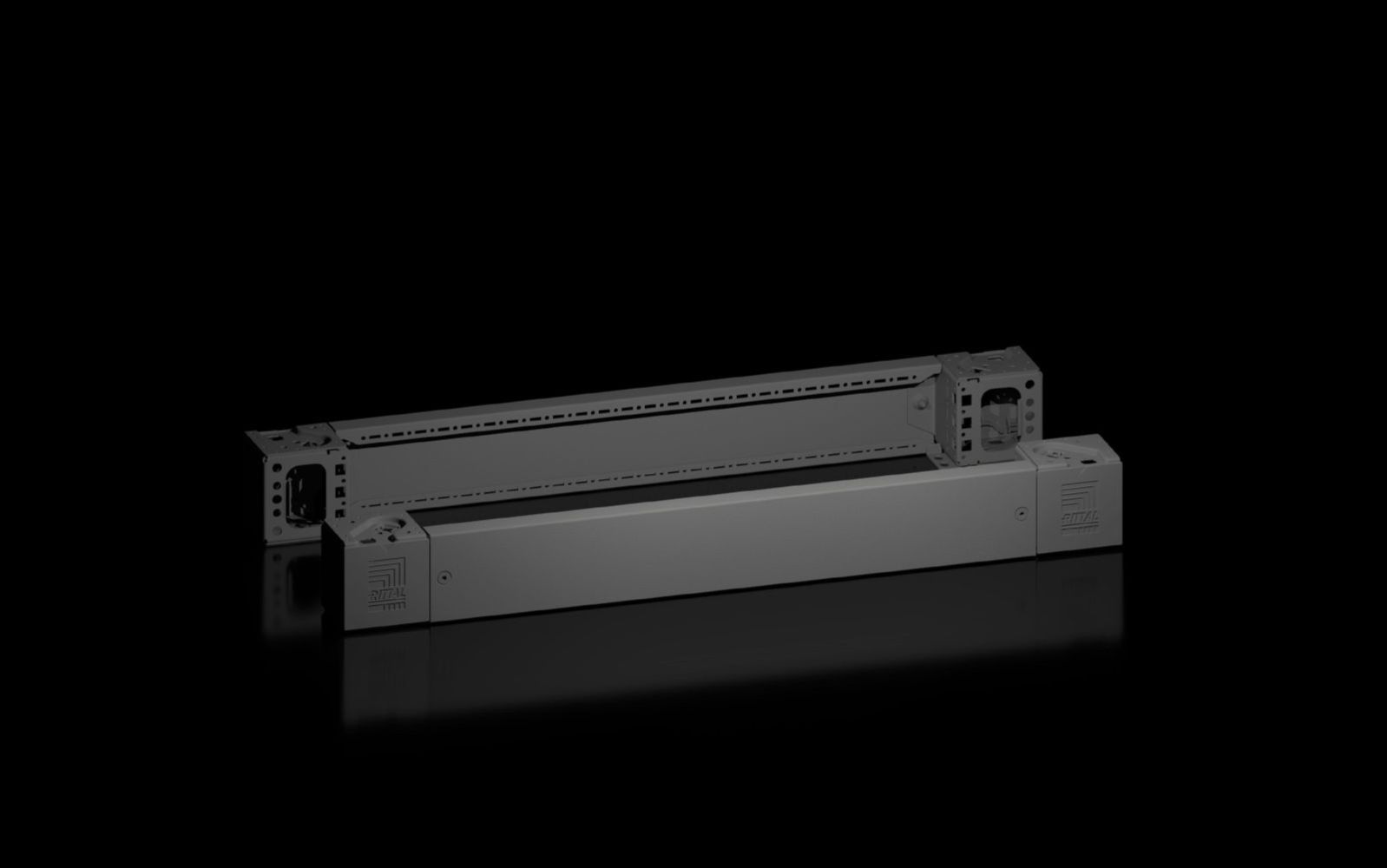

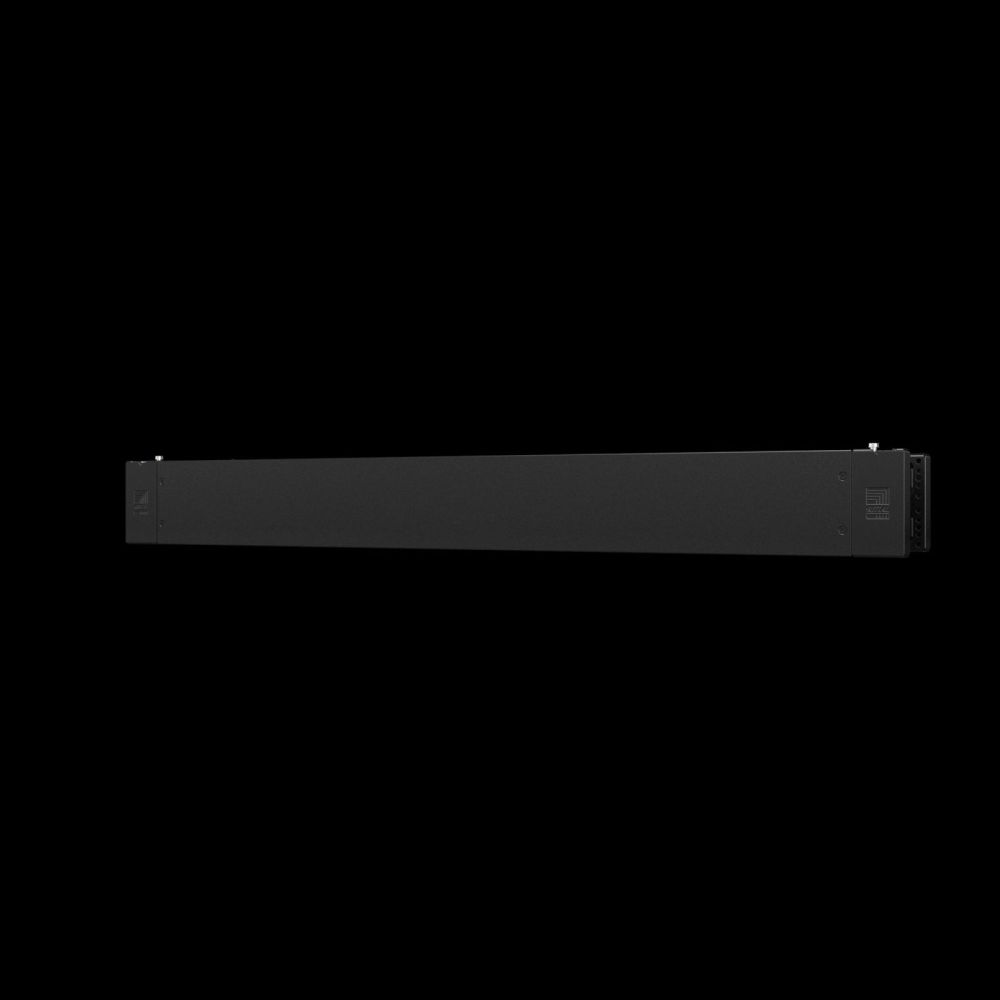

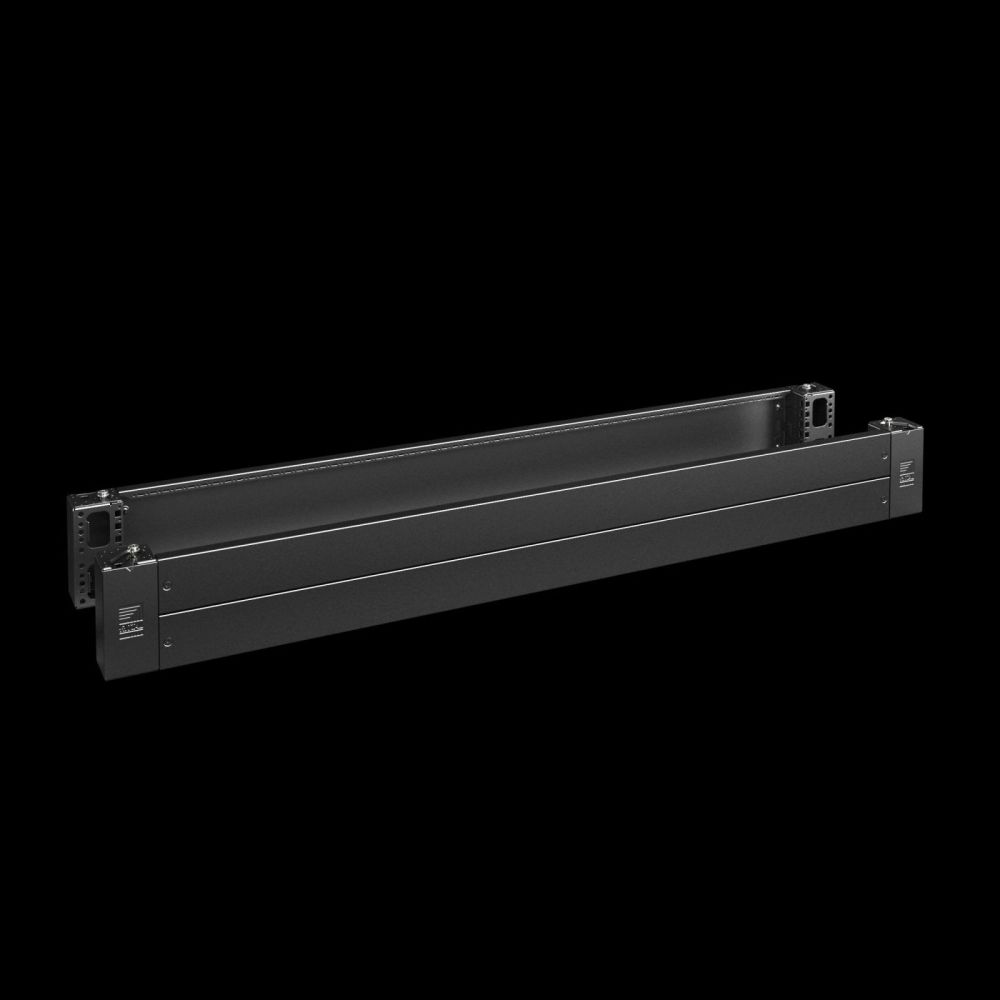

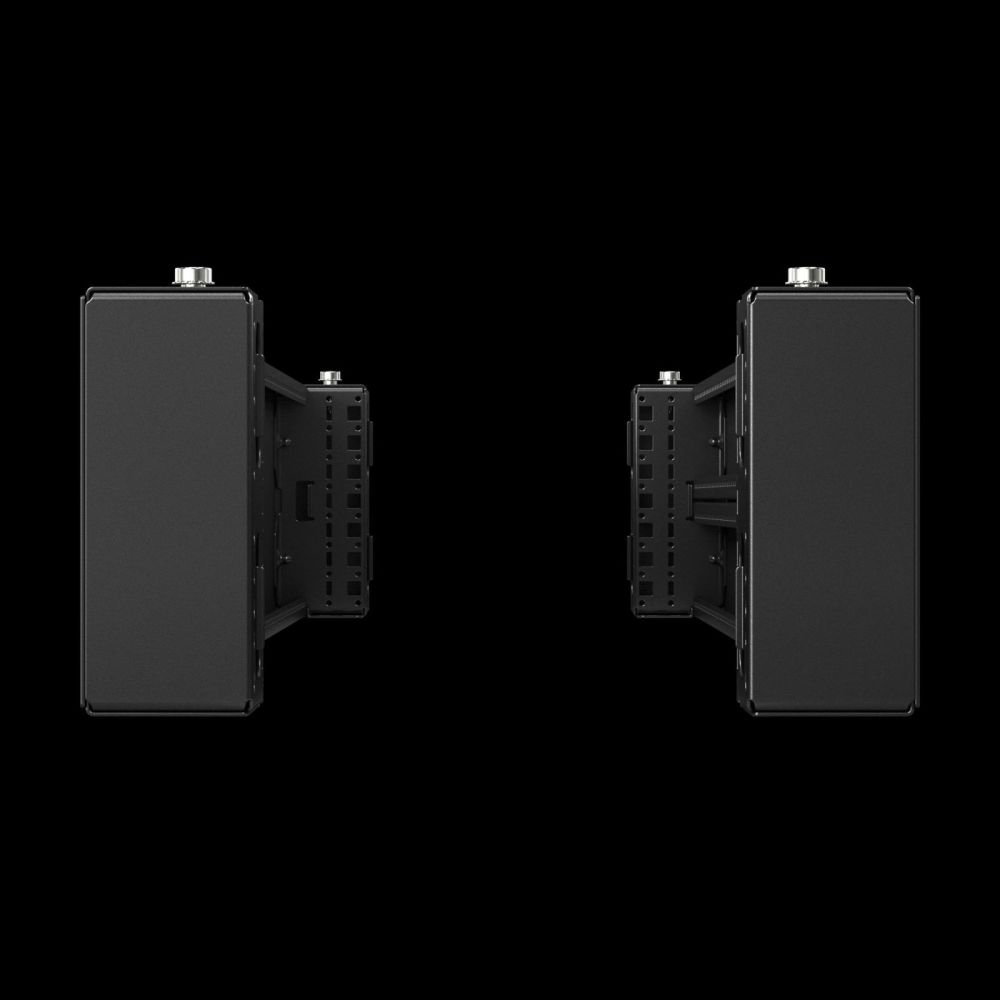

Rittal 8660004 VX plinth corner piece with trim panel, front/rear, H: 100

Your rating:
Average rating
product review for Rittal 8660004 VX plinth corner piece with trim panel, front/rear, H: 100
( 5 / 5 ) 1 ratings
Rittal 8660004
This image may differ from the desired article.
Rittal 8660004Rittal 8660004Rittal 8660004Rittal 8660004Rittal 8660004Rittal 8660004
48,30 EUR
( 57,48 EUR incl. VAT )
≈ £40.43  |  ≈ $53.08
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660004 VX plinth corner piece with trim panel, front/rear, H: 100
Datasheet:file_download Download
Lieske Part No.:682699
Mfg Part No: 8660004
UPC/EAN: 4028177978065
Weight:5.551 kg
Type:VX 8660004

Product information for Rittal 8660004:

The Rittal VX 8660004 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically designed for plinth systems with a width of 850 mm. It serves as a stable termination for plinth units and enables proper cable entry as well as a clean visual appearance at baying points. The product consists of sheet metal for the corner pieces and trim panels, and plastic for the corner and baying covers. The colour is RAL 9005, corresponding to a dark grey. The height of the plinth trim panels is 100 mm, representing a standard configuration for most VX plinth systems.

Applications
This plinth corner piece is used in industrial enclosure installations, particularly with enclosure types such as VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is designed for enclosures with a width of 850 mm and ensures a stable and aesthetically pleasing connection between individual plinth elements. The trim panels serve not only as a visual termination but also contribute to additional stabilisation between plinths, which is particularly beneficial for longer baying arrangements.

Functions and Equipment in Detail
The plinth corner pieces are made of sheet metal and offer high mechanical stability. The integrated plinth trim panels at the front and rear allow for flexible cable entry and support the internal build of the plinth. The side trim panels additionally serve to terminate a plinth unit or stabilise multiple plinths. The delivery includes 4 plastic corner covers, 4 plinth corner pieces (100 mm high), and 2 front/rear plinth trim panels (100 mm high), including fastening material. The covers ensure a flush termination at baying points.

Technology Explained Simply
The sheet metal construction ensures high strength and durability, even under industrial loads. The plastic covers are intended for external cladding and provide a clean visual termination. The height of 100 mm is standardised and matches typical plinth heights. The colour RAL 9005 is a dark grey, which integrates well into industrial environments. Fastening is done using the included material, ensuring secure installation.

Compatibility and Accessories
The plinth corner piece is compatible with enclosure types VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX, provided the width is 850 mm. It can be combined with additional VX accessories, such as levelling feet M12, VX castors, plinth baying brackets, VX plinth expansion angles (for trim panel heights 100 mm or 100/200 mm), double swivel castors M12, optional trim panel fasteners, floor mounting brackets, or levelling elements for plinths H100 mm. These components allow for individual adaptation and expansion of the plinth system.

Installation and Mounting
Mounting is done by securing the plinth corner pieces to the corners of the plinth, using the included fastening materials. The plinth trim panels are attached to the front and rear of the plinth to create a closed surface. The corner covers are mounted at baying points to ensure a flush termination. Installation is simple and requires no special tools or additional components.

Operational Advantages
The product provides high plinth stability, increasing mechanical load capacity. The flexible internal build capability through VX accessories allows individual adaptation to different requirements. The flush termination between baying points ensures a clean and professional appearance. The use of sheet metal and plastic ensures long service life and resistance to industrial influences. Compatibility with various enclosure types and accessories increases flexibility in system design.

Type rating according to UL 50E
The product complies with Type ratings Type 1 and Type 12 according to UL 50E, indicating a protection class for indoor use and against splashing water from above and sideways. This certification makes it suitable for use in industrial environments where a certain level of protection against environmental conditions is required.

Environmental Information
The product life cycle (Cradle-to-Gate) has a PCF value of 20 kg CO2 equivalent per packaging unit. Class B refers to an approximate calculation based on product weight, declared by the manufacturer. This information serves transparency regarding environmental impact during production.

Packaging and Weight
The packaging unit includes 2 pieces. The gross weight is 5.551 kg, the net weight is 5.36 kg. The total weight per packaging unit is stated as 5.55 kg, taking into account transportation and storage properties.

General
MaterialSocket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic
ColourRAL 9005
Scope of delivery4 corner covers, incl. fastening material, 4 socket corner pieces, 100 mm high, 2 socket front/rear panels, 100 mm
NoteSocket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets
Height100 mm
Suitable forCabinet type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, Width: = 850 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU5,55 kg
PCF/VE (Cradle-to-Gate)20 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660004, EAN: 4028177978065

Questions & answers

What is the delivery time of Rittal 8660004 VX plinth corner piece with trim panel, front/rear, H: 100?

The article Rittal 8660004 VX plinth corner piece with trim panel, front/rear, H: 100 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660004 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660004 VX plinth corner piece with trim panel, front/rear, H: 100 always at the best possible price. We can give you a discount of 2% on Rittal 8660004 VX plinth corner piece with trim panel, front/rear, H: 100 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
