Rittal 9666956 VX installation distributor (ISV) W x H x D: 850x2000x400 mm

Your rating:
Average rating
product review for Rittal 9666956 VX installation distributor (ISV) W x H x D: 850x2000x400 mm
( 4.4 / 5 ) 20 ratings

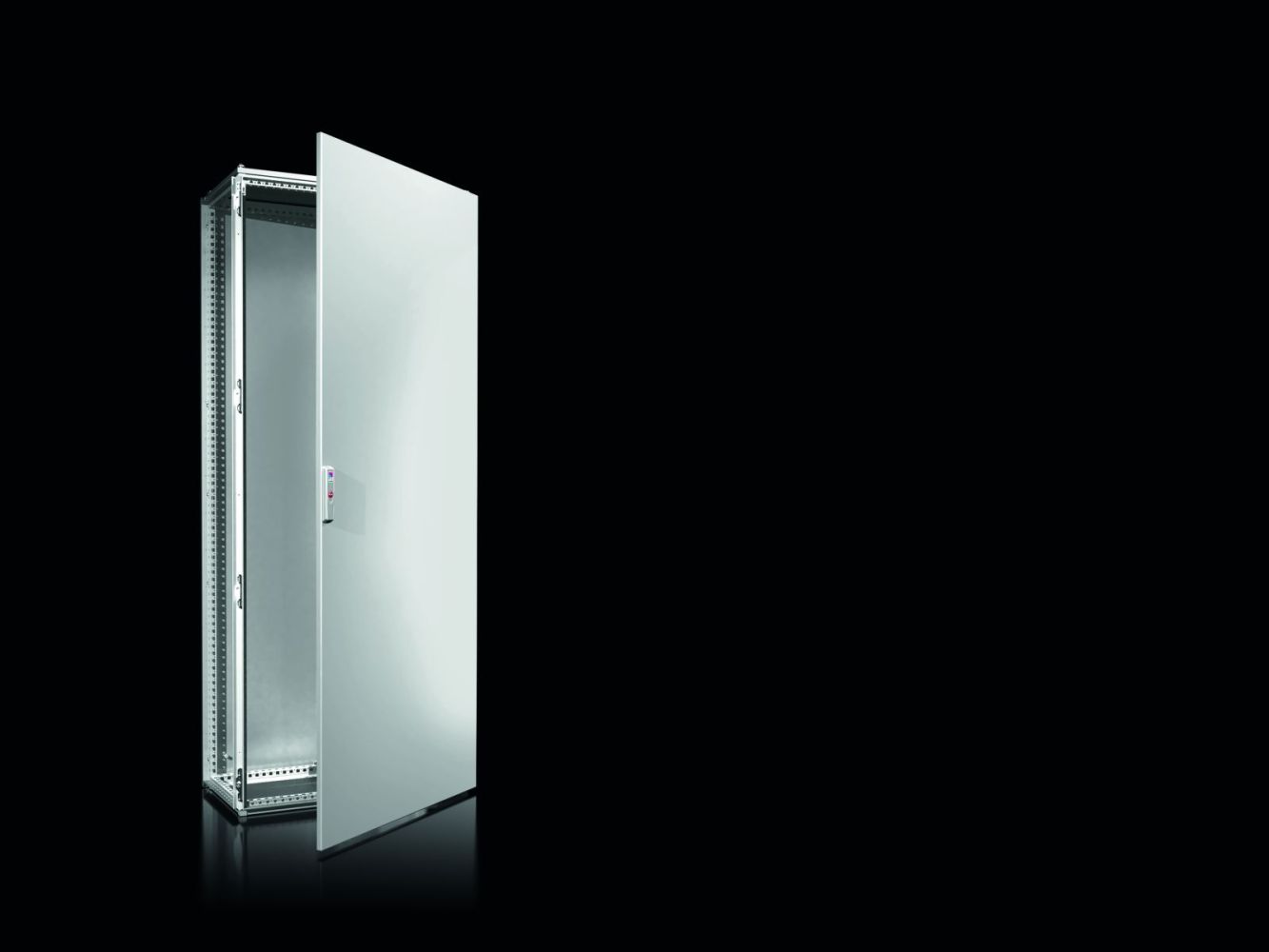

Rittal 9666956
This image may differ from the desired article.
Rittal 9666956Rittal 9666956Rittal 9666956Rittal 9666956Rittal 9666956Rittal 9666956
591,10 EUR 591,48 EUR
( 703,41 EUR incl. VAT )
≈ £494.75  |  ≈ $649.62
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9666956 VX installation distributor (ISV) W x H x D: 850x2000x400 mm
Datasheet:file_download Download
Lieske Part No.:1440997
Mfg Part No: 9666956
UPC/EAN: 4028177929562
Weight:85.8 kg
Type:VX 9666.956

Product information for Rittal 9666956:

The Rittal VX 9666.956 is a installation distributor (ISV) made of sheet steel, designed for use in industrial and technical installations. With dimensions of width 850 mm, height 2,000 mm, and depth 400 mm, it provides sufficient space for mounting distributors, switching devices, and other electrical components. The enclosure is single-door and serves as a base for installing ISV expansion modules in the baying system VX25. The surface of the enclosure frame is dip-primed, while the door, roof, rear panel, and base sheets receive an additional protective layer: the door, roof, and rear panel are externally powder-coated with textured lacquer, and the base sheets are galvanized. The color corresponds to RAL 7035, a gray-black tone commonly used in industrial environments.

Applications

The VX 9666.956 is suitable for use in indoor environments as well as in areas with increased contamination risk. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for areas with low to moderate humidity and contamination. The corresponding NEMA classification is NEMA 12, which also indicates protection against dust and splashing water. The test basis IEC 61 439-1/-2 ensures compliance with standards for low-voltage switchgear and controlgear assemblies. The construction is designed for mounting in rows (baying system), with the use of VX base enclosures recommended for 600 mm wide distributors.

Functions and Equipment in Detail

The enclosure is supplied with an enclosure frame, a door, base sheets, rear panel, roof plate, and a 3 mm double-barrel lock. The door is standard right-hinged but can be converted to left-hinged, enabling flexible installation at different locations. The double-barrel lock mechanism ensures a secure and stable locking. The base sheets are galvanized, providing an additional corrosion protection layer, especially in damp or aggressive environments. The rear panel and roof plate are also dip-primed and powder-coated, increasing the durability of the surface.

Technology Explained Simply

The IP 55 protection rating means the enclosure is protected against dust (dust-tight) and splashing water (from all directions). This makes the distributor suitable for locations where direct moisture or heavy contamination is not expected, but some environmental stress is present. The NEMA 12 classification corresponds to a similar protection level and is commonly used in industrial facilities in the USA and other countries. The use of sheet steel as material ensures high mechanical stability and resistance to external influences. The surface treatment with dip-priming and powder coating ensures long service life and resistance to corrosion.

Compatibility and Accessories

The distributor is designed for integration into the baying system VX25 and can be extended with various accessories. These include, for example, cable entry flanges in various sizes (e.g. M25/32/40/50/63), enabling secure and orderly cable routing. Other compatible components include mounting profiles for TS/SE, 12 HE, baying connectors, baying brackets and blocks, as well as various comfort handles for different lock types, including for ASSA systems, half cylinders, security inserts, or padlocks. A roof plate for cable entry is also available.

Mounting and Installation

Mounting is carried out in a baying system, where connection to adjacent enclosures can be made using baying connectors or brackets. The door is convertible to left-hinged, allowing flexible positioning in the room. The base sheets are included in the delivery scope and provide a stable foundation. During installation, it should be noted that additional accessories such as plinth corner pieces and plinth trim panels must be purchased separately if an elevated plinth height is required.

Operational Advantages

The VX 9666.956 offers a robust and durable construction designed for industrial use. The IP 55 and NEMA 12 protection ratings ensure high reliability in contaminated or damp environments. The modular design allows flexible expansion with various expansion modules and accessories. The powder-coated surface with textured lacquer provides good protection against mechanical damage and corrosion. The integrated door with double-barrel lock ensures secure and easy operation. The use of sheet steel and specific surface treatments ensures high mechanical stability and longevity.

PCF Value

The product carbon footprint (PCF) is 273.5 kg CO2 eq per packaging unit (Cradle-to-Gate). This value is classified in category B, meaning it is approximately calculated and self-declared based on product weight. The information serves to provide transparency regarding the environmental impact of the product’s manufacturing and processing up to the packaging level.

General
Materialsteel sheet
Surface protectionCabinet frame: dip-primed, door(s), roof, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized
ColourRAL 7035
Scope of deliveryCabinet frame, door(s), right-hinged door, reversible to left, base plates, rear panel, roof sheet, lock: 3 mm double bar
Number of doors1
NoteFor 600 mm wide installation distribution boards VX base cabinets; for a base height of 200 mm, 2 units of base corner pieces, 100 mm, and base covers, 100 mm, are required
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 12
Test basisIEC 61 439-1/-2
Width850 mm
Height2.000 mm
Depth400 mm
PCF/VE (Cradle-to-Gate)273.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9666956, EAN: 4028177929562
