Rittal 8104245 VX side panel, screwable, for HT: 2000x400 mm

Your rating:
Average rating
product review for Rittal 8104245 VX side panel, screwable, for HT: 2000x400 mm
( 4.6 / 5 ) 32 ratings

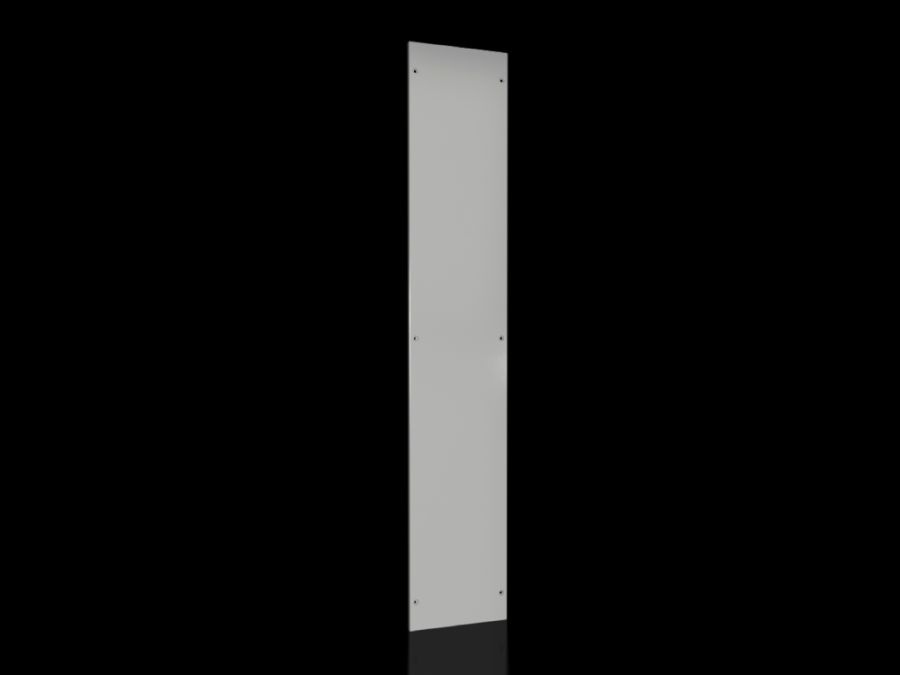

Rittal 8104245
This image may differ from the desired article.
Rittal 8104245Rittal 8104245
121,74 EUR 121,84 EUR
( 144,87 EUR incl. VAT )
≈ £101.90  |  ≈ $133.79
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8104245 VX side panel, screwable, for HT: 2000x400 mm
Datasheet:file_download Download
Lieske Part No.:1440663
Mfg Part No: 8104245
UPC/EAN: 4028177827332
Weight:19.4 kg
Type:VX 8104.245

Product information for Rittal 8104245:

The Rittal VX 8104.245 is a screwable side panel for enclosures of the VX system, designed for enclosures with a height of 2,000 mm and a depth of 400 mm. The product is made of sheet steel with a wall thickness of 1.5 mm and is designed for use in industrial environments. The surface is dip-primed and externally powder-coated, providing high corrosion resistance and a uniform, robust finish in RAL 7035. The side panel is intended for mounting on VX enclosures and enables secure and durable screwing.

Applications

The side panel is specifically designed for use in industrial electrical and automation systems, particularly in enclosures of the VX system. It serves as protective covering for the side surfaces, shielding the interior of the enclosure from dust, splashing water, and mechanical impacts. The protection class IP 55 according to IEC 60 529 ensures a high level of protection against dust and splashing water, making it suitable for use in damp or dusty environments. Additionally, it complies with Type ratings Type 1 and Type 12 according to UL 50E, confirming its suitability for indoor use and environments with limited risk of splashing water and dust.

Functions and Equipment in Detail

The VX 8104.245 offers several technical features that simplify installation and operation. The clip-on side panel holders enable time-saving installation, with positioning in height and depth facilitated by an integrated hanging aid. The flat part holders with internal contact elements ensure automatic equipotential bonding and enhance EMC protection. Another advantage is single-person installation, enabled by the product’s design features. The earthing bolts feature a large, paint-free contact surface, ensuring optimal electrical connection and secure earthing.

Technology Explained Simply

The use of sheet steel with 1.5 mm thickness ensures sufficient mechanical stability and resistance to external influences. The dip priming and external powder coating provide a durable corrosion protection layer, extending the product’s service life. The protection class IP 55 means the product is protected against dust and splashing water, making it suitable for use in industrial facilities. The UL Type ratings Type 1 and Type 12 refer to protection functions for indoor use and against splashing water, with Type 12 additionally offering protection against splashing water from above and the sides.

Compatibility and Accessories

The side panel is specifically designed for VX enclosures with a height of 2,000 mm and a depth of 400 mm. Compatible accessories include hinges for side panels, which are screw-mounted, as well as a VX internal locking mechanism for side panels, which is galvanized. These components can be used to enhance the functionality and security of the enclosure, for example, to improve accessibility or to lock the side panel.

Installation and Mounting

Mounting is done by screwing at the designated mounting points of the enclosure. The integrated clip-on holders and hanging aid facilitate precise positioning. The included mounting materials are sufficient to securely install the side panel. The design allows for single-person installation, enabling efficient installation without additional tools.

Operational Advantages

The VX 8104.245 offers high reliability in operation due to its robust material construction and secure fastening. The integrated earthing bolts ensure reliable earthing, which is critical for safety and EMC protection. The easy installation and high protection class reduce maintenance and installation effort. The use of sheet steel and the special surface treatment ensure a long service life even under industrial conditions. Compatibility with additional VX accessories allows flexible adaptation to specific requirements.

The packaging unit includes 2 pieces of the side panel. The PCF (Product Carbon Footprint) values are 60.14 kg CO2 eq per packaging unit (Cradle-to-Gate, Category B), with the value being approximately calculated based on product weight and self-declared. The tariff code is 94039910, the EAN is 4028177827332. The manufacturer’s number is VX 8104.245. The product description is supplemented by ETIM and ECLASS classification (ETIM 9 EC002524, ECLASS 8.0 27182101).

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forEnclosure type: VX, height: = 2.000 mm, depth: = 400 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)60.14 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8104245, EAN: 4028177827332

Questions & answers

What is the delivery time of Rittal 8104245 VX side panel, screwable, for HT: 2000x400 mm?

The article Rittal 8104245 VX side panel, screwable, for HT: 2000x400 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8104245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8104245 VX side panel, screwable, for HT: 2000x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 8104245 VX side panel, screwable, for HT: 2000x400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
