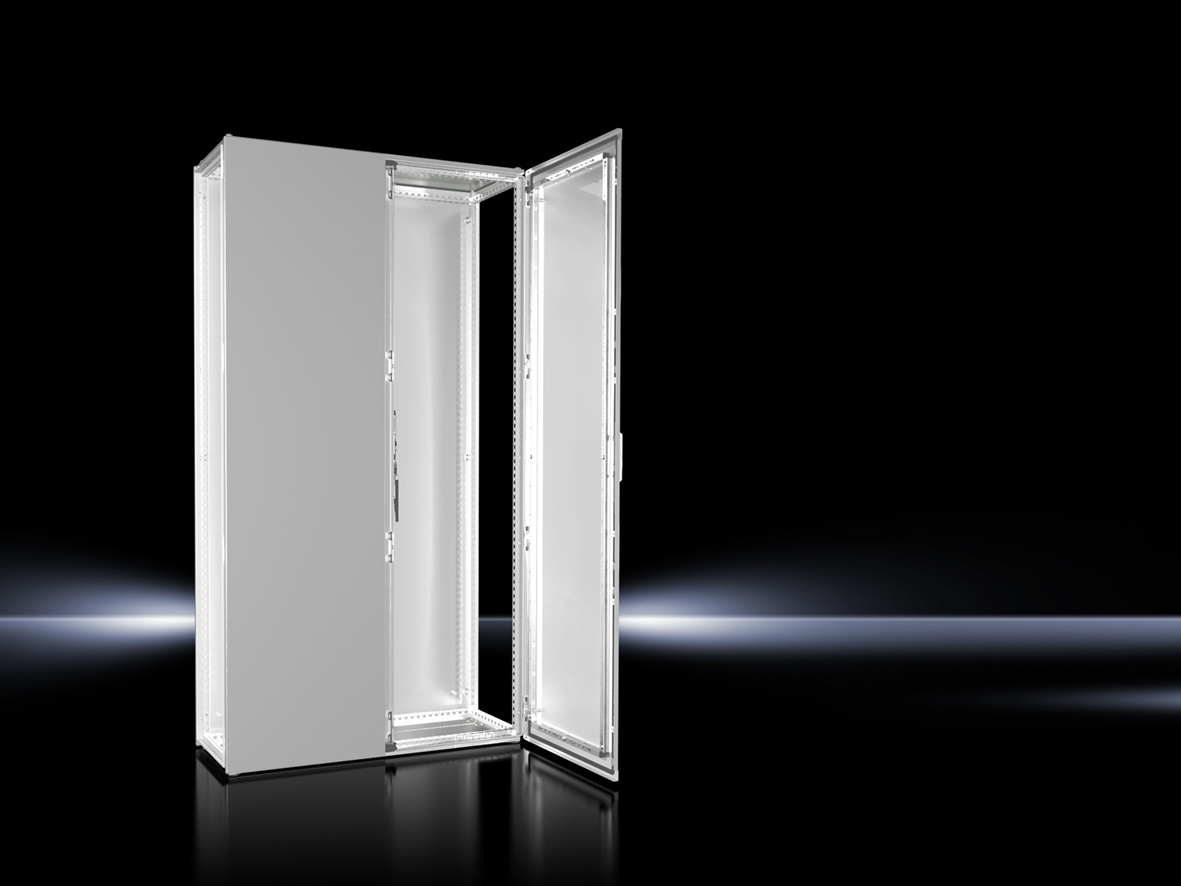

Rittal 9666966 VX installation distributor (ISV) W x H x D: 1100x2000x400 mm
|
722,20 EUR 728,33 EUR |
|
|
( 859,42 EUR incl. VAT ) ≈ £604.48 | ≈ $793.70 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440996 |
| Mfg Part No: | 9666966 |
| UPC/EAN: | 4028177929777 |
| Weight: | 118.6 kg |
| Type: | VX 9666.966 |
Product information for Rittal 9666966:
Applications
The VX 9666.966 is suitable as an installation distributor in industrial environments where secure and accessible mounting of electrical components, such as switching devices, wiring, or controls, is required. It is part of a modular bayed system, enabling flexible expansion and adaptation to different requirements. The construction is suitable for use in production plants, power supply systems, or building automation, where high mechanical stability and protective function are necessary.
Functions and Equipment in Detail
The enclosure features two doors equipped with a 3 mm double-barrel lock to ensure secure access to internal components. The doors can be hinged on the left or right side as required, allowing flexible installation in rows or against walls. The delivery scope includes the enclosure frame, doors, base plates, rear panel, roof plate, and locking mechanism. The construction is prepared for use with ISV expansion modules, enabling modular expansion.
Technology Explained Simply
The protection rating IP 55 according to IEC 60 529 ensures protection against dust (not completely dust-tight, but sufficient to not impair function) and against splashing water from any direction. This makes the unit suitable for use in environments where occasional moisture or splashing water may occur, for example in production halls or outdoor installations with protected mounting. The corresponding NEMA classification is NEMA 12, which describes protection against dust, splashing water, and light spraying. The test basis is IEC 61 439-1/-2, confirming compliance with standards for low-voltage switchgear and controlgear assemblies.
Compatibility and Accessories
The VX 9666.966 is part of the modular VX system and can be expanded with various accessories. These include cable entry flanges in various sizes (e.g. M25/32/40/50/63) as well as plinth corner pieces and plinth trim panels for an increased plinth height of 200 mm. For mounting components, mounting profiles and deep cross-braces are available. Additionally, baying connectors and baying brackets can be used to connect multiple enclosures. For secure locking, various comfort handles are available, including models for lock inserts, half cylinders, security inserts, or padlocks.
Mounting and Installation
Mounting is done by screwing together the individual components. The doors are already fitted with the locking mechanism and can be mounted on the left or right side as required. The base plates are designed for stable fixation to the floor. When installing multiple enclosures in a row, baying connectors and brackets can be used to ensure a uniform front. The use of plinth corner pieces and trim panels is required for an increased plinth height of 200 mm.
Operational Advantages
The VX 9666.966 offers high mechanical stability and reliable protection for installed components. The modular design enables flexible adaptation to different requirements. The powder-coated surface in RAL 7035 ensures an even and durable coating that resists corrosion and mechanical stress. The IP 55 protection rating ensures safe operation in environments with increased humidity or dust exposure. The use of standard modules and accessories simplifies maintenance and system expansion.
| General | |
| Material | steel sheet |
| Surface protection | Cabinet frame: dip-primed, door(s), roof, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, door(s), right-hinged door, reversible to left, base plates, rear panel, roof sheet, lock: 3 mm double bar |
| Number of doors | 2 |
| Note | For 600 mm wide installation distribution boards VX base cabinets; for a base height of 200 mm, 2 units of base corner pieces, 100 mm, and base covers, 100 mm, are required |
| Degree of protection IP according to IEC 60 529 | IP 55 |
| NEMA degree of protection | NEMA 12 |
| Test basis | IEC 61 439-1/-2 |
| Width | 1.100 mm |
| Height | 2.000 mm |
| Depth | 400 mm |
| PCF/VE (Cradle-to-Gate) | 359.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 9666966 VX installation distributor (ISV) W x H x D: 1100x2000x400 mm?
The article Rittal 9666966 VX installation distributor (ISV) W x H x D: 1100x2000x400 mm is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9666966 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9666966 VX installation distributor (ISV) W x H x D: 1100x2000x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 9666966 VX installation distributor (ISV) W x H x D: 1100x2000x400 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
