Rittal 9666922 ISV mounting kit for VX, 4 BE/12 U

Your rating:
Average rating
product review for Rittal 9666922 ISV mounting kit for VX, 4 BE/12 U
( 4.5 / 5 ) 4 ratings
Rittal 9666922
This image may differ from the desired article.
Rittal 9666922Rittal 9666922Rittal 9666922
-6% 241,85 EUR 256,36 EUR
( 287,80 EUR incl. VAT )
≈ £202.43  |  ≈ $265.79
plus delivery charges: 100,00 €
On order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9666922 ISV mounting kit for VX, 4 BE/12 U
Datasheet:file_download Download
Lieske Part No.:1903699
Mfg Part No: 9666922
UPC/EAN: 4028177923263
Weight:9.92 kg
Type:SV 9666922

Product information for Rittal 9666922:

The article SV 9666922 from Rittal is an ISV mounting kit for mounting ISV expansion modules in VX enclosures. It serves as a structural base for securing and integrating distribution units within the enclosure and is specifically designed for enclosures with dimensions Width 1,100 mm, Height 2,000 mm, and Depth 400 mm or 600 mm. The mounting kit includes the necessary mounting components to install the modules securely and in compliance with standards within the enclosure.

Applications
This mounting kit is intended for use in industrial electrical installations, particularly in enclosures of type VX. It enables the integration of ISV modules, which are used for power distribution, switching, and control tasks in production plants, machine building, or automation technology. The size of 4 width units (BE) at 250 mm each (total 1,000 mm) and 12 height units (HE) at 150 mm each (total 1,800 mm) matches the standard dimensions of VX enclosures and ensures optimal space utilization.

Functions and Equipment in Detail

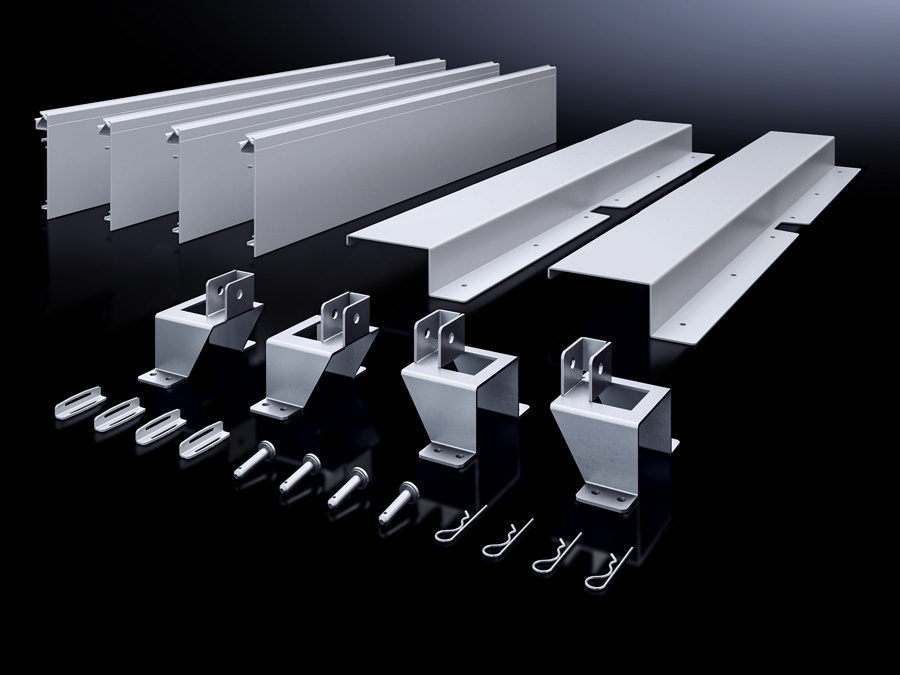

The mounting kit consists of a mounting frame holder made of galvanized steel sheet, which ensures mechanical stability and durability in industrial use. Additionally, it includes a shock protection made of painted steel sheet, which protects electrical components from unintended contact. The side shock protection parts are made of PVC, allowing for flexible and safe coverage of edges. The delivery scope also includes the mounting hardware required for installation in the enclosure.

Technology Explained Simply
The use of galvanized steel sheet for the mounting frame holder provides corrosion protection and mechanical strength, which is particularly important in humid or industrial environments. The painted steel sheet shock protection offers high electrical insulation and is resistant to mechanical stress. The PVC material on the sides ensures safe coverage of edges and prevents injury risks. The dimensions of 4 BE and 12 HE correspond to common standards for enclosure equipment and allow for standardized mounting.

Compatibility and Accessories
The mounting kit is specifically designed for enclosure types VX with the specified dimensions. It is compatible with article numbers 9666.926 and 9666.966, which also serve for mounting ISV modules in VX enclosures. Suitable accessories include ISV mounting profiles for TS/SE, small screwable mounting plates, and ISV deep traverse for VX/TS (Depth: 400/500/600 mm) to expand mounting options.

Mounting and Installation
Installation is carried out by securing the mounting frame holder in the enclosure using the included mounting hardware. The shock protection is then mounted to protect the electrical components. Mounting is performed within the specified dimensions of 1,000 mm width and 1,800 mm height, aligned with standard HE and BE units. The mounting kits are designed to integrate seamlessly into existing VX enclosure configurations.

Advantages in Operation
The mounting kit provides a secure and standardized installation of ISV modules, facilitating maintenance and servicing of enclosures. The use of high-quality materials such as galvanized steel sheet and painted steel sheet ensures long service life and high reliability. The integrated shock protection components increase operational safety and meet electrical safety requirements in industrial installations. Compatibility with additional accessories allows flexible adaptation to different requirements in enclosure construction.

General
MaterialMounting frame holder: steel sheet, galvanised, touch protection: steel sheet, painted, side touch protection: PVC
Scope of deliveryMounting frame holder, touch protection, including fastening material
Construction sizeWidth units (BE) at 250 mm: 4, Height units (HE) at 150 mm: 12
Suitable for part no.9666.926, 9666.966
Suitable forHousing type: VX, width: 1.100 mm, height: 2.000 mm, depth: 400 mm, 600 mm


Product data sheet
Datasheet for Rittal 9666922, EAN: 4028177923263
