Rittal 9666926 VX installation distributor (ISV) W x H x D: 1100x2000x60 mm

Your rating:
Average rating
product review for Rittal 9666926 VX installation distributor (ISV) W x H x D: 1100x2000x60 mm
( 4.3 / 5 ) 6 ratings

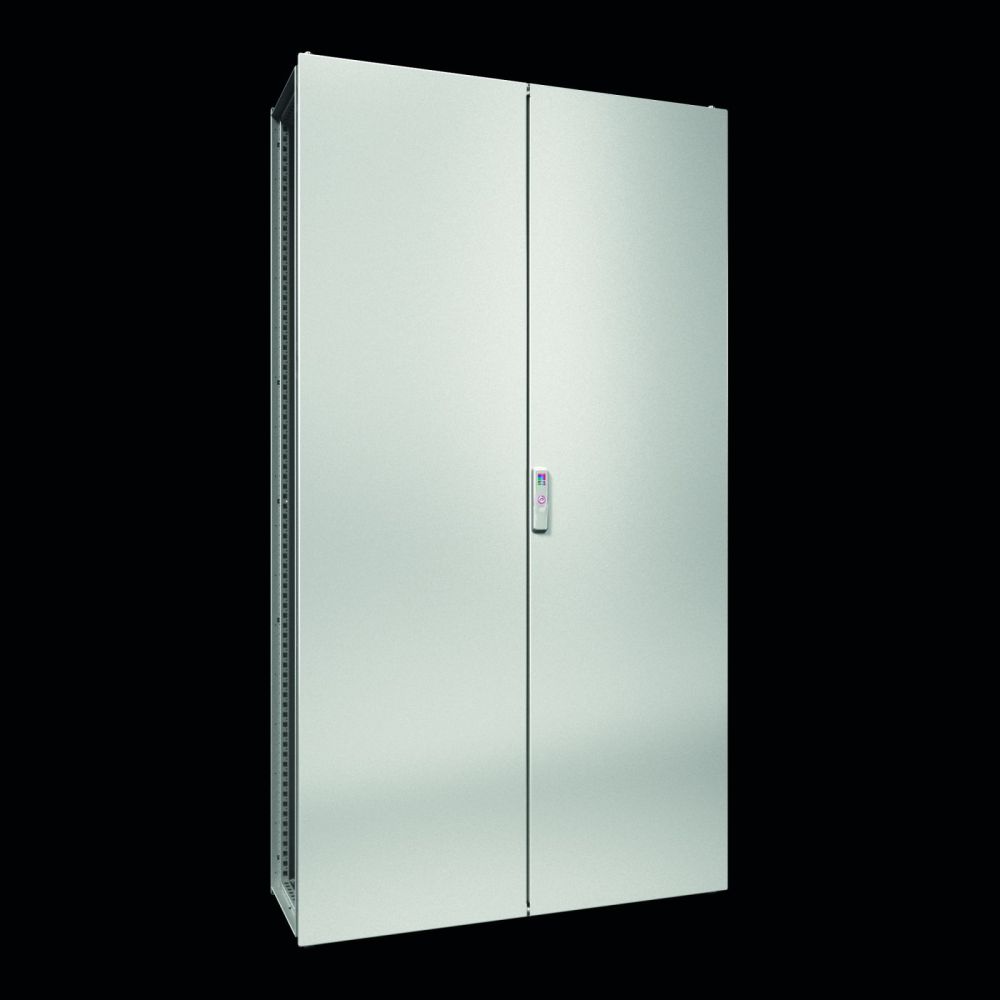

Rittal 9666926
This image may differ from the desired article.
Rittal 9666926Rittal 9666926Rittal 9666926Rittal 9666926Rittal 9666926Rittal 9666926
731,40 EUR
( 870,37 EUR incl. VAT )
≈ £612.18  |  ≈ $803.81
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9666926 VX installation distributor (ISV) W x H x D: 1100x2000x60 mm
Datasheet:file_download Download
Lieske Part No.:1440186
Mfg Part No: 9666926
UPC/EAN: 4028177929616
Weight:126.8 kg
Type:VX 9666.926

Product information for Rittal 9666926:

The Rittal VX 9666.926 is an installation distributor (ISV) made of sheet steel, designed for use in industrial and technical installations. The enclosure has dimensions of width 1,100 mm, height 2,000 mm, and depth 600 mm and is configured as a two-door cabinet. It serves as a base for mounting installation modules and is part of the baying system VX25, which enables modular and flexible arrangement. The construction is designed for use in environments with increased requirements for protection and stability.

Applications
The VX 9666.926 is suitable for use in industrial installations, such as machine building, manufacturing technology, power supply, and automation technology. It is frequently used as a distribution box for electrical and electronic components, particularly in environments where a protection rating of IP 55 is required. The IP 55 protection rating means that the enclosure is protected against dust and splashing water from any direction, making it suitable for outdoor use or in damp indoor areas. The NEMA protection rating 12 complements this and refers to protection against dust, splashing water, and light spray water, typical for industrial indoor environments.

Functions and Equipment in Detail
The enclosure is made of sheet steel, with the cabinet frame being dip-primed. The doors, roof, and rear panel are also dip-primed and externally powder-coated with a textured lacquer, ensuring high corrosion resistance and a robust surface. The base plates are galvanized to provide additional protection against moisture and corrosion. The color of the enclosure is RAL 7035, a gray tone commonly used in industrial environments. The doors are standardly mounted on the right, but can be reconfigured to the left, allowing for flexible installation. The locking mechanism uses a 3 mm double bar, ensuring secure and stable latching.

Technology Explained Simply
The IP 55 protection rating according to IEC 60 529 safeguards the interior of the cabinet against dust (dust-tight) and splashing water from any direction. This is particularly important to protect electrical components from contamination and moisture. The test basis IEC 61 439-1/-2 refers to standards for low-voltage switchgear and controlgear, ensuring electrical safety and reliability. The surface treatment with dip priming and powder coating ensures long service life and resistance to environmental influences. The use of galvanized base plates increases corrosion resistance in the lower area, where moisture is more likely to occur.

Compatibility and Accessories
The VX 9666.926 is designed as a base cabinet for 600 mm wide installation distributors. Compatible accessories include cable entry flanges in various configurations, such as with entry spigot, sealing membrane, or closed, as well as mounting profiles, deep cross-braces, and baying connectors. These elements allow individual adaptation to specific requirements, such as cable management, mounting of assemblies, or connecting multiple cabinets into a baying system. Comfort handles for various locking systems (ASSA, half cylinder, security lock insert, padlock) are also available to optimize access to the doors.

Mounting and Installation
Mounting is done using the pre-fabricated fastening elements in the cabinet frame. The doors are already equipped with the locking mechanism and can be mounted on the left or right side as required. The base plates are already integrated, providing a stable foundation for the cabinet. During installation, note that additional elements such as plinth corner pieces and plinth trim panels are required for increased plinth height. The use of baying latches and baying blocks enables the secure connection of multiple cabinets into a continuous system.

Advantages in Operation
The VX 9666.926 offers high mechanical stability and protective function, which are required for industrial use. The modular construction allows flexible adaptation to different requirements, whether by mounting additional modules or using accessory parts. The surface treatment ensures long service life and low maintenance. The IP 55 and NEMA 12 protection ratings ensure protection of installed components from environmental influences, increasing operational safety. The option to mount doors on the left or right side provides flexibility in positioning within the installation area.

General
Materialsteel sheet
Surface protectionCabinet frame: dip-primed, door(s), roof, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized
ColourRAL 7035
Scope of deliveryCabinet frame, door(s), right-hinged door, reversible to left, base plates, rear panel, roof sheet, lock: 3 mm double bar
Number of doors2
NoteFor 600 mm wide installation distribution boards VX base cabinets; for a base height of 200 mm, 2 units of base corner pieces, 100 mm, and base covers, 100 mm, are required
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 12
Test basisIEC 61 439-1/-2
Width1.100 mm
Height2.000 mm
Depth600 mm
PCF/VE (Cradle-to-Gate)384.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9666926, EAN: 4028177929616
