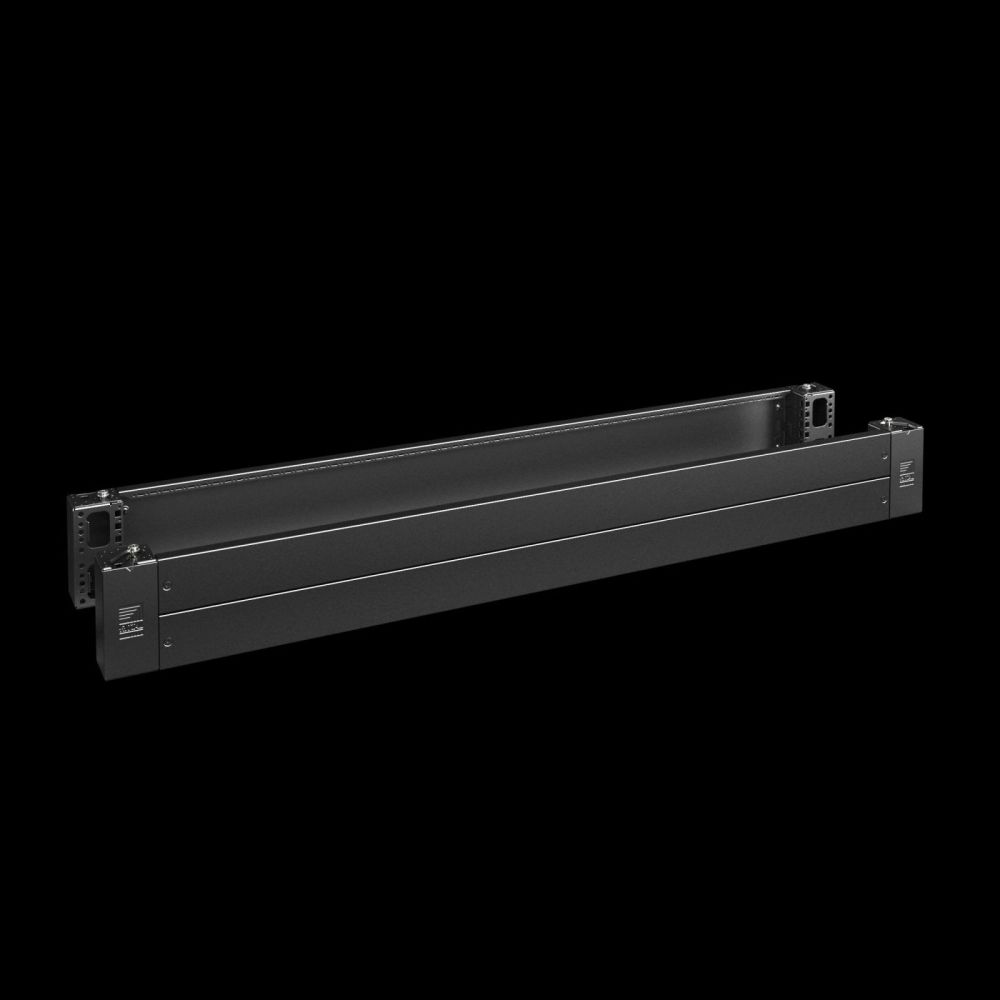

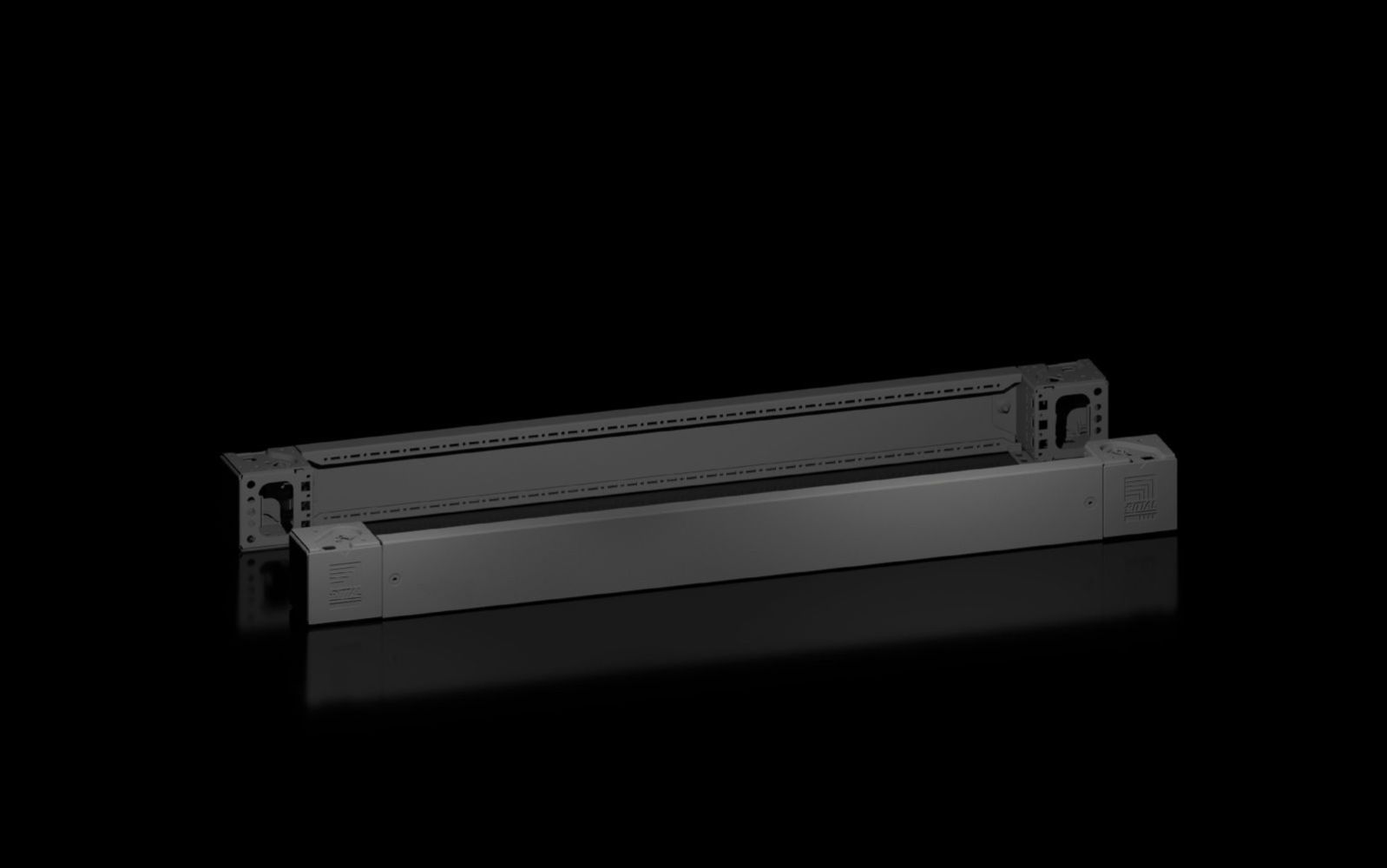

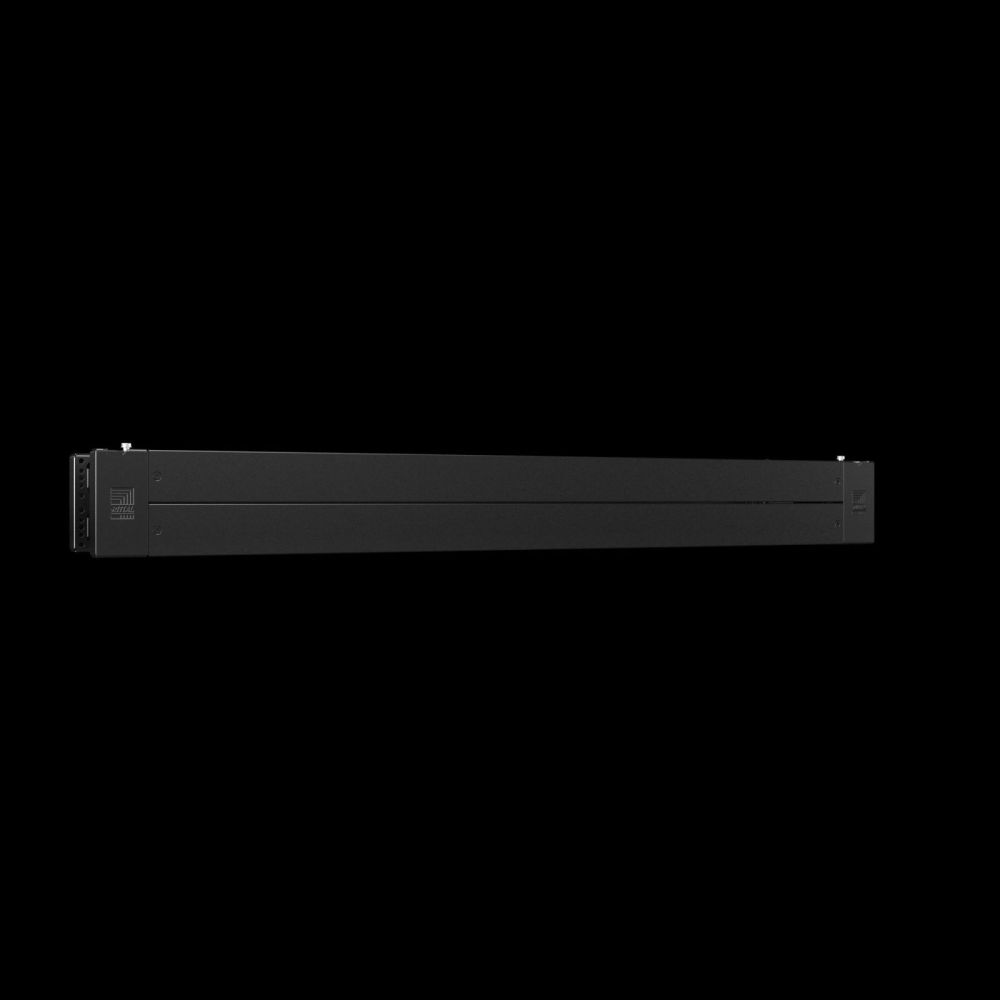

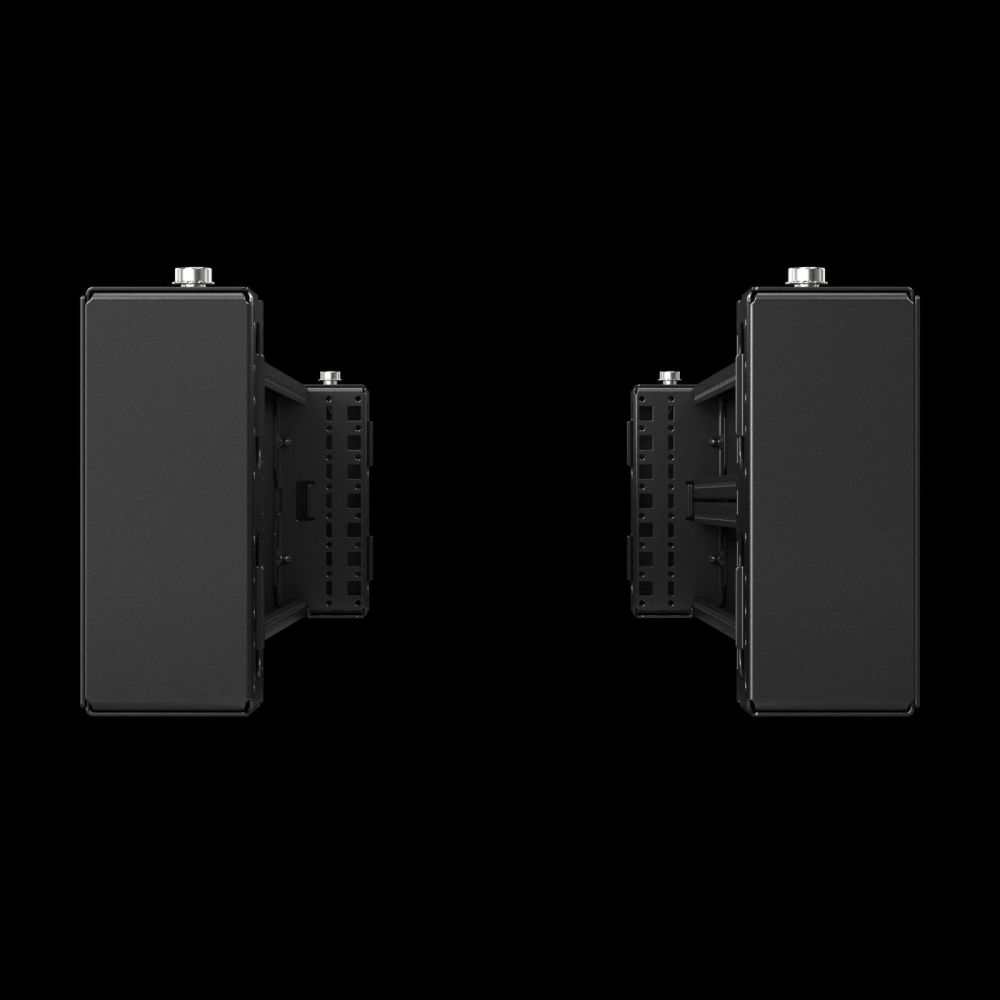

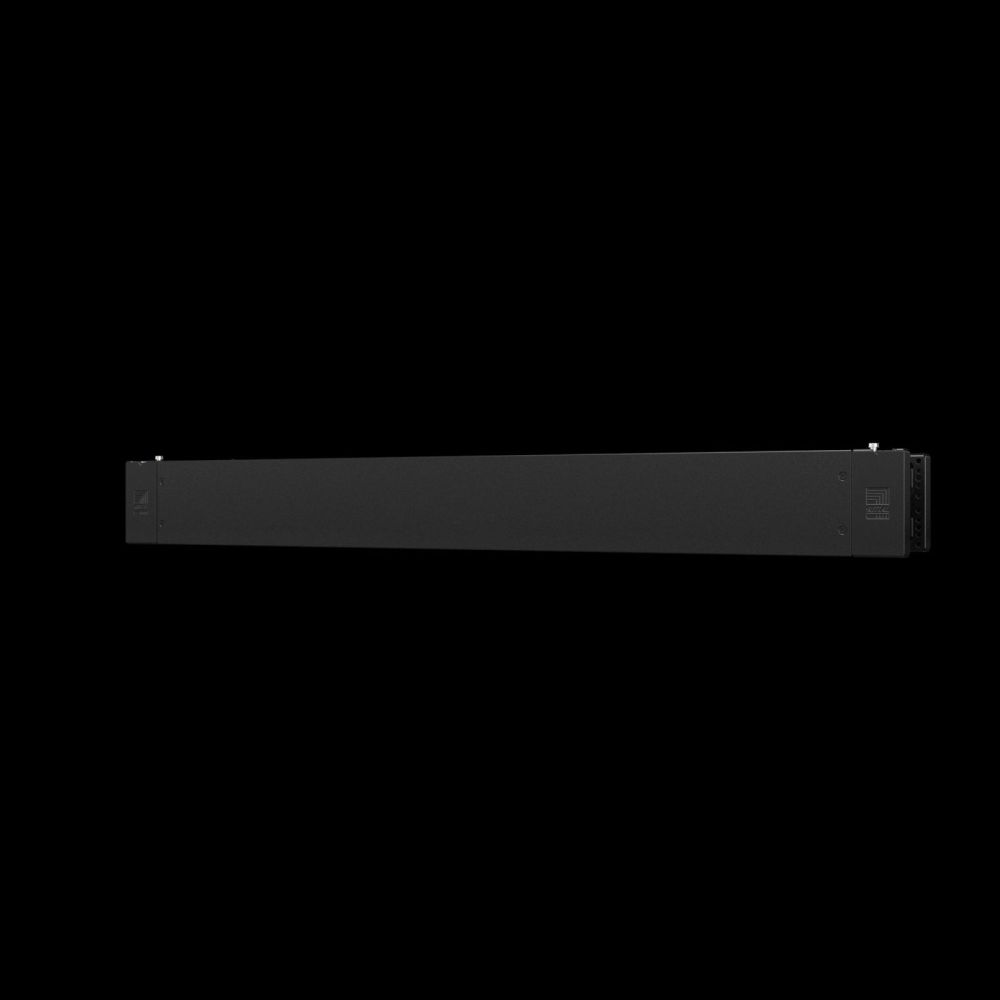

Rittal 8660006 VX plinth corner piece with trim panel, front/rear, H: 100

Your rating:
Average rating
product review for Rittal 8660006 VX plinth corner piece with trim panel, front/rear, H: 100
( 4.5 / 5 ) 2 ratings
Rittal 8660006
This image may differ from the desired article.
Rittal 8660006Rittal 8660006Rittal 8660006Rittal 8660006Rittal 8660006Rittal 8660006
50,60 EUR
( 60,21 EUR incl. VAT )
≈ £42.35  |  ≈ $55.61
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660006 VX plinth corner piece with trim panel, front/rear, H: 100
Datasheet:file_download Download
Lieske Part No.:682700
Mfg Part No: 8660006
UPC/EAN: 4028177978164
Weight:6.6 kg
Type:VX 8660006

Product information for Rittal 8660006:

The Rittal VX 8660006 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for enclosures and housings of the VX system. It serves as a stable termination of plinth units and enables a clean, flush connection between adjacent enclosures. The component is made of sheet steel and finished in RAL 9005, ensuring visual consistency with other VX system components. The height is 100 mm, designed for enclosures with an exact width of 1,100 mm.

Applications

The plinth corner piece is primarily used in industrial environments where enclosures are arranged in rows. It is compatible with various housing types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. Its use is especially common when mounting enclosures on a common plinth system to ensure mechanical stability and a uniform appearance. The plinth trim panels serve not only as an aesthetic finish but also contribute to additional stabilization between plinths and can be utilized for internal installation.

Functions and Equipment in Detail

The product includes four plinth corner pieces, each 100 mm high, as well as two plinth trim panels for the front and rear. Additionally, four plastic corner covers are included, which complete the transition between the plinth corner pieces and the enclosure walls. The delivery also includes the necessary mounting hardware to securely attach the components to the plinth. The plinth trim panels are side-mountable and serve both as an optical finish and to reinforce the plinth structure.

Technology Explained Simply

The plinth corner pieces are made of sheet steel, ensuring high mechanical strength and durability. The integrated sheet steel trim panels provide a closed finish at the front and rear of the plinth, achieving a flush connection between enclosures. The plastic corner covers complement the metal parts and prevent visible edges or gaps. The RAL 9005 color is a dark gray, which blends well visually in industrial environments. The height of 100 mm is matched to the standard width of 1,100 mm, enabling a direct fit for most VX control systems.

Compatibility and Accessories

The plinth corner piece is suitable for a wide range of enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is specifically designed for enclosures with a width of 1,100 mm. As accessories, additional components such as levelling feet M12, VX castors, plinth baying brackets, or VX plinth expansion angles can be combined to extend the functionality of the plinth system. The use of these additional components allows for flexible adaptation to different mounting conditions and requirements.

Mounting and Installation

Installation is carried out by securing the plinth corner pieces to the corners of the plinth using the included mounting hardware. The plinth trim panels are attached to the front and rear to ensure a closed finish. The corner covers are mounted at the transitions between the plinth corner pieces and the enclosure walls to achieve a clean appearance.

Operational Advantages

The plinth corner piece provides high mechanical stability, increasing the long-term durability of the entire enclosure system. The flush connection between enclosures improves the appearance and reduces the risk of dust or moisture accumulation at the edges. The integrated trim panels also allow for flexible cable entry and support internal plinth installation. Compatibility with various housing types and the use of standard mounting hardware simplify installation and maintenance in industrial applications.

Type rating according to UL 50E

The product meets the requirements of the UL 50E standard in categories Type 1 and Type 12. Type 1 protects against contact with moving parts and ingress of solid foreign objects; Type 12 additionally provides protection against splashing water from all directions. This certification makes the plinth corner piece suitable for indoor use, particularly in environments with increased humidity or occasional splashing water exposure.

Material and Color

The plinth corner pieces and front/rear trim panels are made of sheet steel, ensuring high strength and corrosion resistance. The corner and baying covers are made of plastic, enabling easy installation and a clean visual finish. The RAL 9005 color is a dark gray, which blends well in industrial environments and provides a uniform appearance with other VX components.

Weight and Environmental Impact

The product has a gross weight of 6.6 kg per packaging unit, which consists of two pieces. The environmental impact is described by the PCF value (Cradle-to-Gate) of 23 kg CO2 equivalents per packaging unit, where category B indicates that the value is approximately calculated based on product weight and self-declared.

General
MaterialSocket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic
ColourRAL 9005
Scope of delivery4 corner covers, incl. fastening material, 4 socket corner pieces, 100 mm high, 2 socket front/rear panels, 100 mm
NoteSocket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets
Height100 mm
Suitable forEnclosure type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, Width: = 1,100 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU6,6 kg
PCF/VE (Cradle-to-Gate)23 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660006, EAN: 4028177978164
