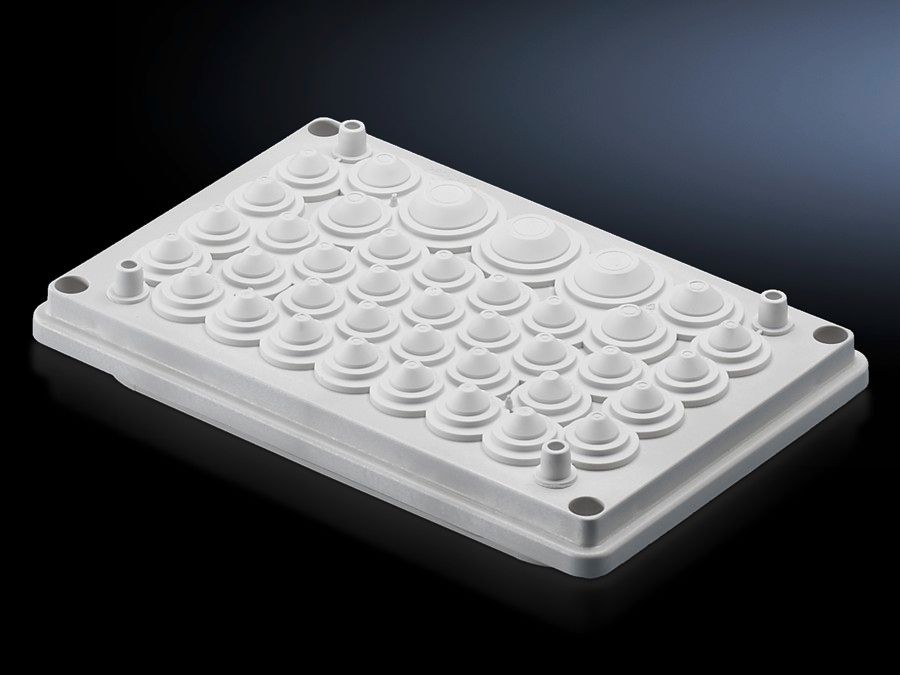

Rittal 9665770 cable entry flange with sealing membrane
|
28,05 EUR 28,06 EUR |
|
|
( 33,38 EUR incl. VAT ) ≈ £23.48 | ≈ $30.83 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 712879 |
| Mfg Part No: | 9665770 |
| UPC/EAN: | 4028177382466 |
| Weight: | 0.341 kg |
| Type: | SV 9665770 |
Product information for Rittal 9665770:
Cable entry
The flange features pre-drilled holes designed for various cable diameters. There are 32 holes with a diameter of Ø 7 to 16 mm, 4 holes with Ø 10 to 20 mm, and 3 holes with Ø 14 to 26 mm. These pre-punched holes allow for quick and precise installation without additional modification of the roof plate. The sealing membranes, included in the delivery scope, ensure a tight seal for cable entries and prevent moisture or dust ingress.
Protection rating IP 55
The flange complies with protection rating IP 55 according to IEC 60 529. This means it is dust-protected (not fully dust-tight, but no harmful dust ingress) and protected against water jets from any direction. This protection rating makes the flange suitable for use in industrial environments where splashing water or precipitation may occur, such as in production halls, outdoor installations, or on machines with open tops.
Material and construction
The insulating material provides high electrical insulation and is resistant to mechanical stress as well as environmental influences such as moisture and temperature fluctuations. The RAL 7035 (grey) colour is standard in industry and ensures uniform visual appearance of enclosures. The construction is designed for easy attachment to the roof plate, with pre-drilled holes accelerating the mounting process.
Applications
The cable entry flange is primarily used in industrial electrical installations, especially for wiring enclosures, distribution boxes, and machines. It is ideal for applications where cables need to pass through the roof plate of an enclosure without compromising the overall protection rating. The IP 55 rating also makes it suitable for outdoor use, provided there is no direct sunlight or extreme weather exposure.
Compatibility and accessories
The flange is designed for standard roof plates in enclosures and fits common mounting procedures. It is part of a Rittal product family that includes various variants with different hole sizes and configurations (e.g., with entry nozzles or closed versions).
Mounting and installation
Installation is done by simply attaching the flange to the roof plate, using the pre-drilled holes directly. The sealing membranes are used during cable entry to ensure a tight connection. No additional tools or mounting aids are required, as the holes are already precisely pre-drilled. Installation is therefore quick and does not require any additional modification of the roof plate.
Operational advantages
Using the cable entry flange reduces installation time and minimizes the risk of errors during cable entry. The integrated sealing membranes ensure reliable sealing, enhancing the functionality and service life of the installed electrical system. The IP 55 protection rating ensures the enclosure remains operational even under challenging environmental conditions. The use of insulating material provides high electrical safety and resistance to mechanical stress.
| General | |
| Model | with sealing membranes 32 x Ø 7 – 16 mm, 4 x Ø 10 – 20 mm, 3 x Ø 14 – 26 mm |
| Material | Insulating material |
| Colour | RAL 7035 |
| Scope of delivery | Including seal |
| Width | 250 mm |
| Depth | 160 mm |
| Degree of protection IP according to IEC 60 529 | IP 55 |
