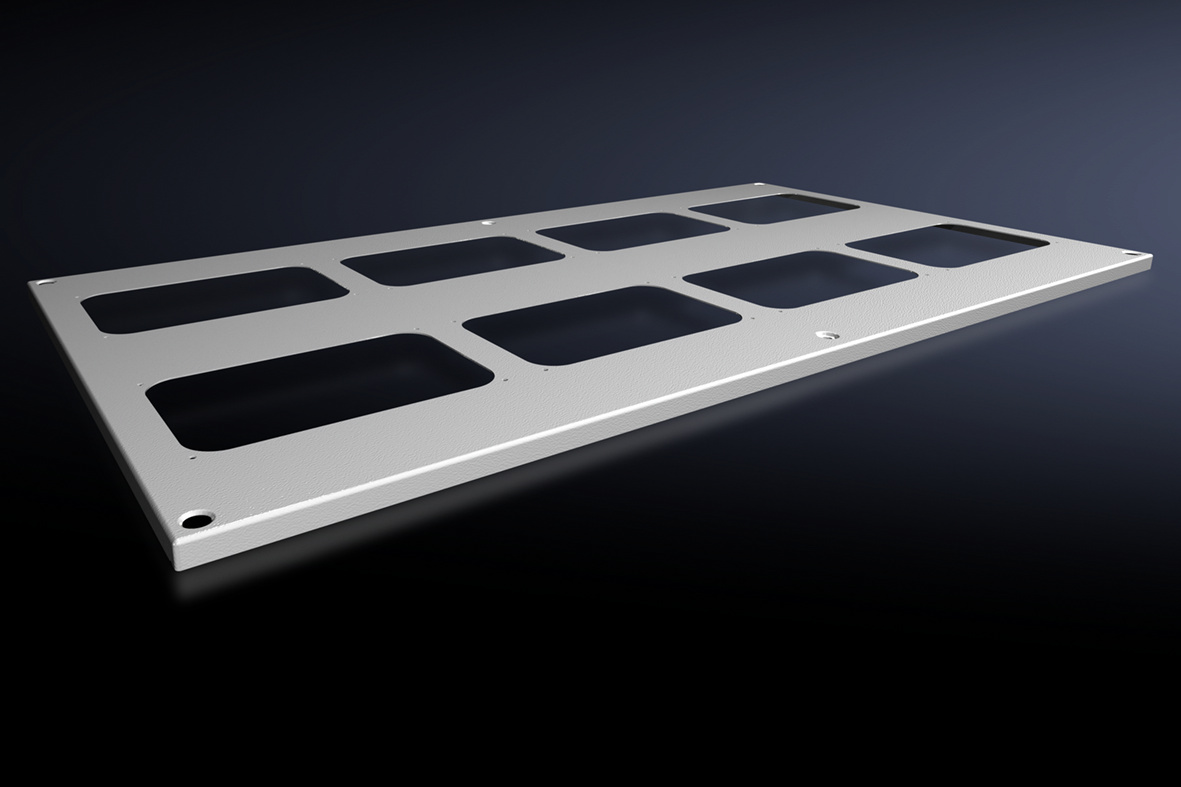

Rittal 9681516 SV roof plate for VX, width: 1100x600 mm, for cable entry

Your rating:
Average rating
product review for Rittal 9681516 SV roof plate for VX, width: 1100x600 mm, for cable entry
( 4.3 / 5 ) 3 ratings
Rittal 9681516
This image may differ from the desired article.
Rittal 9681516Rittal 9681516Rittal 9681516
-12% 77,28 EUR 87,99 EUR
( 91,96 EUR incl. VAT )
≈ £64.68  |  ≈ $84.93
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9681516 SV roof plate for VX, width: 1100x600 mm, for cable entry
Datasheet:file_download Download
Lieske Part No.:1903701
Mfg Part No: 9681516
UPC/EAN: 4028177926578
Weight:6.7 kg
Type:SV 9681516

Product information for Rittal 9681516:

The Rittal SV 9681516 is a roof plate for enclosures of the VX series, specifically designed for dimensions of 1100 mm width and 600 mm depth. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is made of steel sheet with a thickness of 1.5 mm and features a surface coated with textured paint in the colour RAL 7035, ensuring a robust and uniform coating suitable for industrial operating conditions. The use of textured paint increases mechanical resistance and provides good protection against corrosion and contamination. The roof plate is designed for mounting cable entry flanges and requires a total of eight such flanges to ensure secure and orderly cable connections.

Applications

The roof plate is primarily intended for enclosures of the VX series, particularly for models with the specified dimensions. It is suitable for both new installations and replacement of existing roof constructions to ensure a uniform and standardized surface. Typical use is in industrial environments such as manufacturing, power supply, or automation technology, where a stable and maintenance-friendly enclosure cover is required. The design allows for secure fastening of cable entries and supports orderly installation of wiring in the upper section of the enclosure.

Functions and Equipment in Detail

The roof plate is delivered including fastening materials, enabling installation without additional purchases. The fastening elements are designed for use with the standardized mounting points of the VX enclosure series. The number of required cable entry flanges is eight, providing a flexible and sufficient number of entry points for cables and wiring. The textured paint surface ensures high mechanical strength and uniform protection against external influences, extending the service life of the roof plate.

Technology Explained Simply

The steel sheet with a thickness of 1.5 mm provides sufficient stability to withstand mechanical loads during operation. Textured painting is a special coating technique that creates a textured surface, which is more resistant to scratches, contamination, and mechanical stress compared to smooth finishes. The colour RAL 7035 corresponds to a grey, slightly textured finish commonly used in industrial facilities. The use of steel sheet ensures high strength and heat resistance, which is essential for use in enclosures.

Compatibility and Accessories

The roof plate is specifically designed for enclosures with a width of 1100 mm and a depth of 600 mm. It is compatible with the VX series and can be used as a replacement for the standard roof. Suitable accessories include transport eyes for VX, TS, SE (4 pieces), which can be helpful in shipping logistics, especially for freight shipping.

Installation and Mounting

Installation is carried out using the fastening materials included in the delivery, which are designed for the standard mounting points of the VX enclosure series. The installation requires mounting eight cable entry flanges at designated positions on the roof plate, with the exact arrangement following the mounting instructions of the enclosure construction. Fastening is done using screws or other designated fastening elements included in the delivery. The installation is standardized for professionals in the electrical and IT sectors and does not require any special tools beyond standard mounting accessories.

Operational Advantages

The roof plate provides a stable and durable cover for the upper section of the enclosure, ensuring better protection against dust, moisture, and mechanical damage. The integrated capability to mount eight cable entry flanges enables flexible and structured cable routing. The use of textured paint increases service life and reduces maintenance frequency. Compatibility with the VX series and easy installation facilitate integration into existing or new installations.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Number of required cable entry flanges8
Suitable forWidth: = 1,100 mm, Depth: = 600 mm
PCF/VE (Cradle-to-Gate)25.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9681516, EAN: 4028177926578

Questions & answers

What is the delivery time of Rittal 9681516 SV roof plate for VX, width: 1100x600 mm, for cable entry?

The article Rittal 9681516 SV roof plate for VX, width: 1100x600 mm, for cable entry is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681516 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681516 SV roof plate for VX, width: 1100x600 mm, for cable entry always at the best possible price. We can give you a discount of 2% on Rittal 9681516 SV roof plate for VX, width: 1100x600 mm, for cable entry if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
