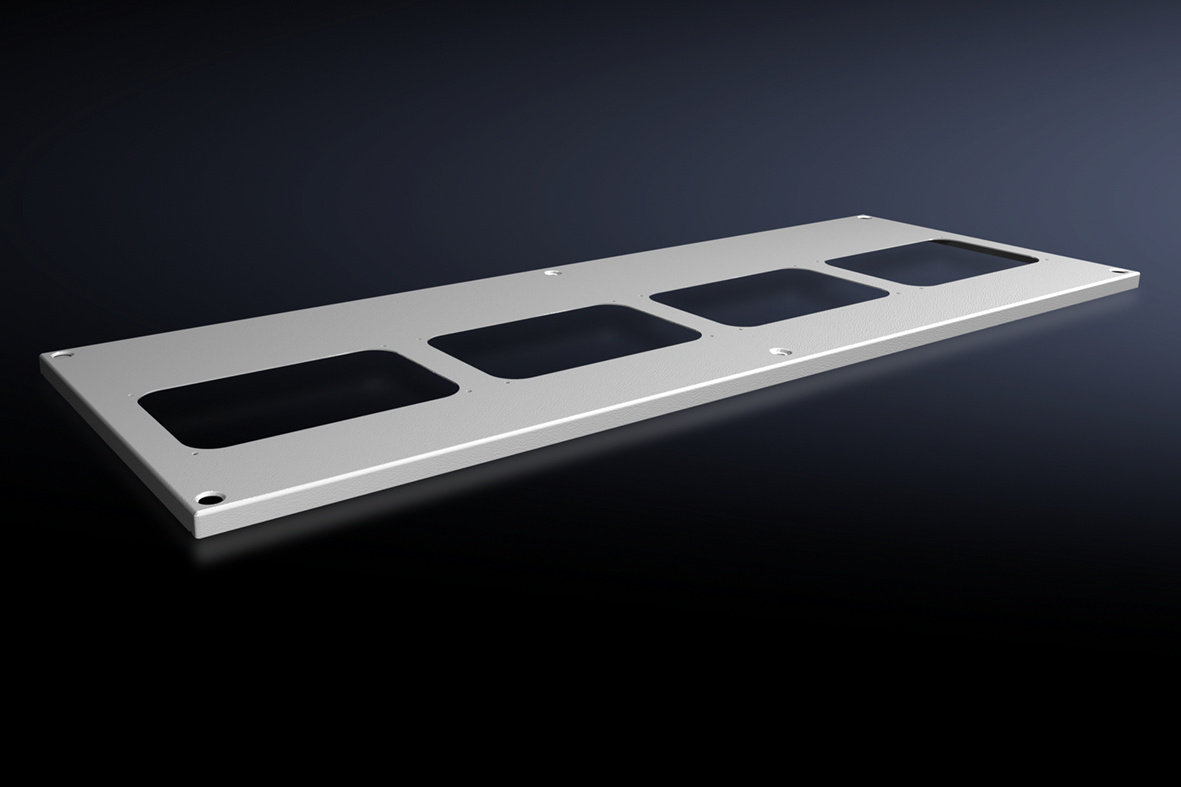

Rittal 9681514 SV roof plate for VX, width: 1100x400 mm, for cable entry

Your rating:
Average rating
product review for Rittal 9681514 SV roof plate for VX, width: 1100x400 mm, for cable entry
( 5 / 5 ) 2 ratings
Rittal 9681514
This image may differ from the desired article.
Rittal 9681514Rittal 9681514Rittal 9681514
61,18 EUR
( 72,80 EUR incl. VAT )
≈ £51.21  |  ≈ $67.24
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9681514 SV roof plate for VX, width: 1100x400 mm, for cable entry
Datasheet:file_download Download
Lieske Part No.:1903700
Mfg Part No: 9681514
UPC/EAN: 4028177926622
Weight:5.2 kg
Type:SV 9681514

Product information for Rittal 9681514:

The Rittal SV 9681514 is a roof plate for enclosures of the VX series, specifically designed for dimensions of 1100 mm width and 400 mm depth. It serves as a replacement roof for enclosures originally delivered without a roof plate, or as a substitute for the standard roof of other enclosure models. The product is made of steel sheet with a thickness of 1.5 mm, providing a robust and durable construction for industrial applications. The surface is coated with structured paint, ensuring good mechanical resistance and protection against contamination. The colour corresponds to the standard RAL 7035, a grey-beige tone commonly used for enclosures in industrial environments.

Applications

The roof plate is intended for use in industrial environments, particularly in installations requiring secure and structured cable routing. It is frequently used in electrical and automation technology, where enclosures must be fitted with a fixed roof to enhance mechanical stability and optimise installation conditions for cable entry flanges. The dimensions of 1100 mm width and 400 mm depth fit precisely to enclosures of the VX series with these dimensions.

Functions and Equipment in Detail

The roof plate is specifically designed for mounting cable entry flanges. It requires the use of four such flanges, which are installed into the designated openings to route cables securely and orderly into the enclosure. Installation is carried out using fastening materials included in the delivery scope. These materials enable a secure and durable fixation of the roof plate to the enclosure structure. The use of four flanges ensures flexible and sufficient cable supply for various applications.

Technology Explained Simply

The steel sheet material with a thickness of 1.5 mm provides sufficient strength to withstand mechanical loads during operation without deformation. The structured paint coating not only improves the appearance but also protects the metal against corrosion and wear. The RAL 7035 colour is a standard industrial colour that integrates well into industrial environments. Installation is carried out using the fastening elements included in the delivery scope, ensuring a secure connection to the enclosure body.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with dimensions of 1100 mm width and 400 mm depth. It is compatible with cable entry flanges, which are installed into the designated openings. Suitable accessories include transport eyes for VX, TS, SE (4 pieces), which can be helpful in shipping logistics, especially for freight shipping.

Installation and Mounting

Mounting is performed by securing the roof plate to the upper edge of the enclosure. The fastening materials included in the delivery scope enable simple and secure installation. The designated openings for cable entry flanges must already be fitted with the flanges before mounting the roof plate to ensure correct fit.

Operational Advantages

The roof plate enhances the mechanical stability of the enclosure and protects cable connections from mechanical stress. The use of four cable entry flanges enables structured and clear cable routing, simplifying maintenance and servicing. The robust construction from steel sheet and structured paint coating ensures long service life and low maintenance requirements. The product is designed for use in industrial installations, where reliability and durability are essential.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Number of required cable entry flanges4
Suitable forWidth: = 1,100 mm, Depth: = 400 mm
PCF/VE (Cradle-to-Gate)19.8 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9681514, EAN: 4028177926622
