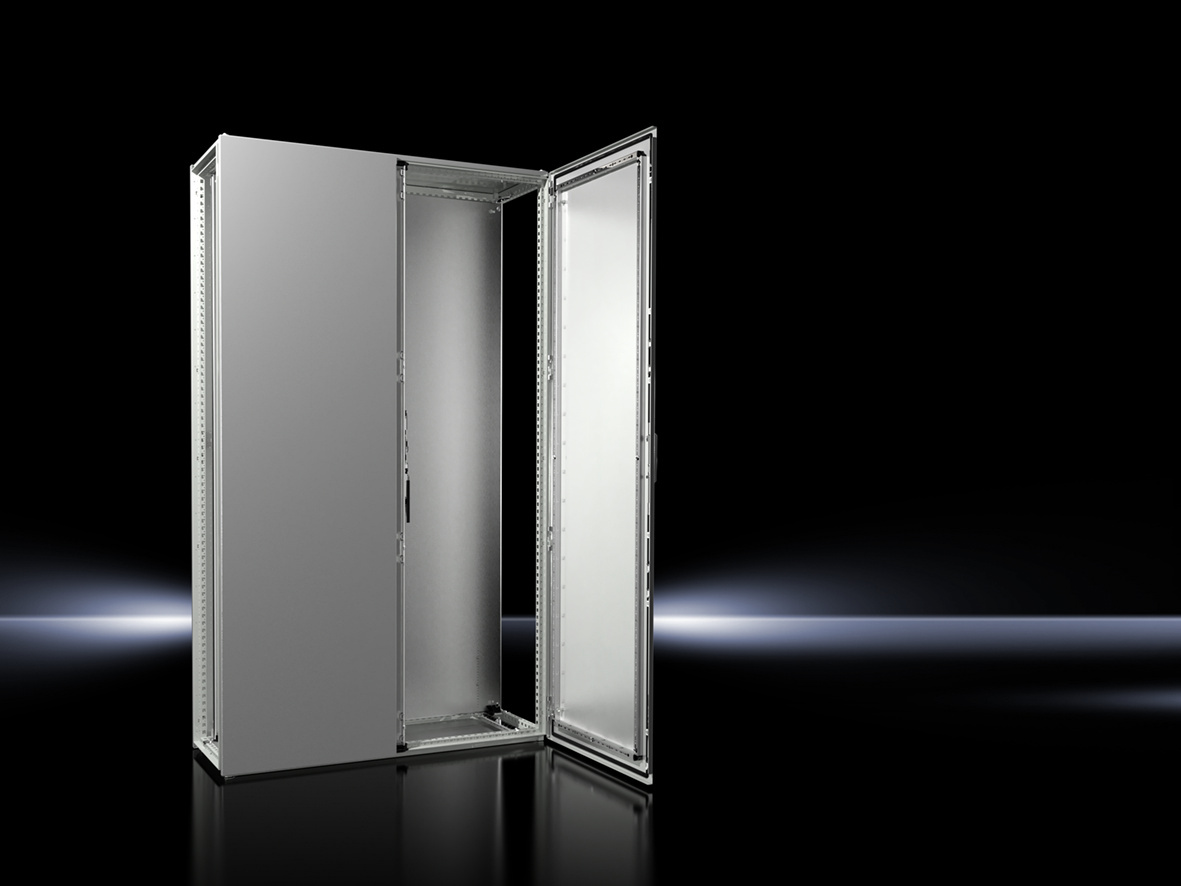

Rittal 8204000 VX bayed enclosure system, 2-door, W x H x D: 1200x2000x400 mm,
|
912,58 EUR |
|
|
( 1.085,97 EUR incl. VAT ) ≈ £763.83 | ≈ $1,002.93 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440700 |
| Mfg Part No: | 8204000 |
| UPC/EAN: | 4028177813649 |
| Weight: | 183.2 kg |
| Type: | VX 8204.000 |
Product information for Rittal 8204000:
Applications
This enclosure system is suitable for use in production plants, automation technology, power supply systems, and other industrial environments. The protection rating IP 55 according to EN 60 529 ensures effective protection against dust and splashing water, making it suitable for indoor use under normal operating conditions as well as in slightly damp or dusty environments. Certification according to NEMA 1 and NEMA 12, as well as Type 1 and Type 12 according to UL 50E, expands the range of applications in regions with corresponding standard requirements. The IK code IK10 indicates high mechanical strength, protecting the enclosure against mechanical impacts such as shocks and vibrations.
Functions and Equipment in Detail
The enclosure system consists of a sheet steel frame with a wall thickness of 1.5 mm, featuring a dip-primed surface. The doors, roof, and rear panel are also made of sheet steel, with the doors having a wall thickness of 2.0 mm. These components are externally powder-coated with a textured lacquer in the colour RAL 7035. The mounting plate, made of sheet steel with a wall thickness of 3.0 mm, is C-bent on the sides and depth-adjustable in 25 mm increments via integrated plastic glides. The mounting plate is equipped with a mounting grid to simplify component positioning. The base plates are made of sheet steel with a thickness of 1.5 mm, three-piece, removable, and replaceable. The mounting plates and base plates are galvanized to prevent corrosion.
Technology Explained Simply
The doors are fitted with a PU foam seal to ensure a tight closure. The lock door is on the right and equipped with a four-point locking bar lock using a double-bar insert according to DIN 43668. The secondary door is additionally secured with a swing lever double lock. The hinges are fitted with screwed stops, allowing the door opening angle to be extended from 130° to 180° without tools. The clearance from the floor is 17 mm. The rear panel and roof plate are also fitted with PU foam seals and secured with screws, making them removable. The rear panel features a positioning aid. The roof plate is secured with M12 fastening screws. The mounting plate is depth-adjustable via integrated plastic glides and reusable mounting rails.
Compatibility and Accessories
The enclosure system is bayable on all sides and can be expanded with various accessories. Compatible accessories include levelling feet M12 with an adjustment height of 18–43 mm, TS mounting brackets for external mounting plane, C-profile rails 30/15 according to EN 60715, transport eyes, mounting plate spacers, VX base plates, VX comfort handles, dust protection strips, cable entry ferrules in various diameters, multi-locking systems, circuit diagram pockets, AS Multitool, VX side panels, VX baying connectors, and baying brackets. These components enable individual adaptation of the enclosure to specific requirements.
Mounting and Installation
Mounting is performed using the integrated mounting grid and reusable mounting rails. The mounting plate is depth-adjustable, allowing flexible adaptation to different components. The base plates are removable, facilitating replacement or cleaning. The enclosure construction is equipped with integrated blind rivet nuts M6, enabling protection-rated fastening of fittings. The entire construction features square hole patterns suitable for cage nuts and metric screws up to M8.
Advantages in Operation
The enclosure system offers high mechanical stability and reliable protection for installed components. The depth-adjustable mounting plate and integrated mounting planes enable flexible and space-saving installation. The removable rear panel and roof facilitate maintenance and component replacement. The conductive connection between the rear panel, roof, base plates, and frame ensures automatic equipotential bonding according to DIN 62 208 and is prepared for earthing strap attachment. The enclosure’s load capacity is up to 15,000 N, enabling high load-bearing capacity for heavier components. The surface is powder-coated, ensuring high corrosion resistance and long service life. The colour RAL 7035 is a standard grey tone commonly used in industrial environments.
The enclosure system is designed for use in bayed configurations, making it ideal for integration into larger enclosure installations. The integrated mounting planes and mounting grid simplify installation and maintenance. The use of sheet steel and specific construction ensure high stability and durability. The protection rating IP 55 and mechanical strength IK10 make the enclosure system a robust solution for demanding industrial applications.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 1.200 mm |
| Height | 2.000 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 477.39 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
