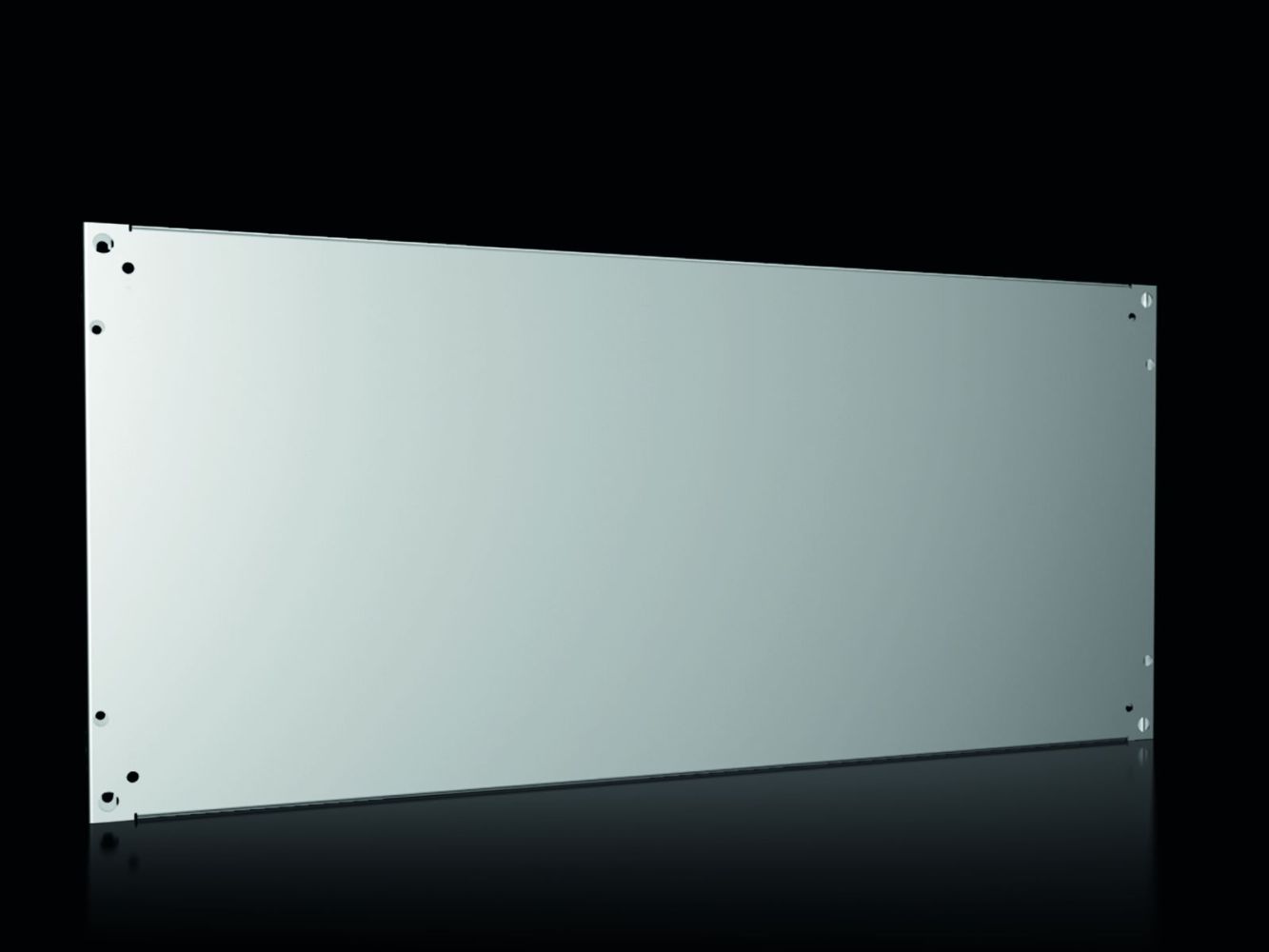

Rittal 8617640 VX partial mounting plate, W x H: 1100x500 mm

Your rating:
Average rating
product review for Rittal 8617640 VX partial mounting plate, W x H: 1100x500 mm
( 4.3 / 5 ) 30 ratings
Rittal 8617640
This image may differ from the desired article.
Rittal 8617640Rittal 8617640
-10% 81,77 EUR 91,22 EUR
( 97,31 EUR incl. VAT )
≈ £68.44  |  ≈ $89.87
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617640 VX partial mounting plate, W x H: 1100x500 mm
Datasheet:file_download Download
Lieske Part No.:1440926
Mfg Part No: 8617640
UPC/EAN: 4028177919495
Weight:13.18 kg
Type:VX 8617.640

Product information for Rittal 8617640:

The Rittal VX 8617.640 is a partial mounting plate made of sheet steel with a thickness of 2.5 mm, used as a mounting surface inside an enclosure. It is designed to accommodate additional components and enables flexible arrangement within the housing. The dimensions are 1,100 mm in width and 500 mm in depth, making it suitable for enclosures with a width of 600 mm or 1,200 mm and a depth of 600 mm. The surface is zinc-coated, providing a corrosion-resistant and durable coating.

Applications
The partial mounting plate is intended for use in enclosures of types VX, VX SE, and PC. It can be installed either vertically as a standing mounting surface or horizontally as a flat base. This allows for application-specific arrangement of modules, controls, or other electrical components within the cabinet. The flexible installation solution supports modularity in enclosure design.

Functions and Equipment in Detail
The plate is secured directly to the enclosure profile. In pre-assembled configurations, it can be mounted at any desired mounting level within the cabinet using system chassis. For multi-level arrangements, where multiple partial mounting plates are mounted in sequence, a swivelling version with hinge mounting is available. This allows quick access to rear levels without complete disassembly. The delivery includes fastening material required for installation.

Technology Explained Simply
The use of sheet steel with a thickness of 2.5 mm ensures sufficient mechanical stability to safely support even heavier modules. The zinc-coated surface protects the material from corrosion, especially in environments with high humidity or aggressive atmospheres. The dimensions of 1,100 mm width and 500 mm depth match the standard dimensions of the mentioned enclosure types, ensuring universal usability. The swivelling mounting option is particularly useful in complex control systems where maintenance work is frequently required.

Compatibility and Accessories
The partial mounting plate is compatible with enclosure types VX, VX SE, and PC. For installation in VX SE, PC, and IW, the use of an adapter rail VX is required. This rail enables correct fastening and positioning of the plate within the respective housing. Combining it with system chassis expands mounting options and supports modular constructions.

Mounting and Installation
Mounting is done by direct fastening to the enclosure profile. In pre-assembled configurations, the plate is attached at any desired mounting level within the cabinet using system chassis. The swivelling version requires a special hinge mounting, enabling quick access to rear levels.

Advantages in Operation
The flexible mounting design enables optimal space utilisation within the enclosure. The swivelling version reduces maintenance time, as components behind the plate are accessible without complete disassembly. The zinc-coated surface ensures a long service life, even in demanding environments. Compatibility with various enclosure types increases versatility and reduces the need for special adaptations.

General
MaterialSheet steel, 2.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsInstallation can be either vertical as upright mounting surface or horizontal as flat floor; mounting is directly to cabinet profile; with pre-assembled construction, mounting is via system chassis at any mounting level within the cabinet; with multi-level installation of partial mounting plates in sequence, these can be hinged for quick access to rear levels
NoteFor installation in VX SE, PC, IW, the VX adapter rail is required
Width1.100 mm
Depth500 mm
Suitable for housing typeVX, VX SE, PC
Suitable forhousing type: VX, VX SE, PC, width: = 600 mm, = 1,200 mm, depth: = 600 mm
PCF/VE (Cradle-to-Gate)50.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8617640, EAN: 4028177919495

Questions & answers

What is the delivery time of Rittal 8617640 VX partial mounting plate, W x H: 1100x500 mm?

The article Rittal 8617640 VX partial mounting plate, W x H: 1100x500 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617640 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617640 VX partial mounting plate, W x H: 1100x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617640 VX partial mounting plate, W x H: 1100x500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
