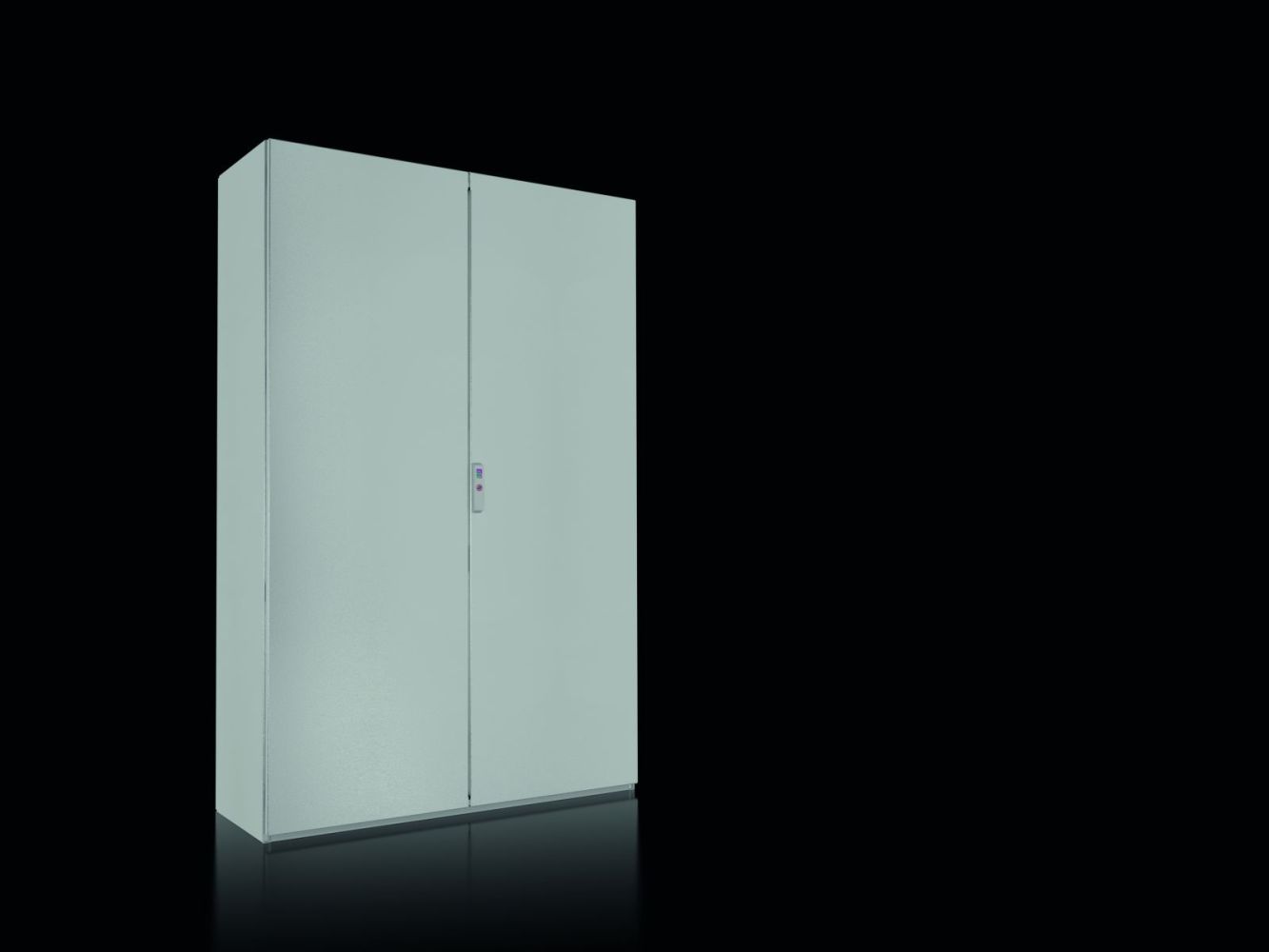

Rittal 5841600 VX SE system single enclosure, 1200x1800x400 mm, steel,
|
840,54 EUR |
|
|
( 1.000,24 EUR incl. VAT ) ≈ £703.53 | ≈ $923.75 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910636 |
| Mfg Part No: | 5841600 |
| UPC/EAN: | 4028177959132 |
| Weight: | 173.4 kg |
| Type: | SE 5841600 |
Product information for Rittal 5841600:
Applications
This enclosure is suitable for use in industrial environments where high mechanical stability and protection against dust, splashing water, and mechanical impacts are required. It is particularly suitable for installations in the manufacturing industry, energy supply, or machine building, where a robust, maintenance-friendly, and modular enclosure solution is needed. System compatibility with VX25 accessories enables flexible expansion and adaptation to specific requirements.
Functions and Equipment in Detail
The enclosure is made of steel sheet with a wall thickness of 1.5 mm for the enclosure, rear panel, and base sheets, and 2.0 mm for the doors. The mounting plate is made of 3.0 mm steel sheet. The surface of the enclosure, door, and rear panel parts is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035. The mounting plate and base sheets are galvanized. The base sheets are divided into three parts, removable, and replaceable. The rear panel is screwed and fitted with a foamed seal. The mounting plate is C-bent on the sides and depth-adjustable in 25 mm increments via integrated plastic glides and mounting rails. The mounting plate features an integrated mounting grid to simplify component positioning.
Technology Explained Simply
The protection rating IP 55 according to EN 60 529 protects the enclosure against dust and splashing water from any direction, making it suitable for indoor and outdoor use. The protection ratings NEMA 3R and NEMA 12, as well as the type rating according to UL 50E (Type 1, 2, 3, 3R, 12), confirm suitability for industrial environments with increased requirements for mechanical strength and protection against environmental influences. The IK code IK10 guarantees high protection against mechanical impacts, such as shocks or vibrations. The surface treatment with nanoceramic, electrophoretic dip priming, and textured powder coating ensures corrosion protection and resistance to mineral oils, lubricants, machining emulsions, and solvents.
Compatibility and Accessories
The enclosure is system-compatible with accessories from the VX25 system. Suitable accessories include, among others, system chassis, levelling feet, lock inserts, mounting brackets, C-profile rails, comfort handles, support rollers, transport eyes, door latches, and half cylinders. These components allow individual adaptation to specific mounting and operational requirements.
Mounting and Installation
Mounting is done via the integrated mounting plate, which is depth-adjustable in 25 mm increments. The base sheets are removable and replaceable, enabling flexible adaptation to different floor conditions. The doors are extendable tool-free to 180°, and the hinges are reversible. The rear panel is removable, facilitating access to internal components. Mounting is performed via the designated mounting levels and the integrated perforation in the DIN grid.
Advantages in Operation
The enclosure offers high mechanical stability and a high degree of protection against environmental influences. The modular design and system compatibility enable flexible expansion and adaptation. The depth-adjustable mounting plate and removable base sheets simplify installation and maintenance. The automatic equipotential bonding ensures a safe electrical connection between individual components and the enclosure body. The surface treatment ensures high resistance to corrosion and chemical influences. The protection rating IP 55 and IK10 rating make the enclosure suitable for use in demanding industrial environments. The integrated mounting plate and two mounting levels enable space-saving system expansion and reduce installation time.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 1.200 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 469.89 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5841600 VX SE system single enclosure, 1200x1800x400 mm, steel, ?
The article Rittal 5841600 VX SE system single enclosure, 1200x1800x400 mm, steel, is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5841600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5841600 VX SE system single enclosure, 1200x1800x400 mm, steel, always at the best possible price. We can give you a discount of 2% on Rittal 5841600 VX SE system single enclosure, 1200x1800x400 mm, steel, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
