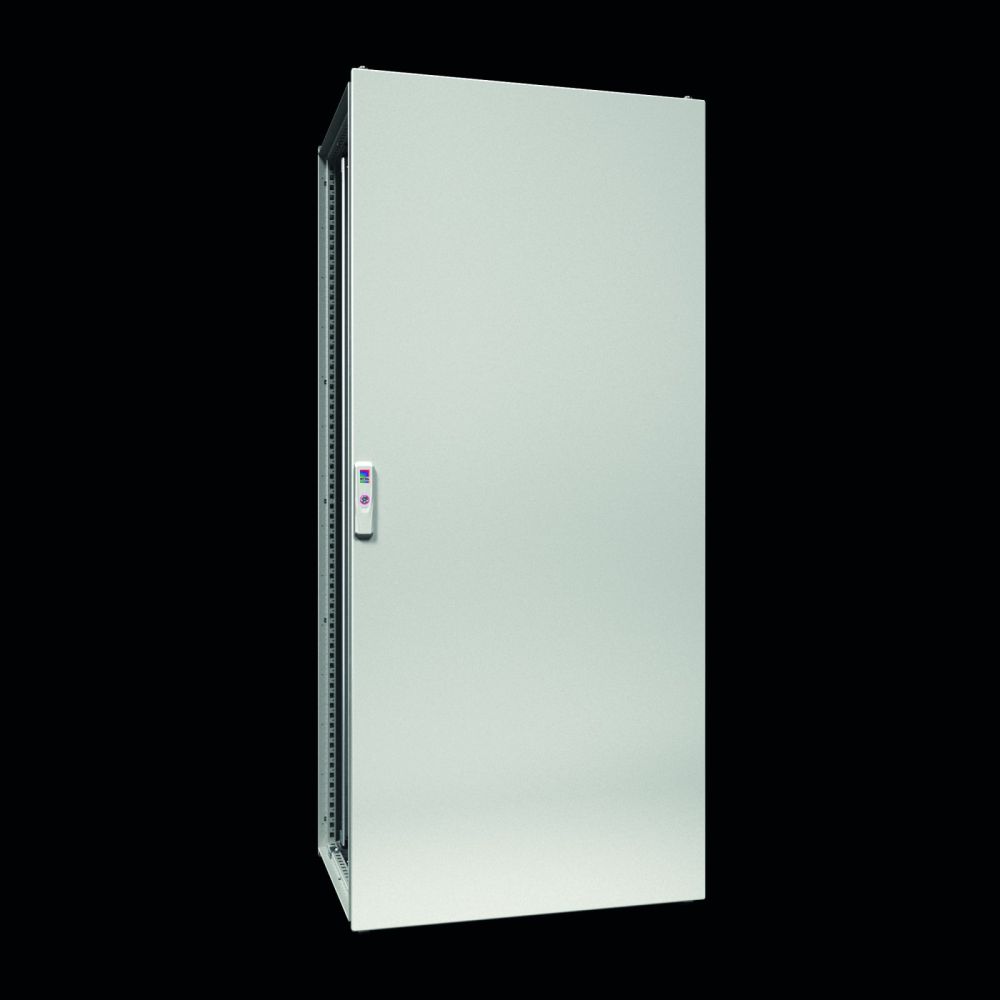

Rittal 8206000 VX25 base enclosure W x H x D 1200x2000x600 mm RAL 7035 (freight shipping)
|
939,07 EUR 942,25 EUR |
|
|
( 1.117,49 EUR incl. VAT ) ≈ £786.00 | ≈ $1,032.04 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440698 |
| Mfg Part No: | 8206000 |
| UPC/EAN: | 4028177813601 |
| Weight: | 191 kg |
| Type: | VX 8206.000 |
Product information for Rittal 8206000:
Applications
This enclosure system is designed for use in industrial environments where high mechanical load capacity and protection against dust and splashing water are required. It is suitable for use in factories, plant engineering, energy supply, and other areas where electrical or electronic components must be housed in a protected enclosure. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, making it suitable for outdoor use as long as there is no direct rainfall exposure. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), correspond to international standards for use in dry and damp indoor environments as well as in environments with a slight risk of contamination.
Functions and Equipment in Detail
The enclosure system consists of a frame made of sheet steel with a wall thickness of 1.5 mm, which is dip-primed. The doors are made of 2.0 mm thick sheet steel and are externally powder-coated with a textured lacquer in RAL 7035. The door hinges are standardly arranged on the right side but can be toollessly repositioned to the left. The doors are fitted with a PU foam seal to ensure a tight seal. The locking mechanism uses a 3 mm double bar according to DIN 43668, which is fourfold locked. The secondary door is additionally secured with a swing lever, providing double locking. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm.
Technology Explained Simply
The mounting plate, made of 3.0 mm thick sheet steel, is C-bent on the sides and is depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. This allows for flexible adaptation to different components. The base plates are divided into three parts, removable, and replaceable, enabling easy maintenance and cleaning. The rear panel and roof plate are also made of sheet steel (1.5 mm), dip-primed, and externally powder-coated. Both are fitted with PU foam seals and are screwed in place, making them removable. The rear panel features a positioning aid, and the roof is fitted with M12 mounting screws. The entire construction is electrically conductive and connected to the frame, enabling automatic equipotential bonding according to DIN 62 208 and simplifying the earthing of components.
Compatibility and Accessories
Included accessories comprise levelling feet M12 with an adjustment height of 18–43 mm, C-profile rails 30/15 according to EN 60715, transport eyes for VX systems, cable routing spaces, mounting plate spacers, additional base plates, comfort handles for half cylinders or lock inserts, dust protection strips, mounting brackets, cable entry ferrules in various diameters (e.g. 13 mm, 21 mm), multi-locking mechanisms, circuit diagram pockets in various depths (D600 mm, D90 mm), an AS Multitool AX/VX, system chassis in various dimensions (e.g. 23 x 64 mm, 18 x 64 mm), as well as other mounting and fastening elements. These accessories allow for individual adaptation of the enclosure to specific requirements.
Mounting and Installation
Mounting is carried out using the integrated mounting grid and reusable mounting rails. The mounting plate is depth-adjustable, enabling flexible positioning of components. The entire construction is designed for anchoring to the floor, with the base frame featuring an integrated floor reinforcement that allows a load capacity of up to 15,000 N.
Operational Advantages
The enclosure system offers high mechanical stability and reliable protection for installed components. The IP 55 protection rating and IK10 rating (impact resistance) ensure high robustness. The integrated mounting plate and depth-adjustable mounting rails simplify installation and maintenance. The removable doors, rear panel, and roof plate allow easy access to the internal equipment. The conductive connection of all surfaces to the frame ensures safe equipotential bonding and simplifies earthing. The toolless repositioning of door hinges and the extension of the door opening to 180° increase flexibility during installation and maintenance. The use of sheet steel with varying wall thicknesses (1.5 mm to 3.0 mm) provides a balanced combination of strength and weight. The surface treatment with dip priming and powder coating offers high corrosion resistance.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 1.200 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 495.04 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8206000 VX25 base enclosure W x H x D 1200x2000x600 mm RAL 7035 (freight shipping) ?
The article Rittal 8206000 VX25 base enclosure W x H x D 1200x2000x600 mm RAL 7035 (freight shipping) is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8206000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8206000 VX25 base enclosure W x H x D 1200x2000x600 mm RAL 7035 (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 8206000 VX25 base enclosure W x H x D 1200x2000x600 mm RAL 7035 (freight shipping) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
