Rittal 8617830 VX support rail 48 x 26 mm, W: 1200 mm

Your rating:
Average rating
product review for Rittal 8617830 VX support rail 48 x 26 mm, W: 1200 mm
( 4.6 / 5 ) 17 ratings
Rittal 8617830
This image may differ from the desired article.
Rittal 8617830Rittal 8617830Rittal 8617830Rittal 8617830Rittal 8617830Rittal 8617830
93,61 EUR
( 111,40 EUR incl. VAT )
≈ £78.35  |  ≈ $102.88
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617830 VX support rail 48 x 26 mm, W: 1200 mm
Datasheet:file_download Download
Lieske Part No.:1440917
Mfg Part No: 8617830
UPC/EAN: 4028177919549
Weight:5.95 kg
Type:VX 8617.830

Product information for Rittal 8617830:

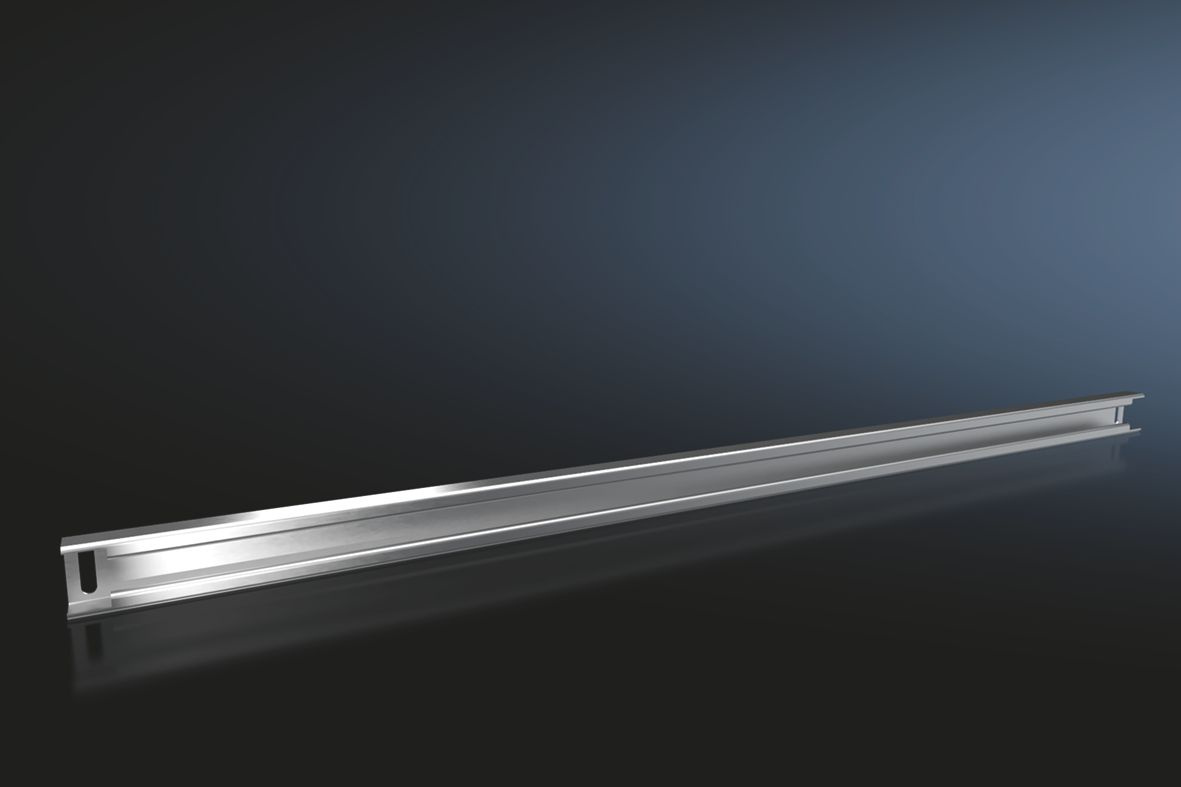

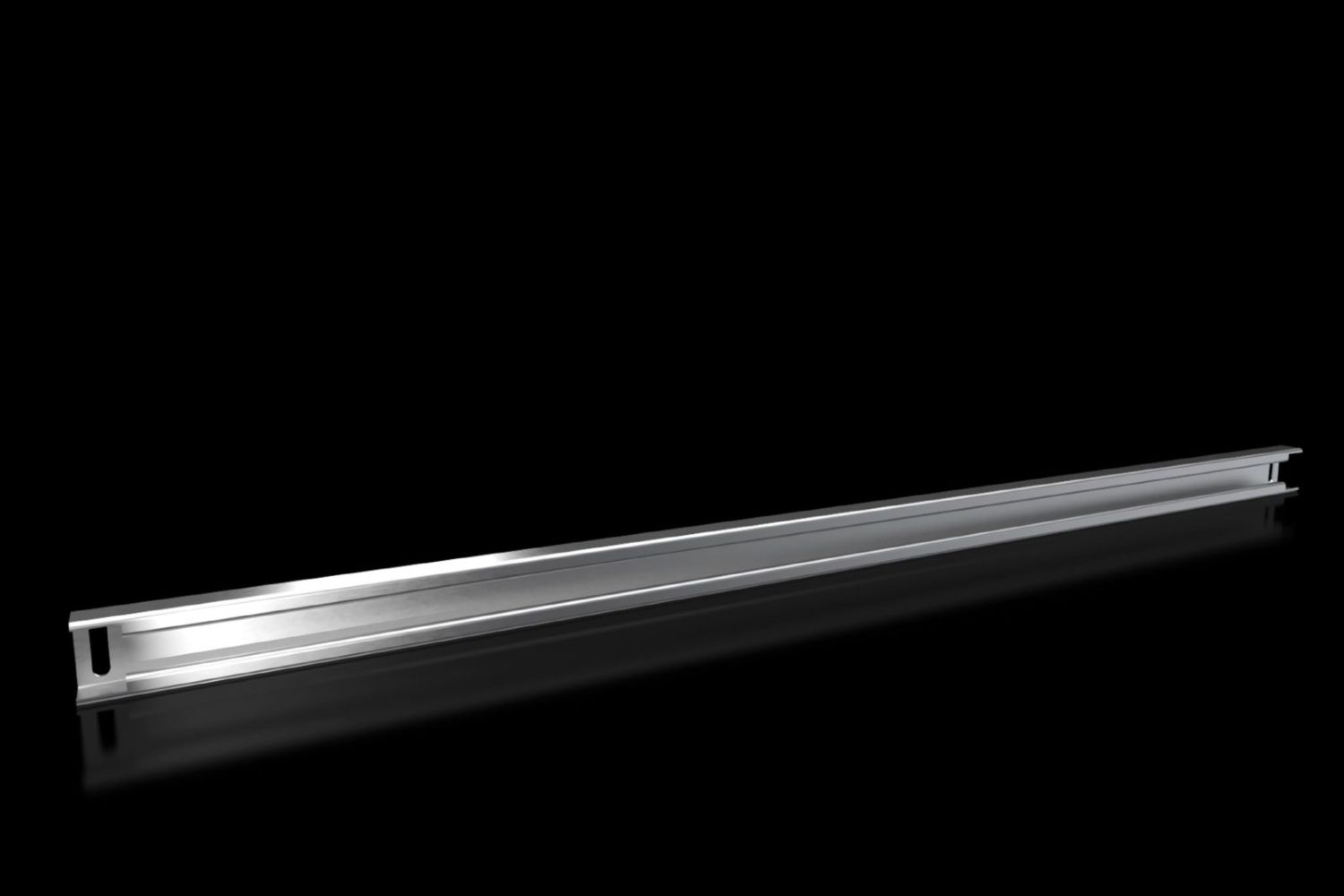

The Rittal VX support rail 8617.830 is a robust mounting rail made of sheet steel with a galvanised surface, specifically designed for use in enclosures and housings with a width of 1200 mm. It serves as a load-bearing mounting structure for heavy components such as transformers and other compact assemblies that require stable and secure installation. The rail has dimensions of 48 x 26 mm and is supplied in a packaging unit containing two pieces. Mounting is achieved using hook-head screws, which, together with the elongated holes in the rail, allow for flexible adjustment to different mounting spacings.

Applications
The support rail is suitable for a variety of housing types, including VX, VX SE, PC, IW, AX, stand console CX, and console base CX, provided the housing width is 1200 mm. It can be installed either on the internal mounting plane or in the base area, with additional adapter or extension rails required for certain housing types such as VX SE, PC, IW, and AX to ensure compatibility. The rail is therefore universally applicable in industrial and technical installations where high load capacity and secure mounting of components are essential.

Functions and Equipment in Detail
The rail features a galvanised surface, providing high corrosion resistance and extending the product’s lifespan in industrial environments. The integrated elongated holes allow for flexible positioning of fastening elements, enabling the rail to be adapted to different mounting conditions.

Technology Explained Simply
The support rail is made of sheet steel protected against oxidation by galvanisation. The dimensions 48 x 26 mm correspond to a standard profile commonly used in industrial electrical engineering. The hook-head screws included in the delivery allow for secure and torque-resistant fastening of the rail to the mounting surface. The elongated holes in the rail permit variable positioning of the screws, enabling adaptation to different mounting points and components. The rail is designed for use in enclosures with an exact width of 1200 mm, with mounting possible either on the internal mounting plane or in the base area.

Compatibility and Accessories
The support rail is compatible with housing types VX, VX SE, PC, IW, AX, stand console CX, and console base CX, provided the housing width is 1200 mm. For housing types VX SE, PC, IW, and AX, the use of an adapter rail for VX compatibility is required to enable mounting. For AX housings, the internal extension rail for AX and the base extension rail for AX are additionally required. As suitable accessories, the VX system partition 600 mm is offered, which serves to divide the interior of the enclosure into individual sections and supports the structuring of the mounting area.

Mounting and Installation

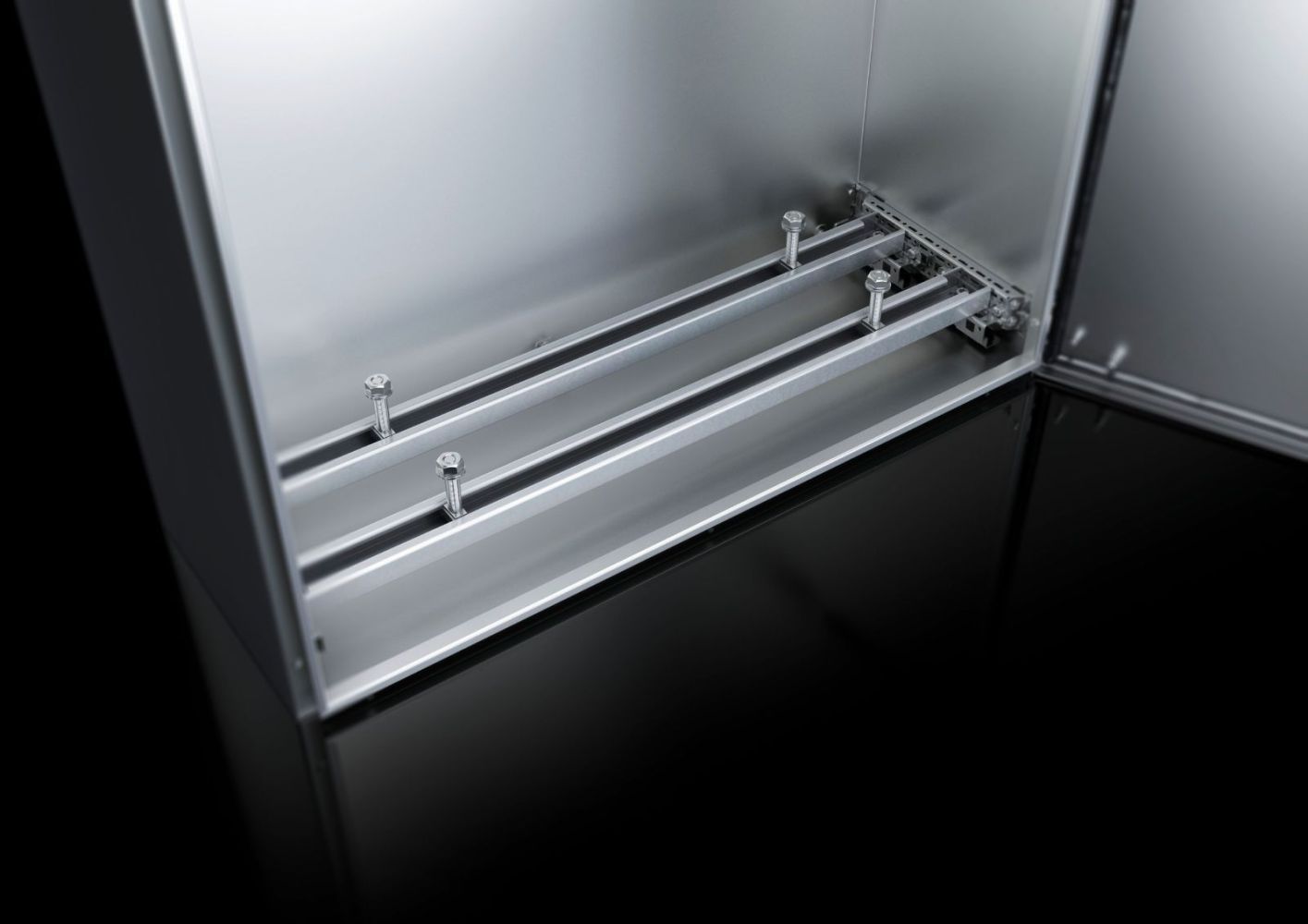

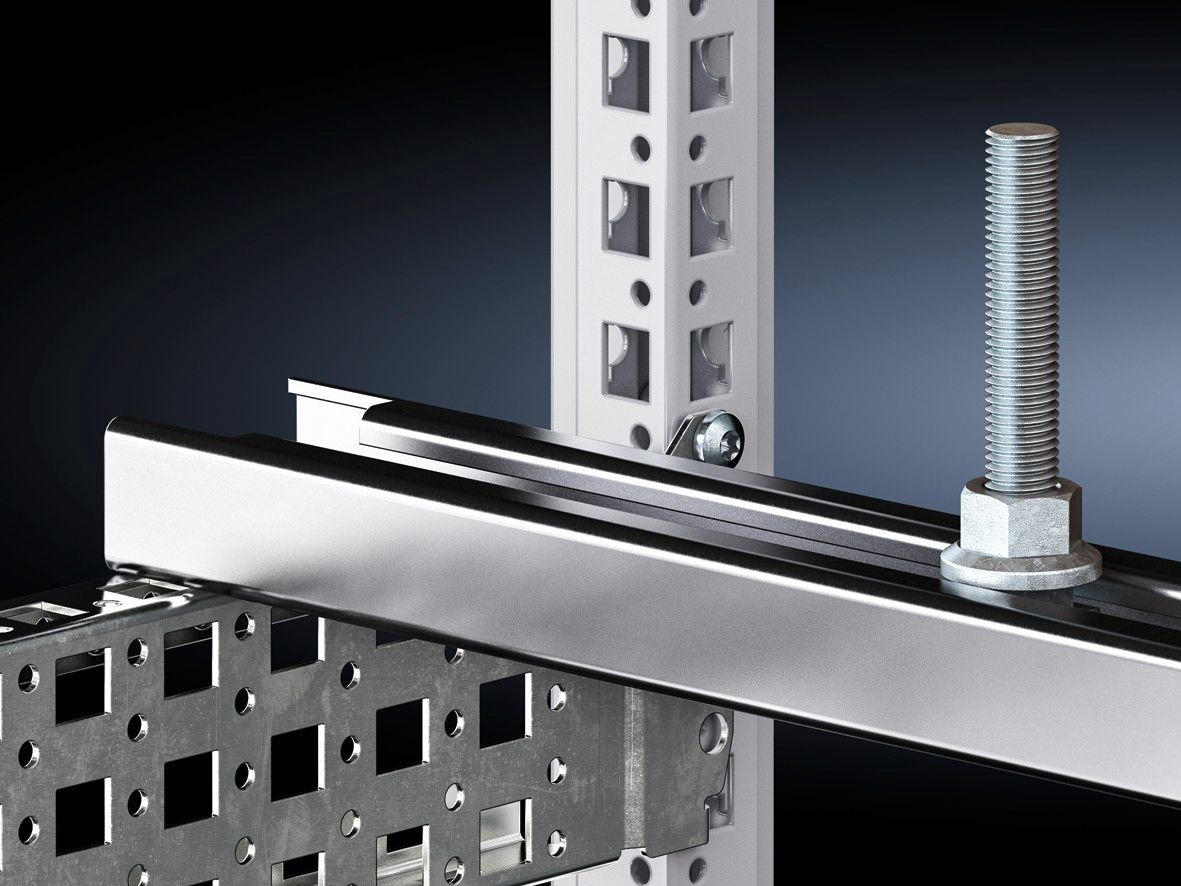

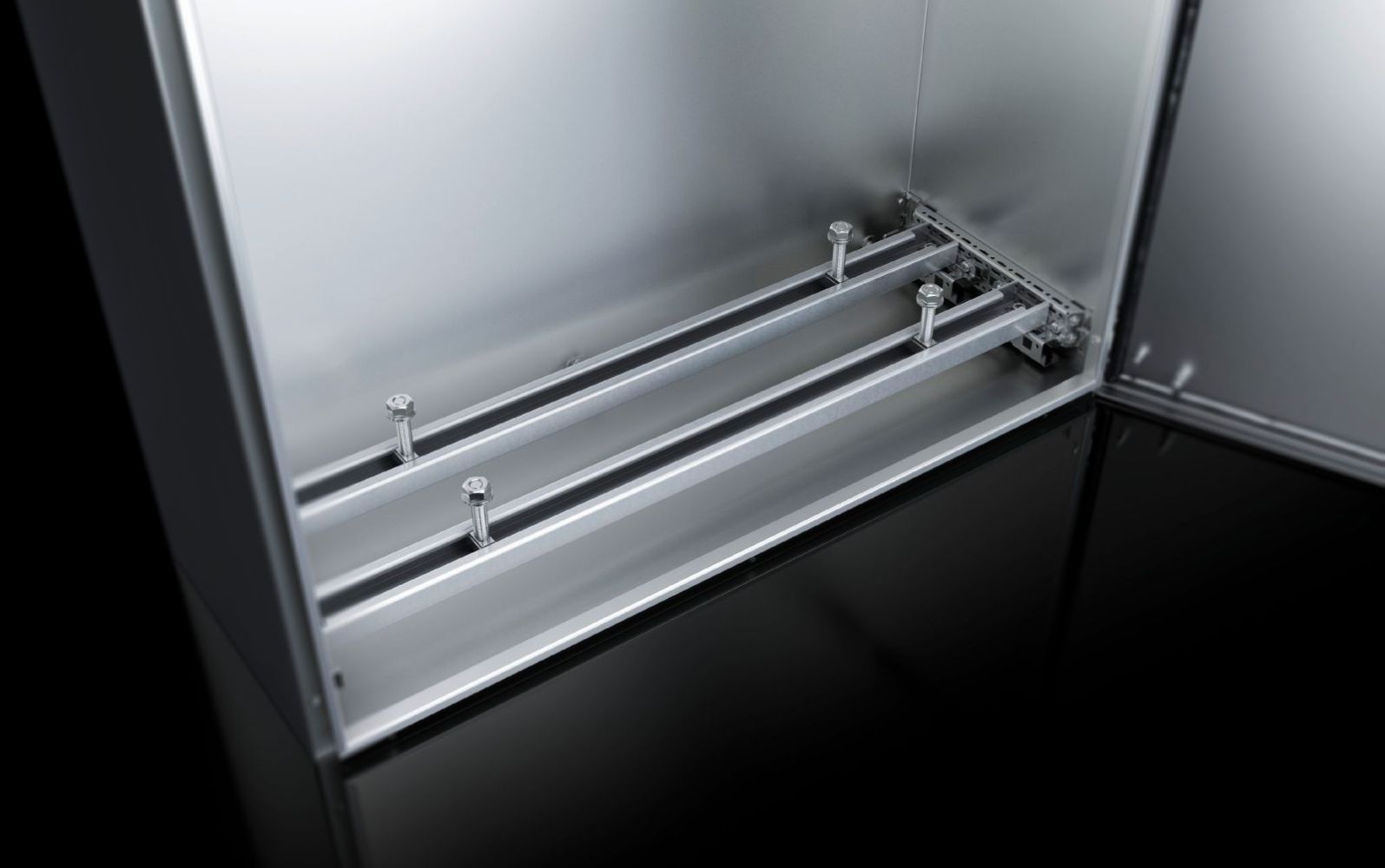

Mounting is performed on the internal mounting plane or in the base area of the enclosure. The rail is fastened using the hook-head screws included in the delivery, with the elongated holes enabling flexible adjustment to the respective mounting position.

Advantages in Operation
The support rail offers high mechanical stability and is designed for use in industrial environments. The galvanised surface ensures long service life and high corrosion resistance. The flexible mounting via elongated holes allows adaptation to different components and mounting conditions. The rail is universally applicable in various housing types, making it a valuable component for mounting heavy inserts in enclosures. The inclusion of fastening materials reduces installation effort and ensures quick and secure mounting.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting options VXIn cabinet width 1200 mm, on the inner mounting plane and in the floor
Mounting options VX SEIn cabinet width 1200 mm, on the inner mounting plane, in combination with adapter rail for VX compatibility and in floor
Mounting options AXIn housing width 1200 mm, in combination with the rail for indoor installation AX and floor installation rail for AX
PC mounting optionsIn cabinet width 1200 mm, on the inner mounting plane, in combination with adapter rail for VX compatibility and in floor
Installation options IWIn cabinet width 1200 mm, on the inner mounting plane, in combination with adapter rail for VX compatibility and in floor
Suitable forEnclosure type: VX, VX SE, PC, IW, AX, console CX, console bottom section CX, width: = 1,200 mm
PCF/VE (Cradle-to-Gate)25,12


Product data sheet
Datasheet for Rittal 8617830, EAN: 4028177919549

Questions & answers

What is the delivery time of Rittal 8617830 VX support rail 48 x 26 mm, W: 1200 mm?

The article Rittal 8617830 VX support rail 48 x 26 mm, W: 1200 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617830 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617830 VX support rail 48 x 26 mm, W: 1200 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617830 VX support rail 48 x 26 mm, W: 1200 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
