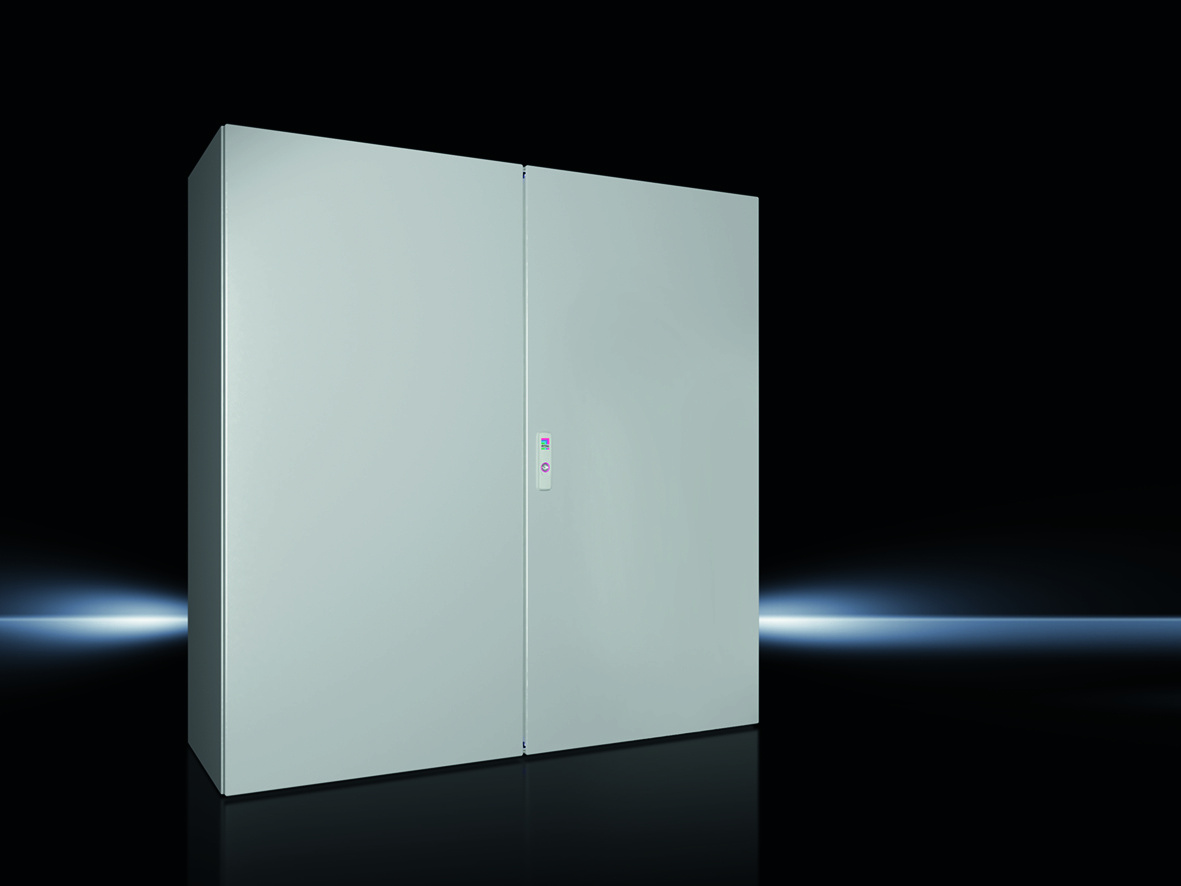

Rittal 1116000 AX compact enclosure 1200x1200x400 mm
|
504,85 EUR 506,40 EUR |
|
|
( 600,77 EUR incl. VAT ) ≈ £422.56 | ≈ $554.83 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598144 |
| Mfg Part No: | 1116000 |
| UPC/EAN: | 4028177813076 |
| Weight: | 96 kg |
| Type: | AX 1116000 |
Product information for Rittal 1116000:
Applications
The enclosure is suitable for use in industrial plants, machine building and automation technology. It provides sufficient space for electrical components, controls, switching devices and other components. The protection rating IP 55 according to EN 60 529 as well as the NEMA classification NEMA 1 and NEMA 12 make it suitable for environments with dust, splashing water and light contamination. The IK10 rating protects against mechanical impacts such as shocks and vibrations.
Functions and equipment in detail
The enclosure is made of sheet steel with a material thickness of 1.5 mm, the doors are made of 2 mm thick sheet steel. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035. The doors are fitted with a continuous foamed PU seal, ensuring a tight seal. The mounting plate made of galvanised sheet steel (2.5 mm thick) is equipped with grounding keyhole slots and dimension markings and is fastened with ring weld nuts. The door hinges are reversible, allowing for flexible mounting.
Technology explained simply
The 3-point locking system with a 3 mm double-barrel lock insert ensures secure and stable door locking. The locking mechanism is designed for a 130° opening, with an option to retrofit to 180°. The integrated enclosure lugs allow mounting of internal mounting rails without drilling, reducing installation time and maintaining the protection rating. The base mounting rail provides an additional mounting level and increases load capacity. The gland plates in the enclosure base (size 7, quantity 2) are used for secure fixation of cable entry plates.
Compatibility and accessories
The enclosure is compatible with the Rittal configurator RiPanel, enabling easy planning and configuration. Suitable accessories include lock inserts made of zinc die-cast, wall mounting brackets, dust protection strips, baying sets for AX, KX, AE, KL, mounting brackets for internal mounting level, VX system chassis, plinth trim panels and elements, as well as the AS Multitool AX/VX. These components extend the functionality and customisation options of the enclosure.
Mounting and installation
Mounting is carried out via the integrated enclosure lugs and internal mounting rails, avoiding drilling in the enclosure. The mounting plate is included in the delivery scope and enables secure fastening of components. The gland plates in the enclosure base facilitate the installation of cable entry plates. The doors can be used with the door hole strips mounted on both sides for additional mounting elements.
Advantages in operation
The enclosure offers high mechanical stability and protection rating, suitable for use in demanding industrial environments. The drill-free mounting of internal mounting rails and accessories reduces installation time and increases reliability. The integrated enclosure lugs and mounting plate enable flexible and secure fastening of components. The surface coating provides corrosion protection and resistance to mineral oils and lubricants. QR codes on the enclosure body, door and type plate enable unique identification and easy access to product information and documentation.
Delivery scope
The enclosure is delivered with enclosure and doors, gland plates in the enclosure base, mounting plate, door hole strip and a 3-point locking system with 3 mm double-barrel lock insert. The doors are designed as double doors, with reversible hinges. The mounting plate is galvanised and equipped with grounding keyhole slots and dimension markings. The gland plates have size 7 and are integrated in the enclosure base in quantity 2.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 55 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Width | 1.200 mm |
| Height | 1.200 mm |
| Depth | 400 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 1.145 mm x 1.175 mm |
| Number of doors | 2 |
| Lock | Closure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb |
| Flange plate | Size: 7, quantity: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 304.99 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
Questions & answers
What is the delivery time of Rittal 1116000 AX compact enclosure 1200x1200x400 mm?
The article Rittal 1116000 AX compact enclosure 1200x1200x400 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1116000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1116000 AX compact enclosure 1200x1200x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 1116000 AX compact enclosure 1200x1200x400 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
