Rittal 2830121 AX AX plinth trim panel 1=2 front/rear H:100 mm for W:1200 mm

Your rating:
Average rating
product review for Rittal 2830121 AX AX plinth trim panel 1=2 front/rear H:100 mm for W:1200 mm
( 4.7 / 5 ) 3 ratings
Rittal 2830121
This image may differ from the desired article.
Rittal 2830121Rittal 2830121Rittal 2830121Rittal 2830121
38,51 EUR 40,16 EUR
( 45,83 EUR incl. VAT )
≈ £32.23  |  ≈ $42.32
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 2830121 AX AX plinth trim panel 1=2 front/rear H:100 mm for W:1200 mm
Datasheet:file_download Download
Lieske Part No.:684164
Mfg Part No: 2830121
UPC/EAN: 4028177037427
Weight:3.278 kg
Type:AX 2830121

Product information for Rittal 2830121:

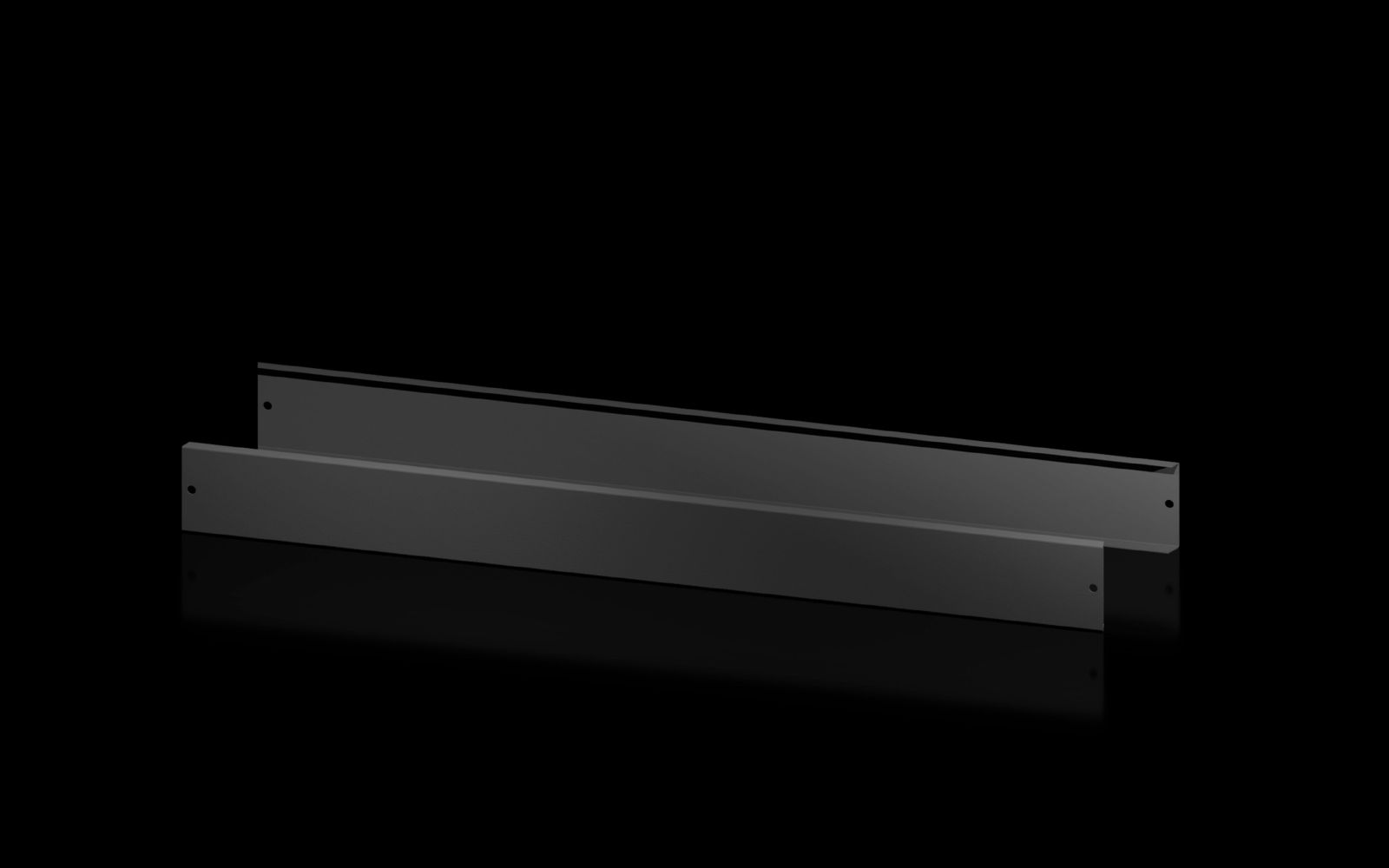

The Rittal AX 2830121 plinth trim panel is a system accessory for enclosures of type AX, specifically designed for enclosures with a width of 1,200 mm. The trim panel is mounted at the front and rear of the plinth area and serves for optical and functional finishing. It is made of sheet steel and is finished in RAL 9005, enabling a uniform visual design of the enclosure. The height of the trim panel is 100 mm, matching the standard plinth height of the AX series.

Applications

The plinth trim panel is used in industrial environments where enclosures are equipped with a plinth system. It serves not only for aesthetic finishing but also enables optimal access to the screw connection points at the plinth. The large opening in the trim panel facilitates installation and maintenance, particularly for cable entry into the lower section of the enclosure. The trim panel is part of a modular system that allows flexible adaptation to different enclosure configurations.

Functions and Equipment in Detail

The trim panel features a large opening that facilitates access to the screw connection points at the plinth area. This is particularly important during installation and maintenance, as it simplifies handling of cables and connections. The trim panel is made of sheet steel, ensuring high mechanical stability and durability. The RAL 9005 finish ensures a uniform visual appearance that harmonizes with other components of the AX system. The product is supplied in a pack of two trim panels, one for the front and one for the rear side of the plinth.

Technology Explained Simply

The plinth trim panel is a passive component that does not perform any electrical or mechanical function, but provides purely aesthetic and functional support. The use of sheet steel ensures sufficient strength to withstand mechanical loads during operation. The RAL 9005 color finish is standard in industrial electrotechnics and ensures good visibility and visual uniformity. The height of 100 mm is matched to the standard plinth height of the AX series to ensure a clean fit.

Compatibility and Accessories

The trim panel is specifically designed for enclosures of type AX with a width of 1,200 mm. It is part of a modular system that also includes other plinth elements. Additional plinth elements on the sides are required for complete finishing of a plinth unit, as indicated in the manufacturer’s note. Suitable accessories include levelling feet M12, C-profile rails, TH 35/15 support rails, and plinth adapters for double swivel castors and levelling feet. These components complement the plinth trim panel and enable flexible installation and adaptation to different operating conditions.

Installation and Mounting

The plinth trim panel is mounted on the front and rear sides of the plinth area of the enclosure. It is fastened at the designated mounting points, with the exact installation instructions corresponding to the specific enclosure model. The large opening facilitates cable entry and access to screw connection points. The trim panel is not self-supporting but complements existing plinth elements that ensure structural stability.

Operational Advantages

The plinth trim panel improves the maintainability of the enclosure by facilitating access to the screw connection points at the plinth area. The uniform color finish in RAL 9005 ensures a professional appearance that fits well in industrial environments. The use of sheet steel guarantees high mechanical strength, meeting the demands of industrial operation. The modular design allows flexible adaptation to different enclosure configurations, making the trim panel suitable for various application scenarios.

General
MaterialFront/rear socket bezel: steel sheet
ColourRAL 9005
Scope of delivery2 socket faceplates front/back, 100 mm

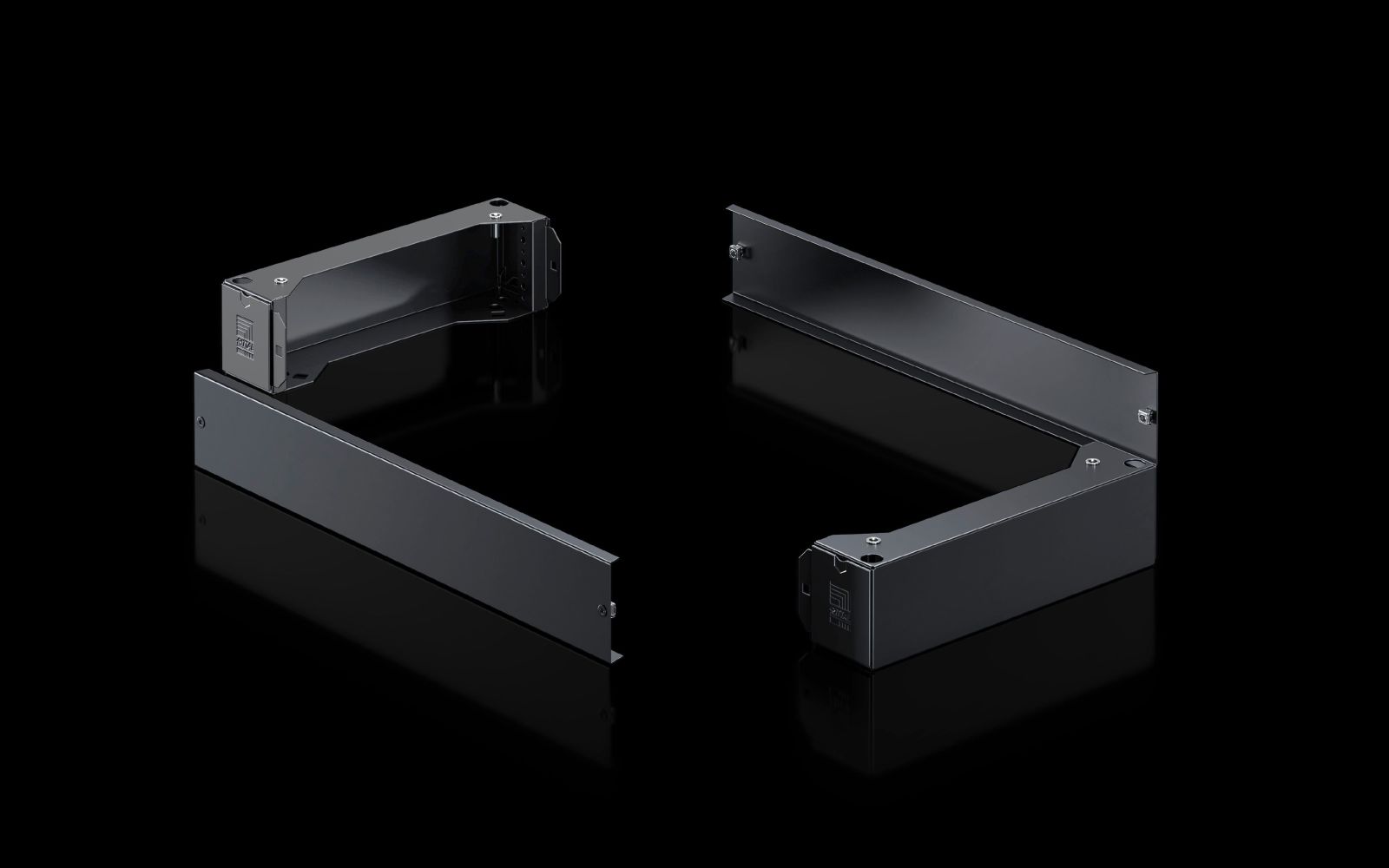

NoteTo complete a base unit, base elements are required on the sides
Height100 mm
Suitable forHousing type: AX, width: = 1,200 mm


Product data sheet
Datasheet for Rittal 2830121, EAN: 4028177037427
