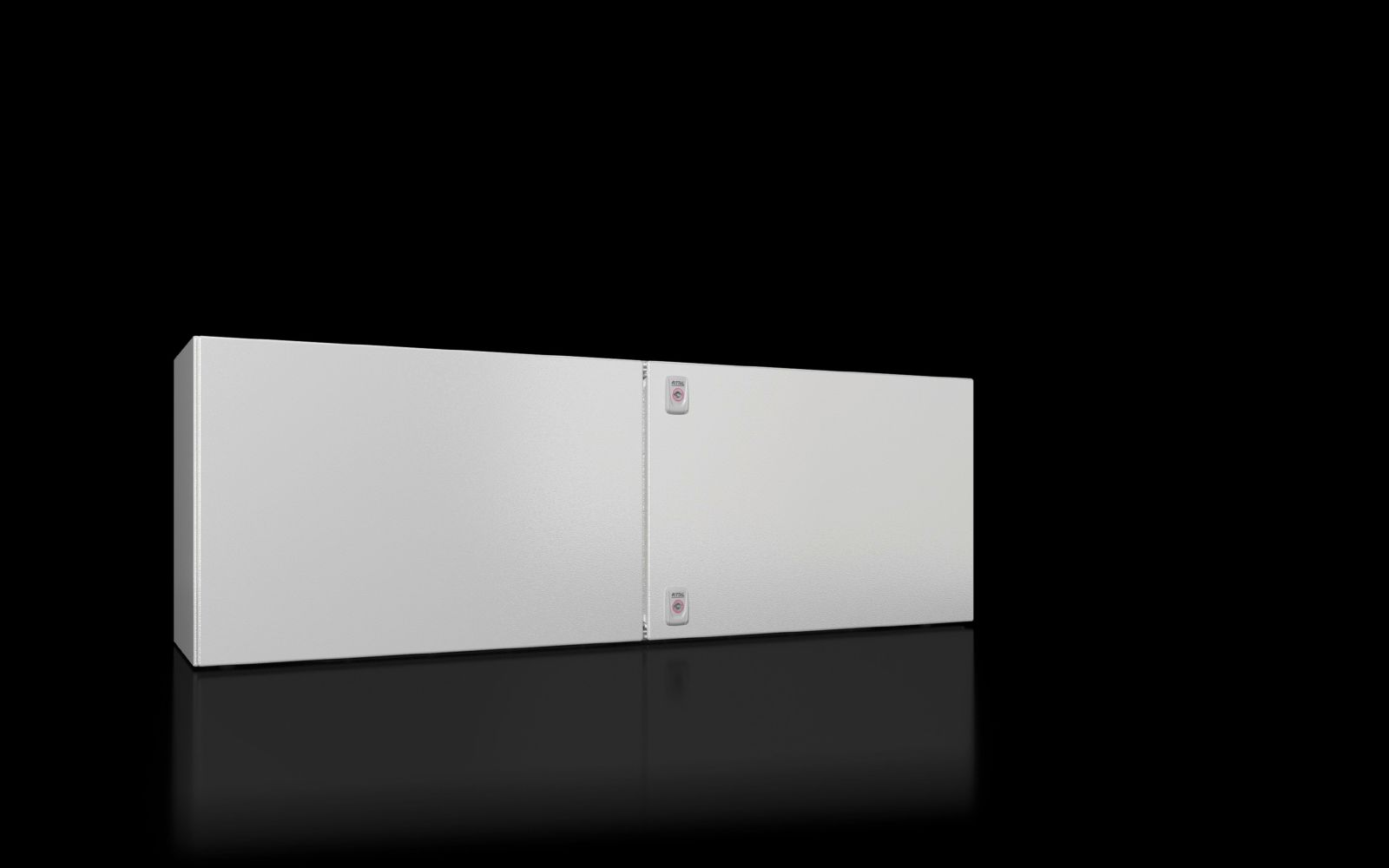

Rittal 1112000 AX compact enclosure 2-door W x H x D: 1200x400x300 mm
|
-6% 405,95 EUR 430,31 EUR |
|
|
( 483,08 EUR incl. VAT ) ≈ £339.78 | ≈ $446.14 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1571615 |
| Mfg Part No: | 1112000 |
| UPC/EAN: | 4028177995260 |
| Weight: | 35.333 kg |
| Type: | AX 1112000 |
Product information for Rittal 1112000:
Applications
This enclosure is designed for use in industrial environments where high mechanical strength and protection against environmental influences are required. It is suitable for mounting switching devices, controls, fuses, and other electrical components in production plants, machine building, power supply, and automation technology. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from all directions, making it suitable for outdoor use or damp indoor environments. UL approval as Type 1 and Type 12 enables use in installations that must comply with North American safety standards. The IK code IK10 indicates high mechanical strength against impact and shock, making the enclosure suitable for environments with mechanical stress.
Functions and Equipment in Detail
The enclosure features two doors, each equipped with a cam lock. The locks are fitted with a 3 mm double-barrel lock insert according to DIN 43668, ensuring secure and reliable locking. The doors open up to 130° according to VDI, with an option to retrofit to 180°. The internal mounting plate provides a stable mounting surface for electrical components. Two gland plates of size 7 are integrated into the enclosure base, enabling secure cable entry. The door hole strip on both sides of the doors facilitates the installation of accessories such as switches or indicators.
Technology Explained Simply
A key feature of the AX 1112000 is the integrated 25 mm system grid, realised through embossed enclosure lugs in the roof, base, and side panels. This patented system enables easy, drill-free mounting of internal mounting rails and other system accessories. The base mounting rail provides an additional mounting level and increases load capacity inside the enclosure. The protection rating IP 55 means the enclosure is dust-tight and protected against splashing water from all directions, making it suitable for use in damp or dusty environments. UL approval as Type 1 and Type 12 ensures compliance with North American safety standards for enclosures.
Compatibility and Accessories
The enclosure is compatible with the Rittal configurator RiPanel, enabling easy planning and configuration. Suitable accessories include lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, baying sets for AX, KX, AE, KL, knob handles, plastic handles, plinth trim panels and elements, and the AS Multitool AX/VX 4052000. These components extend the functionality and customisation options of the enclosure to meet specific requirements.
Mounting and Installation
Mounting is performed using the integrated gland plates in the enclosure base and the wall mounting brackets on the rear wall. The internal mounting plate allows secure fastening of electrical components. The internal mounting rail can be installed without drilling, speeding up installation and maintaining the protection rating. The doors are screwed to hinges, ensuring a stable and long-lasting connection.
Operational Advantages
The AX 1112000 offers high mechanical strength, reliable protection rating, and flexible internal mounting solutions. The integrated enclosure lugs and drill-free mounting of the internal mounting rail reduce installation time and increase flexibility for modifications or expansions. The surface coating ensures long service life and high resistance to aggressive environmental conditions. QR codes on the enclosure body, door, and nameplate enable unique identification and easy access to relevant product information and documentation.
Scope of Delivery
The product is delivered with the enclosure including two doors, two gland plates in the enclosure base, mounting plate, door hole strip, and two cam locks with 3 mm double-barrel lock insert. The mounting plate is zinc-plated and features grounding keyhole slots and dimension markings. The doors are fitted with a continuously foamed PU seal.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| Degree of protection IP according to EN 60 529 | IP 55 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Width | 1.200 mm |
| Height | 400 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 1.145 mm x 375 mm |
| Number of doors | 2 |
| Number of locks | 2 |
| Lock | Closure type: push-in, closure insert: 3 mm double barb |
| Flange plate | Size: 7, quantity: 2 |
| Base material | steel sheet |
