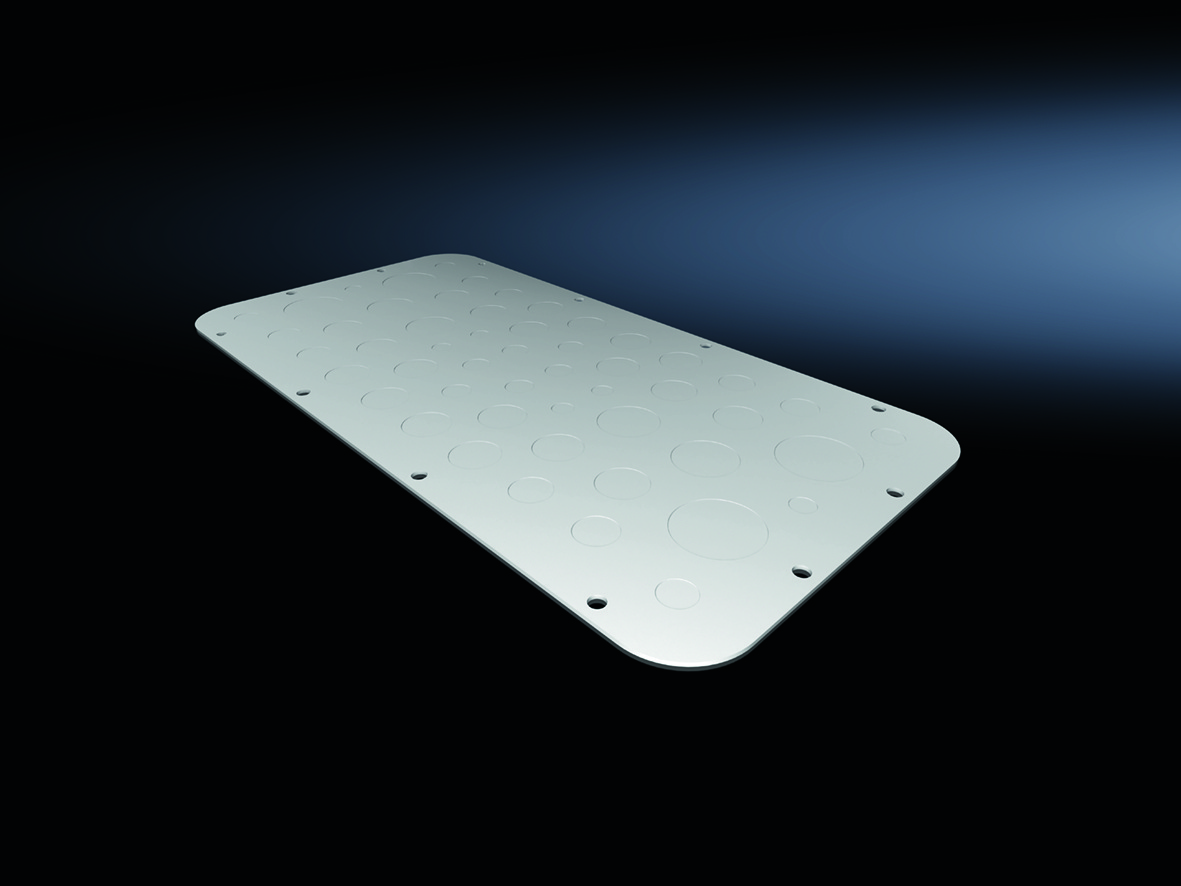

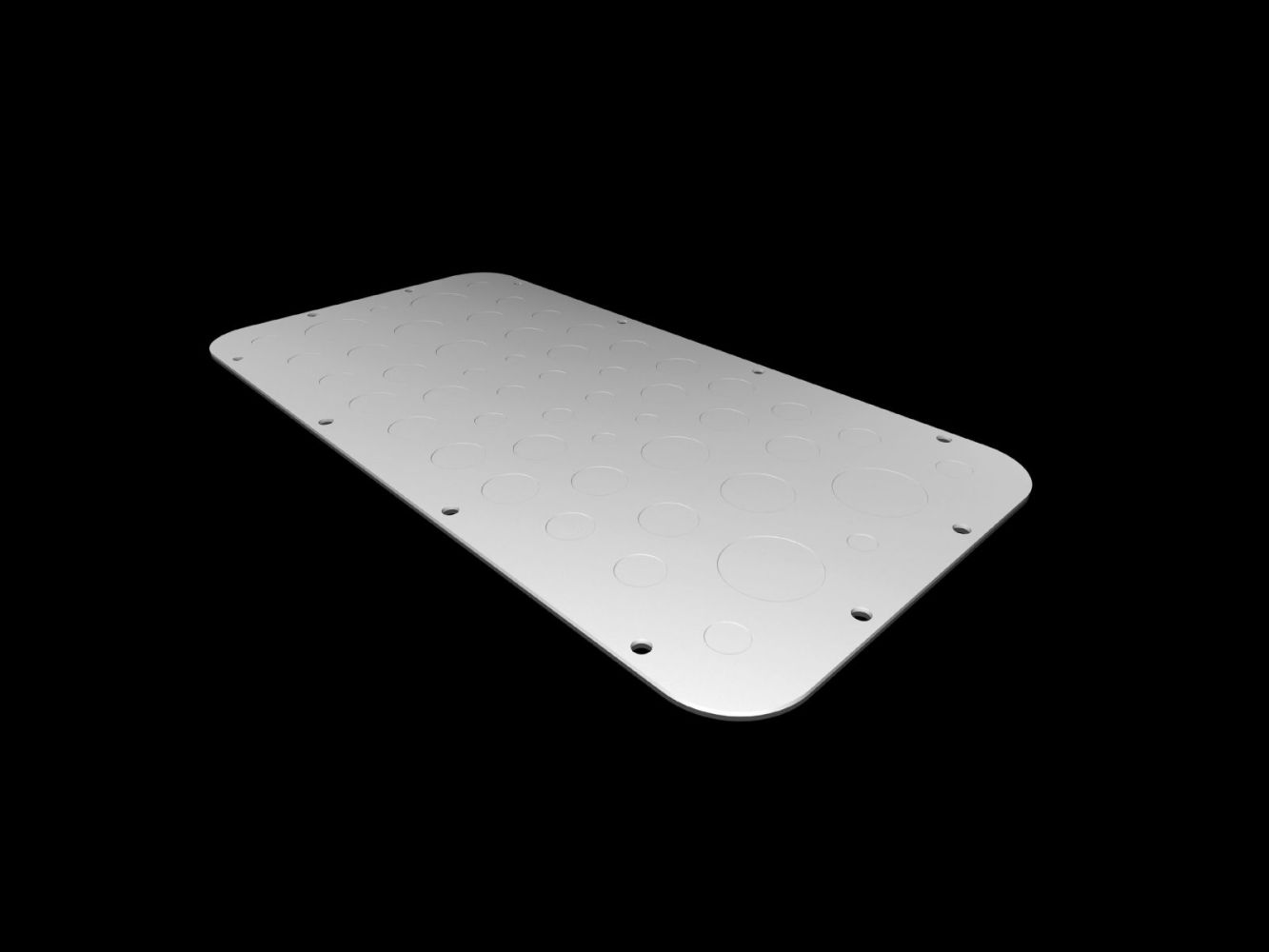

Rittal 2577100 Metal gland plate with metric pre-punching, for

Your rating:
Average rating
product review for Rittal 2577100 Metal gland plate with metric pre-punching, for
( 4.8 / 5 ) 6 ratings
Rittal 2577100
This image may differ from the desired article.
Rittal 2577100Rittal 2577100Rittal 2577100
-6% 17,60 EUR 18,65 EUR
( 20,94 EUR incl. VAT )
≈ £14.73  |  ≈ $19.34
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 2577100 Metal gland plate with metric pre-punching, for
Datasheet:file_download Download
Lieske Part No.:1598283
Mfg Part No: 2577100
UPC/EAN: 4028177925267
Weight:1.146 kg
Type:AX 2577100

Product information for Rittal 2577100:

The Rittal metal gland plate AX 2577100 is a system accessory for enclosures of type AX. It serves as a mounting and screwing surface on the front side of enclosures and enables the secure fastening of cable glands as well as cable passage. The gland plate is designed in size 7 and specifically fits the corresponding AX enclosures. Its material is sheet steel, painted in RAL 7035, providing a robust and uniform surface for industrial applications.

Applications
The gland plate is used in industrial environments where secure and durable cable gland mounting on the front side of enclosures is required. It is particularly suitable for installations operated in environments with increased contamination risk, humidity, or mechanical stress. The IP 66 protection rating, when mounted correctly, makes it suitable for outdoor use or in humid indoor areas, as it is dust-tight and protected against water jets from any direction. The UL listing as Type 1 and Type 12K confirms suitability for dry indoor environments as well as environments with light contamination.

Functions and Equipment in Detail
The gland plate features a variety of metric pre-punched holes intended for mounting cable glands. The number and sizes of the pre-punched holes include: 6 x M12, 10 x M16, 8 x M20, 20 x M25, 4 x M32, and 4 x M40. These allow for flexible and quick installation of various cable entries. The holes can be easily punched out with a screwdriver, speeding up installation and eliminating the need for additional tools. The dimensions of the plate are 436 mm in width and 221 mm in depth, ensuring precise fit for the designated enclosures.

Technology Explained Simply
The IP 66 protection rating means the gland plate is dust-tight and protected against water jets from any direction, provided it is correctly mounted. This is particularly important in environments where moisture or splashing water may occur. The UL listing Type 1 and Type 12K refers to the protection class for electrical enclosures indoors, with Type 12K meeting additional requirements for protection against splashing water and light contamination. The use of sheet steel ensures high mechanical stability and durability.

Compatibility and Accessories
The gland plate is specifically designed for enclosures of type AX and fits the corresponding enclosure models. The assignment of gland plate size depends on the respective enclosure type, with size 7 specified here. The combination with cable glands of the mentioned metric sizes enables versatile applications. The gland plate is supplied as a single unit and is ready for direct mounting.

Mounting and Installation
Mounting is performed on the front side of the enclosure, where the gland plate is inserted into the designated mounting points and screwed in place. The pre-punched holes are punched out as needed using a screwdriver to install the cable glands. Proper mounting is essential to achieve the specified IP 66 protection rating.

Operational Advantages
The gland plate offers quick and flexible mounting of cable glands, making installation and maintenance of enclosures more efficient. The robust sheet steel construction ensures long service life and high mechanical strength. The IP 66 protection rating guarantees reliable operation in demanding environments, enhancing operational safety. The clear assignment to AX enclosures and standardized pre-punched holes simplify planning and replacement in industrial operations.

General
Materialsteel sheet
ColourRAL 7035
NoteThe assignment of flange plate size can be found with the respective enclosures
Number of metric pre-forms6 x M12, 10 x M16, 8 x M20, 20 x M25, 4 x M32, 4 x M40
Width436 mm
Depth221 mm
Suitable forHousing type: AX
Flange plateSize: 7
Degree of protection IP according to EN 60 529IP 66 when installed correctly
Type rating according to UL 50EType 1, Type 12K
PCF/VE (Cradle-to-Gate)5.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 2577100, EAN: 4028177925267

Questions & answers

What is the delivery time of Rittal 2577100 Metal gland plate with metric pre-punching, for?

The article Rittal 2577100 Metal gland plate with metric pre-punching, for is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2577100 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2577100 Metal gland plate with metric pre-punching, for always at the best possible price. We can give you a discount of 2% on Rittal 2577100 Metal gland plate with metric pre-punching, for if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
