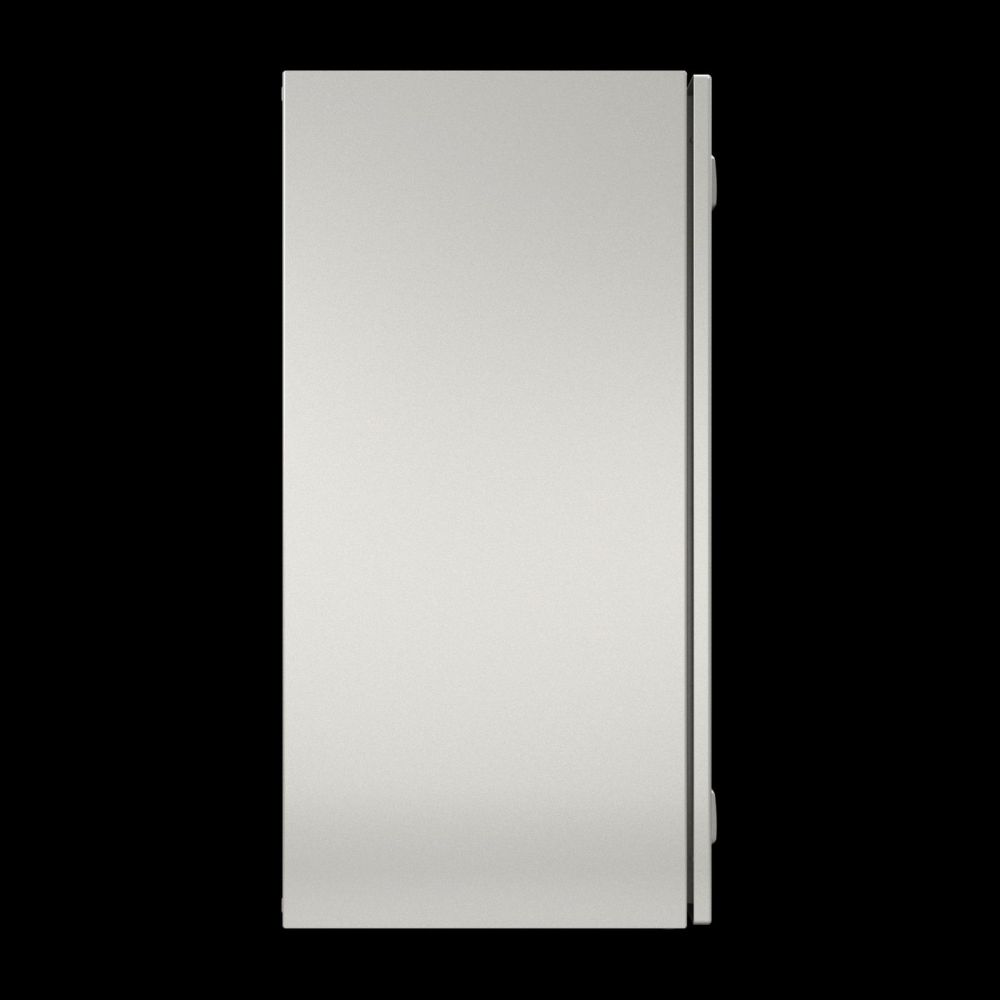

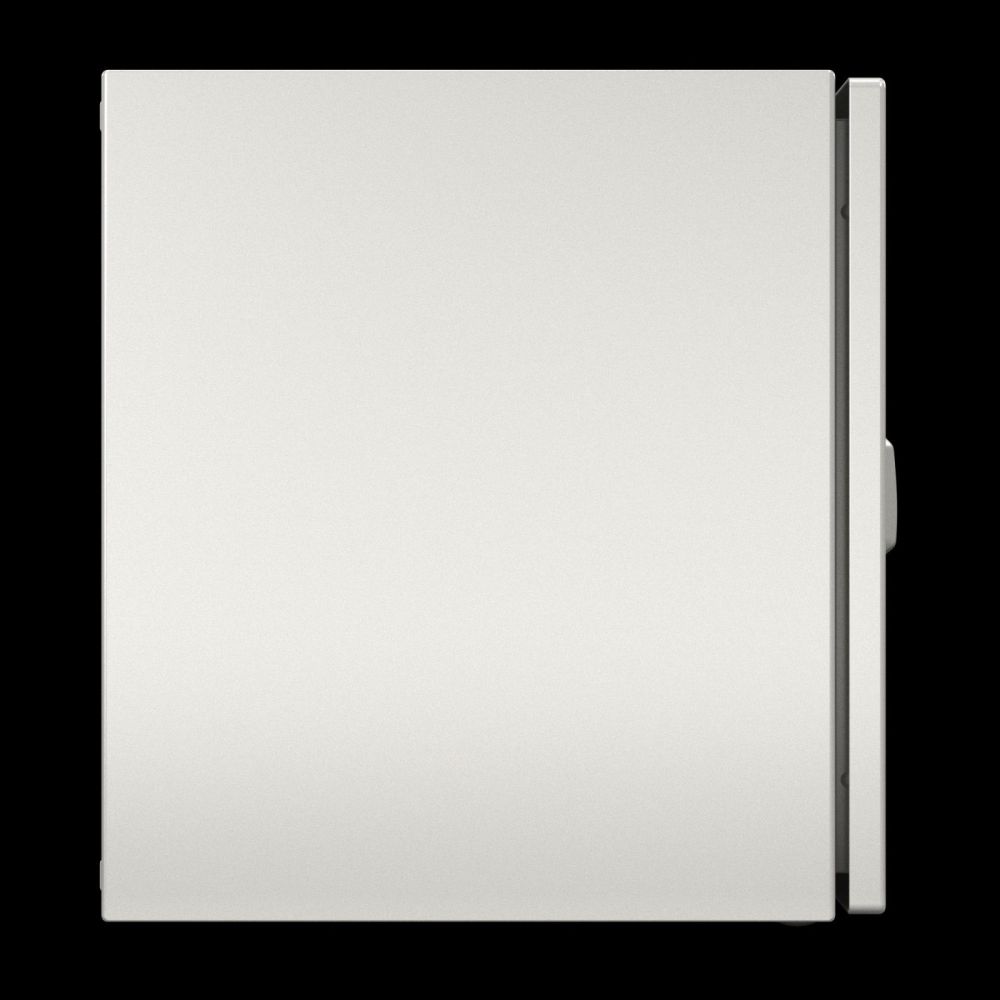

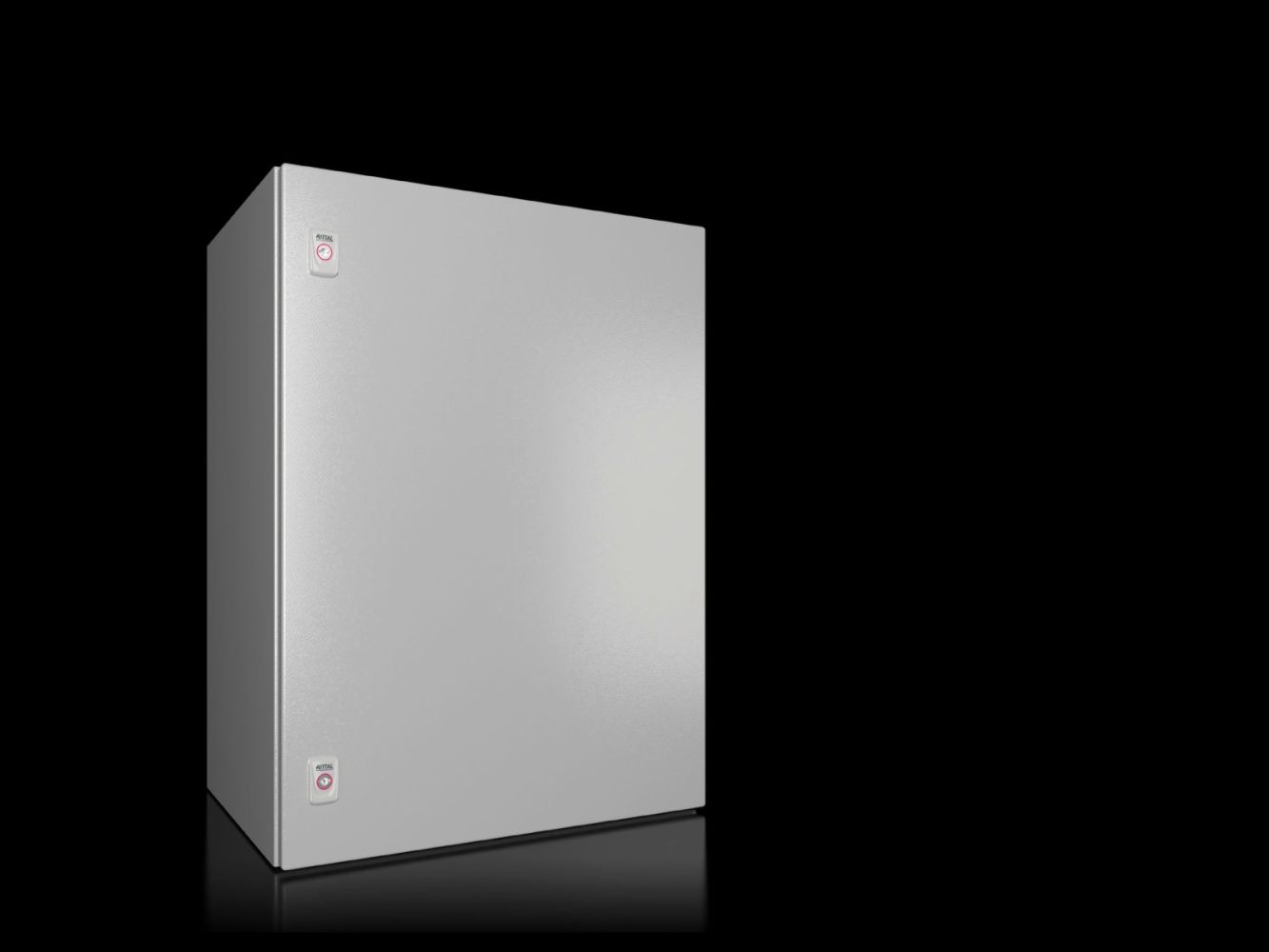

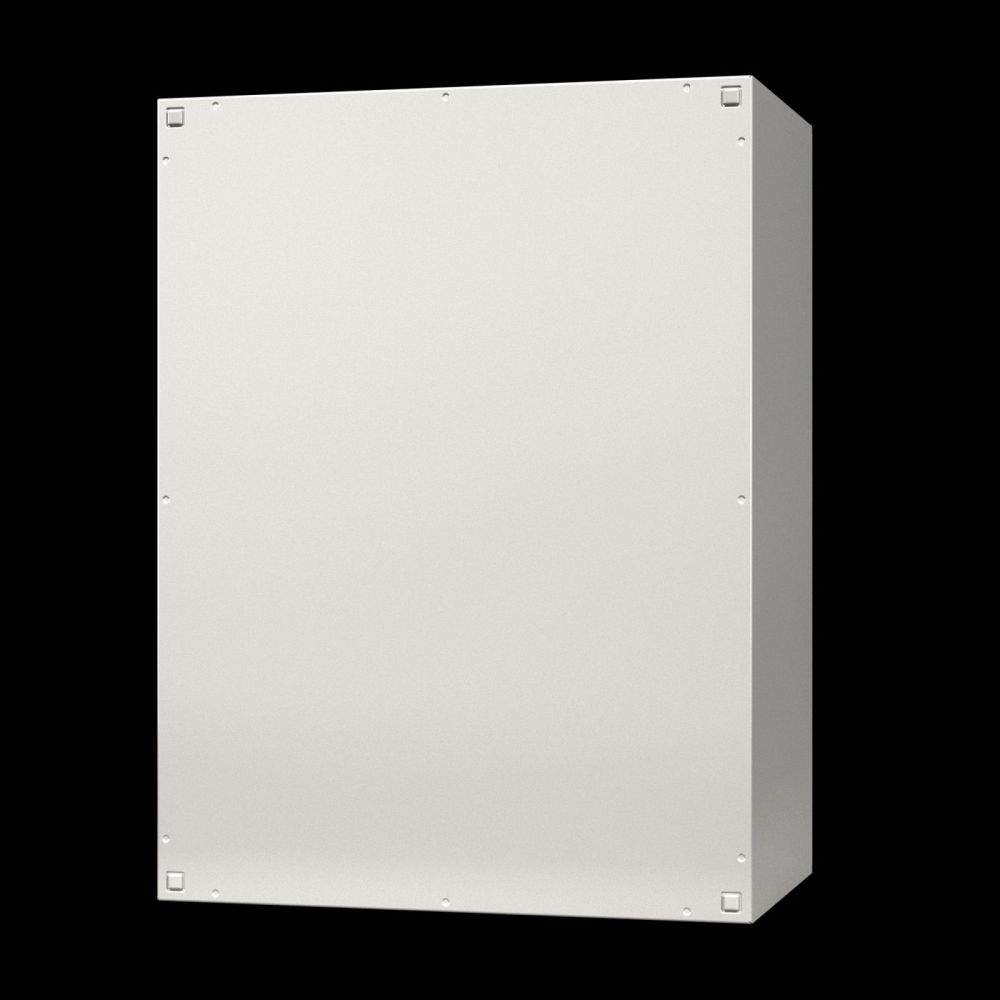

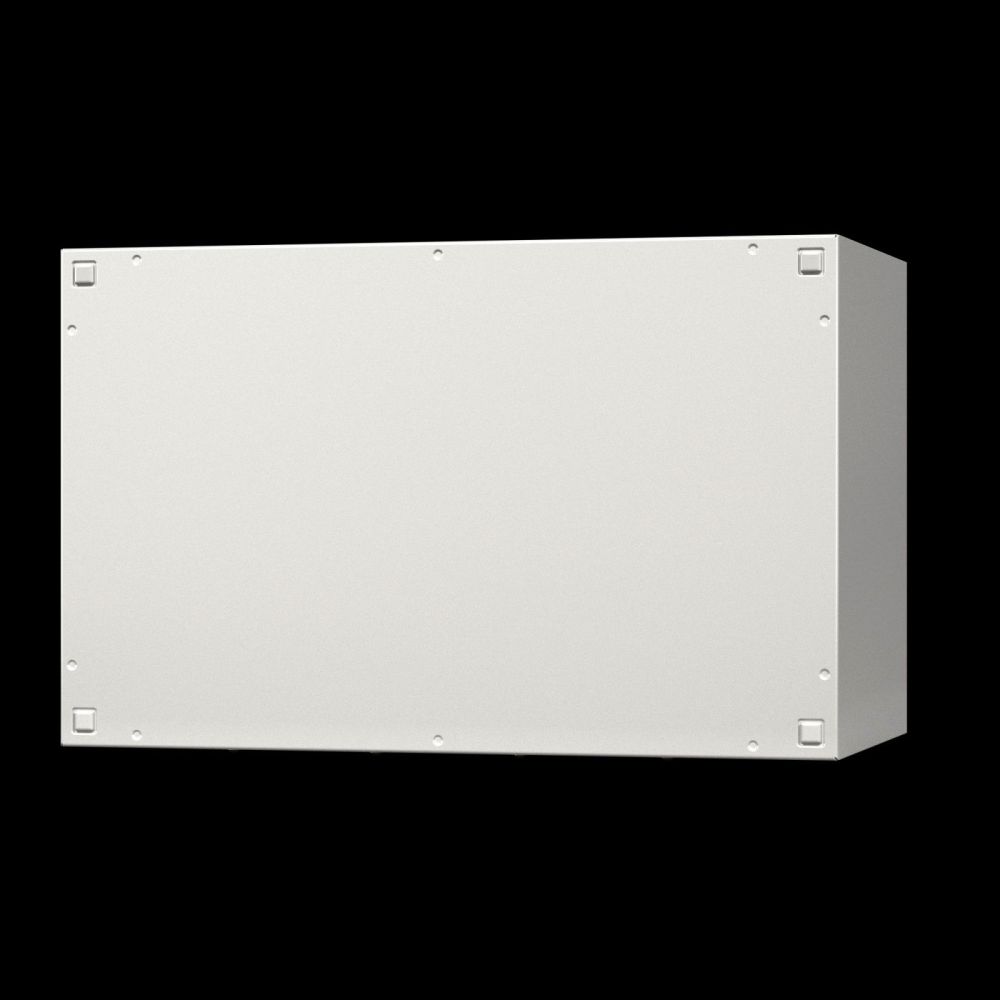

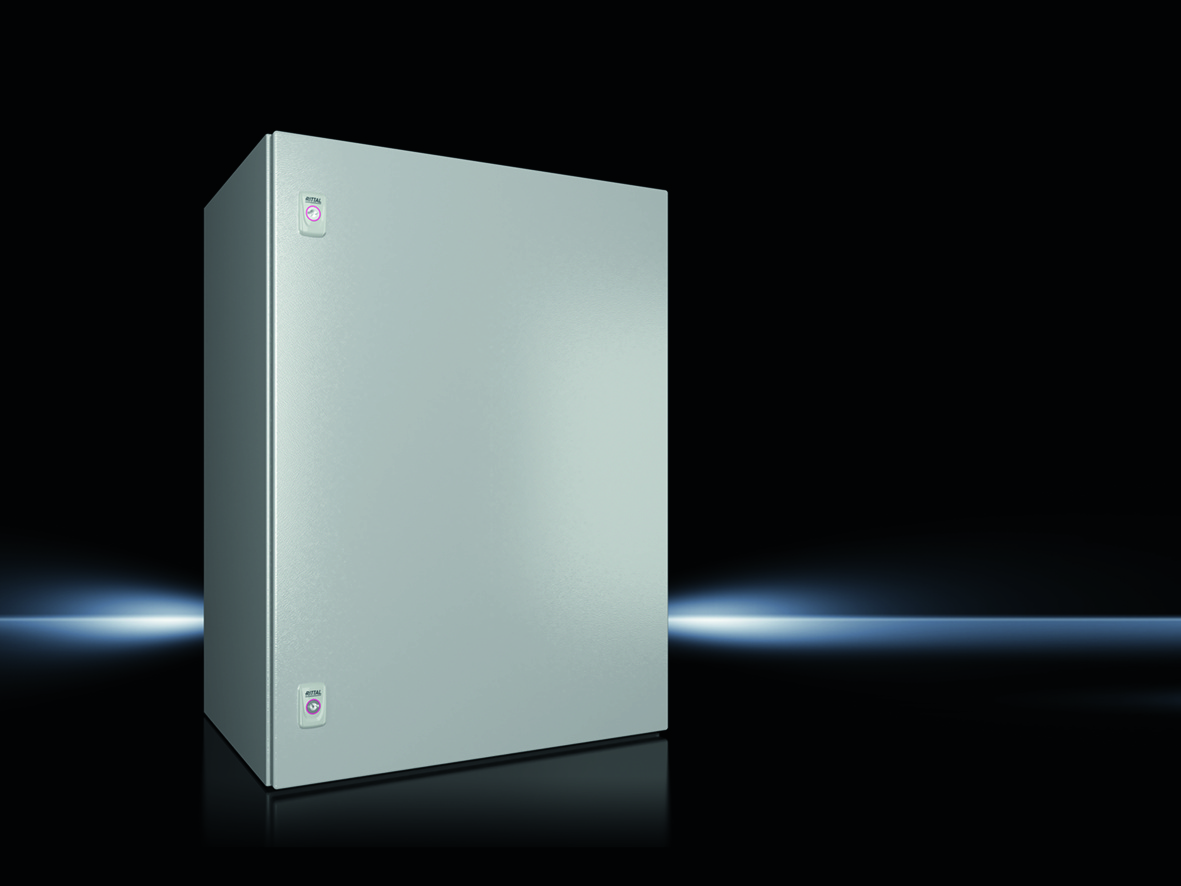

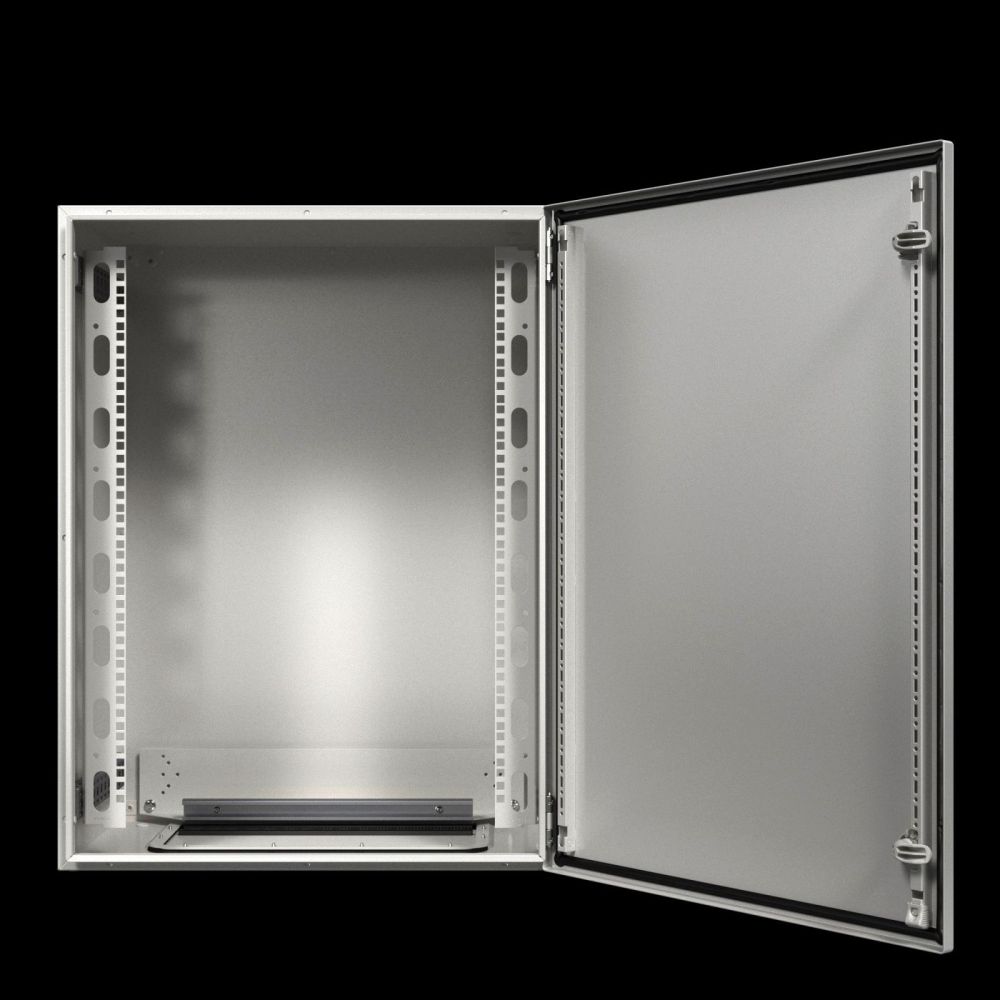

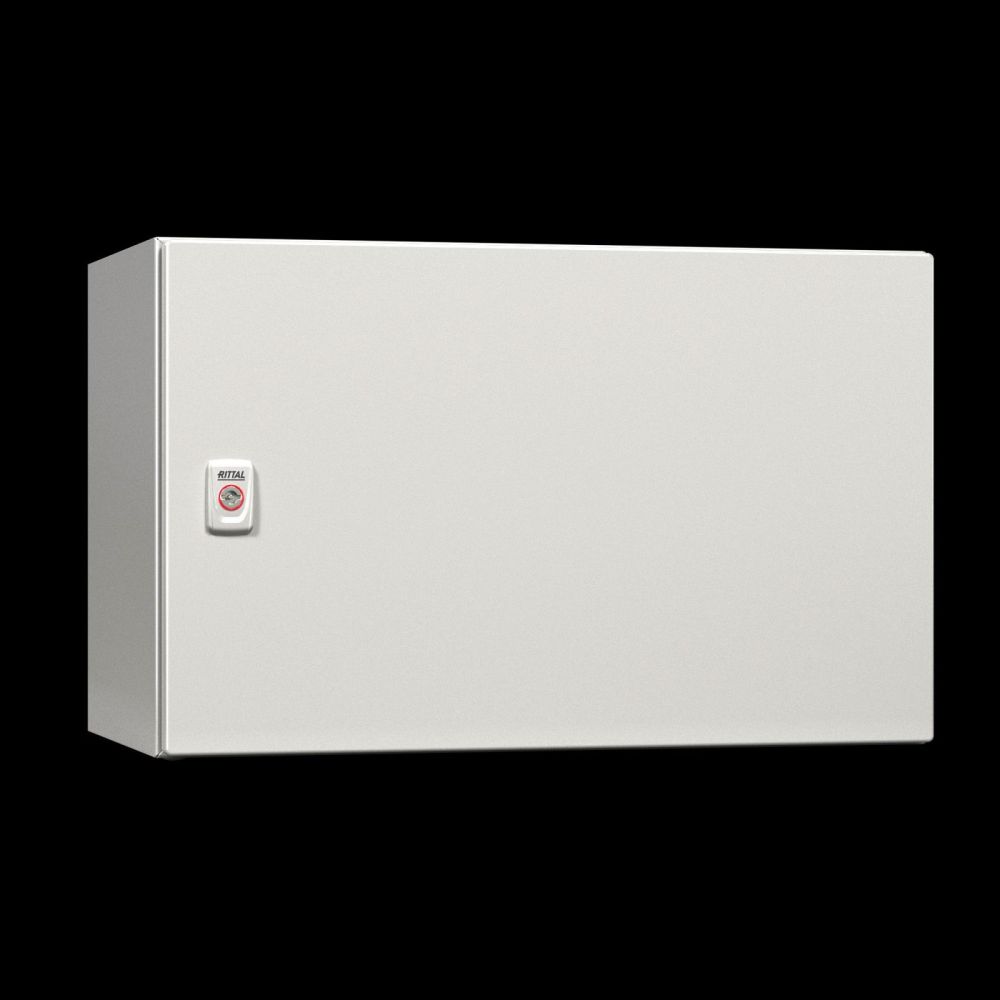

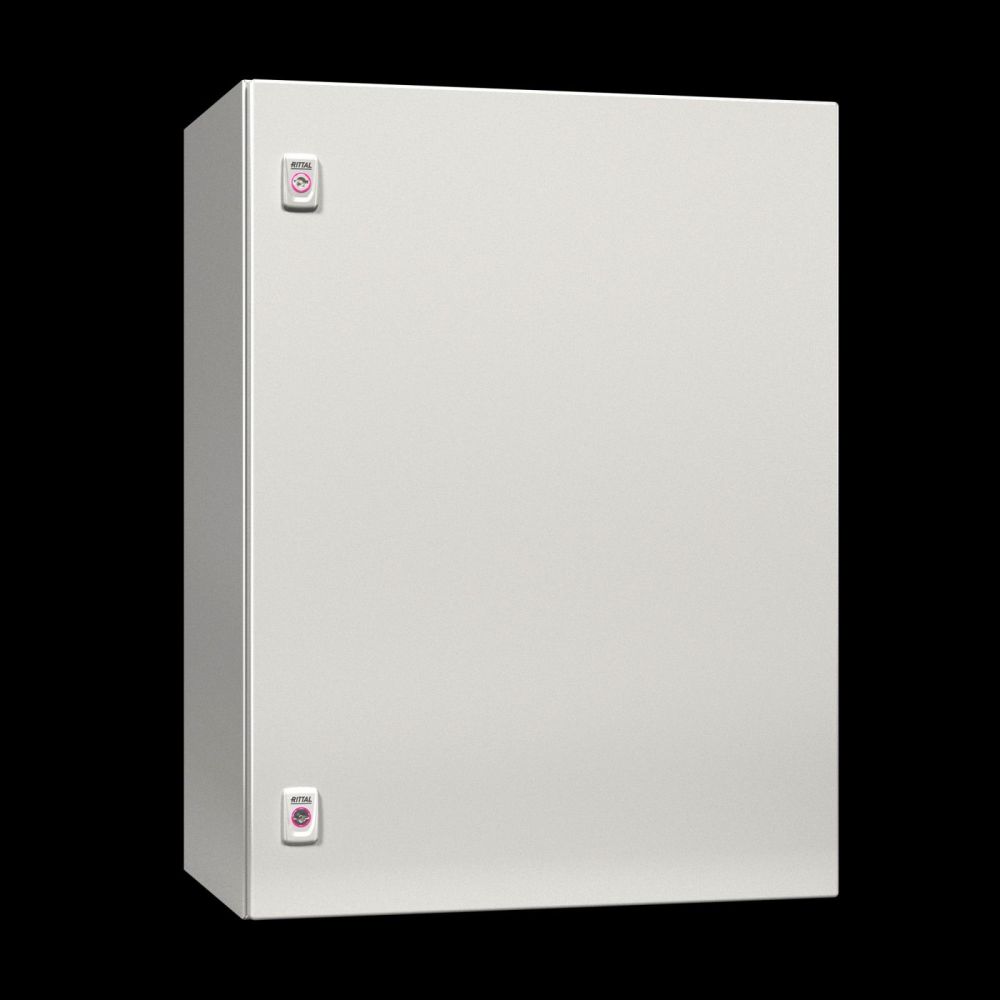

Rittal 7646400 wall-mounted enclosure AX IT 48,3 cm ( 19 inch )-profile, 15 U, 600x800x400 mm (freight shipping)
|
288,08 EUR |
|
|
( 342,82 EUR incl. VAT ) ≈ £241.12 | ≈ $316.60 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910654 |
| Mfg Part No: | 7646400 |
| UPC/EAN: | 4028177942424 |
| Weight: | 32.5 kg |
| Type: | AXIT 7646400 |
Product information for Rittal 7646400:
Applications
This wall-mounted enclosure is designed for use in industrial plants where a robust and impact-resistant cover for IT components is required. It is particularly suitable for the direct integration of network and control technology in production environments, where protection against dust, splashing water, and mechanical influences is necessary. The standard protection rating is IP 10, with an optional version up to IP 10 available depending on the selected gland plate. This makes the housing suitable for outdoor use, provided the appropriate protection rating is selected.
Functions and Equipment in Detail

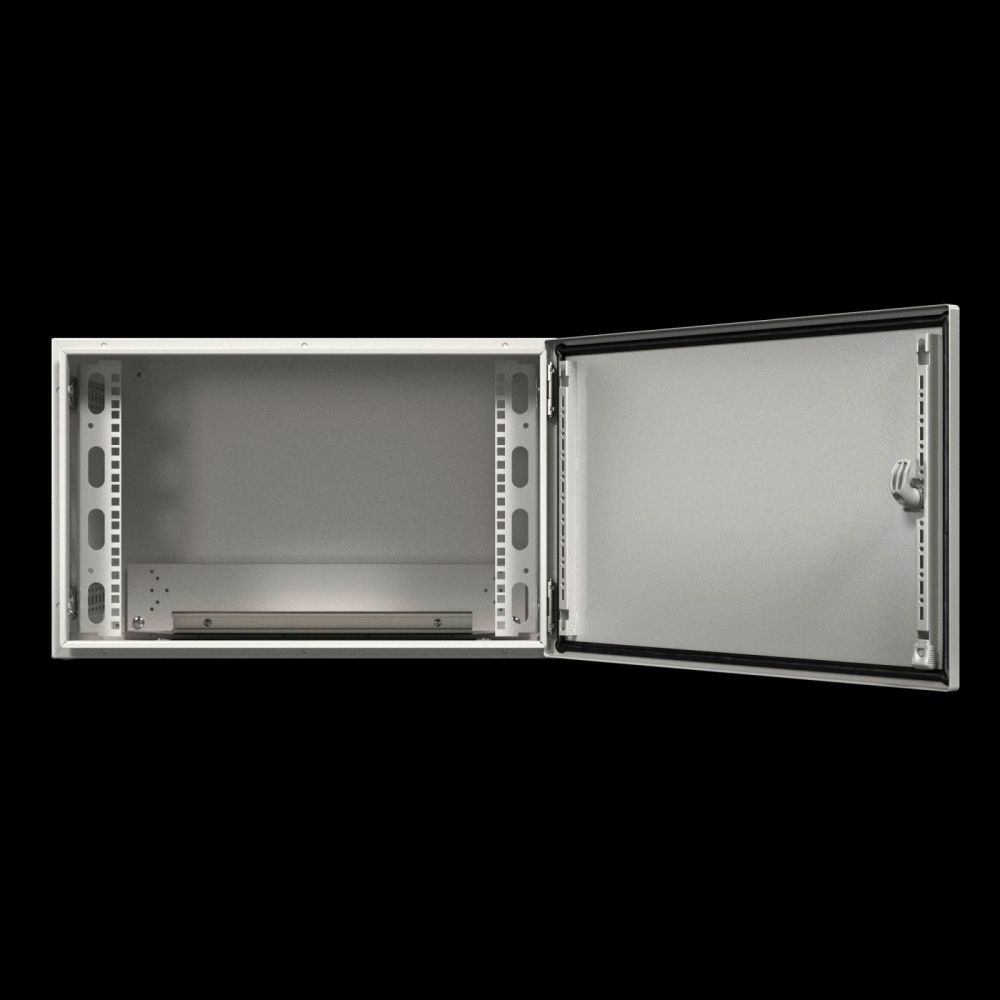

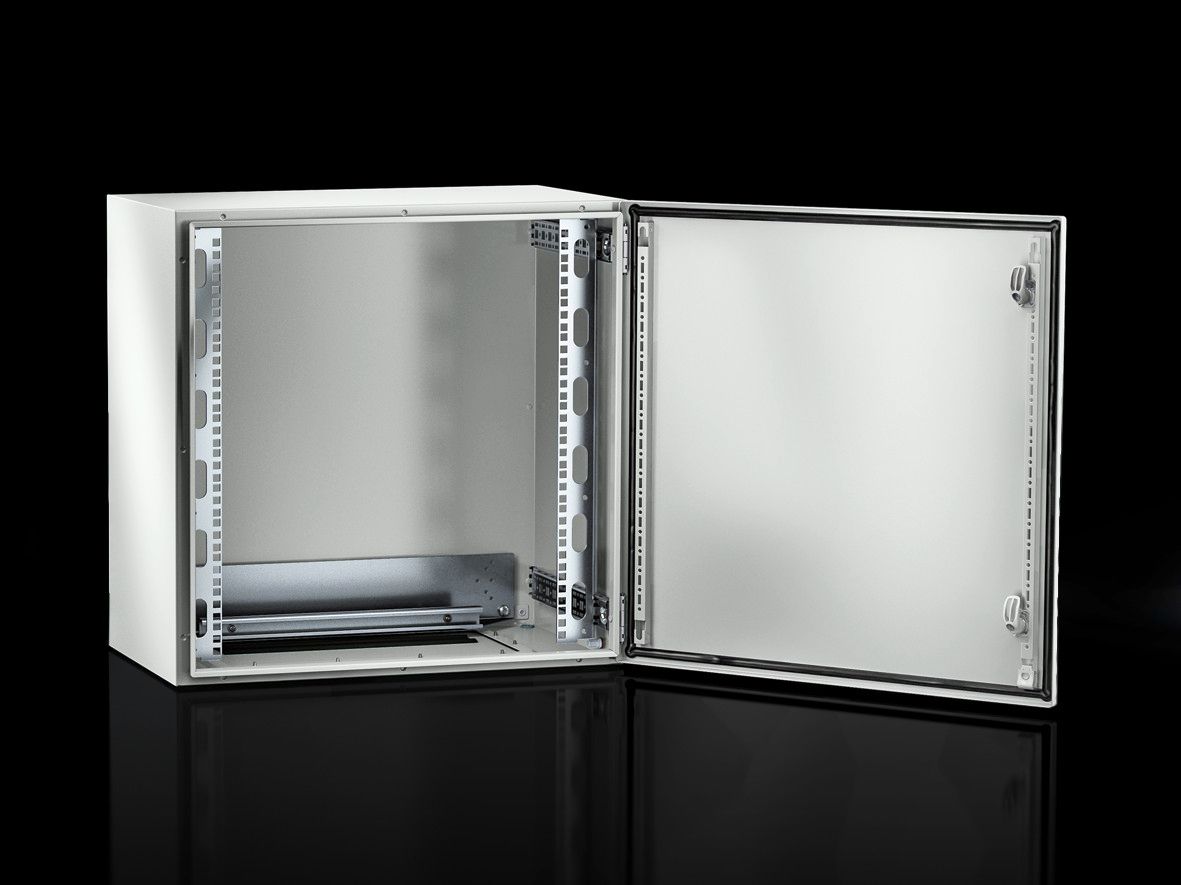

The housing is fully pre-assembled and offers an immediately operational solution for mounting 48,3 cm ( 19 inch ) IT components. The 48,3 cm ( 19 inch ) profile rails are depth-adjustable in 25 mm increments and mounted on four internal mounting rails, allowing flexible adaptation to different device heights. The door is hinged, standard on the right, but can be changed to the left. The door is equipped with two latch locks, each featuring a 3 mm double-barrel lock insert, ensuring a secure closure. The gland plate at the housing base is fitted with a brush strip, enabling convenient cable entry from below and simultaneously providing a dust- and water-tight seal.
Technology Explained Simply
The welded housing construction with a fully enclosed body ensures high protection for installed components. The depth-adjustable profile rails allow individual adaptation to specific devices, optimizing internal space usage. The integrated brush strip on the gland plate serves as cable routing and prevents dust and moisture ingress. The optional IP 10 protection rating means the housing is dust-tight and protected against water jets from all directions, making it suitable for demanding environments.
Compatibility and Accessories
The housing offers multiple mounting options for additional components. Pre-mounted mounting brackets allow for a C-profile rail for cable strain relief, a central earthing bar, and a 48,3 cm ( 19 inch ) socket strip. Compatible accessories include socket strips in various configurations (e.g., 5-way, 7-way, 8-way, 12-way), surge protection devices, earthing bars, wall mounting brackets, and lock inserts. These components can be added as required to extend the housing's functionality.
Mounting and Installation
The housing is designed for wall mounting and is secured using pre-mounted mounting brackets. Installation is performed by attaching to a wall or support structure, with designated mounting points and pre-mounted brackets enabling quick and secure installation. Cable connections are made via the gland plate with brush strip at the housing base, ensuring orderly and damage-free cable entry.
Operational Advantages
The wall-mounted enclosure provides maximum protection for installed IT components through its welded construction and high protection rating. The depth-adjustable profile rails enable flexible use of internal space, while the pre-mounted mounting brackets and integrated brush strip simplify installation and maintenance. The ability to change the door hinge position offers additional flexibility in room placement. The pre-assembled equipment reduces installation time and enables immediate commissioning.
| General | |
| Model | Wall enclosure IT, with 19" profile rails, variable depth |
| Material | steel sheet |
| Surface protection | Enclosure and door: dip primed, externally powder coated, textured paint, interior: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Pre-assembled IT enclosure with hinged door, fully enclosed, anti-theft lock with 3 mm double-barrel insert, flange plate with brush strip, 19" profile rail front, depth-adjustable in 25 mm increments on 4 internal mounting rails, mounting brackets, C-profile rail, mounted on rear wall |
| Height units | 15 HE |
| Width | 600 mm |
| Height | 800 mm |
| Depth | 400 mm |
| Built-in depth | 316 mm |
| Component mounting height | 15 HE |
| Door hinge position | right, reversible to left |
| Number of locks | 2 |
| Mounting options | Pre-assembled mounting bracket including C-profile rail for cable management, mounting bracket for central earthing rail, mounting bracket for 19" socket strip |
| Note | Variant with UL approval available on request |
| Base material | steel sheet |
| Lock | Locking type: deadbolt with 3 mm double-barrel locking insert, number of locks: 2 |
| Degree of protection IP according to EN 60 529 | IP 10 (on request up to IP 66), up to IP 66 (depending on selected flange plate) |
| Flange plate | Size: 7, Quantity: 1 |
| PCF/VE (Cradle-to-Gate) | 123.8 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
