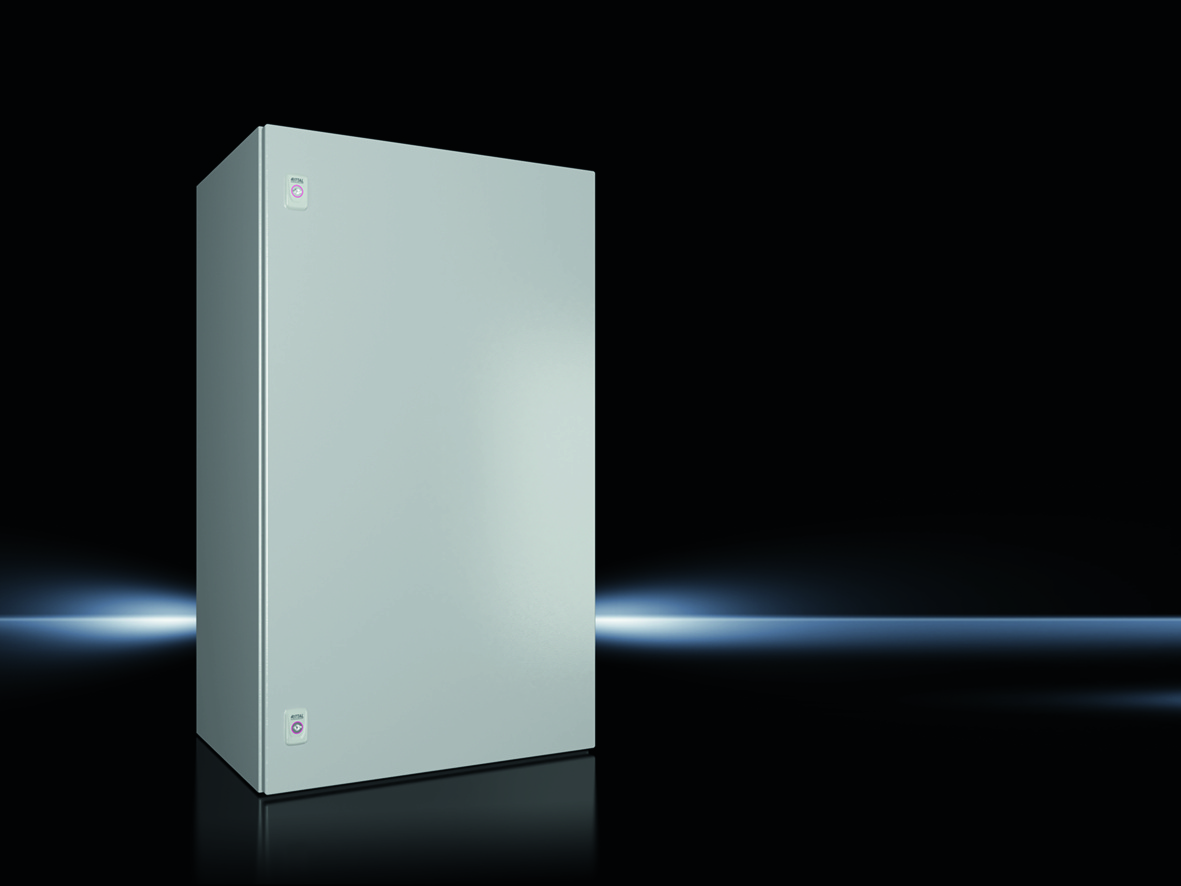

Rittal 1091000 Compact enclosure AX, 1-door, 600x1000x400 mm,
|
268,11 EUR 268,84 EUR |
|
|
( 319,05 EUR incl. VAT ) ≈ £224.41 | ≈ $294.65 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598149 |
| Mfg Part No: | 1091000 |
| UPC/EAN: | 4028177813137 |
| Weight: | 45 kg |
| Type: | AX 1091000 |
Product information for Rittal 1091000:
Applications
The enclosure is designed for use in industrial environments where high mechanical and climatic resistance is required. It is suitable, for example, for housing control and switching devices in production plants, power supply systems, or automation technology. The IP 66 protection rating also makes it suitable for outdoor installations where protection against precipitation and dust is necessary. The integrated enclosure lugs in the 25 mm system grid allow for flexible and modular interior fitting, which can be adapted to different requirements.
Functions and Equipment in Detail
The enclosure is made of sheet steel with a material thickness of 1.5 mm, and the door is made of 2 mm thick sheet steel. The internal mounting plate has a material thickness of 2.5 mm and is galvanized to prevent corrosion. The surface of the enclosure and door is dip-primed and externally powder-coated with a textured lacquer in the color RAL 7035. The door is equipped with two latching locks, each fitted with a 3 mm double-barrel lock insert. The door hinge is reversible, allowing the door to be mounted to open on either the right or left side. The mounting plate is provided with grounding keyhole slots and dimension markings and is secured with ring weld nuts.
Technology Explained Simply
The integrated enclosure lugs in the 25 mm system grid allow the installation of interior fitting rails and other accessories without drilling. This ensures that the protection rating (UL approval) remains intact even after installation. The base fitting rail provides an additional mounting level and increases the load capacity inside the enclosure. The continuous PU seal on the door ensures a tight seal against dust and water, supporting the IP 66 protection rating. The gland plate in the enclosure base (size 7) enables secure and stable mounting to the wall or floor.
Compatibility and Accessories
The enclosure is compatible with the Rittal RiPanel configurator, which enables easy planning and configuration. Suitable accessories include lock inserts made of zinc die-cast, lock box covers, mounting brackets, wall mounting angles, VX system chassis, dust protection strips, baying sets, knob handles, handles with security cylinder, plinth trim panels and elements, as well as other mounting components. These accessories can be used to extend functionality and adapt to specific requirements.
Mounting and Installation
Mounting is done via the integrated enclosure lugs and the base fitting rail, which allow secure fastening of interior fitting elements. The door can be mounted to open in either direction, enabling flexible installation at different locations. The gland plate in the enclosure base facilitates wall or floor mounting. The internal mounting plate provides a stable mounting option for electrical components.
Operational Advantages
The enclosure offers high mechanical and climatic resistance, making it suitable for demanding operating conditions. The modular interior fitting allows flexible adaptation to different requirements. Maintaining the protection rating when installing interior fitting elements without drilling ensures a secure and tight installation. The integrated enclosure lugs and base fitting rail increase load capacity and provide additional mounting levels. The use of sheet steel and a robust surface coating ensures long service life and high corrosion resistance.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 600 mm |
| Height | 1.000 mm |
| Depth | 400 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 545 mm x 975 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 7, Quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 163.84 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
Questions & answers
What is the delivery time of Rittal 1091000 Compact enclosure AX, 1-door, 600x1000x400 mm, ?
The article Rittal 1091000 Compact enclosure AX, 1-door, 600x1000x400 mm, is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1091000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1091000 Compact enclosure AX, 1-door, 600x1000x400 mm, always at the best possible price. We can give you a discount of 2% on Rittal 1091000 Compact enclosure AX, 1-door, 600x1000x400 mm, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
