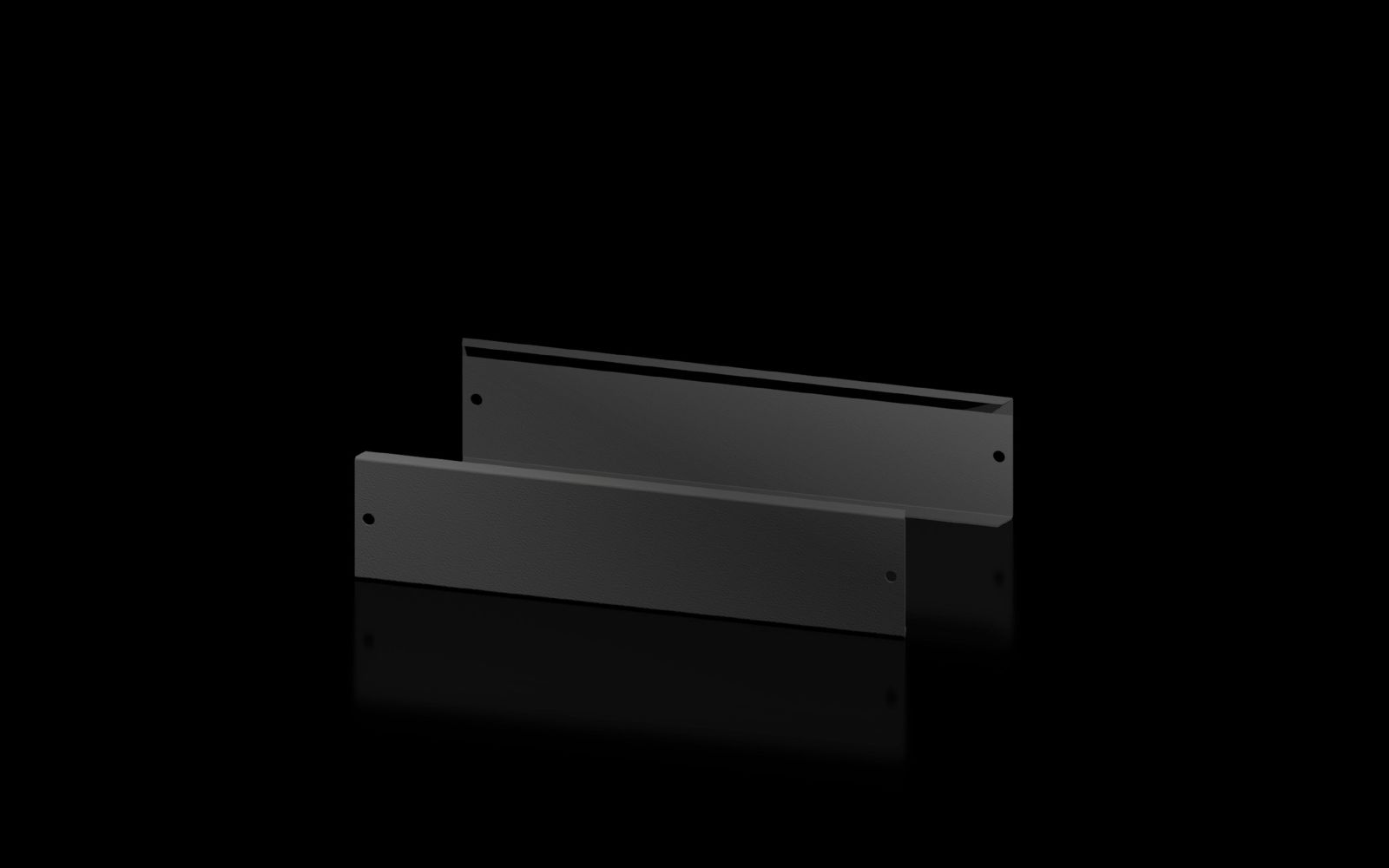

Rittal 2830061 AX AX plinth trim panel 1=2 front/rear H:100 mm for W:600 mm

Your rating:
Average rating
product review for Rittal 2830061 AX AX plinth trim panel 1=2 front/rear H:100 mm for W:600 mm
( 5 / 5 ) 1 ratings
Rittal 2830061
This image may differ from the desired article.
Rittal 2830061Rittal 2830061Rittal 2830061Rittal 2830061
-8% 19,90 EUR 21,68 EUR
( 23,68 EUR incl. VAT )
≈ £16.66  |  ≈ $21.87
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2830061 AX AX plinth trim panel 1=2 front/rear H:100 mm for W:600 mm
Datasheet:file_download Download
Lieske Part No.:684153
Mfg Part No: 2830061
UPC/EAN: 4028177037373
Weight:1.371 kg
Type:AX 2830061

Product information for Rittal 2830061:

The Rittal AX 2830061 plinth trim panel is a system accessory for enclosures of type AX, specifically designed for housings with a width of 600 mm. The panel serves as a closure for the front and rear sides of a plinth unit and enables a secure and neat finish of the lower area of the enclosure. It is made of steel sheet and finished in the colour RAL 9005, ensuring a uniform visual appearance with other components of the AX system. The height is 100 mm, making it suitable for standard plinth configurations.

Applications

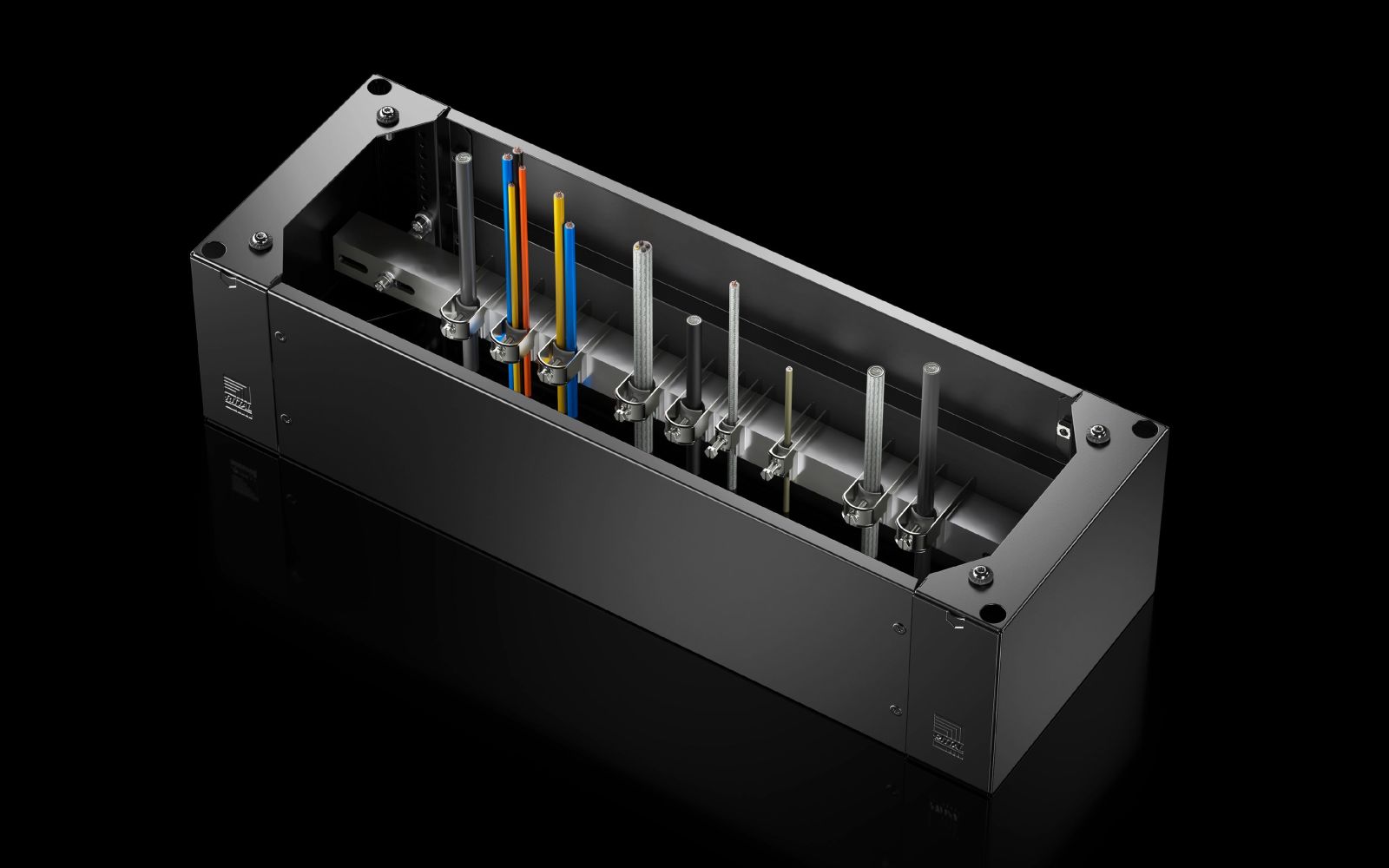

The plinth trim panel is used in industrial environments where enclosures are equipped with a plinth system to ensure stable mounting and a clean finish at the base. It is particularly useful in installations where cables are introduced from below, as it provides a large opening that facilitates access to the gland connection point and cable entry. The panel conforms to the standard dimensions of the AX series and is used in combination with side plinth elements to form a closed and aesthetically pleasing plinth unit.

Functions and Equipment in Detail
The panel is intended for mounting on the front and rear sides of the enclosure and provides an open surface that exposes the connection area. This facilitates the installation and maintenance of cables and connections in the lower section of the enclosure. The use of steel sheet ensures high mechanical stability and durability. The colour RAL 9005 is a dark grey, which integrates well in industrial environments and harmonizes with other components of the AX system. The product is supplied in a pack of two panels, covering both front and rear sides.

Technology Explained Simply
The plinth trim panel is a passive component that does not perform any electrical or mechanical function, but serves purely structural and aesthetic purposes. The use of steel sheet ensures sufficient strength to withstand mechanical loads during operation. The RAL 9005 colour finish is standardized and enables a consistent design of enclosures. The height of 100 mm is matched to the typical plinth heights in the AX series, allowing the panel to be mounted without additional adjustments.

Compatibility and Accessories
The plinth trim panel is specifically designed for enclosures of type AX with a width of 600 mm. It is used in combination with side plinth elements to complete a full plinth unit. Suitable accessories include levelling feet M12, support rails TH 35/15, C-profile rails 30/15, plinth adapters for double swivel castors and levelling feet, as well as VX cable strain relief rails with angle profile (width 600 mm). These components complement the plinth trim panel and support mounting, stability, and cable routing within the enclosure.

Mounting and Installation
Mounting is carried out on the front and rear sides of the enclosure, with the panels being fastened at the designated mounting points.

Operational Advantages
The plinth trim panel improves the visual appearance of the enclosure and ensures a clean finish at the base. The large opening facilitates cable entry and access to glands, speeding up installation and maintenance. The use of steel sheet ensures high mechanical strength, meeting the requirements of industrial environments. The RAL 9005 colour finish supports a uniform design of enclosures and integrates well with existing systems.

General
MaterialFront/rear socket bezel: steel sheet
ColourRAL 9005
Scope of delivery2 socket faceplates front/back, 100 mm

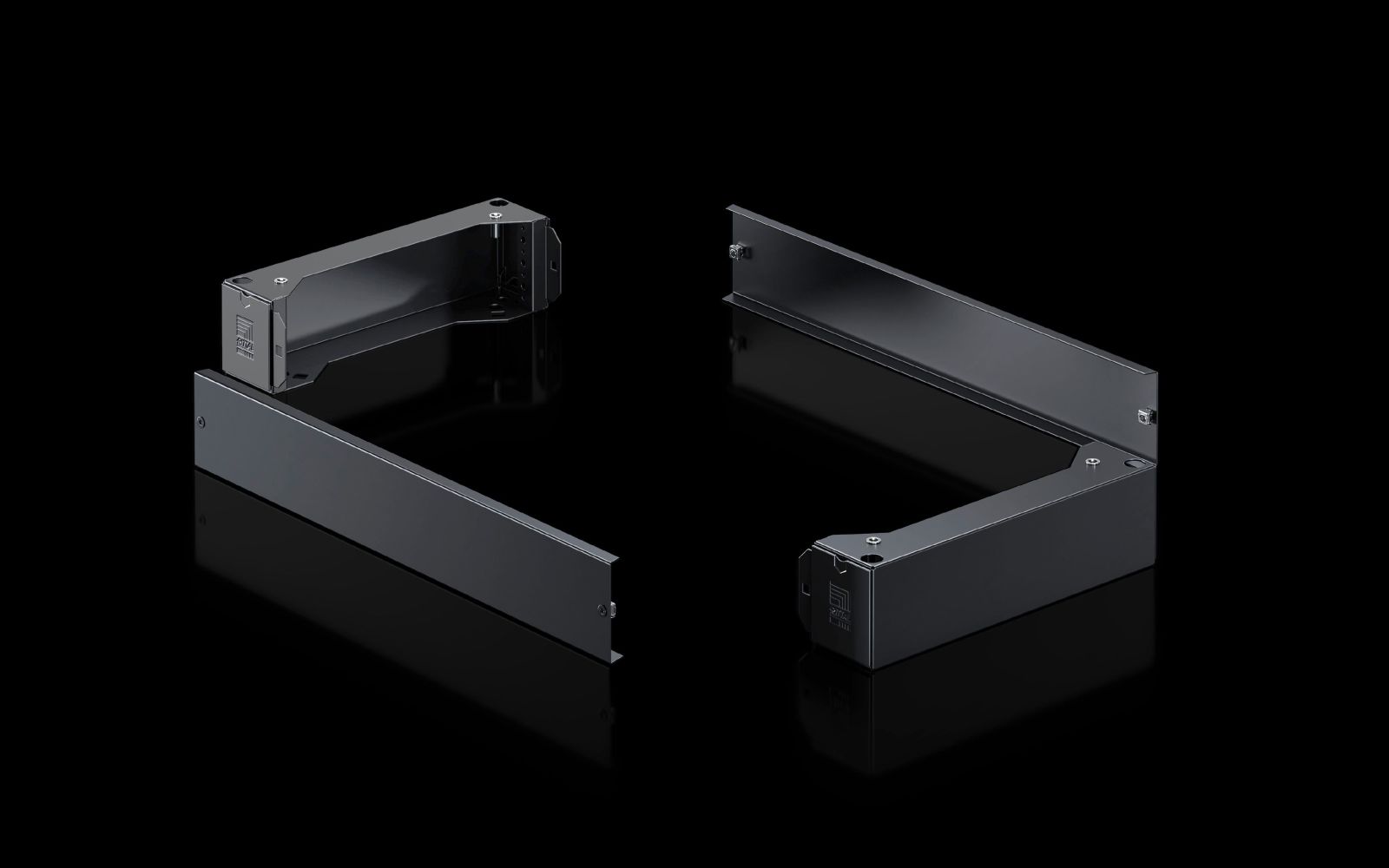

NoteTo complete a base unit, base elements are required on the sides
Height100 mm
Suitable forEnclosure type: AX, width: = 600 mm


Product data sheet
Datasheet for Rittal 2830061, EAN: 4028177037373

Questions & answers

What is the delivery time of Rittal 2830061 AX AX plinth trim panel 1=2 front/rear H:100 mm for W:600 mm?

The article Rittal 2830061 AX AX plinth trim panel 1=2 front/rear H:100 mm for W:600 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2830061 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2830061 AX AX plinth trim panel 1=2 front/rear H:100 mm for W:600 mm always at the best possible price. We can give you a discount of 2% on Rittal 2830061 AX AX plinth trim panel 1=2 front/rear H:100 mm for W:600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
