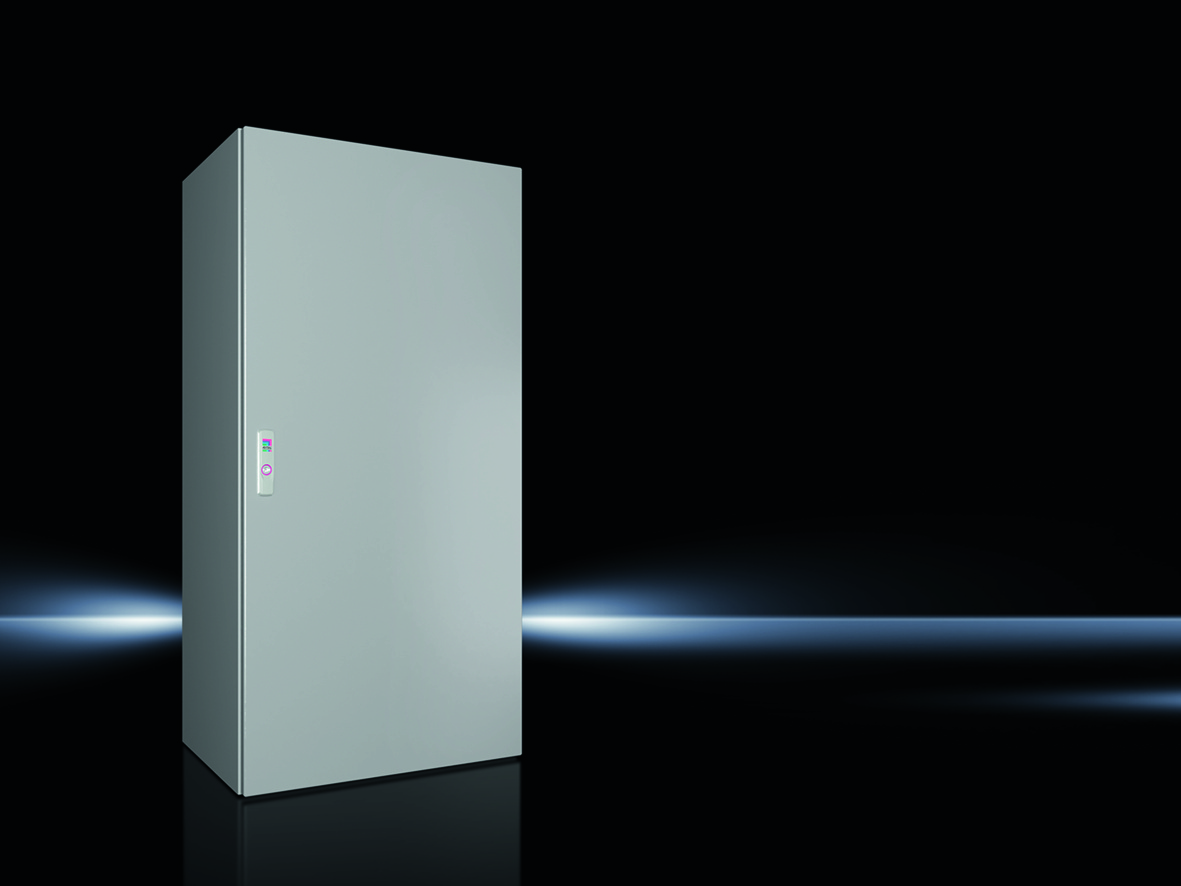

Rittal 1261000 Compact enclosure AX, 1-door, 600x1200x400 mm,
|
301,51 EUR |
|
|
( 358,80 EUR incl. VAT ) ≈ £252.36 | ≈ $331.36 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598137 |
| Mfg Part No: | 1261000 |
| UPC/EAN: | 4028177813120 |
| Weight: | 53.5 kg |
| Type: | AX 1261000 |
Product information for Rittal 1261000:
Applications
This enclosure is designed for use in industrial environments where high mechanical and climatic resistance is required. It is suitable for installations in manufacturing, power supply, automation technology and other areas where electrical components must be protected against dust, water, mechanical impacts and environmental influences. The protection rating IP 66 according to EN 60 529 guarantees dust-tight and watertight sealing, even under heavy spray water conditions. The protection ratings NEMA 1, NEMA 3R, NEMA 4 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), enable use in various regions and standard environments. The IK code IK10 indicates high mechanical strength against impact and shock.
Functions and Equipment in Detail
The enclosure features a single-door construction with reversible door hinge, allowing the door to be mounted either right- or left-hinged. The door opens up to 130° according to VDI, with an option for retrofitting to 180°. The locking system is a 3-point locking system with a 3 mm double-barrel lock insert according to DIN 43668, ensuring secure and stable closure. The delivery includes the enclosure with door, a gland plate in the enclosure base (size 7), the mounting plate, a door hole strip and the lock with double-barrel lock insert. The gland plate enables secure fastening to wall or floor surfaces.
Technology Explained Simply
A central feature of the AX enclosure is the integrated 25 mm system grid through embossed enclosure lugs in the roof, base and sides. This patented system enables easy and drill-free mounting of internal mounting rails and additional accessories. The base mounting rail provides an additional mounting level and increases load capacity. The rail can be mounted without drilling, preserving the protection rating (UL approval). Planning and configuration is easily done via the Rittal configurator RiPanel.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories. These include lock inserts made of zinc die-cast (length 27 mm), VX system chassis (e.g. for height 1200 mm), dust protection strips made of UV-resistant plastic, baying sets for AX, KX, AE, KL, TS, mounting rails for internal mounting level (W x D 500 mm), plinth trim panels and elements (e.g. AX 2830061, AX 2830410), mounting rails for VX, TS, VX SE, TP, AX (540 mm, pack of 20 pcs) and the AS Multitool AX/VX 4052000. These components extend the functionality and customisation options of the enclosure.
Mounting and Installation
Mounting is done via the integrated gland plate in the enclosure base, enabling secure fastening to walls or floors. The internal mounting plate features keyhole slots for earthing and dimension markings to ensure precise positioning of components. The door can be mounted either right- or left-hinged as required, increasing flexibility during installation. The internal mounting rail can be installed without drilling, reducing installation time and maintaining the protection rating.
Operational Advantages
The enclosure offers high mechanical and climatic resistance due to the IP 66 and IK10 protection ratings. The integrated enclosure lugs enable flexible and drill-free mounting of internal mounting rails and accessories, simplifying maintenance and expansion. The powder-coated surface ensures long service life and resistance to corrosion. The uniform construction from sheet steel ensures stability and safety. Using the Rittal configurator RiPanel enables easy and fast planning of the configuration.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 600 mm |
| Height | 1.200 mm |
| Depth | 400 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 545 mm x 1.175 mm |
| Number of doors | 1 |
| Lock | Closure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb |
| Flange plate | Size: 7, Quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 186.35 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
