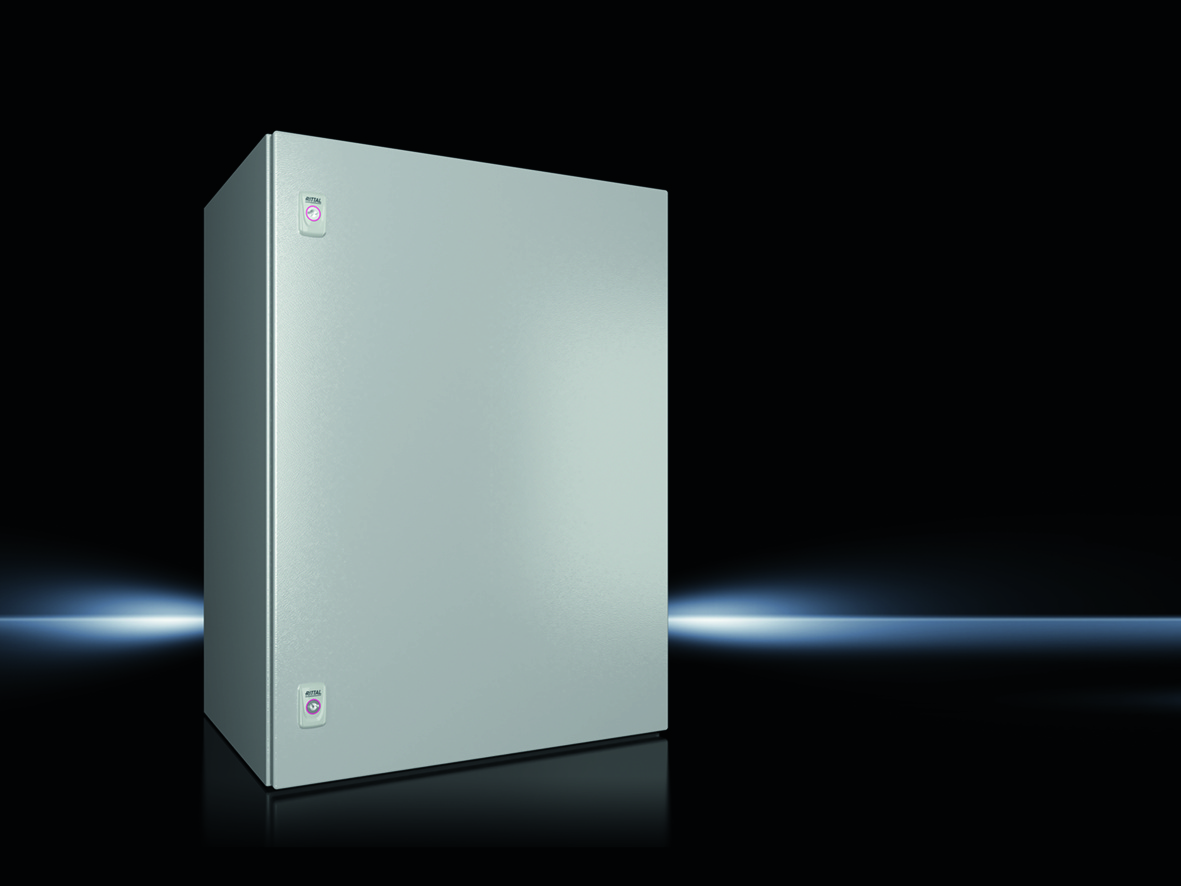

Rittal 1059000 Compact enclosure AX, 1-door, W x H x D: 600x800x400 mm,
|
-6% 217,81 EUR 230,89 EUR |
|
|
( 259,19 EUR incl. VAT ) ≈ £182.31 | ≈ $239.37 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598212 |
| Mfg Part No: | 1059000 |
| UPC/EAN: | 4028177813144 |
| Weight: | 37.36 kg |
| Type: | AX 1059000 |
Product information for Rittal 1059000:
Applications
The enclosure is designed for use in industrial environments where high mechanical and climatic resistance is required. It is suitable for use in manufacturing, power supply, or automation technology, for example. The protection rating IP 66 and mechanical strength IK10 also make it suitable for outdoor installations, where it must be protected against weather influences such as rain, dust, or splashing water.
Functions and Equipment in Detail
The enclosure features a mounting plate made of galvanized sheet steel with dimensions 545 mm × 775 mm, equipped with keyhole slots for earthing and dimension markings. The mounting plate is secured with ring weld nuts. The door is fitted with two latch locks operating with a 3 mm double-barrel lock insert according to DIN 43668. The door hinge is reversible, allowing the door to be mounted either right-hand or left-hand. The door opens up to 130°, with an option to retrofit to 180°. A gland plate of size 7 is integrated into the enclosure base for cable entry.
Technology Explained Simply
The enclosure is made of sheet steel with a material thickness of 1.5 mm, and the door is made of 2 mm thick sheet steel. The surface of the enclosure and door is dip-primed and externally powder-coated with textured lacquer, ensuring high corrosion resistance and durability. The integrated enclosure lugs in a 25 mm system grid allow flexible interior fitting without drilling. System components such as rails or accessories can thus be easily and securely mounted, while maintaining the protection rating. The mounting plate made of galvanized sheet steel with a material thickness of 2.5 mm provides a stable mounting surface for electrical components.
Compatibility and Accessories
The enclosure is compatible with the Rittal RiPanel configurator, enabling easy planning and configuration. Suitable accessories include lock inserts made of zinc die-cast, wall mounting brackets made of sheet steel, lock box covers, plinth trim panels and elements, and mounting brackets for VX systems. These components extend the functionality and adaptability of the enclosure to specific requirements.
Mounting and Installation
Mounting is performed via the integrated enclosure lugs in a 25 mm grid, allowing rails and other system components to be installed without drilling. The base mounting rail provides an additional mounting level and increases load capacity. The door can be reoriented without tools, making installation flexible. The gland plate in the enclosure base enables secure cable entry.
Advantages in Operation
The enclosure offers high flexibility in interior fitting due to the 25 mm system grid. Maintaining the protection rating during mounting without drilling reduces installation time and increases safety. The robust construction made of sheet steel with high mechanical strength (IK10) and weather resistance IP 66) ensures long service life and low maintenance. The integrated mounting plate with earthing capability and dimension markings simplifies installation of electrical components. A QR code on the enclosure body, door, and type plate enables unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 600 mm |
| Height | 800 mm |
| Depth | 400 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 545 mm x 775 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 7, Quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 143.32 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
