Rittal 2567450 Metal gland plate two-piece, for AX, with elastic

Your rating:
Average rating
product review for Rittal 2567450 Metal gland plate two-piece, for AX, with elastic
( 4.8 / 5 ) 4 ratings

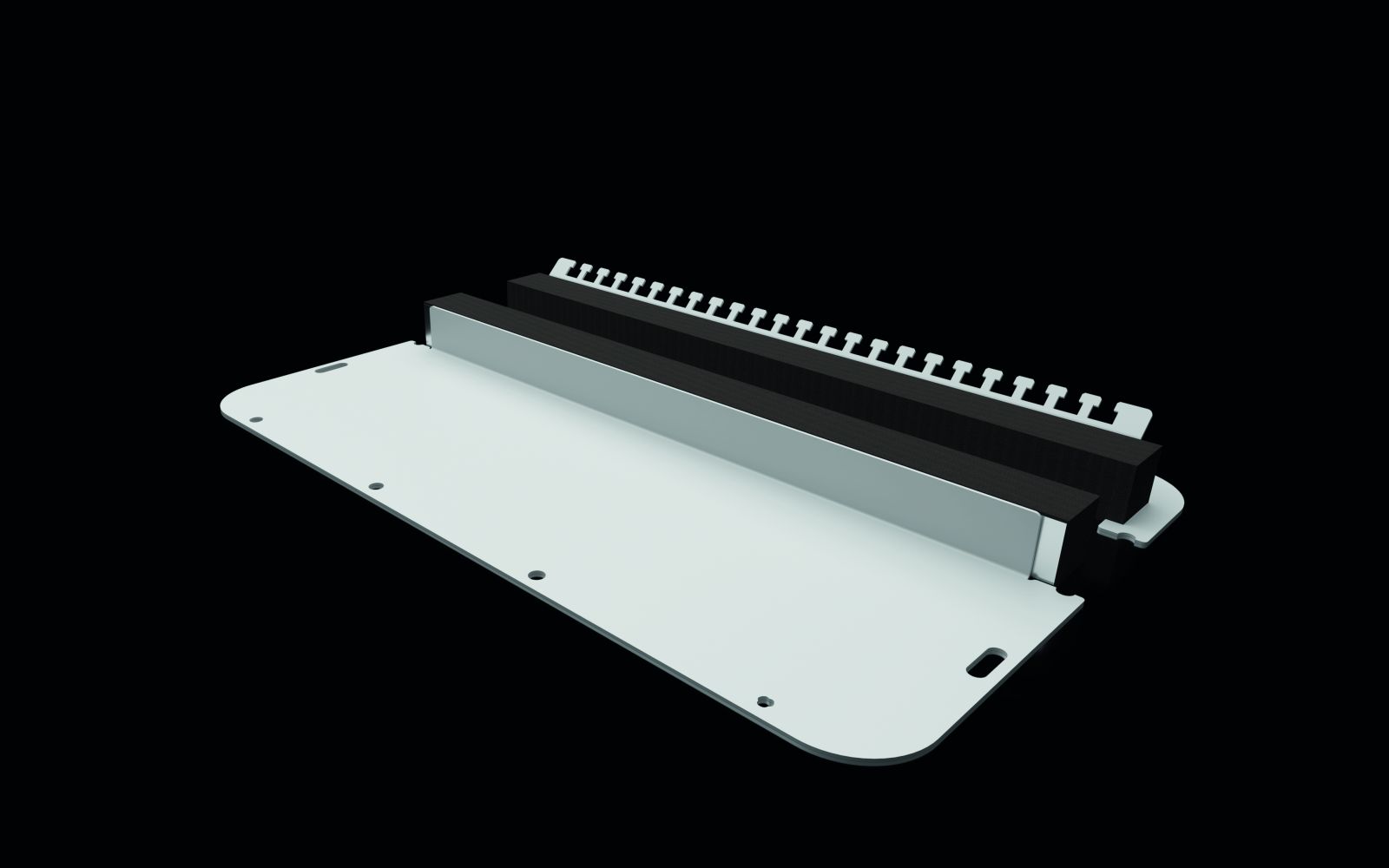

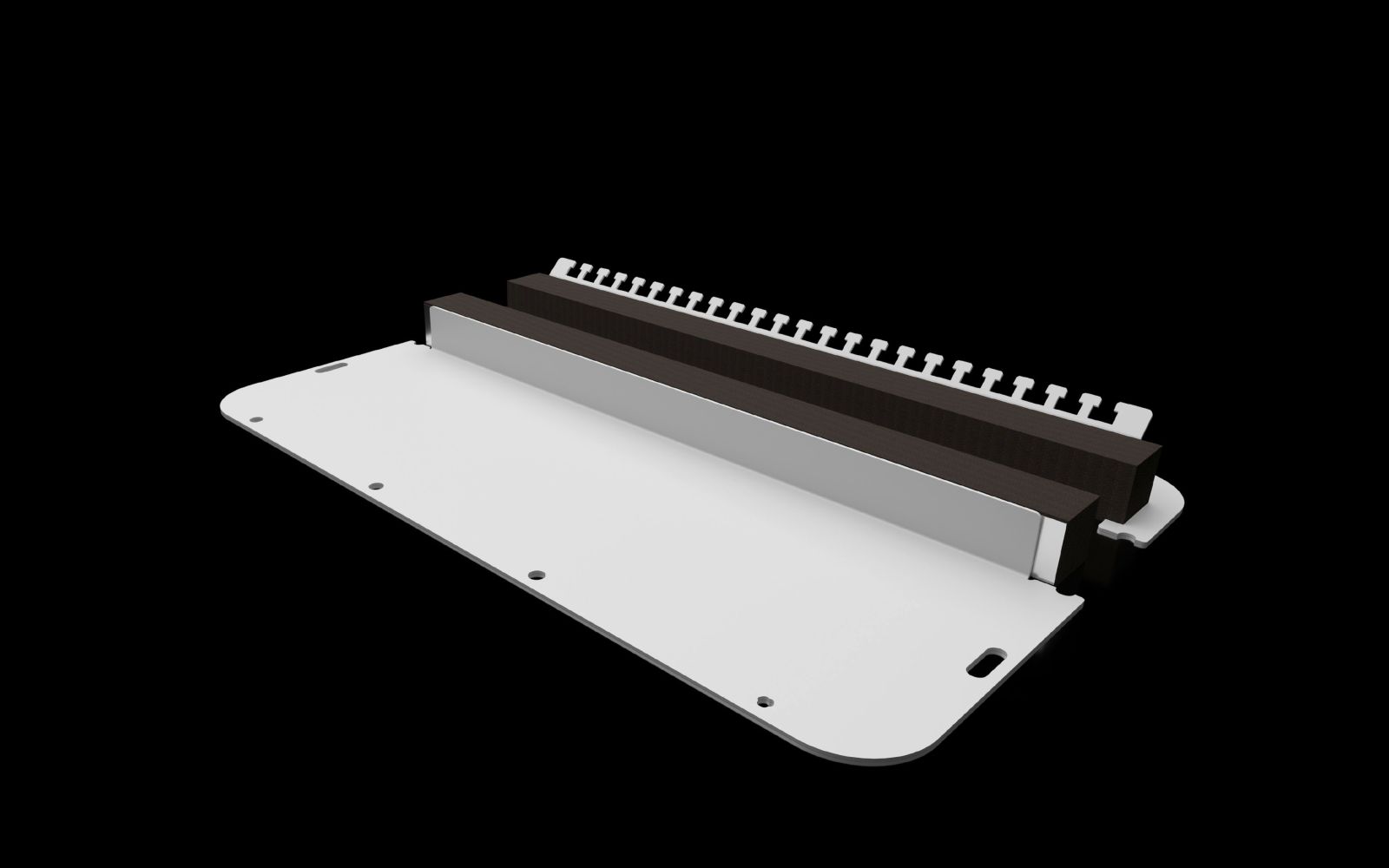

Rittal 2567450
This image may differ from the desired article.
-10% 50,95 EUR 56,83 EUR
( 60,63 EUR incl. VAT )
≈ £42.65  |  ≈ $55.99
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2567450 Metal gland plate two-piece, for AX, with elastic
Datasheet:file_download Download
Lieske Part No.:1062217
Mfg Part No: 2567450
UPC/EAN: 4028177973145
Weight:1.46 kg
Type:SZ 2567450

Product information for Rittal 2567450:

The Rittal SZ 2567450 is a two-part metal gland plate, specifically designed for enclosures of the AX housing type. It serves as a mounting element for devices and modules inside enclosures, enabling secure and precise installation. The gland plate is made of sheet steel and finished in RAL 7035, ensuring visual harmony with other Rittal products. Dimensions are 436 mm in width and 221 mm in depth, designed for gland plate size 7. The two-part design allows flexible adaptation to different enclosure widths, especially when exceeding 760 mm, requiring two packaging units in such cases.

Applications

The gland plate is primarily used in industrial environments where stable and durable mounting of electrical or electronic components in enclosures is required. It is particularly suitable for applications demanding high mechanical load capacity and precise device positioning within the enclosure. Its intended use is in AX-type enclosures, with compatibility confirmed for specific article numbers such as 1260.000, 1339.000, 1360.000, 1376.000, 1059.000, 1091.000, 1116.000, and 1261.000. Thus, the gland plate is part of a modular system approach enabling standardized and efficient installation.

Functions and Equipment in Detail

The SZ 2567450 features an elastic clamping profile that ensures secure and vibration-resistant mounting of devices. This profile maintains mounted modules securely even under mechanical shocks or vibrations during operation. The two-part construction offers flexibility in adapting to different enclosure widths and simplifies installation in larger enclosures.

Technology Explained Simply

The gland plate is made of sheet steel, a material known for its strength and long-term stability in industrial environments. The RAL 7035 color corresponds to a gray-beige standard tone commonly used in electrical and automation technology. Dimensions of 436 mm width and 221 mm depth are aligned with standard enclosure module sizes. The two-part design enables modular installation, requiring two units for enclosure widths exceeding 760 mm to ensure a complete mounting line. The elastic clamping profile provides a spring-loaded yet stable fixation, absorbing mechanical stresses.

Compatibility and Accessories

The gland plate is specifically designed for AX-type enclosures and fits the mentioned article numbers. As suitable accessory, an elastic clamping profile IP55 with a length of 3 m is offered, which can be used for additional securing or reinforcement of the mounting. The use of this accessory is optional and complements the standard equipment of the gland plate.

Mounting and Installation

Installation is carried out using the mounting materials included in the delivery. The two-part construction allows flexible adaptation to enclosure width. For enclosure widths over 760 mm, two units are required to ensure a continuous mounting line. The elastic clamping profiles ensure secure fixation of mounted devices. Installation typically involves screw connections at designated mounting points within the enclosure.

Operational Advantages

The SZ 2567450 provides reliable and mechanically stable mounting of devices within the enclosure. The use of sheet steel ensures high strength, while the elastic clamping profile absorbs vibrations and shocks. The modular, two-part design enables flexible adaptation to different enclosure sizes. The included mounting materials reduce installation effort. Compatibility with specific AX enclosure types ensures standardized and efficient installation in industrial facilities.

General
Modeltwo-piece
Materialsteel sheet
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
NoteThe assignment of flange plate size can be found in the respective housings. For installation in cabinet width >760 mm, 2 units are required.
Width436 mm
Depth221 mm
Suitable forHousing type: AX
Suitable for part no.1260.000, 1339.000, 1360.000, 1376.000, 1059.000, 1091.000, 1116.000, 1261.000
Flange plateSize: 7
PCF/VE (Cradle-to-Gate)5.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 2567450, EAN: 4028177973145

Questions & answers

What is the delivery time of Rittal 2567450 Metal gland plate two-piece, for AX, with elastic?

The article Rittal 2567450 Metal gland plate two-piece, for AX, with elastic is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2567450 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2567450 Metal gland plate two-piece, for AX, with elastic always at the best possible price. We can give you a discount of 2% on Rittal 2567450 Metal gland plate two-piece, for AX, with elastic if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
