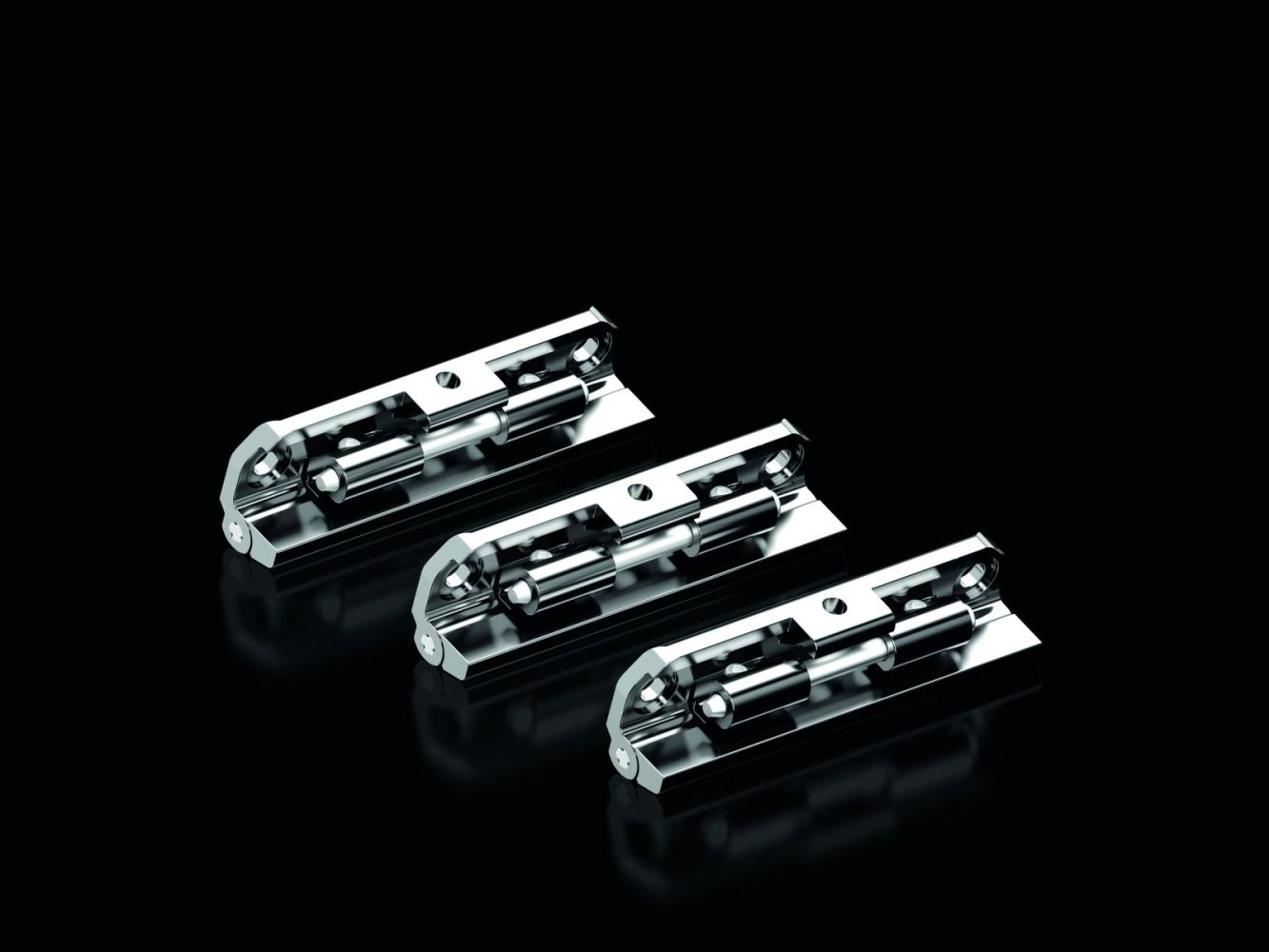

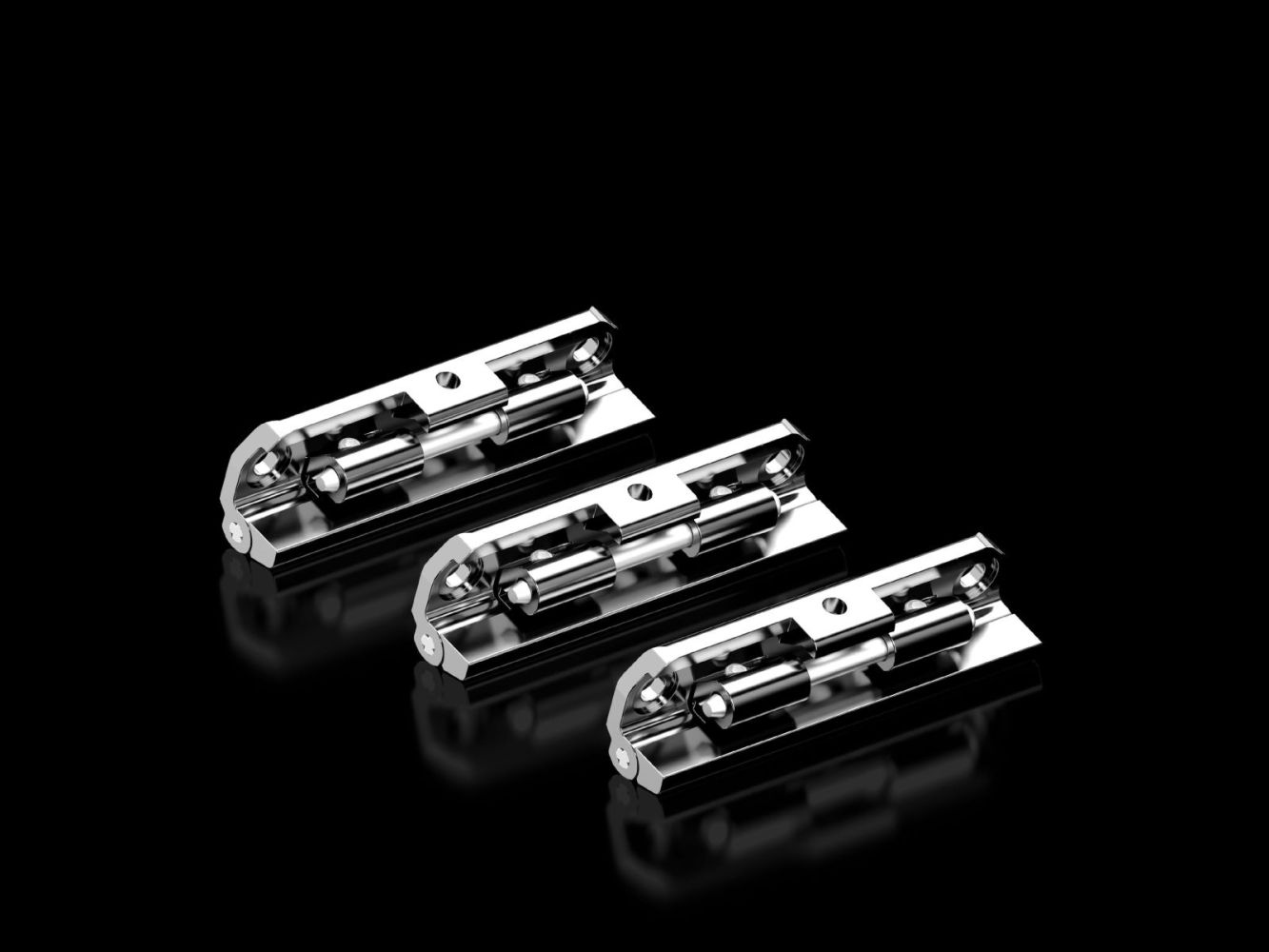

Rittal 2449010 Hinge 180° for AX
|
20,41 EUR |
|
|
( 24,29 EUR incl. VAT ) ≈ £17.08 | ≈ $22.43 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598261 |
| Mfg Part No: | 2449010 |
| UPC/EAN: | 4028177925274 |
| Weight: | 0.46 kg |
| Type: | AX 2449010 |
Product information for Rittal 2449010:
Applications
This hinge is used in industrial and technical installations where maximum opening of the enclosure door is required. It is suitable for enclosures installed in production environments, power supply systems, or IT infrastructures. Compatibility with enclosure types AX, AX IT, stand console CX, and console base CX makes it a universal accessory for various Rittal systems. The door type sheet metal door is the only supported door type, limiting installation to standardized constructions.
Functions and Equipment in Detail
The hinge enables an opening angle of 180°, allowing the door to be fully swung open. It is supplied with fastening materials and a drilling template, ensuring precise and tool-compatible installation on the specified enclosure types. The drilling template serves as an aid for accurate positioning of mounting holes, enabling secure and clean installation. The packaging unit contains 3 pcs, sufficient for simultaneous replacement or additional installation on multiple doors.
Technology Explained Simply
The hinge is made of zinc die-cast, a material known for its high strength, corrosion resistance, and precise shaping. These properties ensure long service life and reliable performance even under industrial conditions. The design is engineered to withstand mechanical stress from frequent opening and closing of the door. Installation is carried out at the designated mounting points on the enclosure door, with the drilling template supporting accurate alignment of the mounting holes.
Compatibility and Accessories
The hinge is exclusively intended for enclosure types AX, AX IT, stand console CX, and console base CX. It is designed for sheet metal doors, making its use on other door types, such as plastic or glass doors, impossible. Compatibility with the specified enclosure types ensures secure and standardized integration into existing Rittal systems. The UL 50E certification includes Type Ratings Type 1, Type 3R, Type 4, and Type 12, enabling use in indoor and outdoor environments as well as in areas with increased humidity or dust exposure.
Installation and Mounting
Installation is performed using the included fastening materials and drilling template. The template is positioned on the door to precisely mark the mounting holes. The hinges are then secured to the door and enclosure using the provided screws. No special tools are required, although a drill and screwdriver are necessary.
Operational Advantages
Extending the door opening angle to 180° improves accessibility to the interior of the enclosure, simplifying maintenance, inspection, and assembly of components. The use of zinc die-cast ensures high mechanical stability and durability. The UL 50E certification for multiple Type Ratings allows flexible use in various environments, including outdoor areas with increased humidity or dust exposure. The packaging of 3 pcs provides an economical solution for equipping multiple doors simultaneously.
| General | |
| Material | zinc die-cast |
| Scope of delivery | Including mounting hardware, drilling template |
| Door opening angle | 180° |
| Suitable for door variant | Steel sheet door |
| Suitable for housing type | AX, AX IT, stand console CX, console base CX |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
