Rittal 1090000 Compact enclosure AX, 1-door, 600x1000x250 mm (freight shipping)

Your rating:
Average rating
product review for Rittal 1090000 Compact enclosure AX, 1-door, 600x1000x250 mm (freight shipping)
( 4.9 / 5 ) 7 ratings

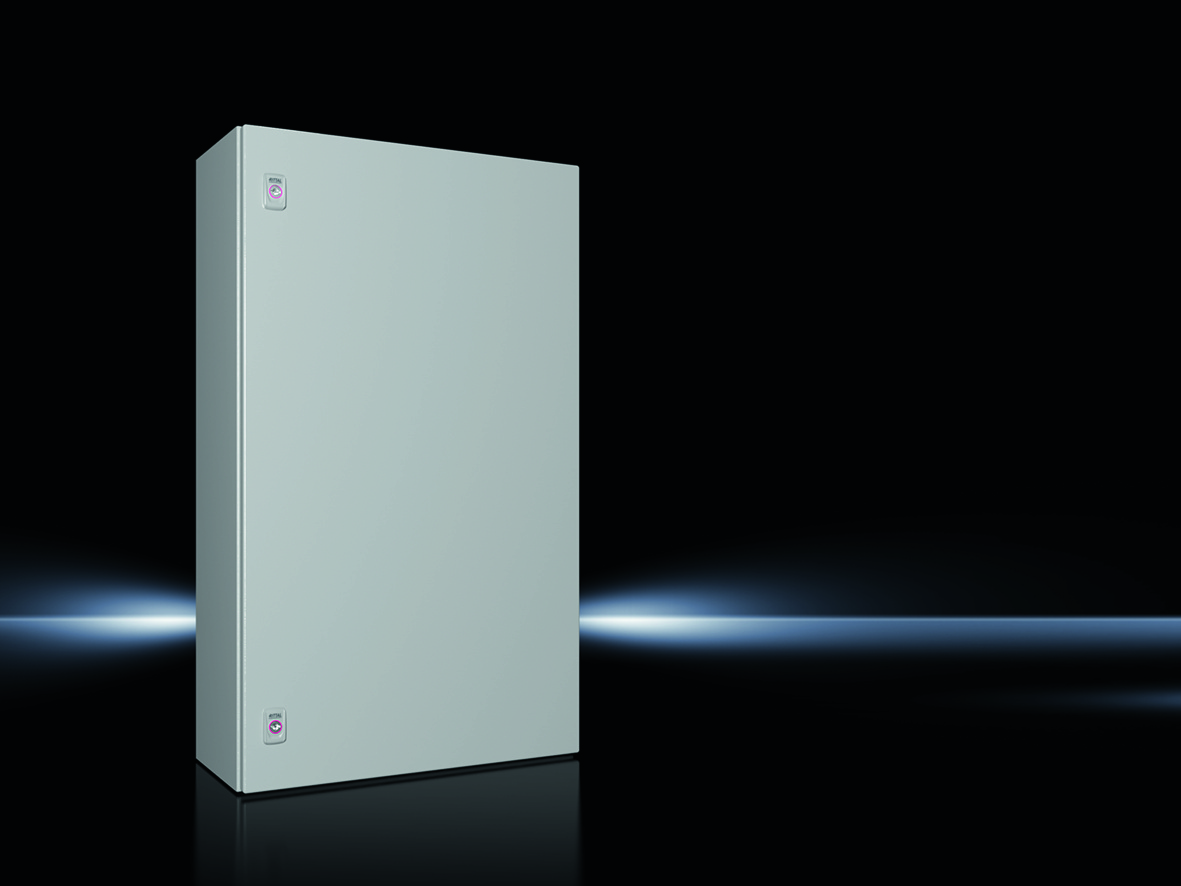

Rittal 1090000
This image may differ from the desired article.
Rittal 1090000Rittal 1090000Rittal 1090000Rittal 1090000Rittal 1090000Rittal 1090000Rittal 1090000
195,98 EUR 196,39 EUR
( 233,22 EUR incl. VAT )
≈ £164.04  |  ≈ $215.38
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 1090000 Compact enclosure AX, 1-door, 600x1000x250 mm (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1598150
Mfg Part No: 1090000
UPC/EAN: 4028177813304
Weight:39.5 kg
Type:AX 1090000

Product information for Rittal 1090000:

The Rittal AX 1090000 is a compact enclosure made of sheet steel, designed for use in industrial and technical installations. The enclosure has dimensions of width 600 mm, height 1,000 mm, and depth 250 mm, and is equipped with a single door. The door hinge direction is reversible, allowing the enclosure to be flexibly adapted to different mounting conditions. The construction is based on a patented system with integrated enclosure lugs in a 25 mm system grid, enabling the installation of internal components without drilling. This system ensures simple and secure installation of rails and accessories, maintaining the protection rating (UL approval). The mounting plate inside the enclosure has dimensions of 545 mm × 975 mm and is galvanized, allowing secure fastening of components and earthing via keyhole slots.

Applications
The enclosure is suitable for use in indoor and outdoor environments, as it features protection rating IP 66 according to EN 60 529, meaning dust-tight and water-tight. The protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), make it suitable for various environments, including humid or dusty rooms. The IK code IK10 guarantees high mechanical protection against mechanical impacts. The continuously foamed PU seal around the door ensures a tight seal and prevents ingress of dust and moisture.

Functions and Equipment in Detail
The enclosure is made of sheet steel with a material thickness of 1.5 mm; the door has a thickness of 2 mm. The surface of the enclosure and door is dip-primed and externally powder-coated with a textured finish, ensuring high corrosion resistance and durability. The color is RAL 7035. The door is equipped with two latching locks, each fitted with a 3 mm double-barrel lock insert. The gland plate in the enclosure base has size 4 and is used for secure mounting to a wall or floor. The door features vertical door hole strips on both sides, enabling easy mounting of control elements.

Technology Explained Simply
The integrated enclosure lugs in a 25 mm grid allow installation of internal components without drilling, reducing installation time and preserving the integrity of the protection rating. The base mounting rail provides an additional mounting level and increases load capacity. The mounting plate is marked with dimensions and secured with ring weld nuts, enabling precise positioning of components. The QR code printed on the enclosure body, door, and nameplate allows unique identification and easy access to product information and documentation.

Compatibility and Accessories
The enclosure is compatible with an extensive range of system accessories offered by Rittal. These include lock inserts made of zinc die-cast, lock box covers, mounting brackets, wall mounting angles, VX system chassis, dust protection strips, baying sets, knob handles, handles with security cylinder, metal gland plates, and the AS Multitool AX/VX. These components can be added as needed to extend the functionality of the enclosure.

Mounting and Installation
Mounting is done via the gland plate in the enclosure base, ensuring secure fastening to a wall or floor. The door can be mounted in right- or left-hand position, allowing flexible adaptation to the installation site. Internal components are mounted using the integrated enclosure lugs and rails, eliminating the need for drilling. The mounting plate features keyhole slots for earthing, enabling a secure electrical connection.

Advantages in Operation
The enclosure offers high mechanical and climatic protection, making it suitable for demanding environments. The simple installation without drilling reduces installation time and minimizes the risk of damage to the enclosure. The integrated mounting plate and base mounting rail increase load capacity and provide additional mounting surfaces. The use of high-quality materials and a durable surface treatment ensures long service life and low maintenance requirements. Compatibility with a wide range of accessories allows individual adaptation to specific requirements.

General
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK10
Width600 mm
Height1.000 mm
Depth250 mm
Door material thickness2 mm
Plate thickness cabinet1,5 mm
Mounting plate material thickness2,5 mm
Mounting plate dimensions (W x H)545 mm x 975 mm
Number of doors1
Number of locks2
LockClosure type: latch, number of closures: 2, closure insert: 3 mm double barb
Flange plateSize: 4, Quantity: 1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)134.82 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
Reversible door hingeJa


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 1090000, EAN: 4028177813304
