Rittal 8619750 VX system chassis 14 x 39 mm, door width: 1000 mm

Your rating:
Average rating
product review for Rittal 8619750 VX system chassis 14 x 39 mm, door width: 1000 mm
( 4.9 / 5 ) 8 ratings
Rittal 8619750
This image may differ from the desired article.
Rittal 8619750Rittal 8619750Rittal 8619750Rittal 8619750Rittal 8619750Rittal 8619750Rittal 8619750Rittal 8619750
-8% 60,15 EUR 65,14 EUR
( 71,58 EUR incl. VAT )
≈ £50.35  |  ≈ $66.10
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8619750 VX system chassis 14 x 39 mm, door width: 1000 mm
Datasheet:file_download Download
Lieske Part No.:1441074
Mfg Part No: 8619750
UPC/EAN: 4028177924642
Weight:2.06 kg
Type:VX 8619.750

Product information for Rittal 8619750:

The Rittal VX 8619.750 is a system chassis made of sheet steel with a galvanised surface, specifically designed for use in enclosures of the VX SE and AX stainless steel series. It serves as a mounting element for various components such as cable ducts, cable conduit holders, or door inserts. The chassis has a cross-section size of 14 x 39 mm and is designed for a door width of 1,000 mm. The packaging unit includes 4 pieces, and the product is delivered with mounting material included.

Applications

The system chassis is used in industrial enclosures to securely and stably mount additional components. It is particularly suitable for applications requiring structured and accessible cabling. Its use in enclosures of the VX SE and AX stainless steel types enables flexible integration into existing systems. For VX SE, the chassis is installable in door widths of 900 mm, while for AX stainless steel, a housing height of 1,000 mm is required.

Functions and Equipment in Detail

The chassis features a stable construction made of galvanised sheet steel, providing high mechanical strength and corrosion protection. The mounting points are spaced at 875 mm intervals, enabling even load distribution. For installation in AX sheet steel enclosures, the use of an AX internal mounting rail is required.

Technology Explained Simply

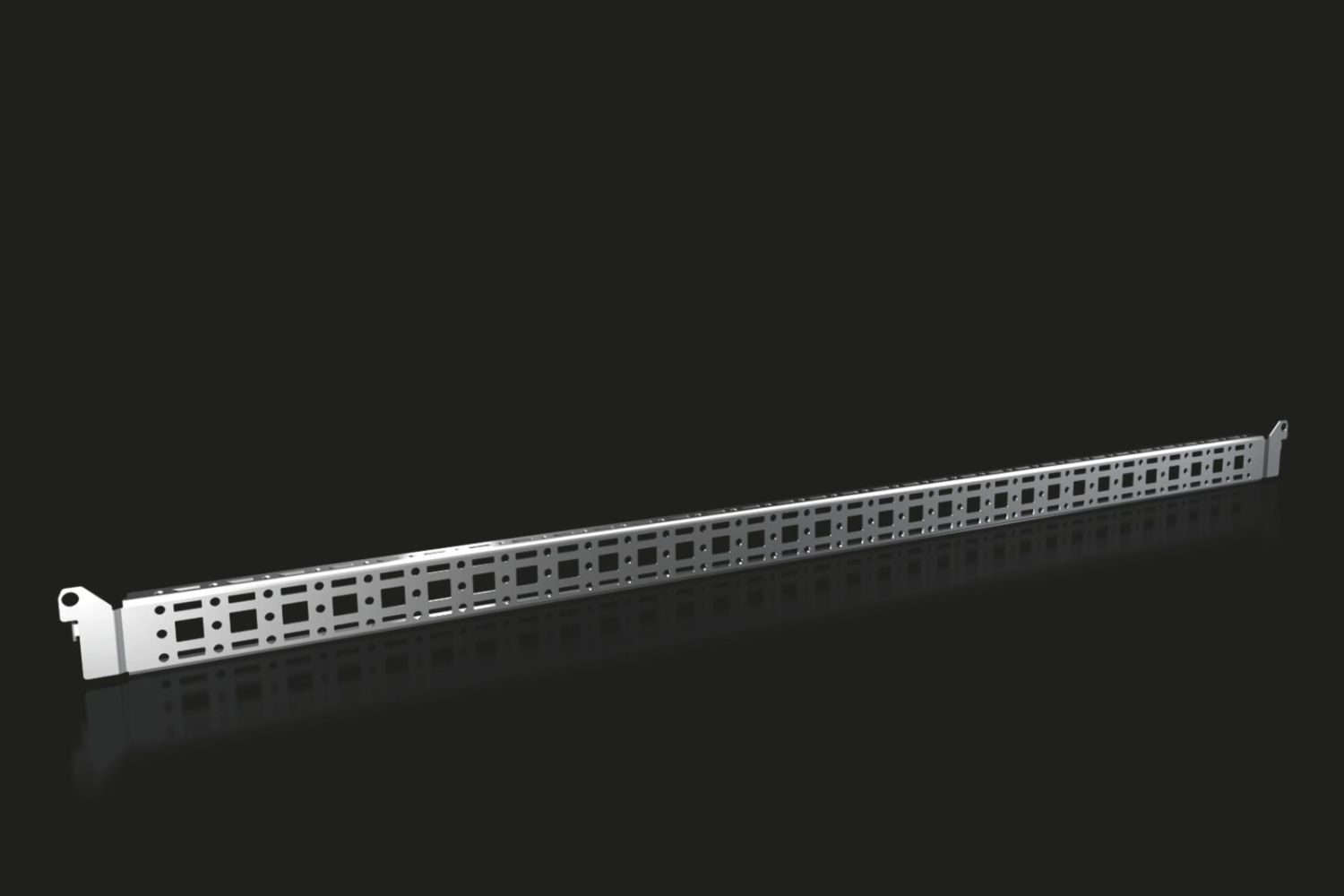

The system chassis is a perforated profile with a mounting flange, designed to be inserted into the designated mounting openings in enclosure doors. The dimensions of 14 x 39 mm allow for secure mounting of cable ducts and other components. The galvanised surface protects the material from corrosion, especially in damp or industrial environments. Installation is carried out using the mounting materials included in the delivery. When using custom components, sheet metal screws or thread-forming screws M5 are required.

Compatibility and Accessories

The chassis is compatible with enclosure types VX SE and AX stainless steel. For VX SE, it can be mounted in door widths of 900 mm, while for AX stainless steel, a housing height of 1,000 mm is required. For installation in AX sheet steel enclosures, combination with an AX internal mounting rail is necessary.

Mounting and Installation

Installation is performed by inserting the chassis into the designated mounting openings in the enclosure door. Fixing is done using the mounting materials included in the delivery. When using custom components on the chassis, sheet metal screws or thread-forming screws M5 are required. Installation in AX sheet steel enclosures requires the additional use of an AX internal mounting rail.

Advantages in Operation

The system chassis provides a stable and corrosion-resistant mounting solution for various components within the enclosure. The predefined mounting spacing and the use of galvanised sheet steel ensure a long service life and reliable performance. Its compatibility with various enclosure types increases flexibility in system design. The delivery including mounting material reduces installation effort.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Distance between mounting points875 mm
Suitable for door width1.000 mm
Mounting options VX SEIn door width 900 mm
Mounting options AX stainless steelIn housing height 1000 mm
Mounting noteFor installation in AX sheet metal only in conjunction with mounting rail for indoor installation AX
NoteFor expansion with own components on the system chassis, sheet metal screws or thread-forming screws M5 are required
Suitable forHousing type: VX SE, AX stainless steel, suitable for width or height or depth: 1.000 mm
PCF/VE (Cradle-to-Gate)13,6


Product data sheet
Datasheet for Rittal 8619750, EAN: 4028177924642

Questions & answers

What is the delivery time of Rittal 8619750 VX system chassis 14 x 39 mm, door width: 1000 mm?

The article Rittal 8619750 VX system chassis 14 x 39 mm, door width: 1000 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619750 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619750 VX system chassis 14 x 39 mm, door width: 1000 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619750 VX system chassis 14 x 39 mm, door width: 1000 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
