Rittal 2509010 Transport eye for AX, for crane transport, threaded

Your rating:
Average rating
product review for Rittal 2509010 Transport eye for AX, for crane transport, threaded
( 4.5 / 5 ) 8 ratings
Rittal 2509010
This image may differ from the desired article.
Rittal 2509010Rittal 2509010Rittal 2509010Rittal 2509010
-6% 27,83 EUR 29,50 EUR
( 33,12 EUR incl. VAT )
≈ £23.29  |  ≈ $30.59
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2509010 Transport eye for AX, for crane transport, threaded
Datasheet:file_download Download
Lieske Part No.:1598258
Mfg Part No: 2509010
UPC/EAN: 4028177938298
Weight:0.66 kg
Type:AX 2509010

Product information for Rittal 2509010:

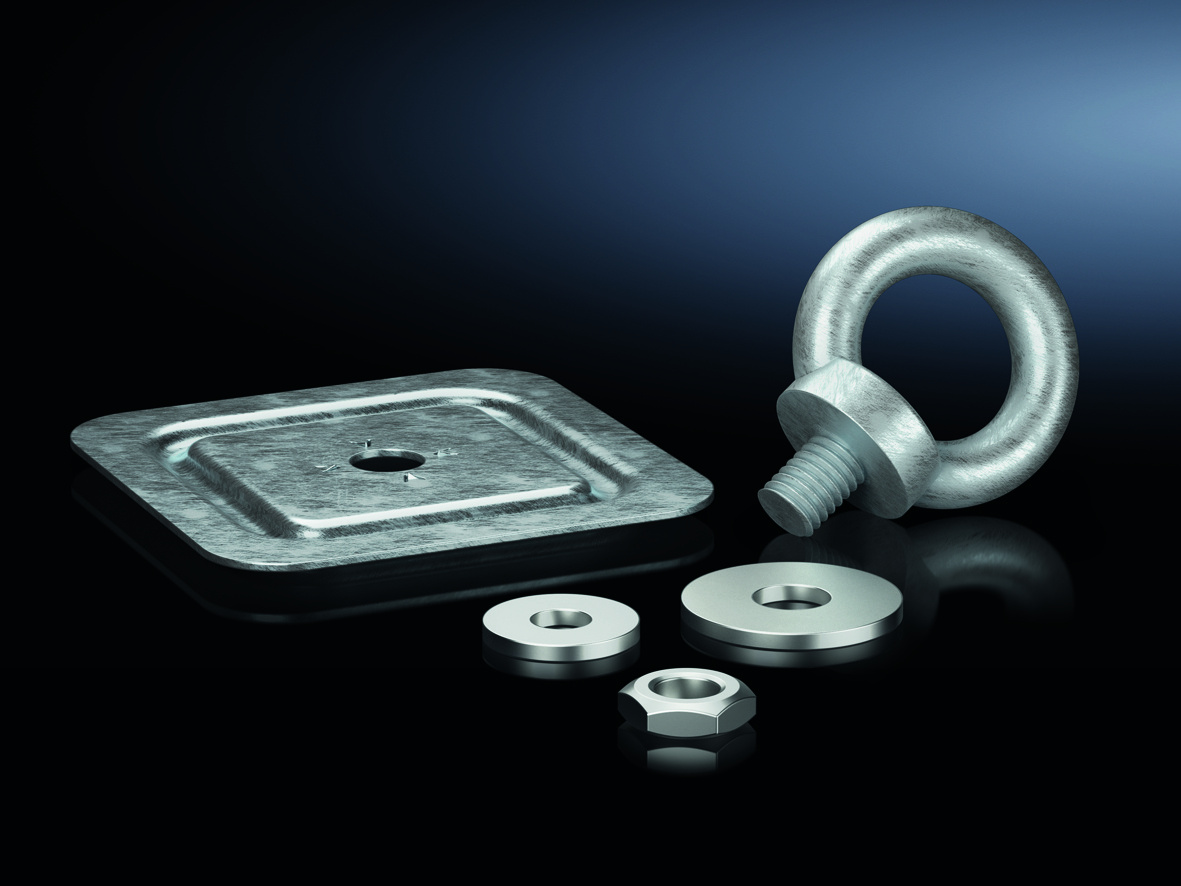

Rittal AX 2509010 lifting eyes are specifically designed for the safe crane transport of enclosures. They consist of two lifting eyes with an M12 thread and a reinforcement plate, which is placed under the enclosure wall to optimize load distribution and prevent damage. These components are intended for enclosure types from the AX and AE series, which are frequently used in industrial applications for the installation and transport of electrical and electronic systems.

Applications
Lifting eyes are primarily used for the safe lifting and transportation of enclosures using cranes or lifting devices. They are designed for use in production environments, during plant installation, or when relocating enclosures in industrial facilities. The use of the reinforcement plate ensures that the load is evenly distributed across the enclosure wall, protecting the structural integrity of the enclosure.

Features and Equipment in Detail
The lifting eyes are equipped with an M12 thread, enabling secure fastening into the designated holes in enclosures. The included reinforcement plate is placed under the enclosure wall to distribute the load during lifting and protect the wall from bending or cracking. The product is supplied in a pack of two, which is sufficient for most standard enclosures to ensure a stable and secure lifting connection.

Technology Explained Simply
The M12 threaded connection provides a robust and standardized fastening method widely used in industrial electrical engineering. The reinforcement plate acts as a load-distribution element, reducing pressure forces on the enclosure wall and minimizing the risk of material failure. The design is engineered to safely support required loads during lifting without compromising the enclosure’s structure.

Compatibility and Accessories
The lifting eyes are specifically developed for enclosures of the AX and AE series. These enclosures are part of the Rittal system and are commonly used in industrial installations. The use of lifting eyes is only possible with the corresponding holes in the enclosures, which are designed for mounting.

Installation and Mounting
Mounting is performed by inserting the lifting eyes into the designated holes in the enclosure wall. The reinforcement plate is placed under the wall before the lifting eyes are screwed in. Fastening is done using a suitable screwdriver or an electric screwdriver. Correct installation is essential to ensure proper load distribution and protect the enclosure’s structure.

Operational Advantages
The use of Rittal AX 2509010 lifting eyes enables safe and efficient transport of enclosures. The integrated load distribution via the reinforcement plate reduces the risk of damage to the enclosure. The M12 threaded connection ensures a stable fastening that meets industrial requirements. The pack of two covers most standard applications and simplifies preparation for transport.

The lifting eyes are certified to UL 50E, Type 1 and Type 12, confirming suitability for indoor use and environments with limited protection against dust and splashing water. The PCF values (Cradle-to-Gate) are 2.5 kg CO2 eq per packaging unit, with category B indicating that the value is approximately calculated based on product weight and self-declared.

General
Scope of deliveryLifting eyes, reinforcement plate
ThreadM12
Type rating according to UL 50EType 1, Type 12
Suitable forEnclosure type: AX, AE
PCF/VE (Cradle-to-Gate)2.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 2509010, EAN: 4028177938298

Questions & answers

What is the delivery time of Rittal 2509010 Transport eye for AX, for crane transport, threaded?

The article Rittal 2509010 Transport eye for AX, for crane transport, threaded is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2509010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2509010 Transport eye for AX, for crane transport, threaded always at the best possible price. We can give you a discount of 2% on Rittal 2509010 Transport eye for AX, for crane transport, threaded if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
