Rittal 8618531 VX add-on module, for W: 1200 mm

Your rating:
Average rating
product review for Rittal 8618531 VX add-on module, for W: 1200 mm
( 4.5 / 5 ) 2 ratings
Rittal 8618531

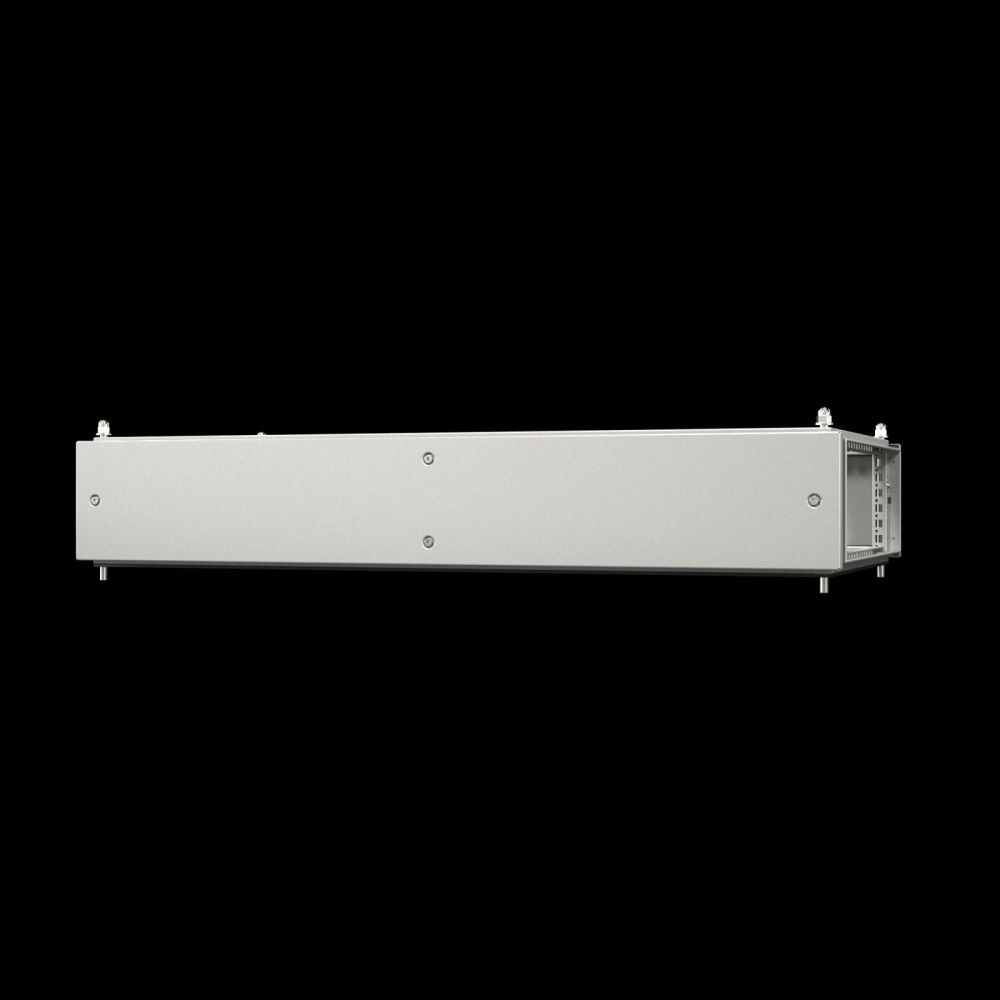

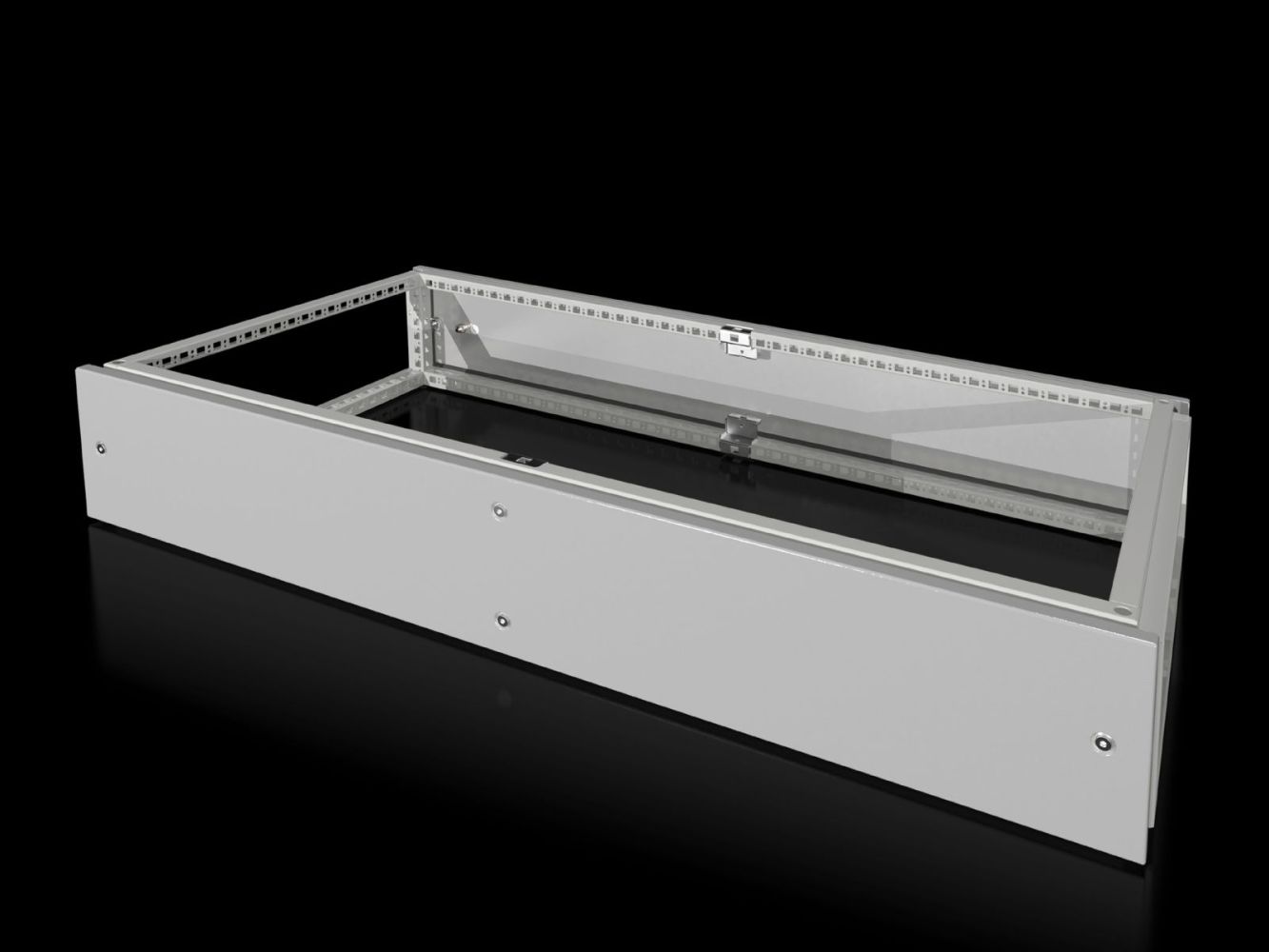

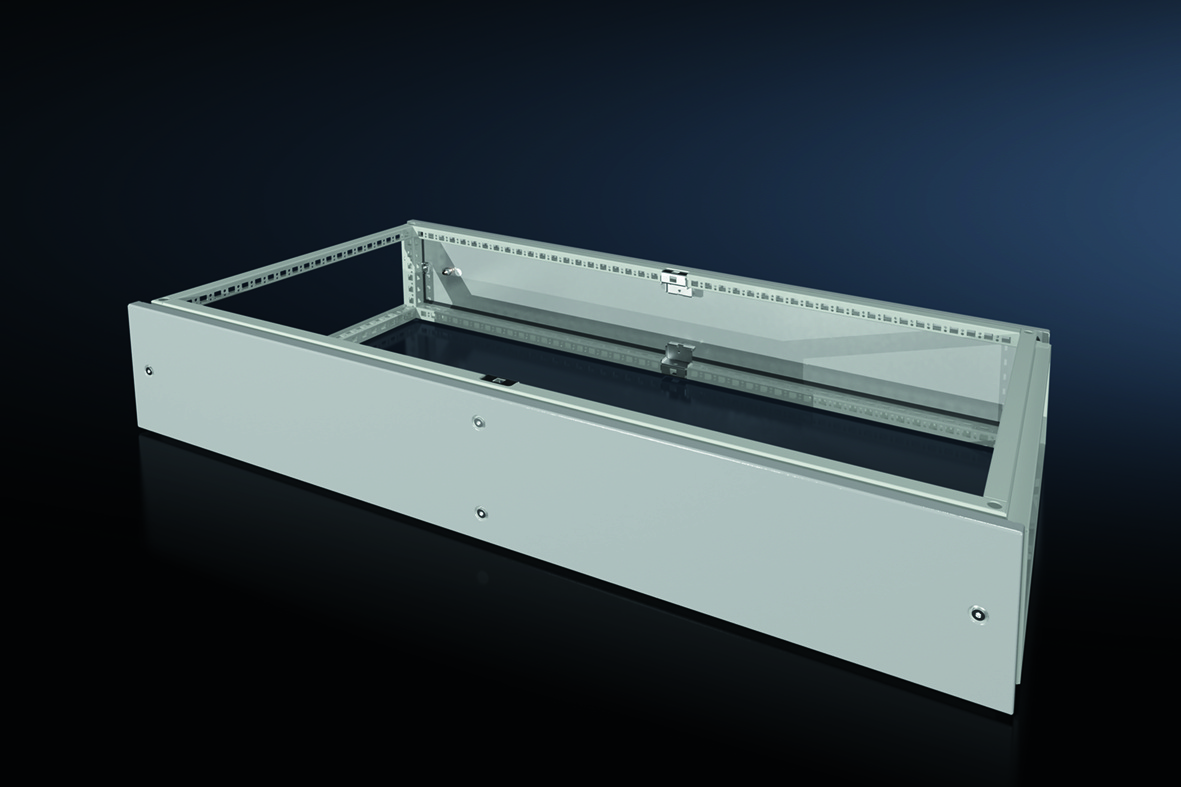

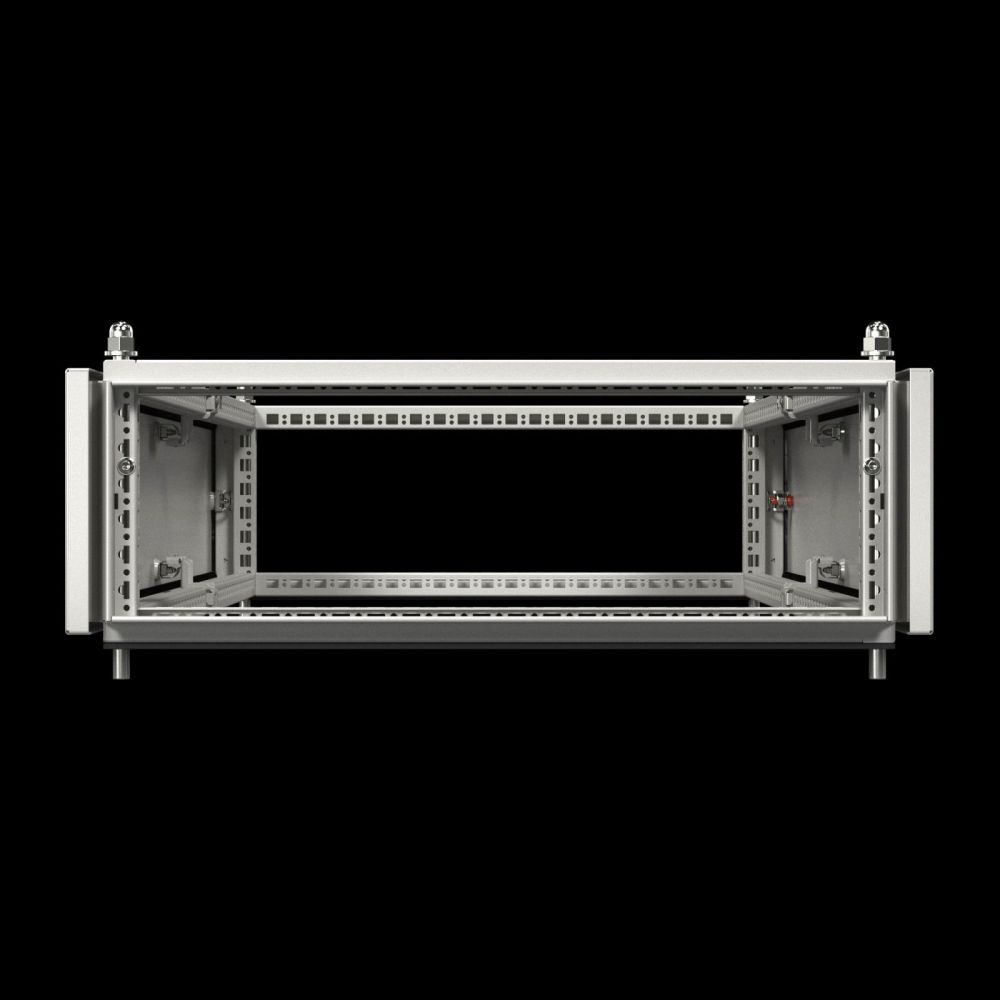

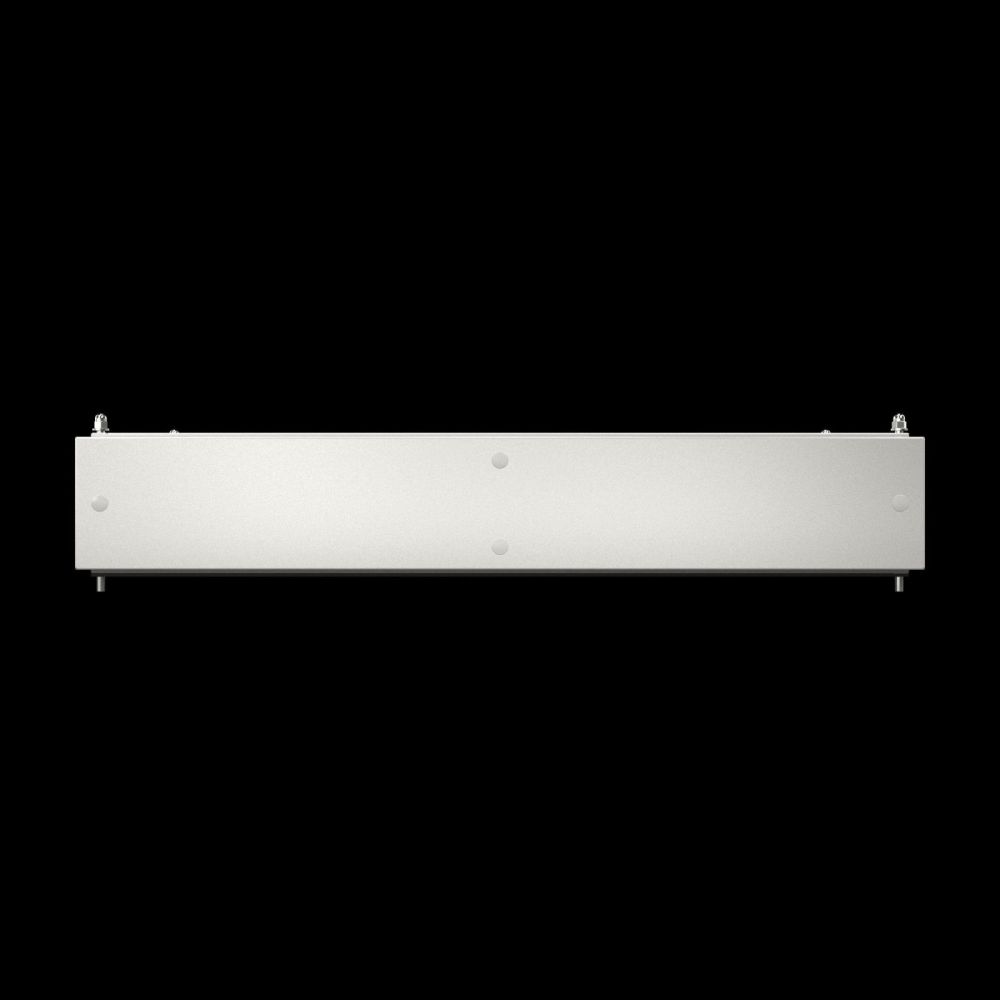

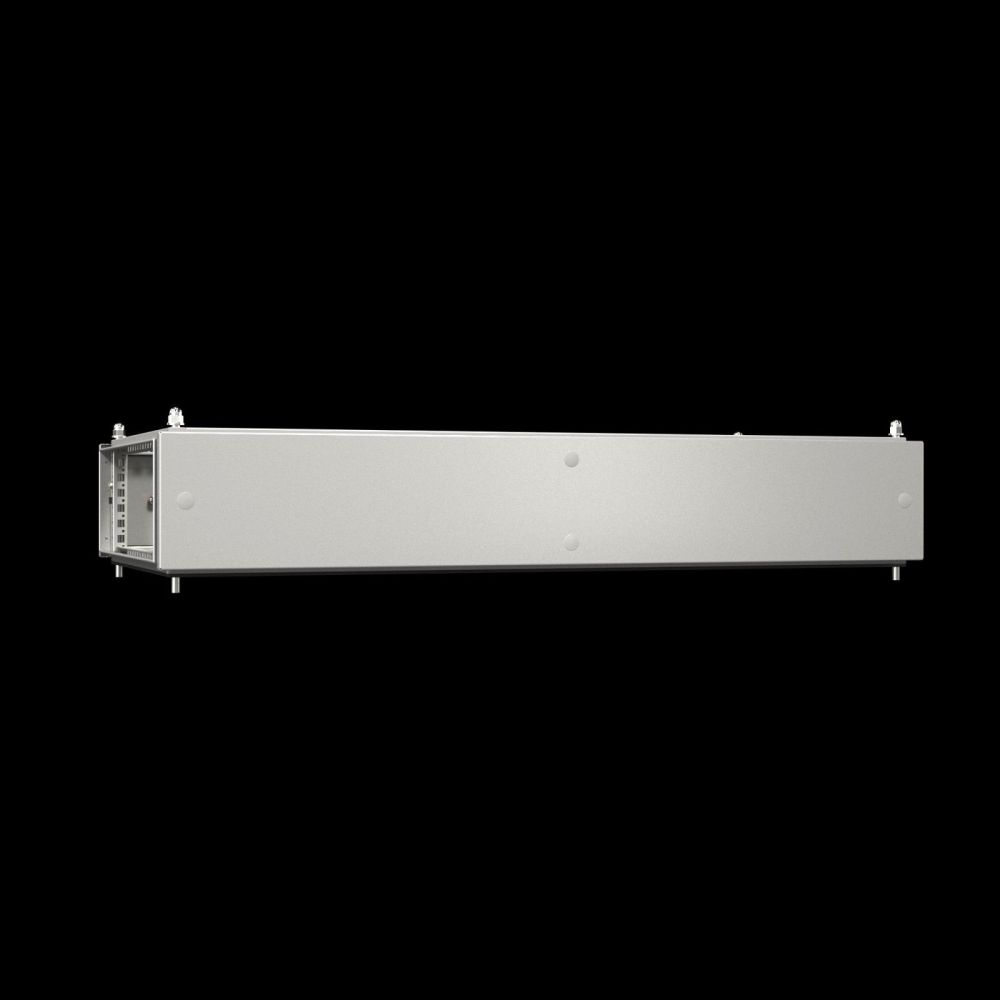

This image may differ from the desired article.
Rittal 8618531Rittal 8618531Rittal 8618531Rittal 8618531Rittal 8618531Rittal 8618531Rittal 8618531
-8% 430,10 EUR 465,81 EUR
( 511,82 EUR incl. VAT )
≈ £359.99  |  ≈ $472.68
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8618531 VX add-on module, for W: 1200 mm
Datasheet:file_download Download
Lieske Part No.:1989429
Mfg Part No: 8618531
UPC/EAN: 4028177957589
Weight:18.06 kg
Type:VX 8618531

Product information for Rittal 8618531:

The Rittal VX 8618531 is an add-on module for enclosures of type VX, specifically designed for a width of 1,200 mm and a depth of 600 mm. It serves as a cable routing space for accommodating cable entries from above or as an energy distribution element with busbar systems over bayed enclosures. The module is closed with the standard roof plate of the enclosure, creating a sealed and protection-compliant top surface. The construction from sheet steel with a thickness of 1.5 mm ensures high mechanical stability and durability in industrial environments.

Applications

The add-on module is intended for use in industrial electrical installations, particularly in systems where structured and protected cable routing from above into the enclosure is required. It is also suitable for integrating busbar systems that run across multiple adjacent enclosures. The protection rating IP 55 according to IEC 60 529 safeguards against dust and splashing water, making it suitable for use in damp or dusty environments. Additionally, the module meets the type rating according to UL 50E: Type 1 and Type 12, confirming its suitability for indoor use with limited protection against splashing water and dust.

Functions and Equipment in Detail

The module is supplied with a frame module forming the structural base. This includes two front and rear trim panels, which provide the external closure of the module and support visual integration into the enclosure system. The 8 holders with automatic equipotential bonding enable secure and electrically safe mounting of components, minimizing the risk of voltage differences. The delivery scope also includes mounting hardware required for installation on the enclosure.

Technology Explained Simply

The use of sheet steel with 1.5 mm thickness ensures sufficient strength to withstand mechanical loads during operation. The surface is coated with textured paint in RAL 7035, providing a uniform, robust, and corrosion-resistant finish. The color RAL 7035 is a gray tone that integrates well in industrial environments. The height of 200 mm is aligned with standard dimensions of VX control systems to ensure easy mounting and integration.

Compatibility and Accessories

The add-on module is specifically designed for enclosures of the housing type VX with a minimum width of 1,200 mm and a minimum depth of 600 mm. It is compatible with various accessories, including C-profile rails 30/15 according to EN 60715, support rails (punched and unpunched) for VX and TS systems, VX system chassis, baying brackets, VX mounting rails, and cable strain relief rails. These components can be used additionally to optimize the module for specific applications such as cable management or mounting of assemblies.

Mounting and Installation

Installation is carried out directly onto the enclosure, with the module being secured via designated mounting points and the included mounting hardware. The holders with automatic equipotential bonding facilitate the installation of electrical components by ensuring a secure electrical connection. The front and rear trim panels are also mounted to create the external closure. The use of the enclosure’s standard roof plate as the top closure is part of the specified installation instructions.

Operational Advantages

The module provides a structured and protected solution for cable routing from above, simplifying maintenance and inspection of installations. The IP 55 protection rating protects against environmental influences, increasing reliability in industrial environments. The integrated holders with equipotential bonding reduce the risk of electrical hazards and support safe mounting. Compatibility with standard accessories enables flexible adaptation to different operational requirements.

General
MaterialSheet steel, 1.5 mm
Surface protectionPainted, textured paint
ColourRAL 7035
Scope of deliveryFrame module, 2 front/rear panels, 8 holders with automatic potential equalization, including mounting material
Height200 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Suitable forEnclosure type: VX, width: = 1,200 mm, depth: = 600 mm


Product data sheet
Datasheet for Rittal 8618531, EAN: 4028177957589

Questions & answers

What is the delivery time of Rittal 8618531 VX add-on module, for W: 1200 mm?

The article Rittal 8618531 VX add-on module, for W: 1200 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618531 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618531 VX add-on module, for W: 1200 mm always at the best possible price. We can give you a discount of 2% on Rittal 8618531 VX add-on module, for W: 1200 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
