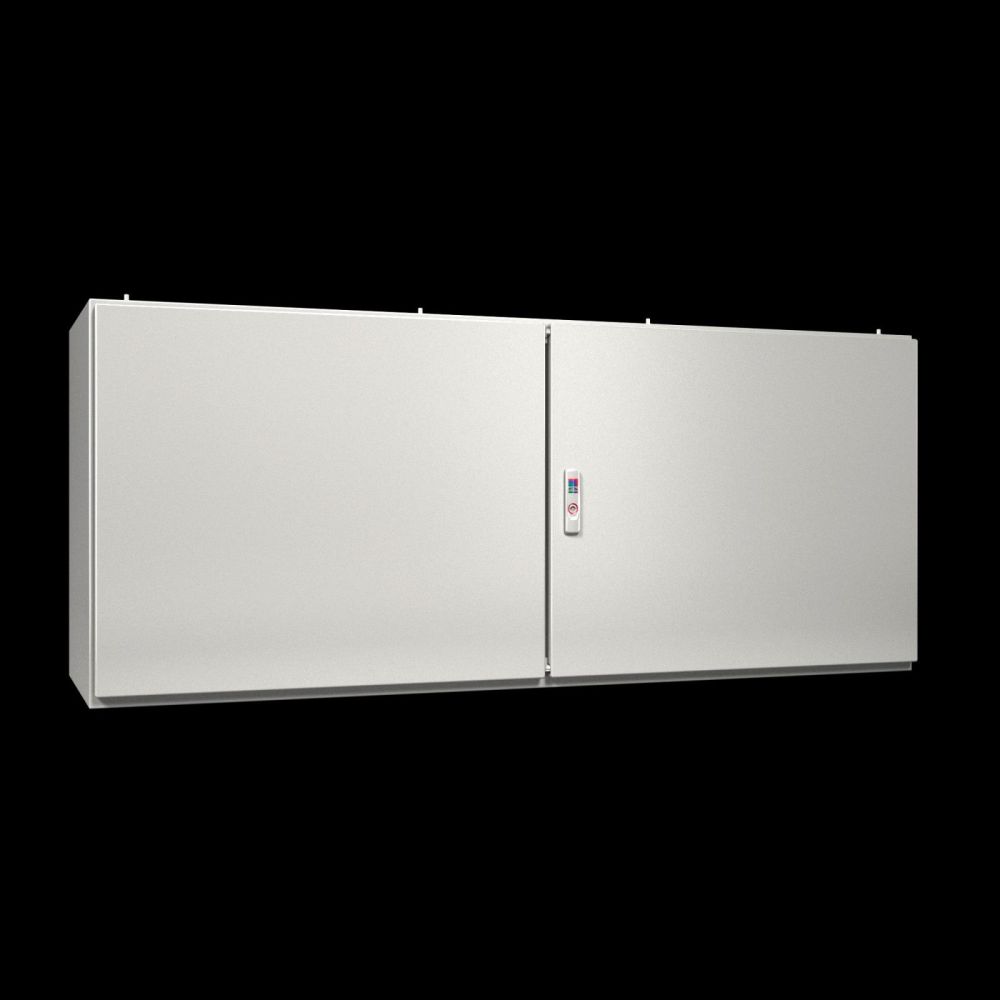

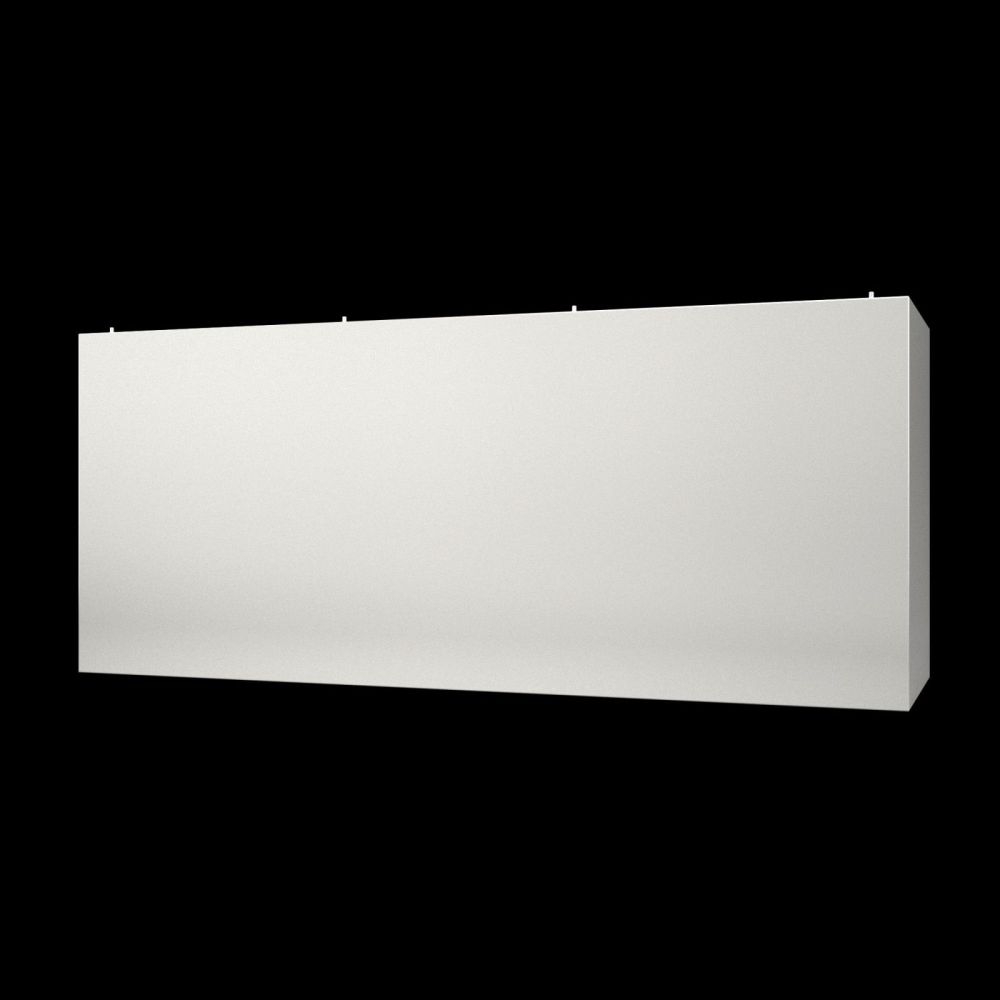

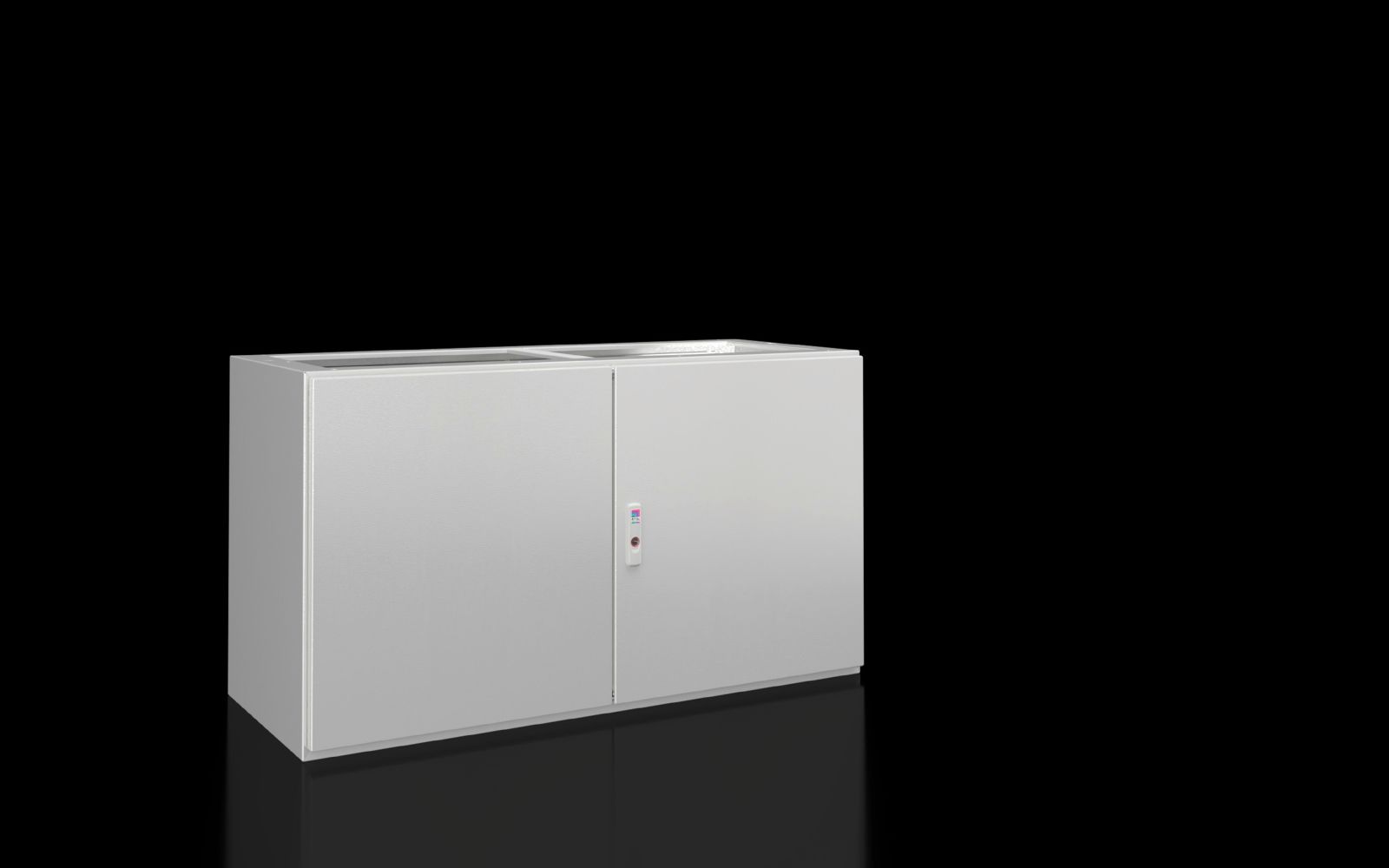

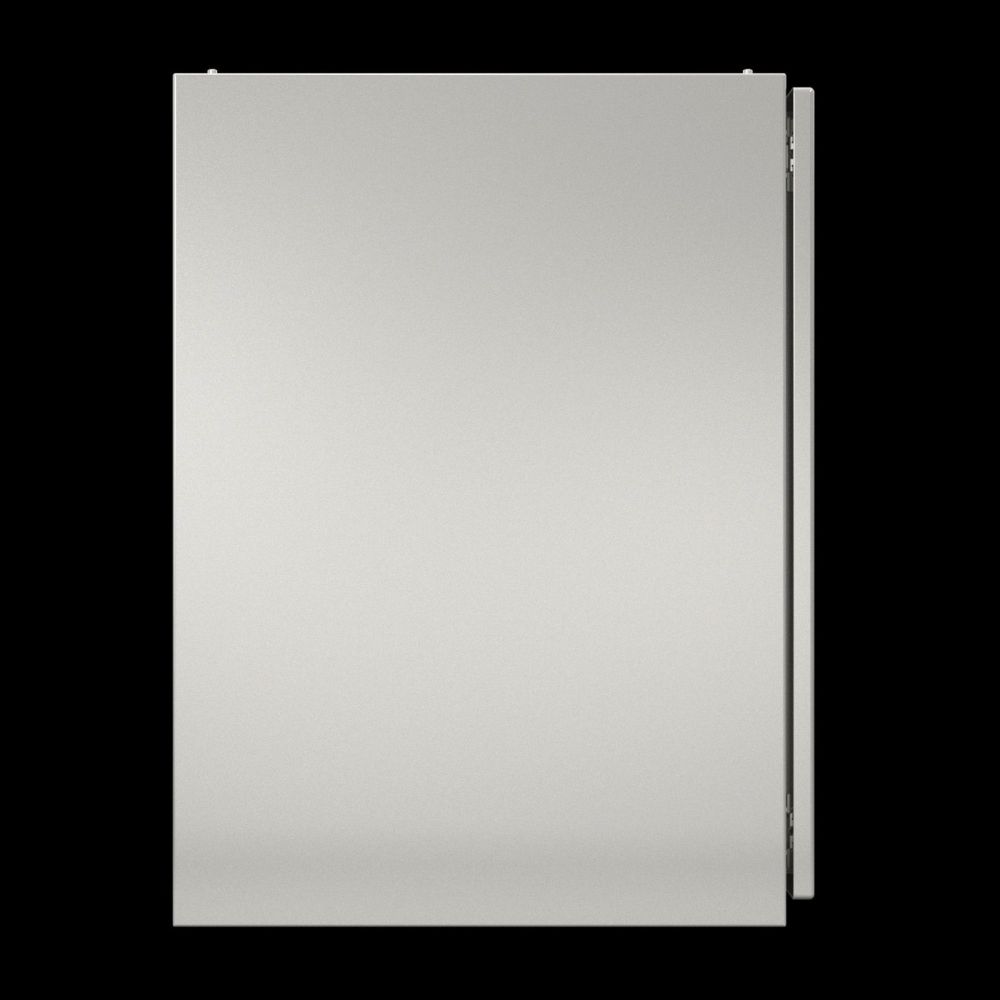

Rittal 6706000 CX console base unit W x H x D: 1200 x 675 x 500 mm

Your rating:
Average rating
product review for Rittal 6706000 CX console base unit W x H x D: 1200 x 675 x 500 mm
( 5 / 5 ) 1 ratings
Rittal 6706000
This image may differ from the desired article.
Rittal 6706000Rittal 6706000Rittal 6706000Rittal 6706000Rittal 6706000Rittal 6706000Rittal 6706000Rittal 6706000
589,95 EUR 613,55 EUR
( 702,04 EUR incl. VAT )
≈ £493.79  |  ≈ $648.36
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 6706000 CX console base unit W x H x D: 1200 x 675 x 500 mm
Datasheet:file_download Download
Lieske Part No.:643170
Mfg Part No: 6706000
UPC/EAN: 4028177983748
Weight:62.75 kg
Type:CX 6706000

Product information for Rittal 6706000:

The Rittal CX 6706000 is a console base unit from the CX console system, designed as a basic element for modular workstation and enclosure solutions in industrial environments. The enclosure is made of sheet steel with a wall thickness of 1.5 mm for the enclosure body, 2.0 mm for the doors, and 2.5 mm for the mounting plate. The surface is dip-primed and externally powder-coated with a textured finish in the colour RAL 7035, ensuring a robust and uniform appearance. The mounting plate is galvanized to provide corrosion protection. The base unit has dimensions of 1,200 mm (width) × 675 mm (height) × 500 mm (depth) and is open at the top, serving as a foundation for modular console construction.

Applications
This console base unit is designed for use in industrial and technical installations where a stable, impact-resistant, and dust- and splash-water-protected housing is required for electrical or electronic components. It is suitable, for example, as a base for control consoles, control enclosures, or mounting units in production plants, machine building, or automation technology. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for outdoor areas or damp indoor environments. The protection ratings NEMA 1 and NEMA 12 further extend its suitability for environments with low to medium contamination risk.

Functions and Equipment in Detail

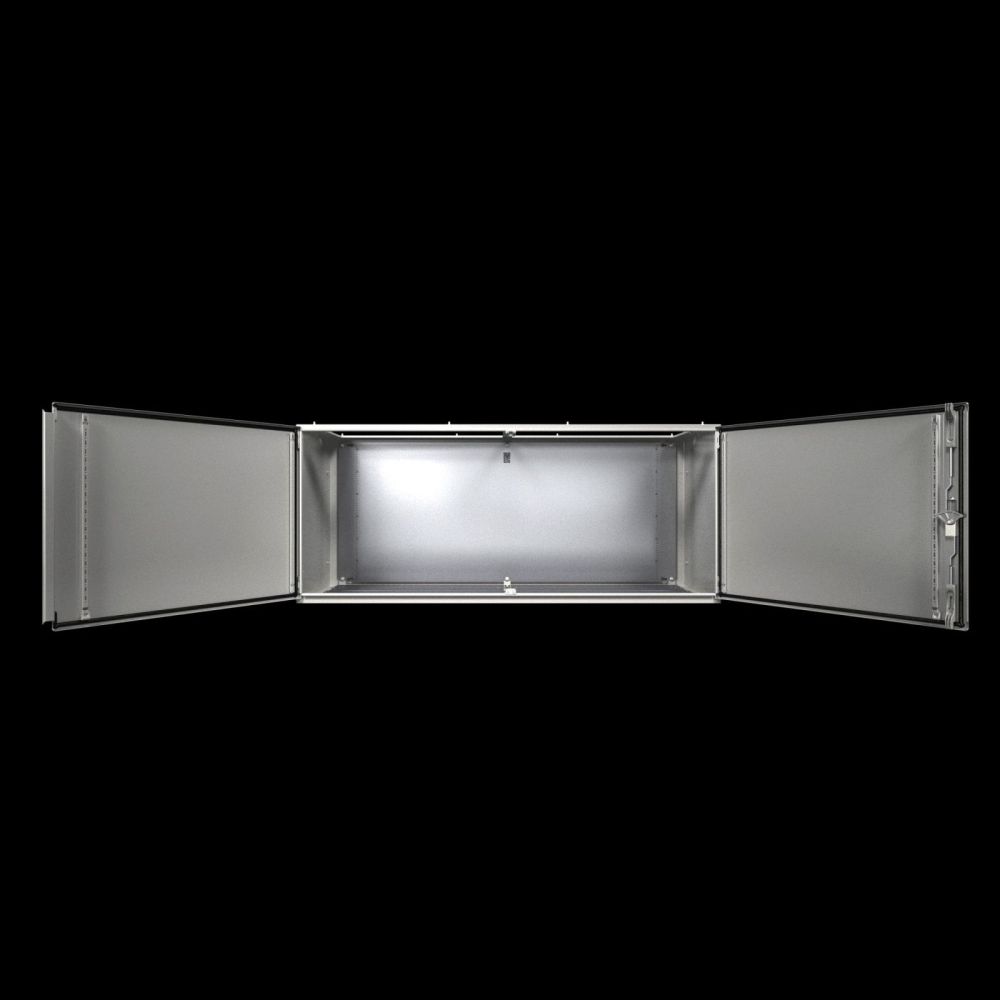

The enclosure features a double door at the front, secured with a 3-point locking system. This system ensures even and secure latching across the entire door width. The lock insert is a 3 mm double bar, inserted into the lock plate. The doors open to an angle of up to 130°, providing good access to the interior. The continuously foamed PU seal ensures tight sealing and enhances the protection rating. The delivery includes the enclosure, double door, mounting plate, and two-part base sheets, which facilitate easy cable routing.

Technology Explained Simply
The construction from sheet steel with varying wall thicknesses ensures high mechanical stability. The 2.0 mm thick door and the 2.5 mm thick mounting plate provide additional protection against mechanical stress. The IK10 rating means the enclosure is resistant to mechanical impacts such as shocks or blows with an energy of up to 5.3 J. The powder-coated surface in RAL 7035 is not only visually appealing but also resistant to contamination and mechanical stress. The two-part base sheets simplify installation and maintenance, allowing cables to be routed and organized flexibly.

Compatibility and Accessories
The console base unit is part of a modular system and can be combined with additional elements such as console middle sections, console top sections, and end plates to create single- or multi-part console solutions. For a two-part construction, a console middle section and an end plate for the middle section are required. For a three-part construction, a console middle section and a console top section are needed. Compatible accessories include lock inserts made of zinc die-cast, baying sets for AX, KX, AE, KL, mounting brackets, earthing straps, plinth corner pieces, plinth trim panels, system chassis, support rails, cable entry plates, and cable strain relief rails. These components allow for individual adaptation to specific mounting and cable routing requirements.

Mounting and Installation
Mounting is done via the integrated mounting plate with dimensions of 1,120 mm × 625 mm. The two-part base sheets facilitate installation by enabling flexible cable routing. The doors are pre-mounted with the 3-point locking system, so no additional work is required for door latching. The open-top construction allows for easy integration into modular console systems. The use of baying sets or mounting brackets can support integration into existing systems.

Advantages in Operation
The console base unit offers high mechanical stability and protection through the IK10 rating and IP 55 protection rating. The modular design enables flexible expansion and adaptation to different requirements. The integrated base sheets and robust door construction reduce installation time and improve maintainability. The uniform surface finish in RAL 7035 ensures a professional appearance that integrates well into industrial environments. The use of sheet steel and powder-coated surface ensures a long service life under industrial conditions.

General
ModelBase unit
MaterialHousing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, continuous foamed PU seal, mounting plate: steel sheet, 2.5 mm
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryHousing open at top, door or double door at front, with 3-point locking system, mounting plate, base plates, lock: 3 mm double bar
Width1.200 mm
Height675 mm
Depth500 mm
Mounting plate dimensions (W x H)1.120 mm x 625 mm
Number of doors2
Door opening angle130°
IK codeIK10
NoteTo close the console base, an end plate is required. For a 2-part console assembly, a console center section and an end plate for the console center section are required. For a 3-part console assembly, a console center section and a console top section are required.
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Base materialsteel sheet
Number of locks1
Closure type3-point locking system
Closure insert3 mm double barb
LockClosure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 6706000, EAN: 4028177983748
