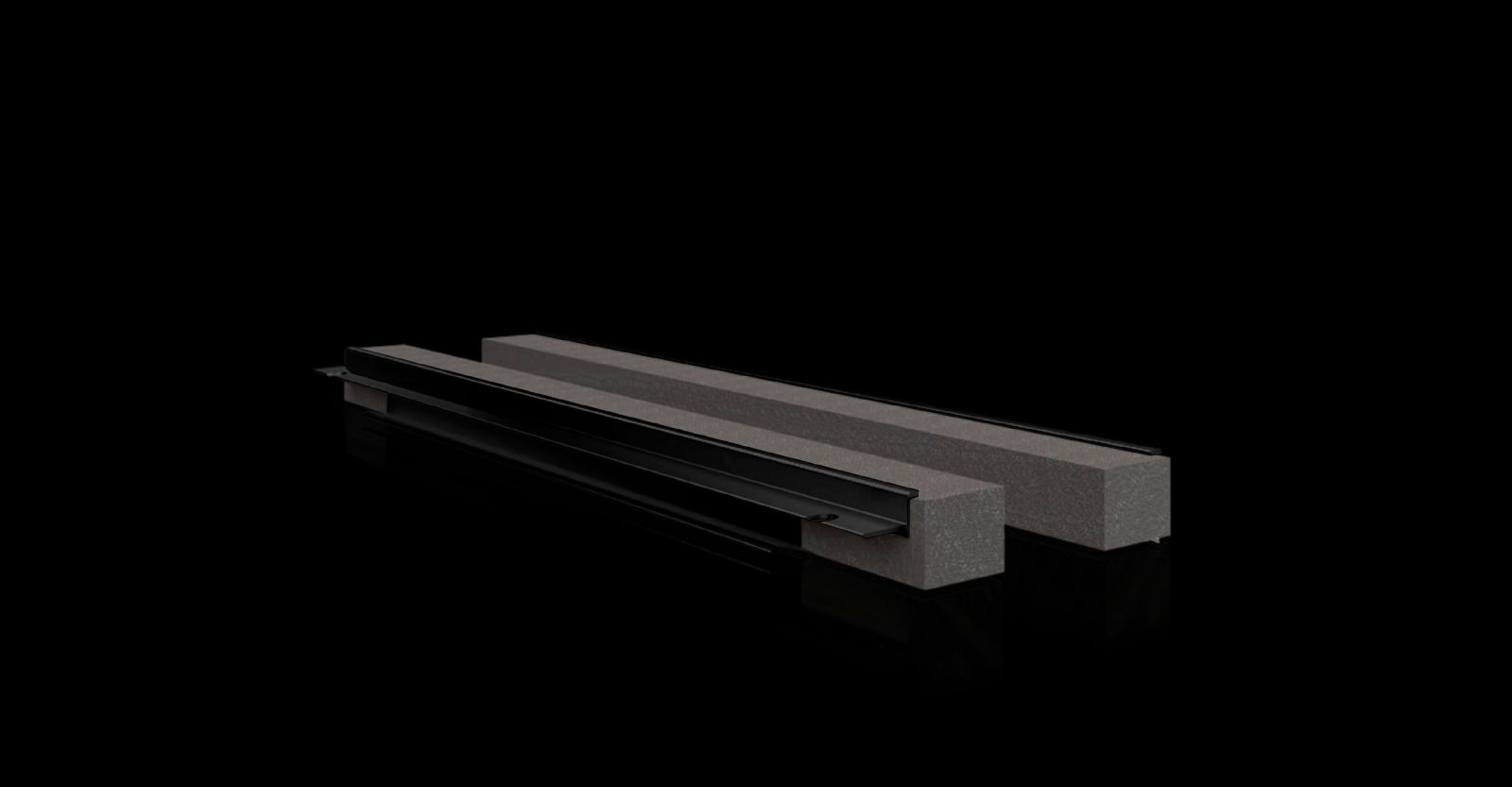

Rittal 8618812 VX profile for cable entry, rear, W: 1000 mm,

Your rating:
Average rating
product review for Rittal 8618812 VX profile for cable entry, rear, W: 1000 mm,
( 4.6 / 5 ) 53 ratings
Rittal 8618812
This image may differ from the desired article.
Rittal 8618812Rittal 8618812
32,65 EUR
( 38,85 EUR incl. VAT )
≈ £27.33  |  ≈ $35.88
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8618812 VX profile for cable entry, rear, W: 1000 mm,
Datasheet:file_download Download
Lieske Part No.:1441948
Mfg Part No: 8618812
UPC/EAN: 4028177922815
Weight:0.28 kg
Type:VX 8618.812

Product information for Rittal 8618812:

The Rittal VX 8618.812 is a profile for cable entry, specifically designed for use on the rear side of enclosures. It serves as a snap-on profile for the base plate and enclosure frame, enabling secure and sealed cable entry into the enclosure. The product is designed for enclosures with a width of 1000 mm and is compatible with enclosure types VX (from 1000 mm), VX SE, and stand console CX. Installation is simple, achieved by snapping the profile into place, ensuring full-surface contact and high sealing performance for the introduced cables.

Applications
This profile is used in industrial environments where secure and sealed cable entry on the rear side of enclosures is required. It is particularly suitable for systems where cables are routed into the enclosure from the rear, such as in automation systems, control installations, or server environments. Installation on the rear side enables structured and clear cable routing, while the sealing prevents ingress of dust, moisture, or other environmental influences.

Functions and Equipment in Detail
The profile is made of rigid PVC, which is flame retardant and self-extinguishing. The material properties ensure temperature resistance up to +60 °C, making it suitable for use in industrial environments with moderate thermal loads. The integrated sealing made of PU foam with a cross-section of 30 x 25 mm provides effective sealing. The elastic clamp profiles included in the delivery support secure fastening and sealing of the cables.

Technology Explained Simply
The profile is directly snapped onto the base plate and enclosure frame, creating a mechanically stable and sealed connection. The full-surface contact minimizes the risk of shifting or gaps that could lead to leaks. The PU foam seal conforms to the cables and tightly closes the opening. The combination of rigid PVC and PU foam offers a balanced mix of mechanical strength and elastic sealing performance.

Compatibility and Accessories
The profile is specifically developed for enclosures with a width of 1000 mm and is compatible with enclosure types VX (from 1000 mm), VX SE, and stand console CX. From a cabinet width of 1000 mm, the base group is divided into two sections, allowing one cable entry point to be installed on each side (left/right). Two profiles are required per cable entry point. As suitable accessory, the VX cable strain relief rail angle profile, W: 1000 mm is offered, which can be used for guiding and organizing cables inside the enclosure.

Installation and Mounting
Installation is performed by simply snapping the profile onto the base plate and enclosure frame. The elastic clamp profiles included in the delivery facilitate fastening and ensure a secure connection. No additional tools or mounting aids are required. The installation is quick and does not require special skills.

Operational Advantages
The profile provides reliable and sealed cable entry, protecting the integrity of electrical connections. The simple installation reduces installation time, while the full-surface contact and PU foam seal ensure long-term sealing performance. The materials are designed for industrial use and offer sufficient resistance against mechanical stress and environmental influences up to a temperature of +60 °C. Compatibility with various enclosure types increases flexibility in planning and mounting of enclosures.

General
ApplicationsFor mounting on base plate and cabinet frame
MaterialRigid PVC, Flame retardant, self-extinguishing, temperature resistant up to +60 °C, Seal: PU foam, Cross-section: 30 x 25 mm
Scope of deliveryClip-on profiles, including elastic clamp profiles
NoteTwo pieces required per cable entry point. For cabinet width 1000 mm and above, the base group is divided into two width sections. Two cable entry points (left/right) can be used.
Suitable forHousing type: VX: = 1,000 mm, housing type: VX SE, housing type: CX console


Product data sheet
Datasheet for Rittal 8618812, EAN: 4028177922815

Questions & answers

What is the delivery time of Rittal 8618812 VX profile for cable entry, rear, W: 1000 mm, ?

The article Rittal 8618812 VX profile for cable entry, rear, W: 1000 mm, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618812 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618812 VX profile for cable entry, rear, W: 1000 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8618812 VX profile for cable entry, rear, W: 1000 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
