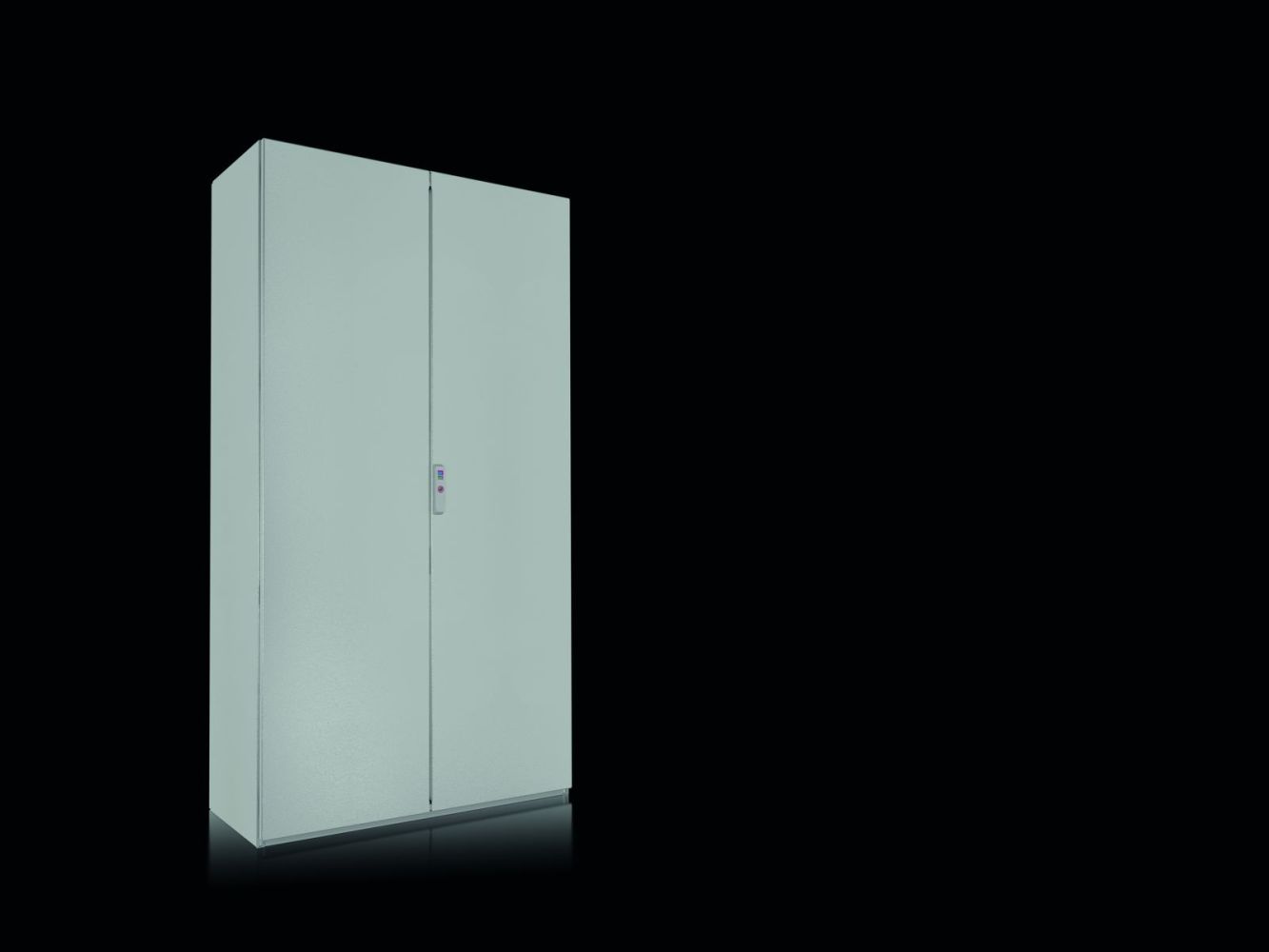

Rittal 5840600 VX SE system single enclosure, 1000x1800x400 mm, steel (freight shipping)
|
798,43 EUR |
|
|
( 950,13 EUR incl. VAT ) ≈ £668.29 | ≈ $877.47 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055464 |
| Mfg Part No: | 5840600 |
| UPC/EAN: | 4028177959149 |
| Weight: | 144.4 kg |
| Type: | SE 5840600 |
Product information for Rittal 5840600:
Applications
The enclosure is designed for use in industrial plants where high mechanical stability and protection against dust, splashing water, and mechanical impacts are required. It is suitable for applications in manufacturing, automation technology, power supply, and environments with increased requirements for environmental resistance. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, making it suitable for outdoor use as well. The NEMA protection ratings NEMA 3R and NEMA 12, as well as the type ratings according to UL 50E (Type 1, 2, 3, 3R, 12), highlight its suitability for industrial and weather-exposed environments. The IK code IK10 indicates high mechanical resistance against impact and shock, making it suitable for environments with mechanical stress.
Functions and Equipment in Detail
The enclosure is made of sheet steel with a wall thickness of 1.5 mm for the enclosure, rear panel, and base plates, and 2.0 mm for the doors. The mounting plate is made of 3.0 mm thick sheet steel and is C-bent on the sides. The surface of the enclosure, doors, and rear panel is dip-primed and externally powder-coated with a textured lacquer in RAL 7035. The mounting plate and base plates are galvanized, providing additional corrosion protection. The rear panel is removable and fitted with a foamed seal to ensure a tight seal. The base plates are triple-divided, removable, and replaceable, allowing flexible adaptation to different mounting requirements. The mounting plate is depth-adjustable in 25 mm increments and can be positioned using integrated plastic glides and mounting rails. An integrated mounting grid facilitates component positioning.
Technology Explained Simply
The construction of the enclosure is based on an integral structure, where the roof and side walls are made from a single piece, reducing assembly time and increasing stability. The perforation in the 25 mm DIN grid allows flexible mounting of components and accessories. The surface treatment with nanoceramic coating, electrophoretic dip priming, and powder-coated textured lacquer ensures high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The protection rating IP 55 means the enclosure is protected against dust and splashing water from any direction, making it suitable for use in humid or dusty environments. The NEMA protection ratings NEMA 3R (for protection against rain and splashing water) and NEMA 12 (for protection against dust and splashing water), as well as UL type ratings, emphasize its suitability for industrial applications.
Compatibility and Accessories
The enclosure is system-compatible with accessories from the VX25 system, enabling flexible expansion and adaptation to specific requirements. Suitable accessories include, among others, system chassis, levelling feet, C-profile rails, lock inserts, mounting brackets, comfort handles, support rollers, transport eyes, circuit diagram pockets, and door latches. These components can be used to adjust mounting levels, improve accessibility, or increase safety. The mounting brackets are available for both outer and inner mounting levels, allowing flexible use of mounting surfaces.
Mounting and Installation
Mounting is performed using integrated mounting rails and the mounting grid. The mounting plate is depth-adjustable in 25 mm increments, enabling precise positioning of components. The base plates are removable and can be replaced as needed. The rear panel is removable, providing easy access to the interior of the enclosure. The doors can be opened toollessly to 180°, facilitating maintenance and inspection. The hinges are fitted with screwed stops, ensuring secure mounting.
Operational Advantages
The enclosure offers high mechanical stability and resistance to environmental influences. The integral construction reduces assembly time and increases stability. The flexible mounting via the 25 mm DIN grid and the depth-adjustable mounting plate allow individual adaptation to specific requirements. The high protection rating IP 55 and NEMA certifications ensure reliable operation in demanding environments. Automatic equipotential bonding between door, rear panel, and enclosure body ensures electrostatic discharge and enhances safety. The use of galvanized base plates and a powder-coated surface in RAL 7035 ensures long service life and high corrosion resistance.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 1.000 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 899 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 415.85 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5840600 VX SE system single enclosure, 1000x1800x400 mm, steel (freight shipping)?
The article Rittal 5840600 VX SE system single enclosure, 1000x1800x400 mm, steel (freight shipping) is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5840600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5840600 VX SE system single enclosure, 1000x1800x400 mm, steel (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 5840600 VX SE system single enclosure, 1000x1800x400 mm, steel (freight shipping) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
