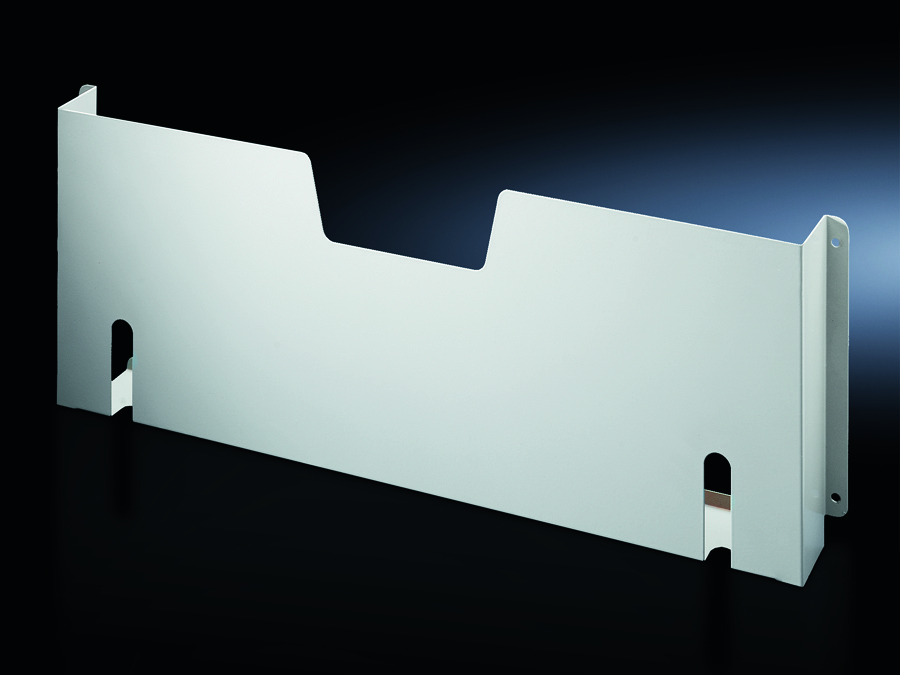

Rittal 4115500 circuit diagram pocket made of sheet metal for door width 500 mm

Your rating:
Average rating
product review for Rittal 4115500 circuit diagram pocket made of sheet metal for door width 500 mm
( 4.5 / 5 ) 86 ratings
Rittal 4115500
This image may differ from the desired article.
21,15 EUR
( 25,17 EUR incl. VAT )
≈ £17.70  |  ≈ $23.24
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 4115500 circuit diagram pocket made of sheet metal for door width 500 mm
Datasheet:file_download Download
Lieske Part No.:801141
Mfg Part No: 4115500
UPC/EAN: 4028177526303
Weight:0.683 kg
Type:CM 4115500

Product information for Rittal 4115500:

The Rittal circuit diagram pocket CM 4115500 is a component made of sheet steel, specifically designed for mounting on door frame profiles in enclosures. It serves as a holder for circuit diagrams, documentation, or small control components and is intended for use with the sub-assemblies VX, TS, VX SE, PC, and TP. The pocket is mounted at any height on the door frame profile, allowing for flexible positioning within the enclosure. The colour is RAL 7035, a grey-beige standard shade that integrates well in industrial environments. The sheet steel construction ensures sufficient mechanical stability and durability under industrial conditions.

Circuit diagram pocket
The circuit diagram pocket is designed as a flat, rectangular compartment that can be attached to the door frame profile of an enclosure. The clear height is 210 mm and the clear width is 355 mm, providing sufficient space for standard circuit diagrams or small documents. The depth of the pocket is 35 mm, which is adequate for holding flat documents or simple control elements. The fitting is designed for a door width of 500 mm, ensuring compatibility with corresponding enclosure and door systems from Rittal.

Applications
The circuit diagram pocket is used in industrial enclosures, particularly in systems with the mentioned sub-assemblies (VX, TS, VX SE, PC, TP). It serves for organisation and documentation within the enclosure, such as storing circuit diagrams, operating instructions, or labels. Mounting on the door frame profile allows flexible positioning, independent of the enclosure door’s location. Its use is typical in electrical and automation technology, where structured documentation within the enclosure is required.

Functions and equipment in detail
The circuit diagram pocket is supplied including fastening materials sufficient for mounting on the door frame profile. The fastening is done using screws included in the delivery. The pocket is not self-supporting and must be attached to the frame. The sheet steel construction provides sufficient strength to securely hold documents without deformation. The surface is painted in RAL 7035, offering uniform colour and corrosion protection.

Technology explained simply
The circuit diagram pocket is not an electrically active component, but a mechanical aid for organisation within the enclosure. The depth of 35 mm is sufficient to hold flat documents or small cable ties. The clear dimensions of 210 mm height and 355 mm width correspond to common formats for A4-sized circuit diagrams or similar. Mounting on the door frame profile is done using the screws included in the delivery, ensuring the pocket is securely held. The fitting for a door width of 500 mm ensures compatibility with the corresponding enclosure modules.

Compatibility and accessories
The circuit diagram pocket is specifically designed for use with the sub-assemblies VX, TS, VX SE, PC, and TP. These sub-assemblies are components of Rittal enclosure systems and enable modular partitioning of the enclosure. The pocket is not suitable for other door widths or frame constructions, as the fastening is specifically designed for the 500 mm door width.

Installation and mounting
Mounting is done by attaching to a door frame profile, where the pocket can be placed at any height. The screws included in the delivery are used for this purpose. Installation requires no special tools other than a screwdriver or suitable wrench. The fastening is done at the designated mounting points on the door frame profile, ensuring the pocket is securely and stably held. The mounting is simple and requires no additional tools.

Advantages in operation
The circuit diagram pocket provides a structured way to organise documents within the enclosure. The flexible mounting height allows optimal positioning according to requirements. The use of sheet steel ensures high mechanical stability and durability. The RAL 7035 colour blends well in industrial environments. The fastening materials included in the delivery reduce installation effort. Compatibility with the mentioned sub-assemblies ensures easy integration into existing enclosure systems.

General
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Clear height210 mm
Light width355 mm
Suitable for door width500 mm
Depth35 mm


Product data sheet
Datasheet for Rittal 4115500, EAN: 4028177526303

Questions & answers

What is the delivery time of Rittal 4115500 circuit diagram pocket made of sheet metal for door width 500 mm?

The article Rittal 4115500 circuit diagram pocket made of sheet metal for door width 500 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 4115500 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 4115500 circuit diagram pocket made of sheet metal for door width 500 mm always at the best possible price. We can give you a discount of 2% on Rittal 4115500 circuit diagram pocket made of sheet metal for door width 500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
