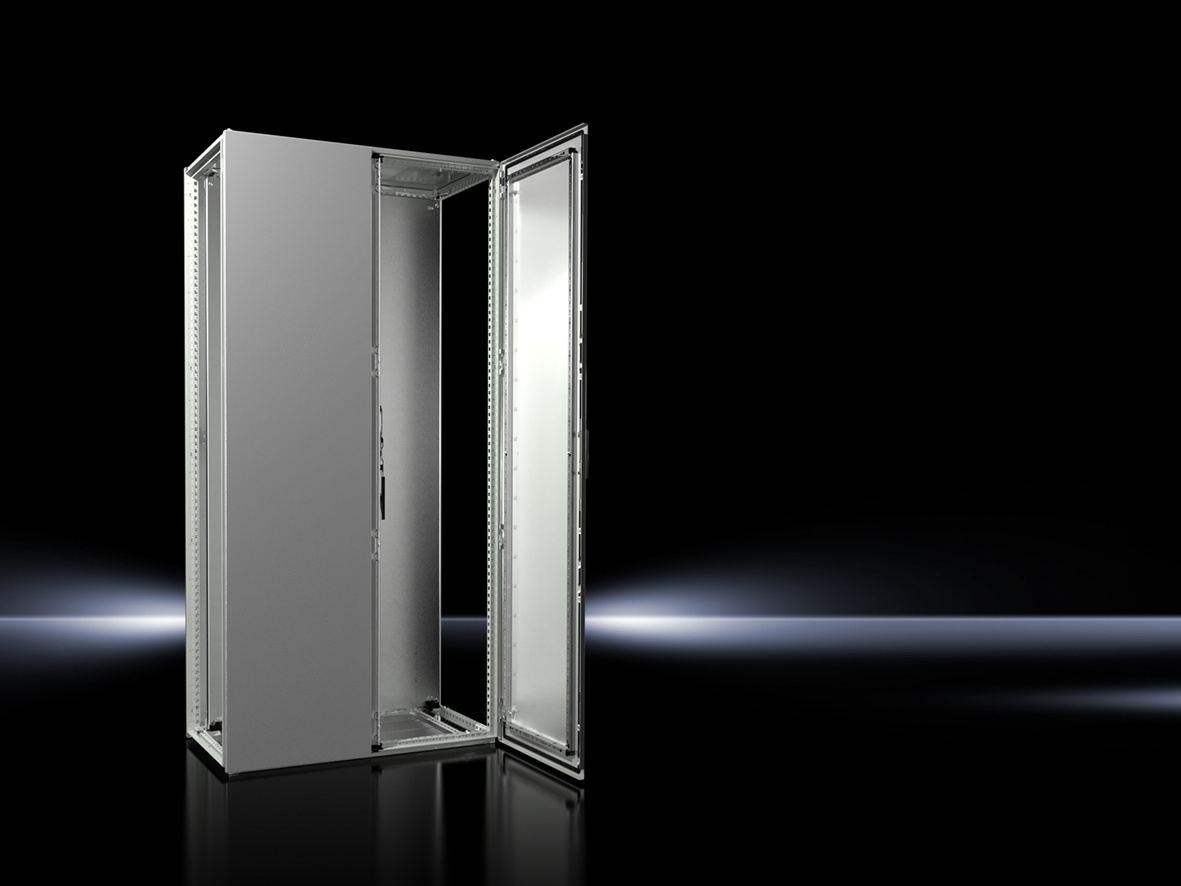

Rittal 8005000 VX bayed enclosure system, 2-door, W x H x D: 1000x2000x500 mm,
|
838,06 EUR |
|
|
( 997,29 EUR incl. VAT ) ≈ £701.46 | ≈ $921.03 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440735 |
| Mfg Part No: | 8005000 |
| UPC/EAN: | 4028177813540 |
| Weight: | 156 kg |
| Type: | VX 8005.000 |
Product information for Rittal 8005000:
Applications
This enclosure system is suitable for use in industrial plants, such as machine building, manufacturing technology, or automation technology. It can be mounted for baying on all sides and is designed for a load capacity up to 15,000 N. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for use in damp or dusty environments. Additionally, the device meets protection ratings NEMA 1 and NEMA 12 as well as Type ratings Type 1 and Type 12 according to UL 50E. The IK code IK10 indicates high mechanical resistance against impact and shock. The surface of the doors, roof, and rear panel is dip-primed and externally powder-coated with textured paint in the colour RAL 7035, providing high corrosion resistance and visual robustness.
Functions and Equipment in Detail
The enclosure system includes in the delivery scope the enclosure frame, two doors, a roof plate, a rear panel, split base plates, a mounting plate, and two mounting rails with dimensions 18 x 39 mm. The doors are fitted with a PU foam seal and feature a removable square tube frame with a 25 mm hole grid. The lock door is mounted on the right side and can be toollessly repositioned to the left side. It is equipped with a four-point locking bar lock using a double-bar lock insert according to DIN 43668. The secondary door is additionally secured with a double locking swing lever. The hinges are fitted with non-removable hinge pins, and the door opening angle is 130°, with a toolless extension to 180° possible. The clearance from the floor is 17 mm.
Technology Explained Simply
The mounting plate is C-bent on the sides and is depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. It features an integrated mounting grid to simplify component positioning. The base plates are triple-split, removable, and replaceable, allowing flexible adaptation to different floor conditions. The rear panel and roof plate are fitted with PU foam seals and are screwed in place, making them removable. The rear panel includes a positioning aid, and the roof is equipped with roof mounting screws M12. All flat parts – roof, doors, rear panel, base plates – are included in the delivery scope.
Compatibility and Accessories
Various accessories are available for this enclosure system, extending its use and functionality. These include levelling feet M12 with an adjustment height of 18–43 mm, C-profile rails (e.g. SZ 4946000), mounting brackets for internal and external mounting levels, dust protection strips, partial mounting plates, transport eyes, circuit diagram pockets, base plates in various depths, mounting plate spacers, comfort handles for half cylinders or lock inserts, cable entry ferrules in various diameters (e.g. 13 mm, 21 mm), and multi-locking systems for up to six padlocks. These components allow individual adaptation of the enclosure to specific requirements.
Installation and Mounting
Mounting is performed via the integrated base frame with base reinforcement, enabling secure fastening to the floor. The mounting plate is depth-adjustable and provides flexible positioning of components. The enclosure construction is designed for baying, with side profiles and the 25 mm hole grid enabling easy connection to additional enclosures. Electrical conductivity between frame, rear panel, roof, and base plates ensures automatic equipotential bonding in accordance with DIN 62 208. Mounting is carried out using integrated plastic glides and reusable mounting rails.
Operational Advantages
The enclosure system offers high mechanical and electrical safety through protection rating IP 55, IK10, and conductive connection of all flat parts. The toolless repositioning of door hinges and the depth-adjustable mounting plate increase flexibility during installation. Integrated mounting levels and the mounting grid simplify component positioning. The use of sheet steel in various wall thicknesses (1.5 mm to 3.0 mm) ensures high stability. The surface coating with textured paint in RAL 7035 provides high corrosion resistance and visual robustness. The load capacity up to 15,000 N makes the system suitable for demanding industrial applications. The integrated mounting plate and mounting rails facilitate internal installation and maintenance of the enclosure.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 1.000 mm |
| Height | 2.000 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 899 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 421.61 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8005000 VX bayed enclosure system, 2-door, W x H x D: 1000x2000x500 mm, ?
The article Rittal 8005000 VX bayed enclosure system, 2-door, W x H x D: 1000x2000x500 mm, is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8005000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8005000 VX bayed enclosure system, 2-door, W x H x D: 1000x2000x500 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8005000 VX bayed enclosure system, 2-door, W x H x D: 1000x2000x500 mm, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
