Rittal 8660025 VX plinth corner piece with trim panel, front/rear, H: 200,

Your rating:
Average rating
product review for Rittal 8660025 VX plinth corner piece with trim panel, front/rear, H: 200,
( 4.3 / 5 ) 4 ratings
Rittal 8660025
This image may differ from the desired article.
Rittal 8660025Rittal 8660025Rittal 8660025Rittal 8660025Rittal 8660025Rittal 8660025
104,22 EUR
( 124,02 EUR incl. VAT )
≈ £87.23  |  ≈ $114.54
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8660025 VX plinth corner piece with trim panel, front/rear, H: 200,
Datasheet:file_download Download
Lieske Part No.:1103905
Mfg Part No: 8660025
UPC/EAN: 4028177978171
Weight:11.66 kg
Type:VX 8660025

Product information for Rittal 8660025:

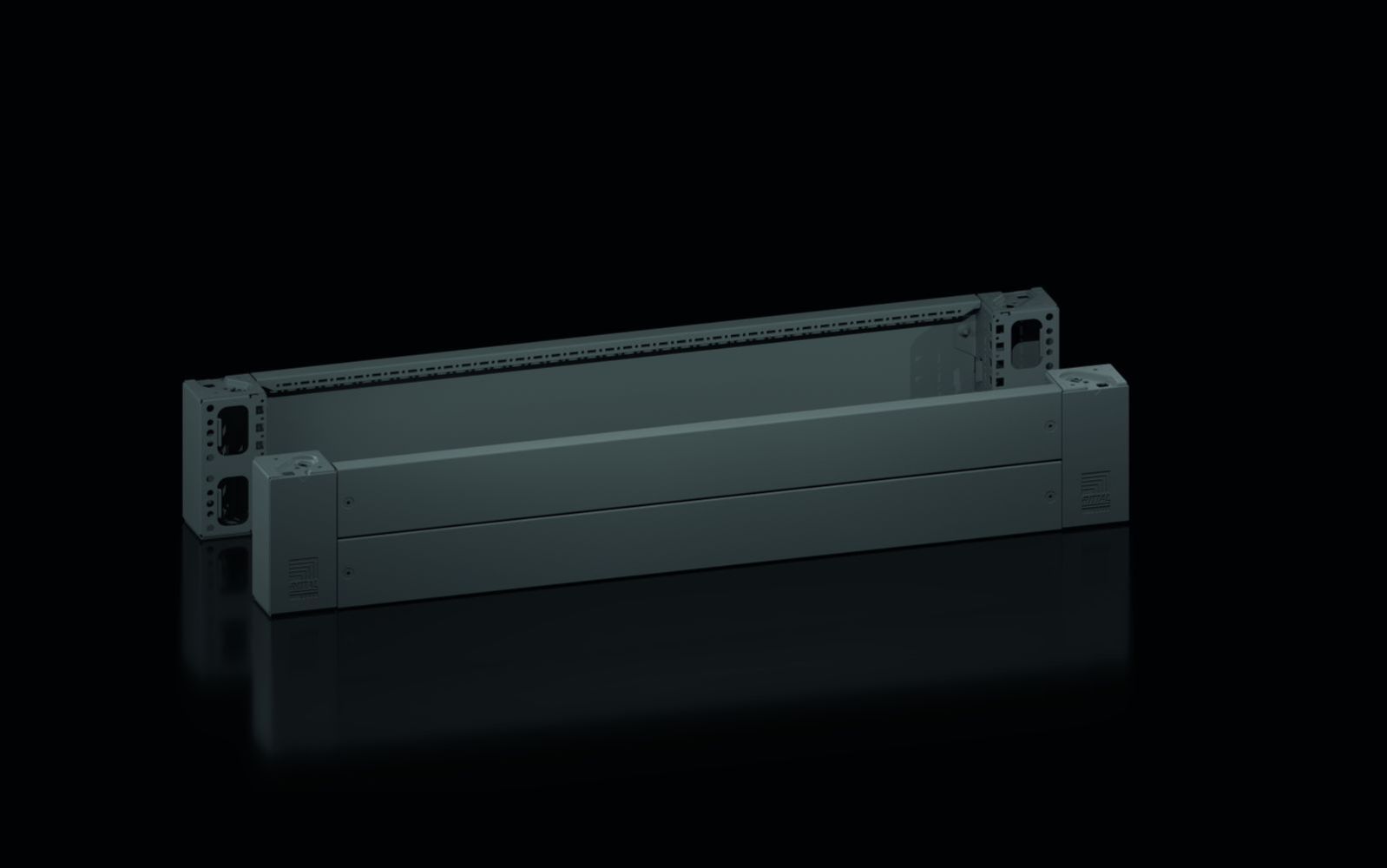

The Rittal VX 8660025 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for enclosures and housings of the VX system. It serves as a stable termination for plinth units and enables a clean, flush connection between multiple baying positions. The component is made of sheet steel and finished in RAL 9005, ensuring a uniform visual appearance in industrial environments. The height is 200 mm, and the product is designed for enclosures with a width of 1,200 mm.

Applications

The plinth corner piece is used in industrial environments where stable and aesthetically pleasing plinth constructions for enclosures are required. It is compatible with various housing types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. Its use is particularly common in installations requiring high mechanical stability and simultaneous flexibility in internal configuration, such as in automation technology, manufacturing industry, or energy supply sectors.

Functions and Equipment in Detail

The product includes four plinth corner pieces, each 200 mm high, along with a plinth trim panel at the front/rear with a height of 200 mm and two additional panels with a height of 100 mm. The trim panels serve not only as an aesthetic termination but also for additional stabilization between plinths or as a base for internal installation. The delivery also includes four plastic corner covers and the necessary mounting hardware. The plinth trim panels are side-mountable and can be used for terminating a plinth unit or reinforcing the construction.

Technology Explained Simply

The plinth corner pieces are made of sheet steel, ensuring high mechanical strength and durability. The integrated sheet steel trim panels allow for flexible cable entry and provide a clean termination of the plinth. The plastic corner and baying covers ensure a visually uniform termination of the corners and support flush connections between multiple plinth units. The RAL 9005 color is a dark gray standard tone commonly used in industrial environments to achieve a professional and robust appearance.

Compatibility and Accessories

The plinth corner piece is suitable for a wide range of housing types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX, and is designed to fit enclosures with a width of 1,200 mm. It can be combined with various accessories, such as levelling feet M12, C-profile rails, VX castors, VX levelling elements, plinth baying brackets, VX plinth expansion angles, double swivel castors, cable strain relief rails, optional VX trim panel mounting, VX 8660100 mounting brackets, VX system chassis, or VX cable strain relief rails. These components allow for individual adaptation of the plinth construction to specific requirements.

Mounting and Installation

Installation is carried out by securing the plinth corner pieces to the corners of the plinth units using the included mounting hardware. The plinth trim panels are attached to the front and rear of the plinth, with the 200 mm panel used for primary termination and the 100 mm panels for additional stabilization or internal installation. The plastic corner covers are mounted at the corners to ensure a clean, flush termination. The installation requires no special tools, and the components are designed for easy and secure mounting.

Advantages in Operation

The plinth corner piece provides very high stability for the plinth, which is particularly beneficial in environments with mechanical stress or vibrations. The flexible internal installation function allows for individual adaptation to specific requirements, while the flush termination between baying positions ensures a professional appearance. The use of sheet steel and plastic ensures high robustness and longevity. Compatibility with various housing types and accessories increases flexibility in planning and installing enclosures.

Type rating according to UL 50E

The product meets the requirements of the UL 50E standard in categories Type 1 and Type 12. Type 1 protects against contact with moving parts and ingress of solid foreign objects, while Type 12 additionally protects against splashing water from any direction. This certification makes the product suitable for indoor use, especially in environments where some moisture exposure may occur.

PCF value (Cradle-to-Gate)

The product life cycle footprint (PCF) is 39 kg CO2 equivalents per packaging unit (Cradle-to-Gate). This value is declared in category B, meaning it is approximately calculated based on product weight and self-declared. The information serves transparency regarding the environmental impact of production and is part of the manufacturer’s sustainability strategy.

General
MaterialSocket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic
ColourRAL 9005
Scope of delivery4 corner covers, including fastening material, 4 base corner pieces, 200 mm high, 1 base panel front/back, 200 mm, 2 base panels front/back, 100 mm
NoteSocket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets
Height200 mm
Suitable forHousing type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width: = 1,200 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU11,7 kg
PCF/VE (Cradle-to-Gate)39 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660025, EAN: 4028177978171

Questions & answers

What is the delivery time of Rittal 8660025 VX plinth corner piece with trim panel, front/rear, H: 200, ?

The article Rittal 8660025 VX plinth corner piece with trim panel, front/rear, H: 200, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660025 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660025 VX plinth corner piece with trim panel, front/rear, H: 200, always at the best possible price. We can give you a discount of 2% on Rittal 8660025 VX plinth corner piece with trim panel, front/rear, H: 200, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
