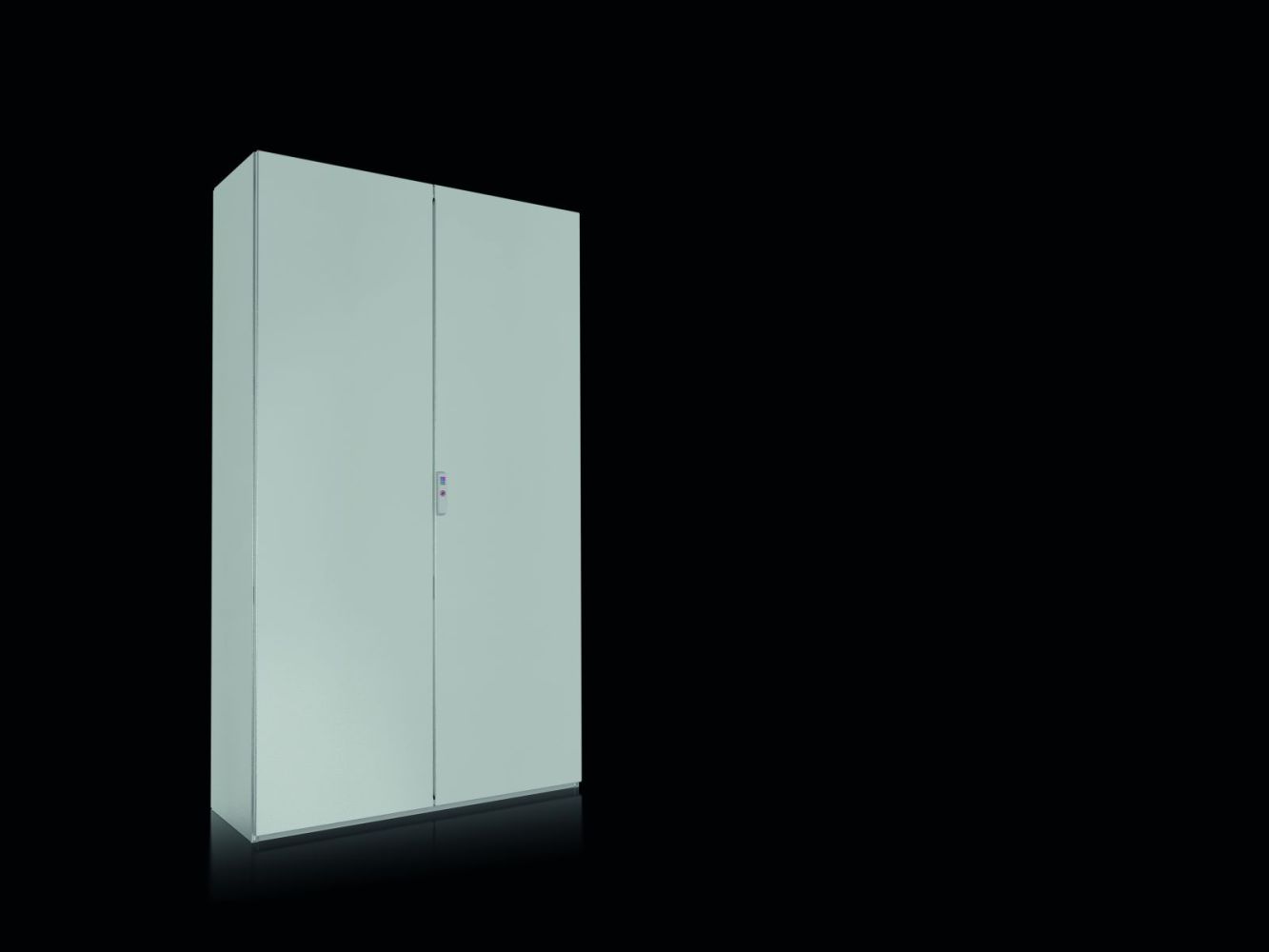

Rittal 5843600 VX SE system single enclosure 1200x2000x400 mm steel
|
944,96 EUR |
|
|
( 1.124,50 EUR incl. VAT ) ≈ £790.93 | ≈ $1,038.51 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910637 |
| Mfg Part No: | 5843600 |
| UPC/EAN: | 4028177959194 |
| Weight: | 187.2 kg |
| Type: | SE 5843600 |
Product information for Rittal 5843600:
Applications
The enclosure is designed for use in industrial environments where high mechanical stability and protection are required. It is suitable for use in production plants, automation systems, power supply installations, and other technical facilities where protection against dust, splashing water, and mechanical impacts is necessary. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from all directions, making it suitable for outdoor use as well. The NEMA classification includes NEMA 3R and NEMA 12, indicating suitability for dry and damp indoor environments as well as environments with light splashing water. The type rating according to UL 50E includes Type 1, Type 2, Type 3, Type 3R, and Type 12, confirming suitability for various environmental conditions. The IK code IK10 indicates high mechanical strength against impacts such as shocks and vibrations.
Functions and Equipment in Detail
The enclosure is made of 1.5 mm thick sheet steel, the doors of 2.0 mm thick sheet steel, and the rear wall and base plates also of 1.5 mm sheet steel. The mounting plate is made of 3.0 mm sheet steel. The surface of the enclosure, doors, and rear wall is dip-primed and externally powder-coated with textured paint in RAL 7035. The mounting plate and base plates are galvanized. The rear wall is screwed and can be removed, enabling easy maintenance and installation. The base plates are three-part, removable, and replaceable, allowing flexible adaptation to different floor conditions. The mounting plate is C-bent on the sides and depth-adjustable in 25 mm increments via integrated plastic glides and mounting rails. Included is a mounting grid to simplify component positioning.
Technology Explained Simply
The construction of the enclosure is based on an integral construction, where the side walls and roof are made as one piece, simplifying assembly and increasing stability. The system perforation in 25 mm increments allows flexible mounting of components. The depth-adjustable mounting plate enables adaptation to different component heights. The PU foam seal ensures effective sealing against dust and splashing water. The locks are robust and ensure secure access. The automatic equipotential bonding ensures electrical connection between door and enclosure, which is important for safety in electrical installations.
Compatibility and Accessories
The enclosure is system-compatible with VX25 accessories and can be expanded with various accessories. These include, for example, system chassis, levelling feet, lock inserts, mounting brackets, C-profile rails, comfort handles, support rollers, transport eyes, door latches, and half cylinders. These accessories allow individual adaptation of the enclosure to specific requirements.
Mounting and Installation
Mounting is done via integrated mounting rails and the mounting grid. The depth-adjustable mounting plate allows flexible arrangement of components. The base plates are removable and can be replaced as needed. The rear wall is screwed and can be removed, enabling easy installation and maintenance. The doors are factory-set to the right but can be changed to the left.
Operational Advantages
The enclosure offers high mechanical stability and protection. The IP protection rating 55 and NEMA classification ensure effective protection against dust and splashing water. The IK10 classification guarantees high mechanical strength. The depth-adjustable mounting plate enables flexible arrangement of components. The robust locks and automatic equipotential bonding function ensure safe and reliable use. System compatibility with VX25 accessories allows flexible expansion of the enclosure.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 1.200 mm |
| Height | 2.000 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 512.16 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5843600 VX SE system single enclosure 1200x2000x400 mm steel?
The article Rittal 5843600 VX SE system single enclosure 1200x2000x400 mm steel is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5843600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5843600 VX SE system single enclosure 1200x2000x400 mm steel always at the best possible price. We can give you a discount of 2% on Rittal 5843600 VX SE system single enclosure 1200x2000x400 mm steel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
