Rittal 8618803 VX profile for cable entry, central, W: 1200 mm

Your rating:
Average rating
product review for Rittal 8618803 VX profile for cable entry, central, W: 1200 mm
( 4.4 / 5 ) 33 ratings

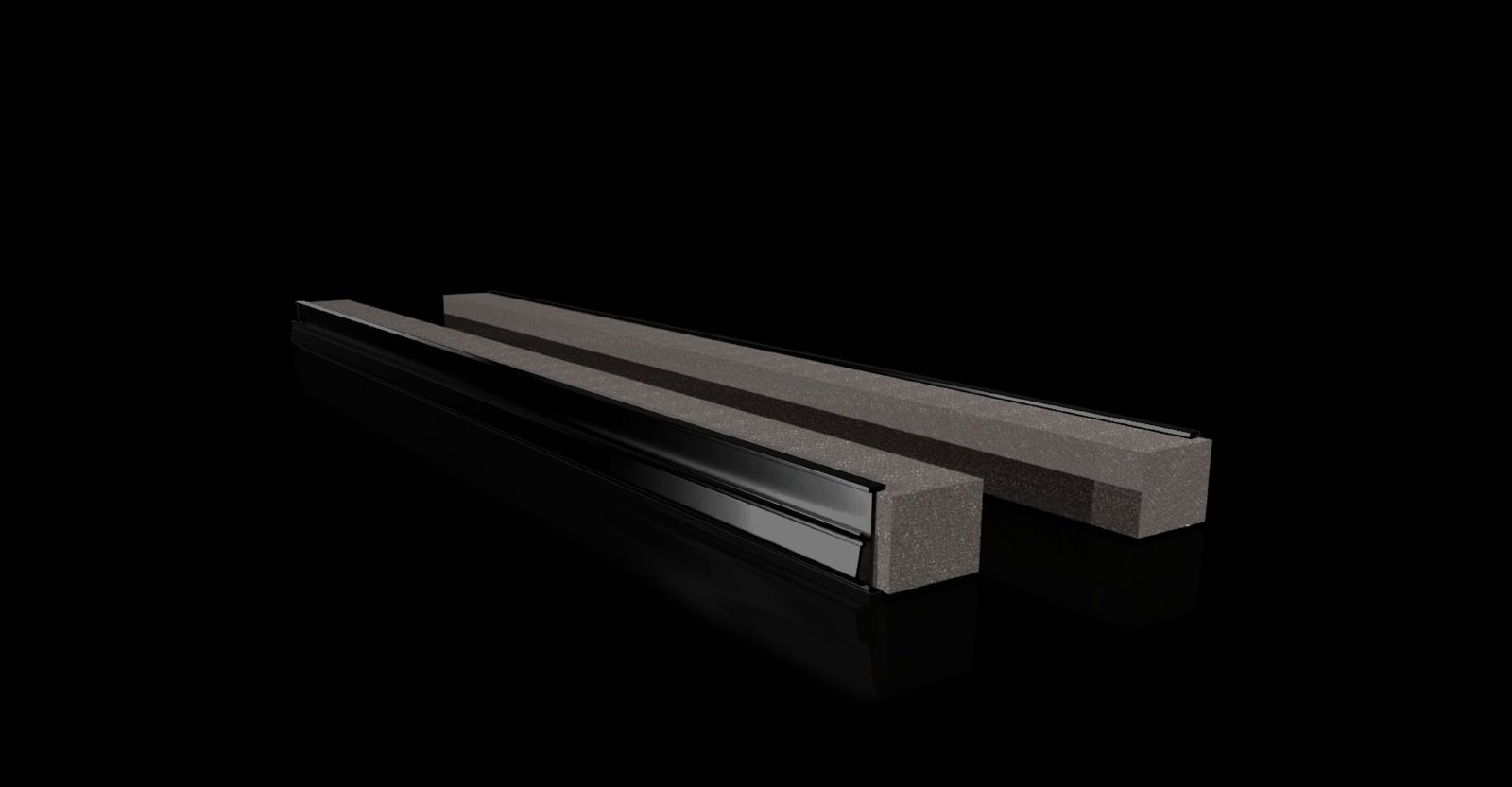

Rittal 8618803
This image may differ from the desired article.
Rittal 8618803Rittal 8618803Rittal 8618803
37,87 EUR 37,93 EUR
( 45,07 EUR incl. VAT )
≈ £31.70  |  ≈ $41.62
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8618803 VX profile for cable entry, central, W: 1200 mm
Datasheet:file_download Download
Lieske Part No.:1441951
Mfg Part No: 8618803
UPC/EAN: 4028177922778
Weight:0.313 kg
Type:VX 8618.803

Product information for Rittal 8618803:

The Rittal VX 8618.803 is a profile for cable entry, specifically designed for enclosures with a width of 1200 mm. It serves as a snap-on profile for base plates and enables structured and sealed cable routing into the enclosure. The product is part of the system accessories for enclosure types such as VX, VX SE, console base CX, and freestanding console CX. Installation is carried out directly onto the pre-defined base plates, ensuring a full-surface contact and high sealing of the introduced cables.

Applications
This profile is primarily used in industrial electrical installations where clean and secure cable entry into enclosures is required. It is particularly suitable for installations where the mounting plate is installed in an extended position. In such cases, cables can be routed directly to a cable strain relief rail without large bending radii, simplifying installation and reducing mechanical stress on the cables. The profile can be used from a cabinet width of 1000 mm, where the base group is divided into two sections, allowing for two cable entry points (left and right) to be used.

Functions and Equipment in Detail
The profile is made of rigid PVC, which is flame retardant and self-extinguishing. It is temperature resistant up to +60 °C, making it suitable for use in industrial environments with moderate thermal loads. Sealing is achieved via a PU foam, ensuring a tight seal between the profile and the base plate. The cross-section of the profile measures 30 x 25 mm, providing sufficient stability and fit. The delivery includes the snap-on profiles including elastic clamping profiles, which ensure secure fastening.

Technology Explained Simply
The design of the profile allows for easy installation, as it is simply snapped onto the base plates without requiring additional fastening elements. The elastic clamping profiles ensure the profile remains securely attached to the base plate and cannot come loose. Combined with a cable strain relief rail, it enables optimal alignment between the cable entry and the mounting plate, resulting in structured cable routing and minimizing the risk of damage from tight bends. The sealing provided by the PU foam protects against dust and moisture, increasing the reliability of the installation.

Compatibility and Accessories
The profile is specifically designed for enclosure types VX (width 1200 mm), VX SE, console base CX, and freestanding console CX. It is compatible with additional accessories such as the VX cable strain relief rail angle profile (width 1200 mm) and C-profile rails 30/15, which can be used for structured routing and securing of cables within the enclosure. This combination enables professional and orderly cabling, meeting the requirements of industrial electrical engineering.

Installation and Mounting
Installation is performed by snapping the profile onto the designated base plates. Two profiles are required per cable entry point. For enclosures with a width of 1000 mm or more, the base group is divided into two sections, allowing one profile to be installed on the left and one on the right. The elastic clamping profiles ensure secure anchoring. Installation requires no additional tools or fastening materials, reducing installation time and minimizing the risk of errors.

Operational Advantages
The profile offers easy installation, full-surface contact, and high sealing of cables, increasing the reliability and longevity of the installation. The use of rigid PVC and PU foam ensures high mechanical stability and chemical resistance. Combined with a cable strain relief rail, it enables optimal cable routing alignment, facilitating maintenance and inspection of the installation. Structured cabling reduces the risk of short circuits and mechanical damage.

General
ApplicationsFor mounting on floor plates
MaterialRigid PVC, Flame retardant, self-extinguishing, temperature resistant up to +60 °C, Seal: PU foam, Cross-section: 30 x 25 mm
Scope of deliveryClip-on profiles, including elastic clamp profiles
NoteTwo pieces required per cable entry point. For cabinet width 1000 mm and above, the base group is divided into two width sections. Two cable entry points (left/right) can be used.
Suitable forCabinet type: VX: = 1,200 mm, Cabinet type: VX SE, Cabinet type: CX console base, Cabinet type: CX floor-standing console


Product data sheet
Datasheet for Rittal 8618803, EAN: 4028177922778

Questions & answers

What is the delivery time of Rittal 8618803 VX profile for cable entry, central, W: 1200 mm?

The article Rittal 8618803 VX profile for cable entry, central, W: 1200 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618803 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618803 VX profile for cable entry, central, W: 1200 mm always at the best possible price. We can give you a discount of 2% on Rittal 8618803 VX profile for cable entry, central, W: 1200 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
