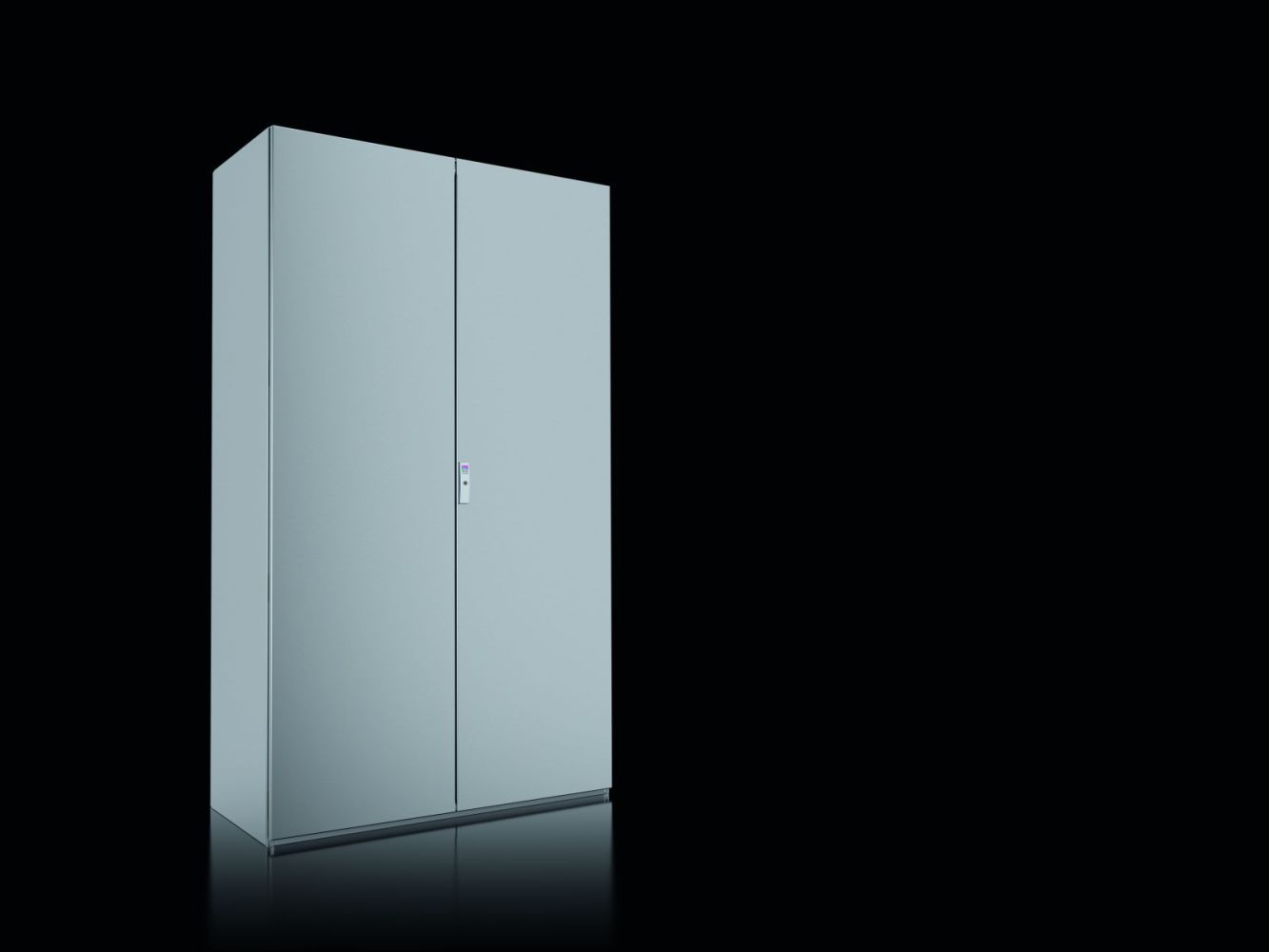

Rittal 5855600 SE system single enclosure 1200x2000x500 mm stainless steel
|
-8% 3.853,65 EUR 4.173,60 EUR |
|
|
( 4.585,84 EUR incl. VAT ) ≈ £3,225.51 | ≈ $4,235.16 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055492 |
| Mfg Part No: | 5855600 |
| UPC/EAN: | 4028177959347 |
| Weight: | 196 kg |
| Type: | SE 5855600 |
Product information for Rittal 5855600:
Applications include industrial control systems, automation technology, machine building, and plant engineering, particularly in environments with high requirements for corrosion resistance and mechanical durability. The enclosure is suitable for indoor and outdoor use, as it meets the protection rating IP 55 according to EN 60 529, meaning dust-tight and splash-proof. Additionally, it complies with protection ratings NEMA 3R and NEMA 12 as well as Type Ratings Type 1, 2, 3, 3R, 12 according to UL 50E, qualifying it for dry and damp indoor environments and protective outdoor applications. The IK code IK10 ensures high protection against mechanical impacts, such as shocks or vibrations.
Functions and equipment in detail include a stable enclosure body made as a single piece, consisting of roof and side panels with a profiled frame. The rear panel is screwed and can be removed, facilitating access to the interior. The base plates are 3-part, removable and replaceable, mounted and also with automatic equipotential bonding. The steel sheet mounting plate (3.0 mm) is side C-bent and depth-adjustable in 25 mm increments via integrated plastic glides and mounting rails. It features an integrated mounting grid for simplified positioning of components. The mounting levels in the enclosure body enable space-saving system expansion.
Technology explained simply shows that the enclosure, doors, and rear panel are made of stainless steel 1.4301 (AISI 304), with the enclosure and rear panel wall thickness being 1.5 mm and the door 2.0 mm. The surface is brush-finished (grit 400), providing a uniform, easy-to-clean, and corrosion-resistant surface. The base plates are plain, and the mounting plate is galvanized. The material hardness requires special screws for internal fitting – the internal hex sheet metal screw 2486.400 is recommended to avoid damage.
Compatibility and accessories include use with the baying system VX25, allowing the enclosure to be integrated into larger systems. Suitable accessories include stainless steel 1.4301 lifting eyes, system chassis, comfort handles, lock inserts, mounting brackets, C-profile rails, support rollers, door latches, and hinges for 180° opening. These components enable individual adaptation to specific mounting and safety requirements.
Mounting and installation are performed via the integrated mounting levels and depth-adjustable mounting rails. The mounting plate is included in the delivery scope and allows flexible positioning of components. The base plates are movable, enabling stable mounting even under varying floor conditions.
Operational advantages lie in the high corrosion resistance of stainless steel, easy maintenance due to the removable rear panel, and modular equipment. The integrated mounting levels and system hole grid at 25 mm spacing simplify the installation of components. Protection ratings IP 55, NEMA 3R/12, and IK10 ensure reliable operation under demanding conditions. The use of stainless steel 1.4301 (AISI 304) ensures long service life and low maintenance costs. The enclosure is fully compatible with the VX25 system, increasing expandability and flexibility.
The enclosure is delivered in a packaging unit of 1 piece. The technical features mentioned, such as material, protection rating, dimensions, and delivery scope, are derived from manufacturer specifications and have been verified.
| General | |
| Material | Housing: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Door: stainless steel 1.4301 (AISI 304), 2.0 mm, outside brushed finish, Rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Base plates: stainless steel 1.4301 (AISI 304), 1.5 mm, Mounting plate: sheet steel, 3.0 mm |
| Surface protection | Housing, door and rear panel: brushed finish, grain 400, base plates: plain, mounting plate: galvanised |
| Scope of delivery | Housing top and sides closed, door(s), for single-door cabinets door hinge on right, changeable to left, rear panel, removable, mounting plate, base plates, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 1.200 mm |
| Height | 2.000 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 589,65 |
Questions & answers
What is the delivery time of Rittal 5855600 SE system single enclosure 1200x2000x500 mm stainless steel?
The article Rittal 5855600 SE system single enclosure 1200x2000x500 mm stainless steel is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5855600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5855600 SE system single enclosure 1200x2000x500 mm stainless steel always at the best possible price. We can give you a discount of 2% on Rittal 5855600 SE system single enclosure 1200x2000x500 mm stainless steel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
