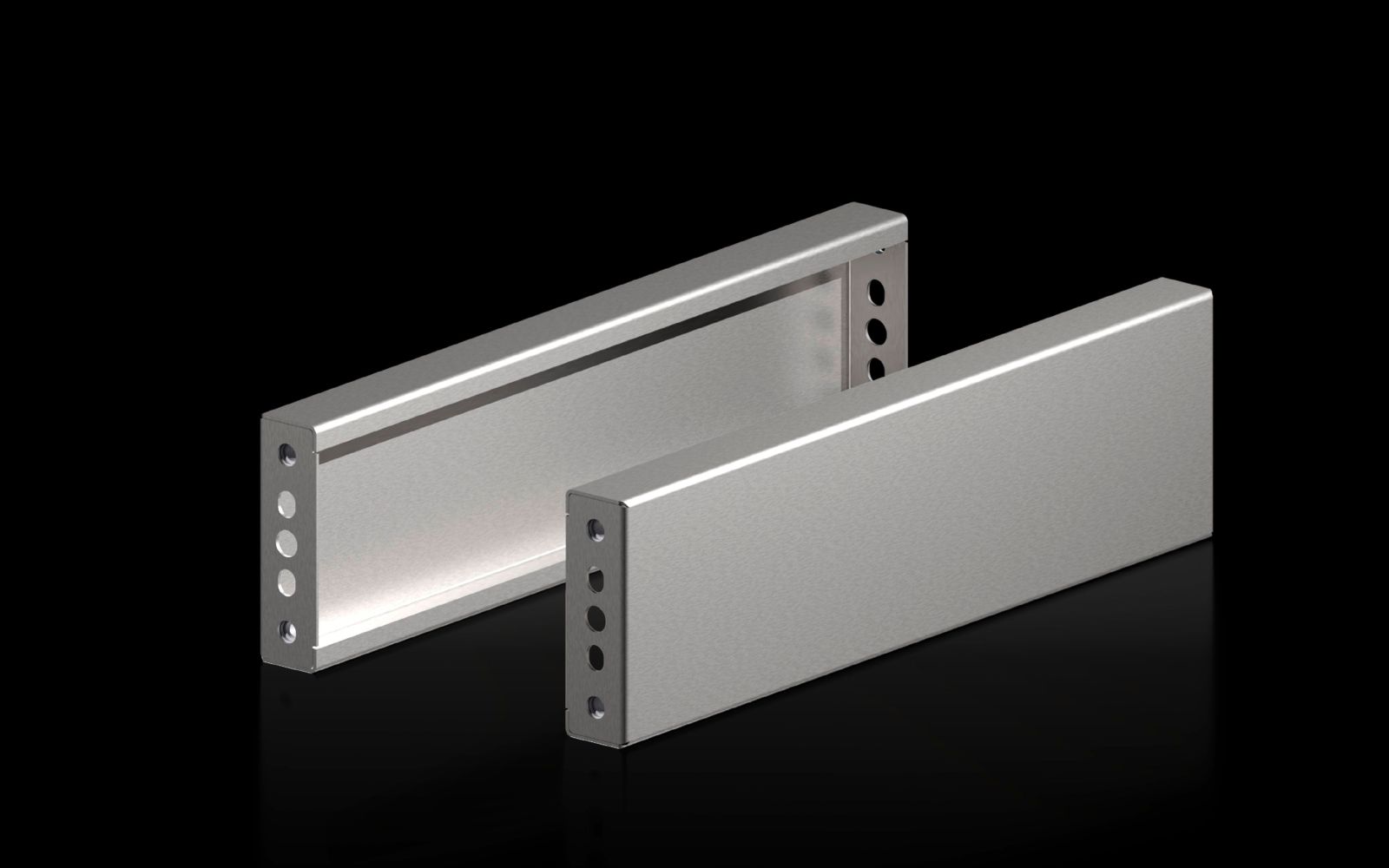

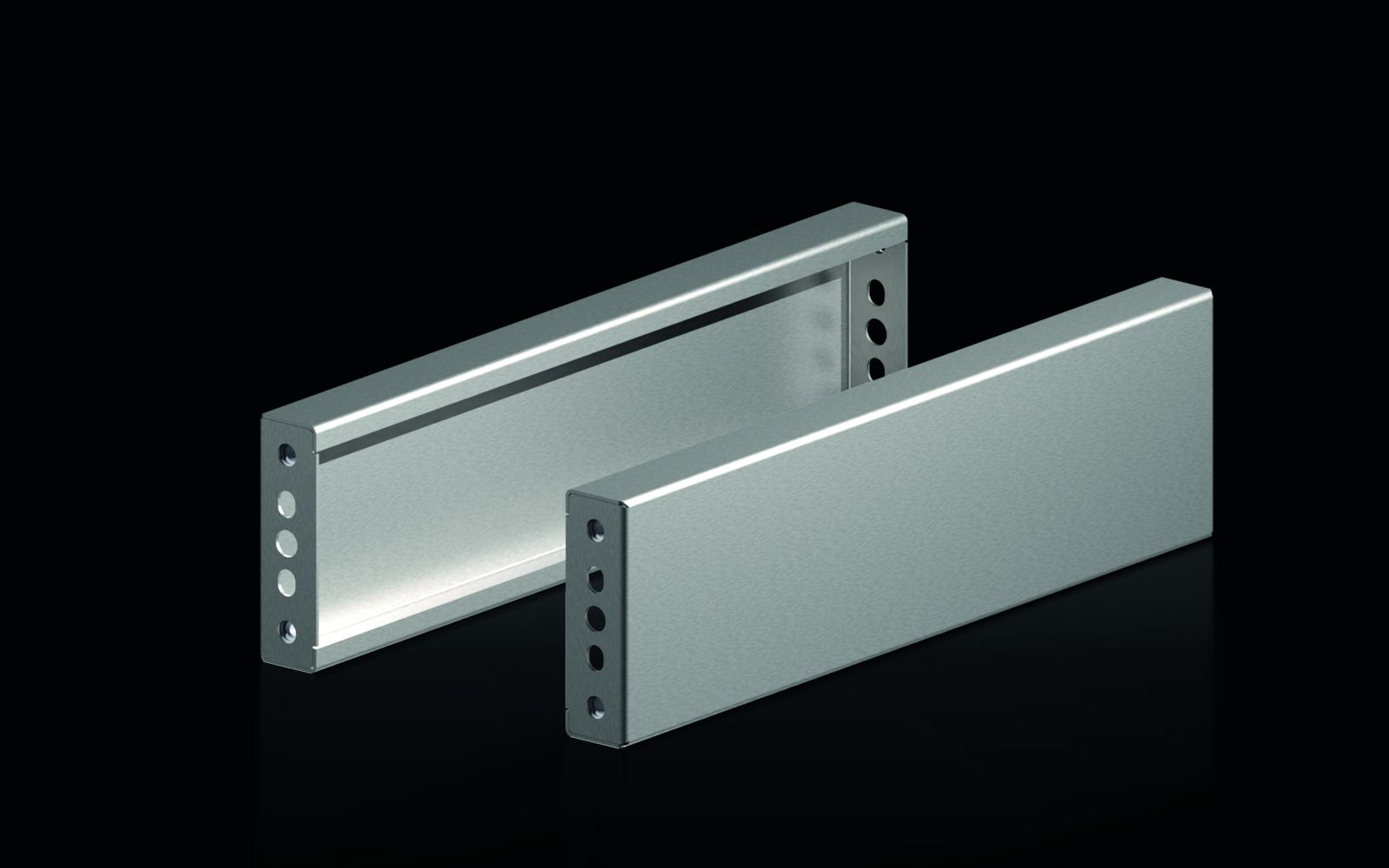

Rittal 8660071 VX VX plinth trim panel 1=2 side H:100 mm for D:500 mm stainless steel

Your rating:
Average rating
product review for Rittal 8660071 VX VX plinth trim panel 1=2 side H:100 mm for D:500 mm stainless steel
( 4 / 5 ) 1 ratings
Rittal 8660071
This image may differ from the desired article.
Rittal 8660071Rittal 8660071Rittal 8660071
-6% 109,83 EUR 117,43 EUR
( 130,70 EUR incl. VAT )
≈ £91.93  |  ≈ $120.70
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 8660071 VX VX plinth trim panel 1=2 side H:100 mm for D:500 mm stainless steel
Datasheet:file_download Download
Lieske Part No.:877384
Mfg Part No: 8660071
UPC/EAN: 4028177037816
Weight:1.722 kg
Type:VX 8660071

Product information for Rittal 8660071:

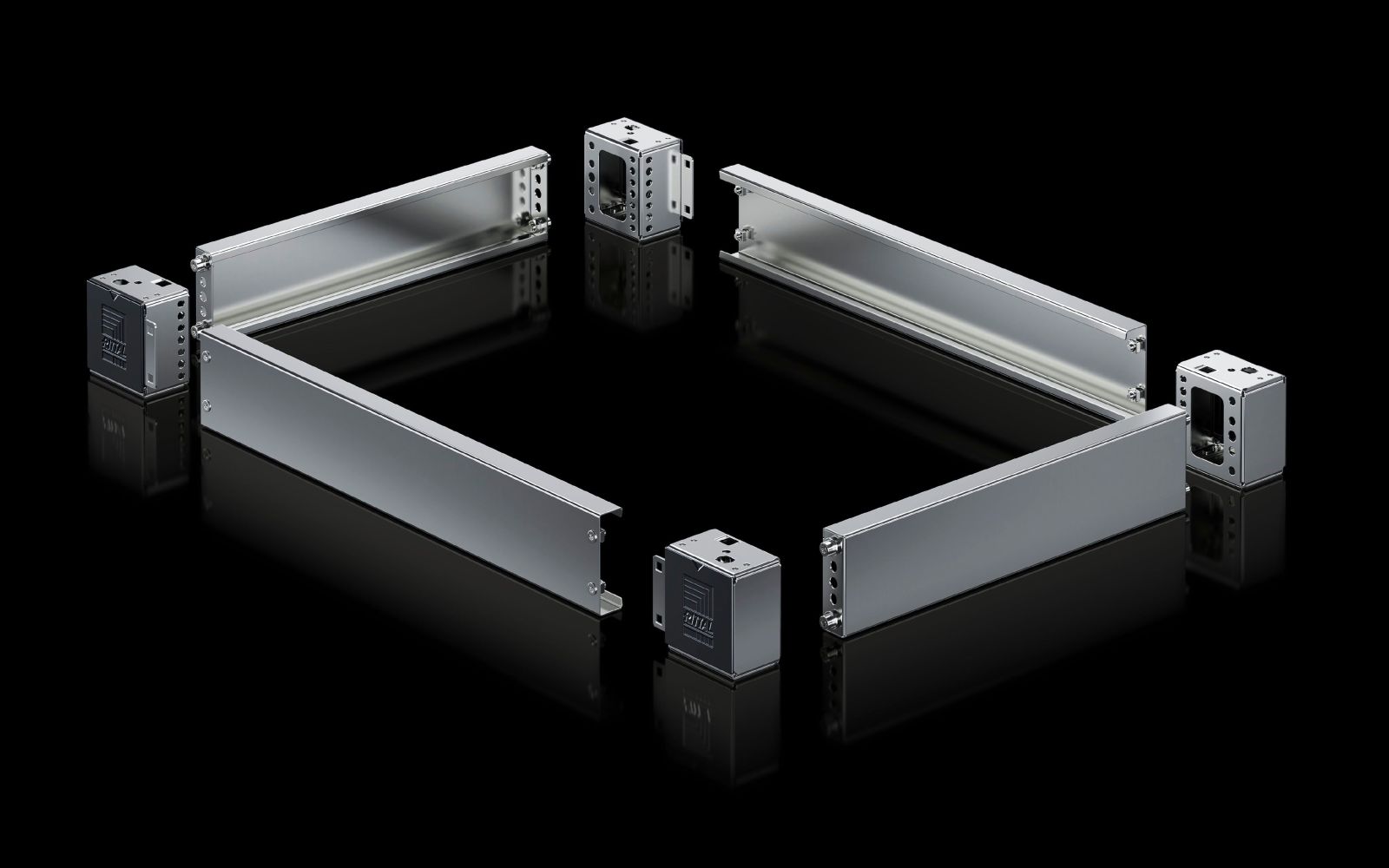

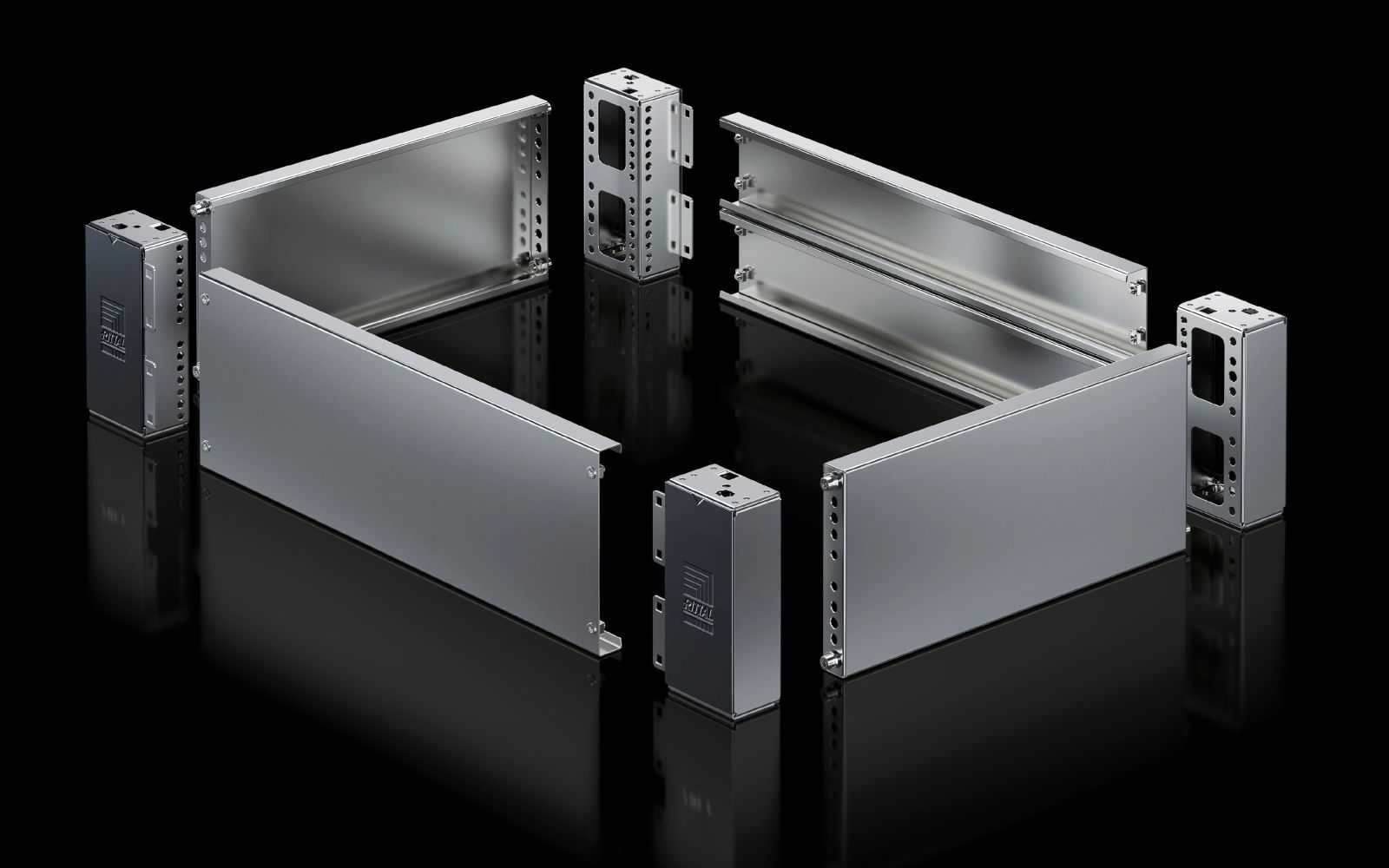

The VX plinth trim panel, side, type VX 8660071, from Rittal is a system accessory for enclosures and housings, specifically designed for the lateral closure of plinth units within the VX plinth system. The product is made of stainless steel 1.4301 (AISI 304), a material known for its high corrosion resistance and mechanical strength in industrial environments. The surface features a brushed finish, grain 400, providing a uniform, easy-to-clean, and aesthetically pleasing appearance. The height of the trim panel is 100 mm, making it designed for enclosures with a depth of exactly 500 mm. The trim panel is mounted in depth to close the side surfaces of the plinth unit and ensure a closed, clean appearance.

Applications

The plinth trim panel is intended for use in industrial plants, electrical installations, and machine building, where a robust and durable closure solution for enclosures is required. It is compatible with various housing types, including VX, VX SE, TS, and PC, and is specifically designed for enclosures with a depth of 500 mm. Its use in environments with increased requirements for mechanical stability and resistance to external influences is appropriate, as the material and construction are designed for this application.

Functions and Equipment in Detail

The trim panel primarily serves as a decorative and functional closure for the side surfaces of a plinth system. It prevents dust, moisture, or foreign objects from entering the lower section of the enclosure, thereby maintaining the integrity of installed components. The delivery includes the mounting hardware required to install the trim panel on the plinth unit. Installation is carried out using the provided mounting elements, ensuring a secure and durable fixation.

Technology Explained Simply

The material stainless steel 1.4301 (AISI 304) is a non-rusting steel used in many industrial applications due to its resistance to moisture, chemicals, and mechanical stress. The brushed finish with grain 400 provides a uniform surface texture that is both visually appealing and easy to clean. The height of 100 mm is matched to the standard depth of 500 mm to ensure a perfect fit. The trim panel is not designed for other depths but specifically for 500 mm.

Compatibility and Accessories

The plinth trim panel is compatible with housing types VX, VX SE, TS, and PC, provided the enclosure depth is 500 mm. Components from the 1st generation of the plinth system cannot be combined with components from the 2nd generation, meaning the trim panel must only be used with other parts from the same generation. The UL 50E certification includes Type Ratings Type 1, Type 3R, Type 4, Type 4X, and Type 12, confirming suitability for various environments, including damp or dusty areas.

Mounting and Installation

Installation is performed on the lateral surface of the plinth unit, using the included mounting hardware. The trim panel is positioned in the depth of the enclosure to close the side surfaces. Fixation is achieved through the designated mounting points, with the exact procedure following the included mounting hardware. It is important that the trim panel is only combined with components from the same generation of the plinth system to ensure safe and functional installation.

Operational Advantages

Using the plinth trim panel enhances the aesthetic appearance of the enclosure while simultaneously protecting the lower areas from contamination and mechanical damage. The robust construction from stainless steel 1.4301 ensures long service life even under demanding operating conditions. The UL 50E certification for multiple Type Ratings guarantees suitability for various applications, including industrial plants with higher requirements for protection class. The uniform surface texture and precise fit for 500 mm depth ensure a clean and professional installation.

General
MaterialStainless steel 1.4301 (AISI 304)
Surface protectionLinear grind, grit 400
Scope of deliveryIncluding mounting hardware
NoteComponents of the 1st generation of the socket system cannot be combined with components of the 2nd generation of the socket system.
Height100 mm
Suitable forHousing type: VX, VX SE, TS, PC, depth: = 500 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12


Product data sheet
Datasheet for Rittal 8660071, EAN: 4028177037816
