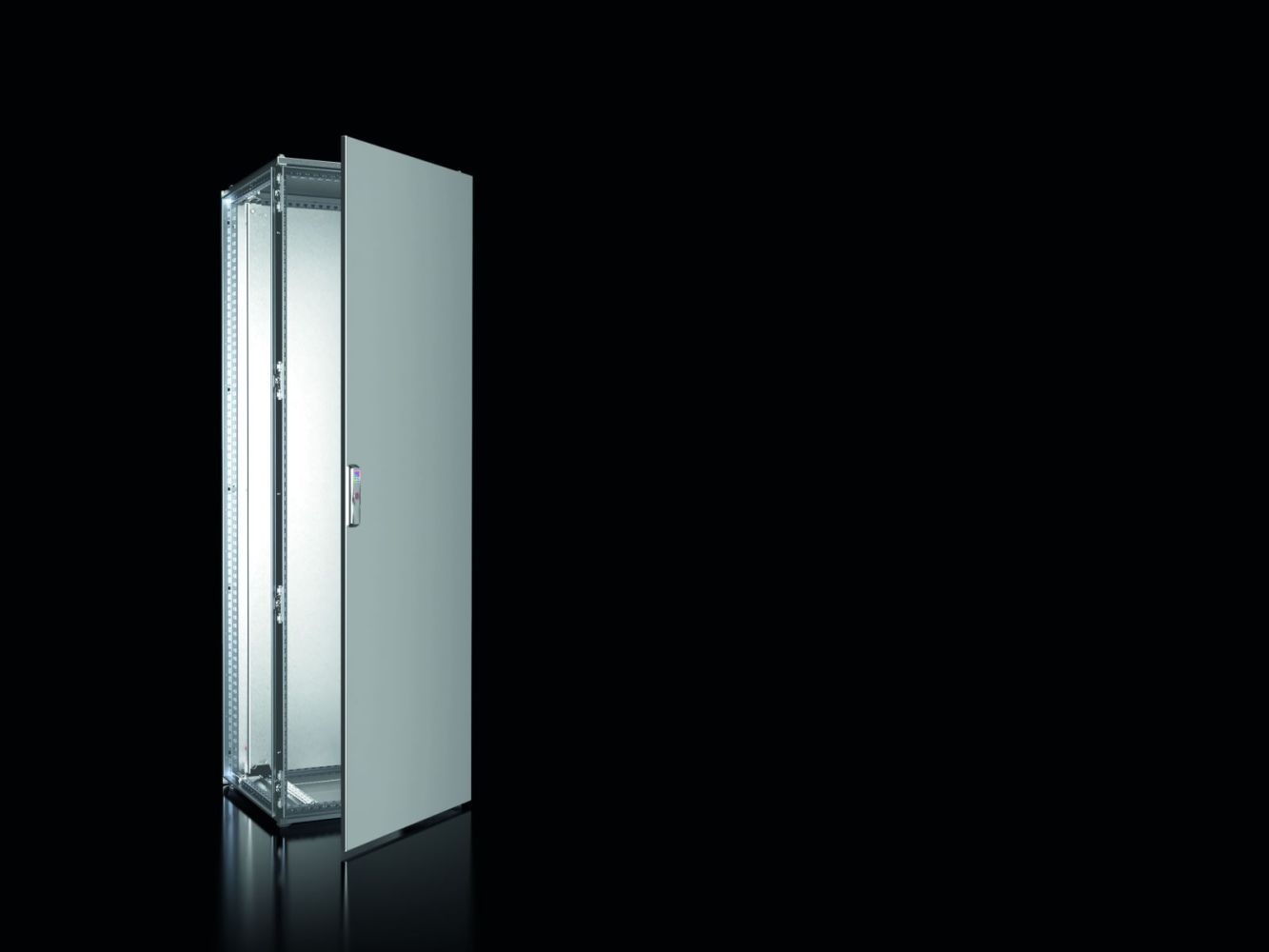

Rittal 8457000 VX bayed enclosure system, 1-door, W x H x D: 600x1800x500 mm
|
2.094,04 EUR |
|
|
( 2.491,91 EUR incl. VAT ) ≈ £1,752.71 | ≈ $2,301.35 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440953 |
| Mfg Part No: | 8457000 |
| UPC/EAN: | 4028177920187 |
| Weight: | 91.75 kg |
| Type: | VX 8457.000 |
Product information for Rittal 8457000:
Applications
This enclosure system is suitable for use in production plants, automation technology, power supply systems, and other industrial applications where high mechanical load capacity and protection against dust and splashing water are required. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from all directions, making it suitable for outdoor use or in damp indoor environments. Additionally, the device meets the protection ratings NEMA 1 and NEMA 12 as well as Type ratings Type 1 and Type 12 according to UL 50E, enabling use in various international markets. The IK code IK10 provides high mechanical protection against impact and shock, which is particularly important in environments with mechanical stress.
Functions and Equipment in Detail
The enclosure system includes an enclosure frame made of stainless steel 1.4301 with a wall thickness of 1.5 mm, equipped with a roof plate, base plates (split, removable), a rear panel, and a front door. The door has a wall thickness of 2.0 mm and is fitted with a PU foam seal ensuring a tight seal. The door is standardly mounted on the right side but can be toollessly repositioned to the left side. The locking mechanism uses a 3 mm double bar according to DIN 43668, enabling a four-point locking bar system. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm.
The mounting plate made of steel sheet (3.0 mm) is C-flanged on the sides and is depth-adjustable in 25 mm increments via integrated plastic gliding elements and reusable mounting rails. The mounting plate features a mounting grid to simplify component positioning. The flat parts – door, roof, rear panel, and base plates – are electrically connected to the frame, enabling automatic equipotential bonding according to DIN 62 208.
Technology Explained Simply
The construction of the enclosure system is based on a symmetrical profile frame made of closed and profiled hollow profiles with a hole pattern of 25 mm. The horizontal profiles feature an additional groove above the seal, providing protection against splashing water. Integrated blind rivet nuts M6 allow protection-rated fastening of fittings. The entire construction is designed for a load capacity of up to 15,000 N. The outer surface of the door, roof, and rear panel is hand-polished (grit 400), while the enclosure frame and base plates are left in the bare finish. The mounting plate is zinc-coated.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for internal installation. These include transport eyes made of stainless steel 1.4301, mounting ledges for external mounting level, VX partial mounting plates, C-profile rails, circuit diagram pockets, VX plinth corner pieces and trim panels, VX levelling feet, VX mounting rails, partition panels, support rollers, cable strain relief rails, and door latches. These components enable flexible adaptation to different mounting and installation conditions.
Mounting and Installation
Mounting is performed via the integrated mounting levels and the 25 mm hole pattern. The mounting plate is depth-adjustable, allowing flexible adaptation to different component heights. The base plates are removable and replaceable, facilitating access to the interior of the enclosure.
Operational Advantages
The enclosure system offers high mechanical and chemical resistance due to the use of stainless steel 1.4301. The IP 55 protection rating and IK10 code ensure reliable protection in demanding environments. The modular design and integrated mounting levels enable quick and space-saving internal installation. The tool-free repositioning of the door hinge and the extendable door opening facilitate maintenance and access to installed components. The conductive connection of flat parts to the frame ensures safe equipotential bonding, which is important for electrical safety. The recommendation to use the internal hexagon sheet screw 2486.400 for internal installation results from the hardness of the stainless steel and ensures secure fastening without damaging the surface.
| General | |
| Material | Cabinet frame: stainless steel 1.4301 (AISI 304), 1.5 mm, roof: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, door: stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed finish, rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, floor plates: stainless steel 1.4301 (AISI 304), 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame and base plates: plain, door, roof and rear panel: exterior brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet frame, door(s), door hinge right, reversible to left, roof sheet, floor sheets, rear panel, mounting plate, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 600 mm |
| Height | 1.800 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 279,02 |
