Rittal 8660050 VX VX plinth corner piece 1=2 with trim panel front/back H100 mm for B600 mm

Your rating:
Average rating
product review for Rittal 8660050 VX VX plinth corner piece 1=2 with trim panel front/back H100 mm for B600 mm
( 4.3 / 5 ) 6 ratings
Rittal 8660050
This image may differ from the desired article.
Rittal 8660050Rittal 8660050Rittal 8660050Rittal 8660050
-14% 190,21 EUR 221,73 EUR
( 226,35 EUR incl. VAT )
≈ £159.21  |  ≈ $209.04
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8660050 VX VX plinth corner piece 1=2 with trim panel front/back H100 mm for B600 mm
Datasheet:file_download Download
Lieske Part No.:877527
Mfg Part No: 8660050
UPC/EAN: 4028177037854
Weight:3.998 kg
Type:VX 8660050

Product information for Rittal 8660050:

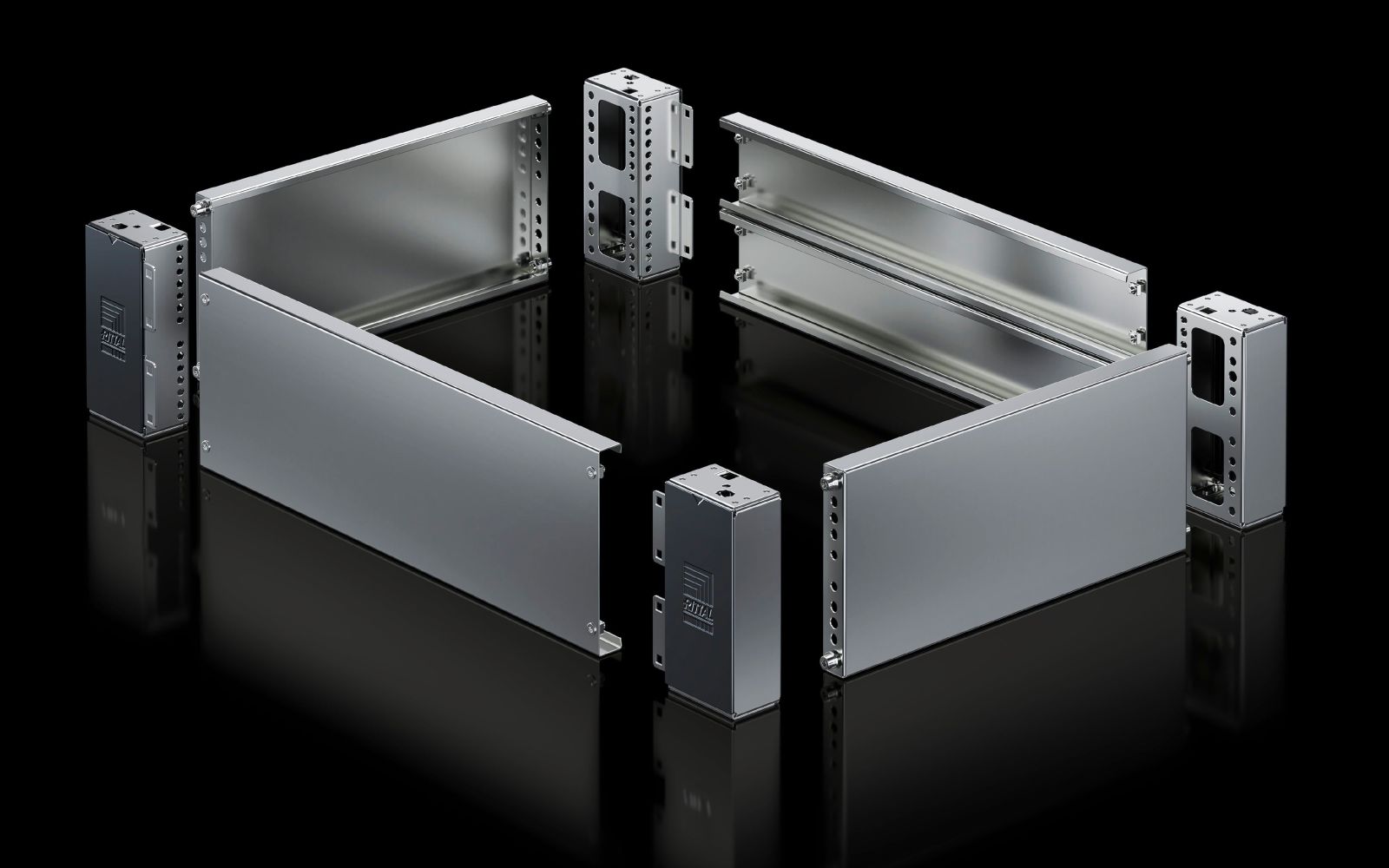

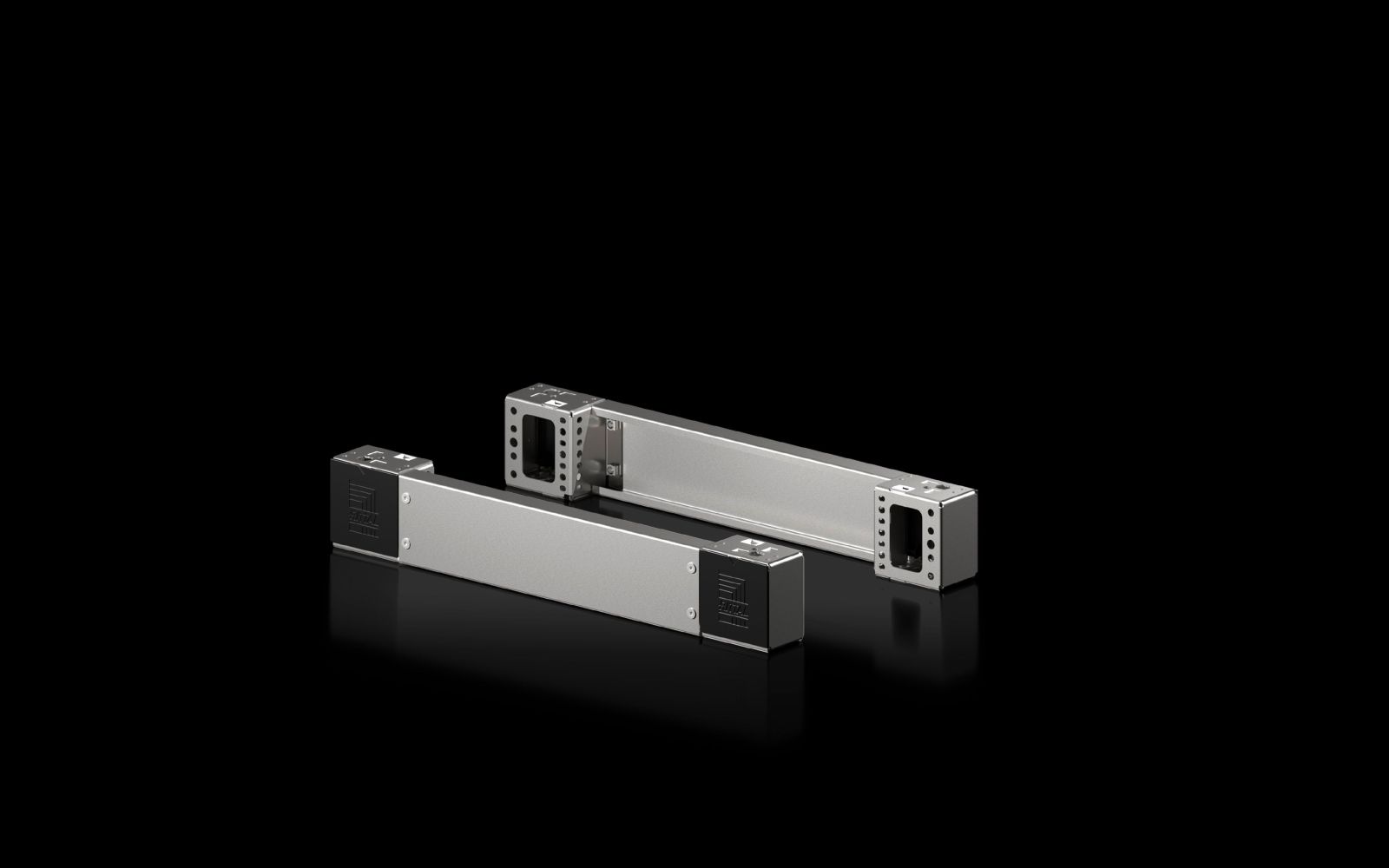

The Rittal VX 8660050 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically designed for the VX plinth system. It serves as a stable base for enclosures and housings of types VX, VX SE, TS and PC with a width of 600 mm. The height is 100 mm, making it ideal for standard plinth configurations. The components are made of stainless steel 1.4301 (AISI 304), ensuring high corrosion resistance and mechanical strength. The surface features a brushed finish, grain 400, providing a uniform, easy-to-clean and aesthetically pleasing finish.

Applications
The plinth corner piece is used in industrial environments where a robust and durable mounting base for enclosures is required. It is particularly suitable for applications in the manufacturing industry, automation technology, and environments with increased requirements for mechanical stability and corrosion protection. Compatibility with enclosure types VX, VX SE, TS and PC enables flexible integration into existing systems.

Functions and Equipment in Detail
The plinth corner pieces feature large openings that allow optimal access to the screw connection points, simplifying installation and maintenance. The integrated plinth trim panels at the front and rear ensure a clean visual appearance and support stabilization between plinths. The delivery includes 4 plinth corner pieces, 2 plinth trim panels (front/rear), 4 ABS caps, and the necessary mounting hardware. The caps can be replaced with stainless steel caps for the VX plinth system if required.

Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high resistance to moisture, salt spray, and chemical influences, which is particularly advantageous in industrial environments. The brushed finish with grain 400 provides a uniform surface structure that is both aesthetically pleasing and easy to clean. The design enables seamless baying of the plinths, creating a continuous and stable base. The integrated trim panels increase mechanical stability and prevent dust or foreign objects from entering at the edges.

Compatibility and Accessories
The plinth corner piece is designed for enclosures with a width of 600 mm and fits enclosure types VX, VX SE, TS and PC. It is certified to UL 50E Type 1, Type 3R, Type 4, Type 4X and Type 12 ratings, enabling use in various environments, including damp or dusty areas. Compatible accessories include cable strain relief rails, mounting brackets, mounting plates, TS mounting steps, double swivel castors, plinth adapters, levelling elements, and VX cable strain relief rail with angle profile. Components of the 1st generation of the plinth system are not compatible with those of the 2nd generation.

Installation and Mounting
Installation is carried out using the mounting hardware included in the delivery. The large openings in the plinth corner pieces facilitate access to the screw connections, allowing for quick and precise installation. The caps serve for visual finishing and can be replaced if necessary.

Operational Advantages
The plinth corner piece provides a stable and corrosion-resistant base for enclosures that functions reliably even under harsh operating conditions. The integrated trim panels increase mechanical stability and improve the visual appearance. Easy installation and maintenance due to the large access openings reduce installation effort. Compatibility with various enclosure types and accessories enables flexible use in different application scenarios. Certification to UL 50E ensures compliance with international safety standards.

General
MaterialSocket corner piece: stainless steel 1.4301 (AISI 304), socket faceplate front/back: stainless steel 1.4301 (AISI 304), cover caps: ABS
Surface protectionLinear grind, grit 400
Scope of deliveryIncluding mounting material, 4 end caps, 4 socket corner pieces, 2 socket front/rear covers, 100 mm
NoteSocket inserts, required on the sides to complete a socket unit and provide additional stabilization between sockets. The included cover caps can be replaced, if required, with stainless steel cover caps for VX socket system, stainless steel. Components of the 1st generation of the socket system cannot be combined with components of the 2nd generation of the socket system.
Height100 mm
Suitable forhousing type: VX, VX SE, TS, PC, width: = 600 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12


Product data sheet
Datasheet for Rittal 8660050, EAN: 4028177037854

Questions & answers

What is the delivery time of Rittal 8660050 VX VX plinth corner piece 1=2 with trim panel front/back H100 mm for B600 mm?

The article Rittal 8660050 VX VX plinth corner piece 1=2 with trim panel front/back H100 mm for B600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660050 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660050 VX VX plinth corner piece 1=2 with trim panel front/back H100 mm for B600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8660050 VX VX plinth corner piece 1=2 with trim panel front/back H100 mm for B600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
