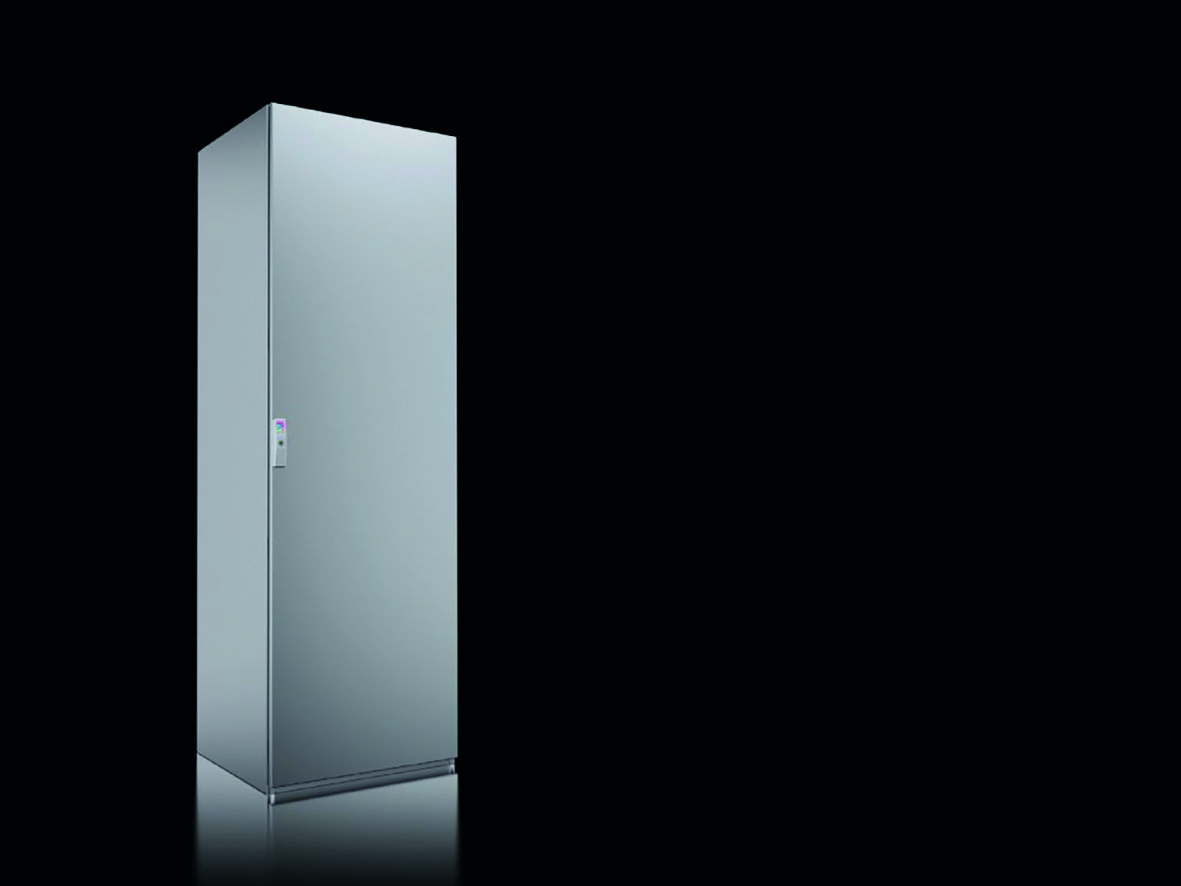

Rittal 5851600 SE system single enclosure 600x1800x500 mm stainless steel
|
2.202,14 EUR |
|
|
( 2.620,55 EUR incl. VAT ) ≈ £1,843.19 | ≈ $2,420.15 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1864884 |
| Mfg Part No: | 5851600 |
| UPC/EAN: | 4028177959378 |
| Weight: | 103.75 kg |
| Type: | SE 5851600 |
Product information for Rittal 5851600:
Applications include industrial control systems, automation technology, machine building, and plant engineering, particularly in environments with moisture, dust, or aggressive chemicals. The use of stainless steel 1.4301 ensures high corrosion resistance and long service life. The surface of the enclosure, door, and rear panel is finished with a brushed finish (grit 400), providing a uniform, easy-to-clean surface. The base plates are plain, and the mounting plate is galvanized.
Functions and equipment in detail include a removable rear panel, fitted with a foamed seal and also providing automatic equipotential bonding to the enclosure body. The base plates are 3-part, removable, and replaceable, mounted and also equipped with equipotential bonding. The mounting plate made of sheet steel (3.0 mm) is C-bent on the sides and depth-adjustable in 25 mm increments via integrated plastic glides and mounting rails. It features an integrated mounting grid to simplify component positioning. The delivery includes two mounting rails (18 × 39 mm).
Technology explained simply shows that the enclosure is made of 1.5 mm thick stainless steel, the door of 2.0 mm thick stainless steel, and the rear panel and base plates also of 1.5 mm stainless steel. The mounting plate is made of 3.0 mm thick sheet steel. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water, making the enclosure suitable for outdoor use or damp indoor environments. The protection ratings NEMA 3R and NEMA 12 as well as the type rating according to UL 50E (Type 1, 2, 3, 3R, 12) confirm suitability for various industrial environments. The IK code IK10 provides high protection against mechanical impacts, such as blows or shocks. The system mounting grid in 25 mm DIN pitch allows flexible mounting of assemblies and components.
Compatibility and accessories include use in the baying system VX25. Suitable accessories include stainless steel 1.4301 lifting eyes, system chassis, comfort handles, lock inserts, mounting brackets, support rollers, 180° hinges, door latches, and C-profile rails. These components allow individual adaptation of the enclosure to specific requirements.
Mounting and installation is performed using the integrated mounting levels and the system mounting grid. The mounting plate is depth-adjustable, enabling flexible adaptation to different floor conditions. The base plates are removable, facilitating cleaning and maintenance. The rear panel is removable, simplifying access to the interior for mounting and maintenance. Due to the material hardness, it is recommended to use the internal hexagon sheet metal screw 2486.400 for internal assembly.
Operational advantages include high corrosion resistance, mechanical stability, easy mounting and maintenance, and flexibility through the integrated mounting system. The integral construction reduces assembly time, as no additional side panels need to be mounted. The protection ratings IP 55, NEMA 3R/12, and IK10 ensure reliable operation in demanding environments. The automatic equipotential bonding at door, rear panel, and base plates increases electrical safety.
The enclosure is designed for use in industrial plants, where reliability, safety, and ease of maintenance are crucial. The use of stainless steel 1.4301 and the robust construction make it a long-lasting and low-maintenance solution for industrial applications.
| General | |
| Material | Housing: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Door: stainless steel 1.4301 (AISI 304), 2.0 mm, outside brushed finish, Rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Base plates: stainless steel 1.4301 (AISI 304), 1.5 mm, Mounting plate: sheet steel, 3.0 mm |
| Surface protection | Housing, door and rear panel: brushed finish, grain 400, base plates: plain, mounting plate: galvanised |
| Scope of delivery | Housing top and sides closed, door(s), for single-door cabinets door hinge on right, changeable to left, rear panel, removable, mounting plate, base plates, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 600 mm |
| Height | 1.800 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 320,05 |
